PULLER M38x1.5 RH FLY WHEEL CANAM UTV ATV 529035748, 529036034 M38x1.5 RH INTERNAL THREAD
  • PULLER M38x1.5 RH FLY WHEEL CANAM UTV ATV 529035748, 529036034 M38x1.5 RH INTERNAL THREAD
  • PULLER M38x1.5 RH FLY WHEEL CANAM UTV ATV 529035748, 529036034 M38x1.5 RH INTERNAL THREAD
PULLER M38x1.5 RH FLY WHEEL CANAM UTV ATV 529035748, 529036034 M38x1.5 RH INTERNAL THREAD

PULLER M38x1.5 RH FLY WHEEL CANAM UTV ATV 529035748, 529036034 M38x1.5 RH INTERNAL THREAD

£28.31 GBP
Taxes included. Shipping calculated at checkout.

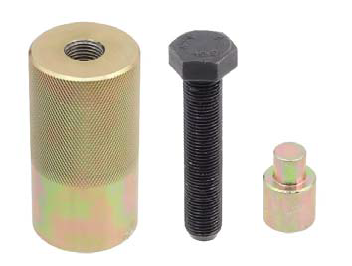

Flywheel puller designed for selected Can-Am ATV and UTV models. It features an M38 × 1.5 right-hand internal thread to interface with the flywheel/rotor hub and is supplied with a high-strength bolt and cap to match the specified dimensions. Corresponds to OEM references 529035748 and 529036034.

Features

  • Flywheel puller for specified Can-Am ATV/UTV applications

  • M38 × 1.5 right-hand internal thread

  • Supplied with high-strength bolt and cap components

  • Designed to match original service tool geometry for correct engagement

Specifications

  • Thread: M38 × pitch 1.5, right-hand, internal

  • Puller overall length: 85 mm

  • Outer diameter (puller body): 44.4 mm

  • Bolt length: 80 mm

  • Side-to-side: 23.8 mm

  • Bolt grade: 10.9

  • Cap outer diameters: 22 mm / 13.4 mm

  • Cap length: 34.5 mm

  • Materials: 45C (puller), SCM435 (bolt)

  • OEM references: 529035748, 529036034

  • Additional reference: AT-12282

Cross-Reference OEM Part Numbers

  • 529035748

  • 529036034

Vehicle Fitments

  • OUTLANDER 330 2003–2005

  • OUTLANDER 400 2003–2006

  • OUTLANDER 400 2008–2014

  • OUTLANDER MAX 400 2004–2014

  • OUTLANDER L 450 2015–2016

  • OUTLANDER L MAX 450 2015

  • OUTLANDER 500 2007–2015

  • OUTLANDER L 500 2015

  • OUTLANDER L MAX 500 2015

  • OUTLANDER MAX 500 2007–2016

  • RENEGADE 500 2008–2015

  • OUTLANDER 570 2016–2019

  • OUTLANDER L 570 2016

  • OUTLANDER L MAX 570 2016

  • OUTLANDER MAX 570 2016–2019

  • RENEGADE 570 2016–2019

  • OUTLANDER 650 2006–2019

  • OUTLANDER MAX 650 2006–2019

  • OUTLANDER 800 2006–2008

  • OUTLANDER 800R 2009–2015

  • OUTLANDER MAX 800 2006–2008

  • OUTLANDER MAX 800R 2009–2015

  • RENEGADE 800 2007–2008

  • RENEGADE 800R 2009–2015

  • OUTLANDER 850 2016–2019

  • OUTLANDER MAX 850 2016–2019

  • RENEGADE 850 2016–2019

  • OUTLANDER 1000 2012–2018

  • OUTLANDER 1000R 2016–2019

  • OUTLANDER MAX 1000 2013–2015

  • OUTLANDER MAX 1000R 2016–2019

  • RENEGADE 1000 2012–2015

  • RENEGADE 1000R 2016–2019

  • UTV

  • COMMANDER 800 2011–2015

  • COMMANDER 800R 2011–2019

  • COMMANDER MAX 800R 2014–2019

  • COMMANDER 1000 2011–2017

  • MAVERICK 1000 2013

  • MAVERICK 1000R 2013–2018

  • MAVERICK MAX 1000R 2013–2018
