POLARIS RANGER XP 900 UNDER DASH CAB HEATER MATRIX BLOWER, SUPER ATV HTR-P-RAN900

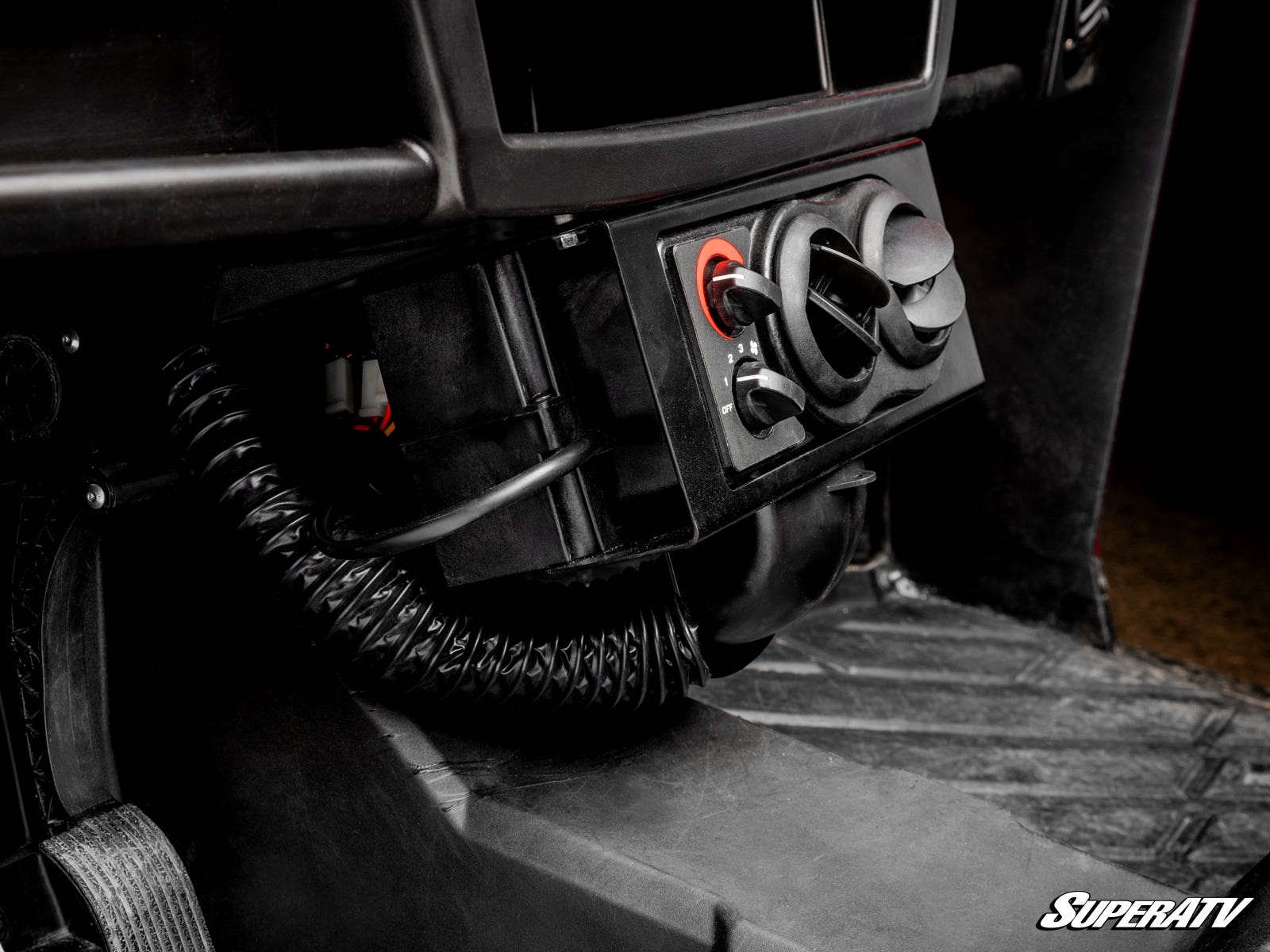

The under-dash cab heater matrix blower for Polaris Ranger XP 900 (HTR-P-RAN900) delivers controlled heating with adjustable temperature, variable fan speeds, and 360° adjustable vents. It mounts under the dash, includes defrost hoses and vents, and uses high-grade hoses rated for extreme temperatures. The unit features a built-in shut-off valve and comes with all hardware and instructions for installation. Optional quick-start flow valve and idle flow pump can be added to reduce warm-up time.

Features

• Adjustable temperature and fan speeds

• 360° adjustable vents

• Includes defrost hoses and vents

• Built-in shut-off valve

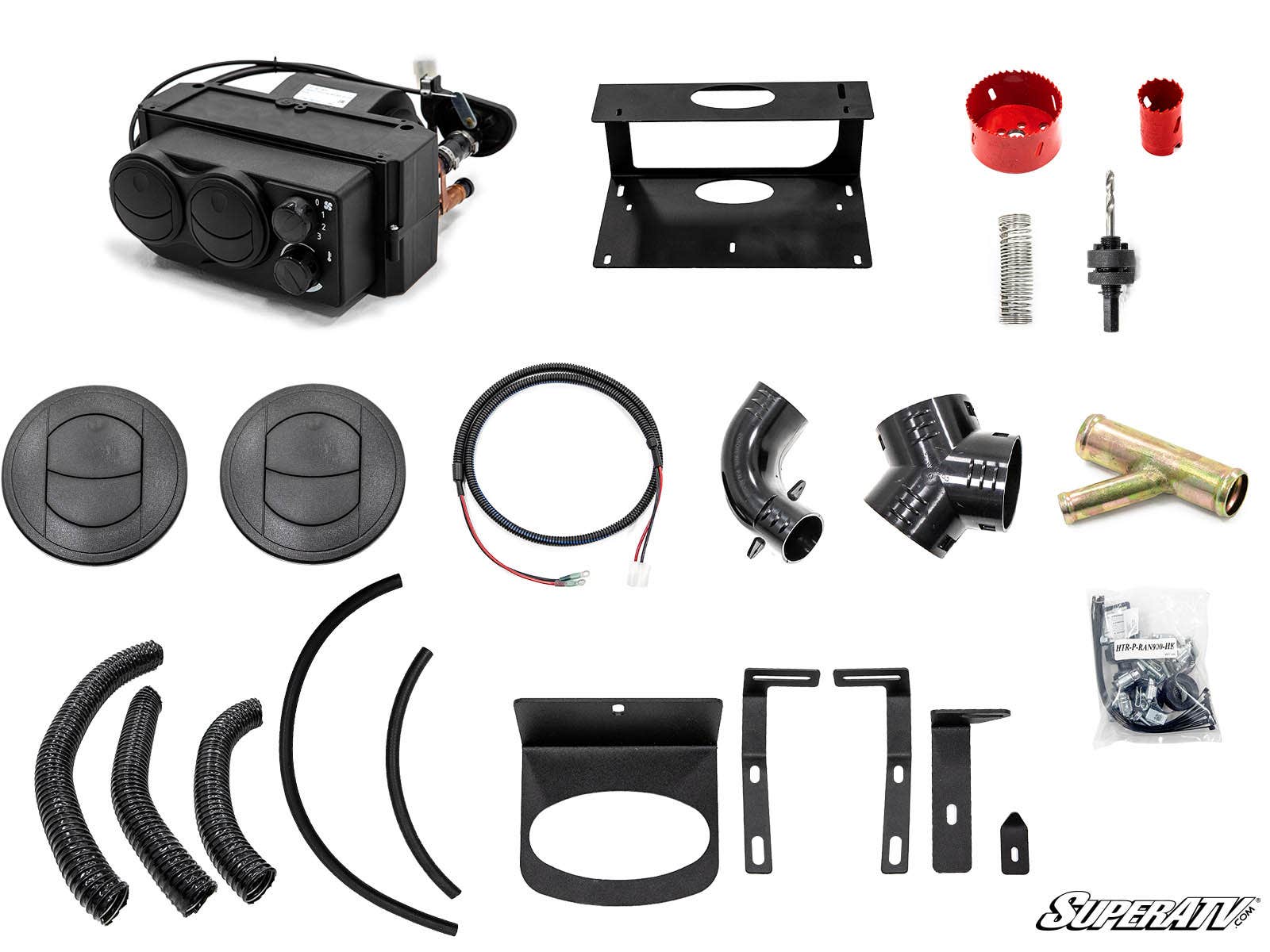

• Easy installation with all hardware and instructions included

• Compatible with optional quick-start flow valve and idle flow pump to get heated air faster

Specifications

• Electrical draw: 3.4 amps at 13.7 volts

• Performance: up to 14,600 BTU at 135 CFM

• Hose rating: high-grade radiator hoses rated -40°F to 285°F

• Heater control box dimensions: 10" x 4.5" x 11.75"

• Installation note: drilling through plastic and firewall required; all necessary drill bits included

Vehicle Fitments

• Polaris Ranger XP 900: 2013–2019

• Polaris Ranger XP 900 Crew: 2014–2019

• Polaris Ranger XP 570: 2015–2016

• Polaris Ranger XP 570 Crew: 2015–2016

• Polaris Ranger 1000 Diesel: 2015–2018

• Polaris Ranger 1000 Diesel Crew: 2015–2018

• Polaris Ranger XP 1000: 2017

• Polaris Ranger XP 1000 Crew: 2017
