Plastic Centre Push Fender Clips Rivets PACK-10 8mmx15mmx23mm

Factory Image Racing (FIR)

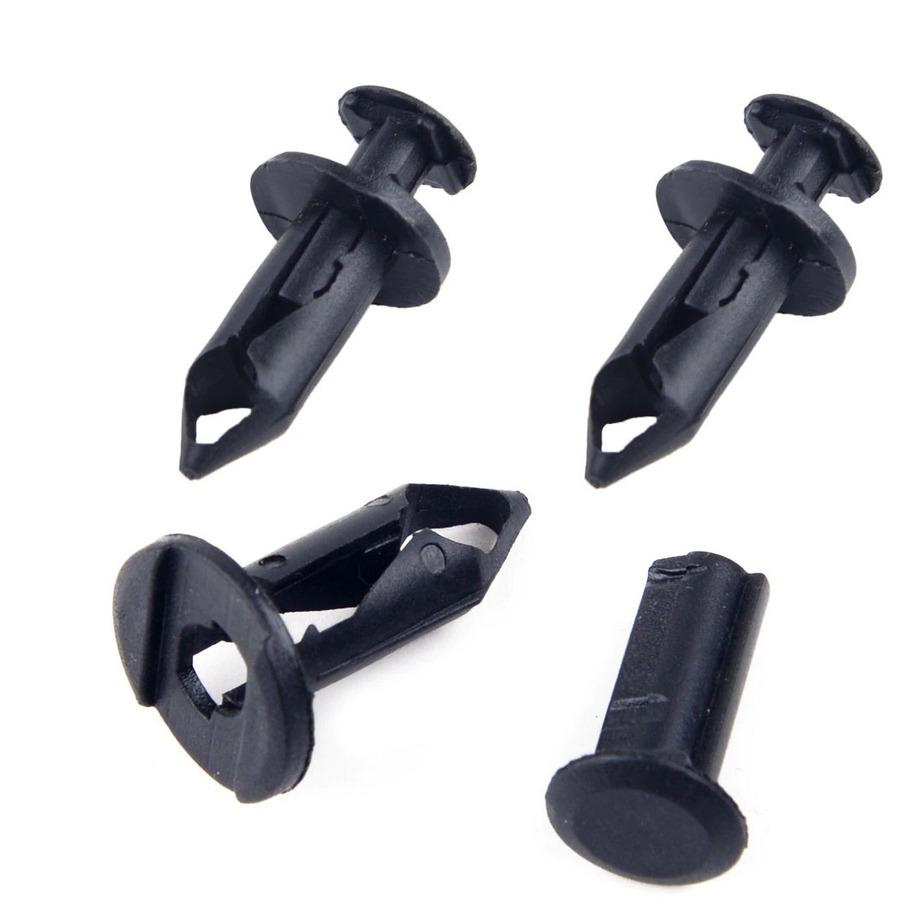

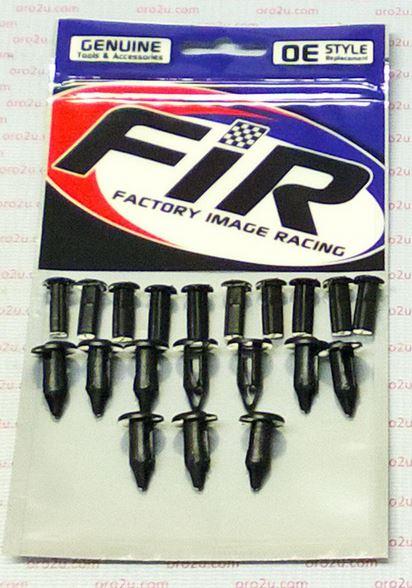

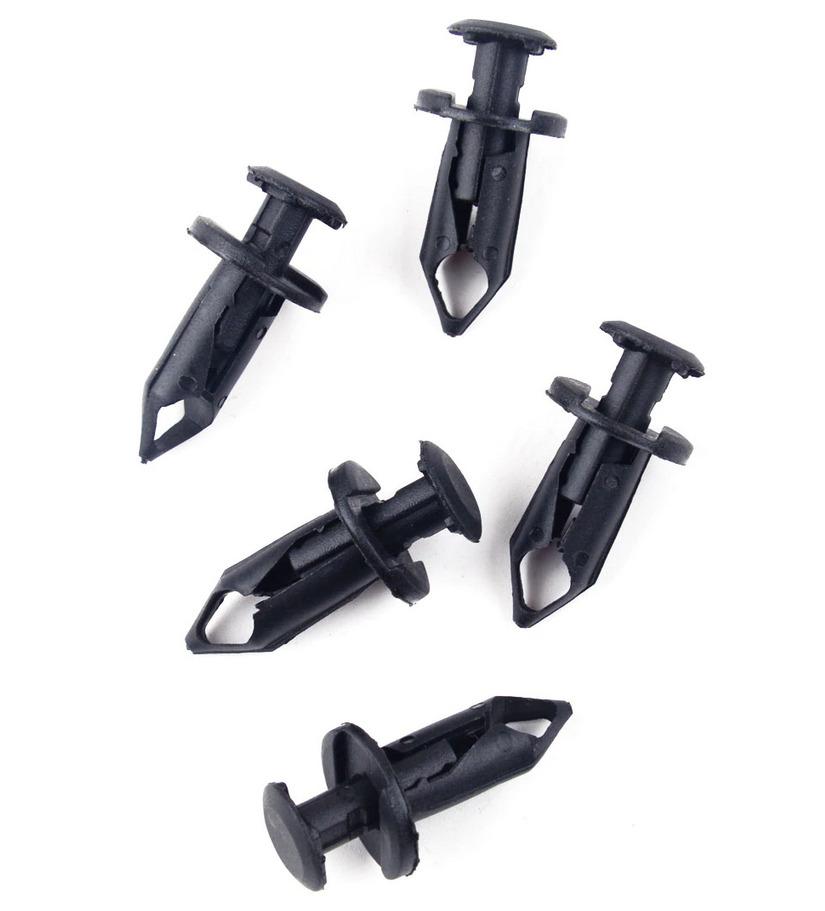

These plastic centre push fender clips/rivets from Factory Image Racing (FIR) are designed for secure attachment of body panels and accessories on a wide range of Can-Am models. Manufactured from durable materials, they meet OEM specifications for reliable performance and easy installation. These clips are compatible with numerous assemblies across Outlander, Traxter, Renegade, Spyder, Commander, and Maverick models from 2003 to 2018.

Features

• Best value for money
• Unmatched reliability and performance from high-tech materials
• Easy to install; professional installation recommended if unsure
• Please see image before ordering to avoid mistakes

Specifications

• Diameter: 7.8mm
• Head Diameter: 15mm
• Length: 23mm

Cross-Reference OEM Part Numbers

• 293150089
• 293150230

Assemblies Where 293150089 Is Used:

2003 Models:

• Outlander 400 - Body And Accessories (Front & Rear View)
• Traxter Max - Seat

2004 Models:

• Outlander MAX 400 - Body (Front View)
• Quest STD/XT - Seat
• Traxter Max Std & Max XT - Body And Accessories (Front View) & Seat

2005 Models:

• Outlander 400 XT 4 X 4 - Body And Accessories 2
• Outlander MAX 400 - Body And Accessories 3 & 2
• Traxter 5 Speed - Body And Accessories (Rear)
• Traxter CVT (500, 650, 650 XT) - Seat
• Traxter Max CVT 650 - Seat & Body And Accessories (Rear View)
• Traxter Max Std & Max XT - Body And Accessories 1 & 2 & Seat
• Traxter XL - Body And Accessories
• Traxter XT - Body And Accessories (Rear)

2006 Models:

• Outlander 400 XT 4 X 4 - Body And Accessories #2
• Outlander 650 STD 4 X 4 - Body And Accessories 2, Std
• Outlander 650 XT 4 X 4 - Body And Accessories 3, Xt
• Outlander 800 STD 4 X 4 - Body And Accessories 2 & 3
• Outlander 800 XT 4 X 4 - Body And Accessories 2 & 3
• Outlander MAX 400 XT 4 X 4 - Body And Accessories #2
• Outlander MAX 650 STD 4 X 4 - Body And Accessories 3, Max Std
• Outlander MAX 800 STD 4 X 4 - Body And Accessories 2 & 3
• Outlander MAX 800 XT 4 X 4 - Body And Accessories 2 & 3

2007 Models:

• Outlander 400 STD/XT 4 X 4 - Body And Accessories 2 & 3, Std
• Outlander 500 STD/XT 4 X 4 - Body And Accessories 3 & 4
• Outlander 650 STD/XT 4 X 4 - Body And Accessories 2 & 3
• Outlander 800 STD/XT 4 X 4 - Body And Accessories 2 & 3
• Outlander MAX 400 STD/XT 4 X 4 - Body And Accessories 2 & 3
• Outlander MAX 500 STD/XT 4 X 4 - Body And Accessories 2 & 3
• Outlander MAX 650 STD/XT 4 X 4 - Body And Accessories 2 & 3
• Outlander MAX 800 LTD/STD/XT 4 X 4 - Body And Accessories 2 & 3
• DS 450 - Air Intake Silencer

2008 Models:

• Outlander 400 EFI/STD/XT - Body And Accessories 2 & 3
• Outlander 500 STD/XT - Body And Accessories 2 & 3
• Outlander 650 STD/XT - Body And Accessories 2 & 3
• Outlander 800 STD/XT - Body And Accessories 2 & 3
• Outlander MAX 400 EFI/STD/XT - Body And Accessories 2 & 3
• Outlander MAX 500 STD/XT - Body And Accessories 2 & 3
• Outlander MAX 650 STD/XT - Body And Accessories 2 & 3
• Outlander MAX 800 LTD/STD/XT - Body And Accessories 2 & 3

2009 Models:

• Outlander 650 EFI - Engine And Engine Support, Body And Accessories 2 & 3
• Outlander 800R EFI - Engine And Engine Support, Body And Accessories 2 & 3
• Outlander Max 400/650 EFI - Body And Accessories 2 & 3
• Spyder GS Roadster with SE5/SM5 transmission - Electrical Accessories, Steering
• Renegade 500 - Engine And Engine Support 500

2010 Models:

• Outlander 400/500/650/800R EFI - Body And Accessories 2, 3, 5
• Outlander Max 400/500/650/800R EFI - Body And Accessories 2, 3, 5
• Spyder RS Roadster SE5/SM5, RT Roadster SE5/SM5 - Electrical Accessories, Lighting System

2011 Models:

• Outlander 400/500/650/800R EFI - Body And Accessories 2, 3, 5
• Outlander Max 500/650/800R EFI - Body And Accessories 2, 3, 5
• Spyder RS Roadster SE5/SM5, RT LTD - Electrical Accessories, Lighting System

2012 Models:

• DS 450EFI STD - Air Intake Silencer, Body And Accessories
• Outlander 500EFI STD & XT - Body And Accessories 2 & 3
• Outlander 650EFI STD & XT - Body And Accessories 2 & 3
• Outlander 800REFI Xmr - Body And Accessories 2, 3, 5
• Outlander MAX 500/650/800REFI - Body And Accessories 2, 3, 5
• Outlander STD, XT, 1000 EFI - Body And Accessories, Rear Cargo Box
• Spyder RS SE5/SM5, RT Limited/SE5/SM5 - Electrical Accessories, Lighting System

2013 Models:

• Outlander 1000EFI XMR - Rear Cargo Box
• Outlander 1000EFI, DPS, XT & XT-P - Cooling System, Rear Cargo Box
• Outlander 650EFI STD, DPS & XT - Cooling System, Rear Cargo Box
• Outlander 800R EFI, STD, DPS, XT & XT-P - Cooling System, Rear Cargo Box
• Spyder RS_RSS SE5/SM5, RT LIMITED SE5 - Cooling System, Electrical Accessories

2014 Models:

• Maverick MAX 1000 - Cab Interior Dash And Console
• Outlander 1000EFI, DPS, XT & XT-P - Cooling System, Rear Cargo Box
• Outlander 500EFI STD, DPS & XT - Cooling System, Rear Cargo Box
• Outlander 650EFI STD, DPS & XT - Cooling System, Rear Cargo Box
• Outlander 800R EFI, STD, DPS, XT & XT-P - Cooling System, Rear Cargo Box
• Spyder RS/RT - Electrical Accessories, Lighting System

2015 Models:

• Outlander 1000 EFI XMR - Rear Cargo Box
• Outlander 400 EFI, STD (INTERNATIONAL ONLY) - Body And Accessories
• Outlander 500/650/800R EFI - Body And Accessories, Rear Cargo Box
• Renegade 1000/500/800R EFI - Engine And Engine Support, Body And Accessories
• Spyder F3/RS/RT - Electrical Accessories

2016 Models:

• F3 - Body And Accessories - Luggages, Front Storage, Console
• Renegade - Body And Accessories - Xmr
• RS - Body And Accessories - Console, General
• RT - Body And Accessories - Side Panels, Front Storage
• ST - Body And Accessories - General, Console, Footrest, Front Storage

2017 Models:

• Commander - Engine, Cab Interior, Body And Accessories
• Outlander MAX 650-850-1000 - Engine And Engine Support
• Outlander 6X6 - Body And Accessories, Cooling System
• Renegade - Engine And Engine Support

2018 Models:

• Outlander 6X6, T3 1000 EFI - Body And Accessories, Cooling, Cargo
• Outlander MAX 6X6 - Body And Accessories, Cooling System, Cargo
