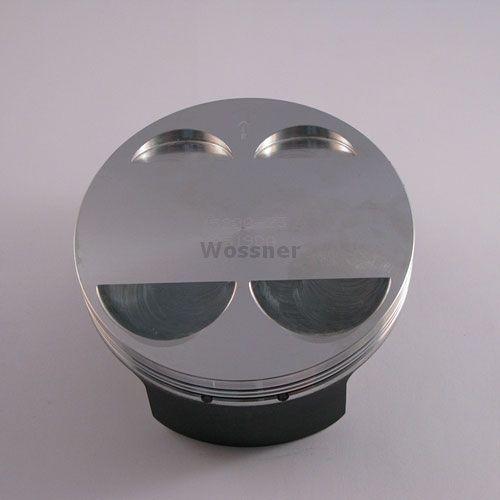

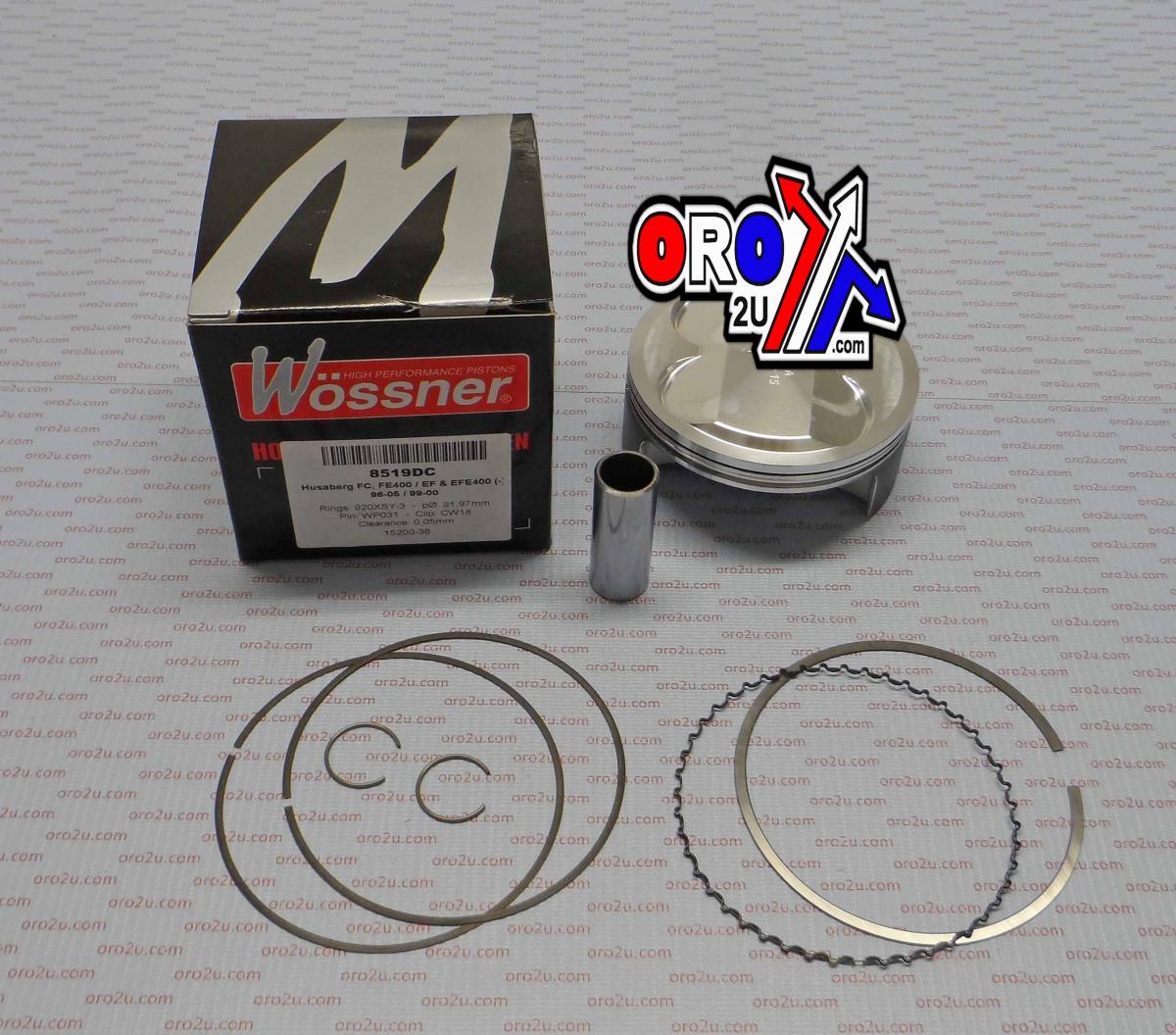

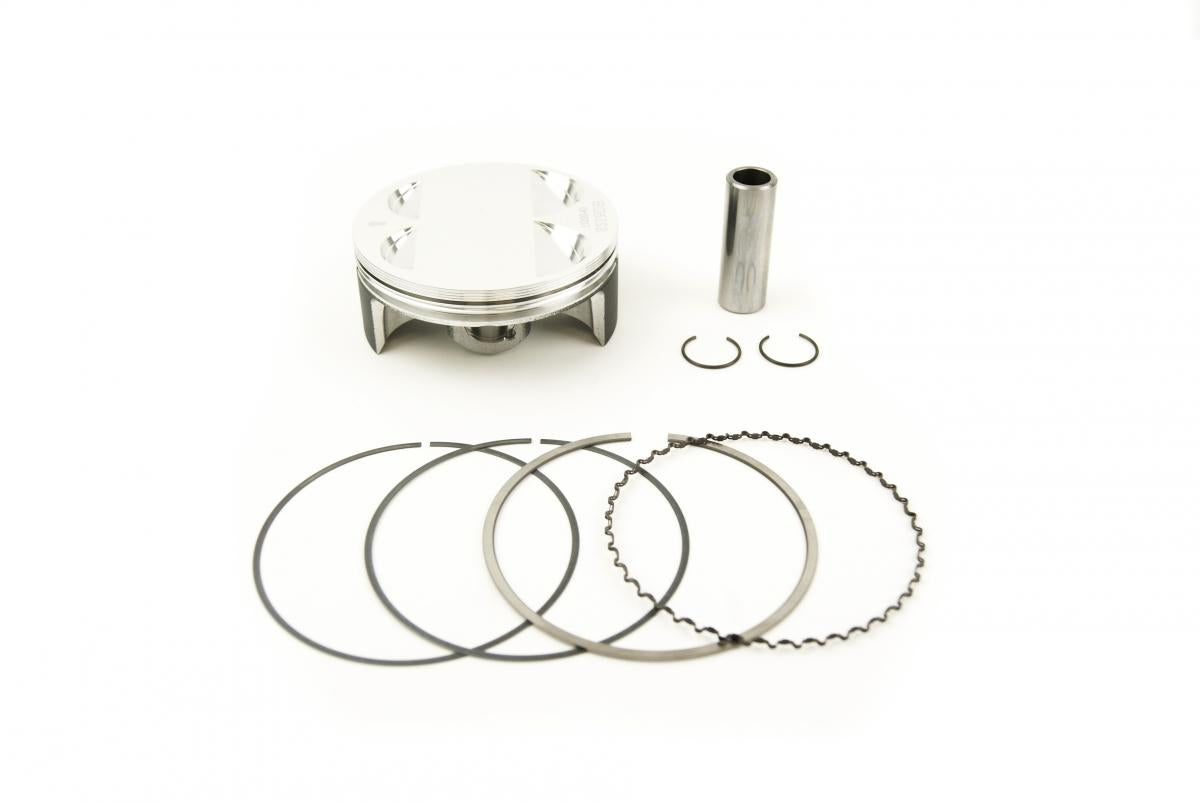

Piston Kit Husaberg 400 92.02m, Forged Wossner 8519DC

Piston kit 92.00mm Bore 91.97 Wossner 8519DC (STD)

HUSABERG
FC400 1996 - 2005,
FE400 1999 - 2000,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

PART NO. 56-W121.C.WO
Wossner Piston Husaberg FC400 92 mm Bore (PN# 8519DC)
Lock P/N CW18
Pin P/N WP031
Ring Set P/N 920XSY

Display (cm3) 397
Hub stroke (mm) 59.80
Clearance (mm) 0.05
Wossner compression Ratio: OEM
OEM Compression ratio:
Dome volume (cm3) -3.30
Compression height (mm) 22.60
Theorectical weight (G)
