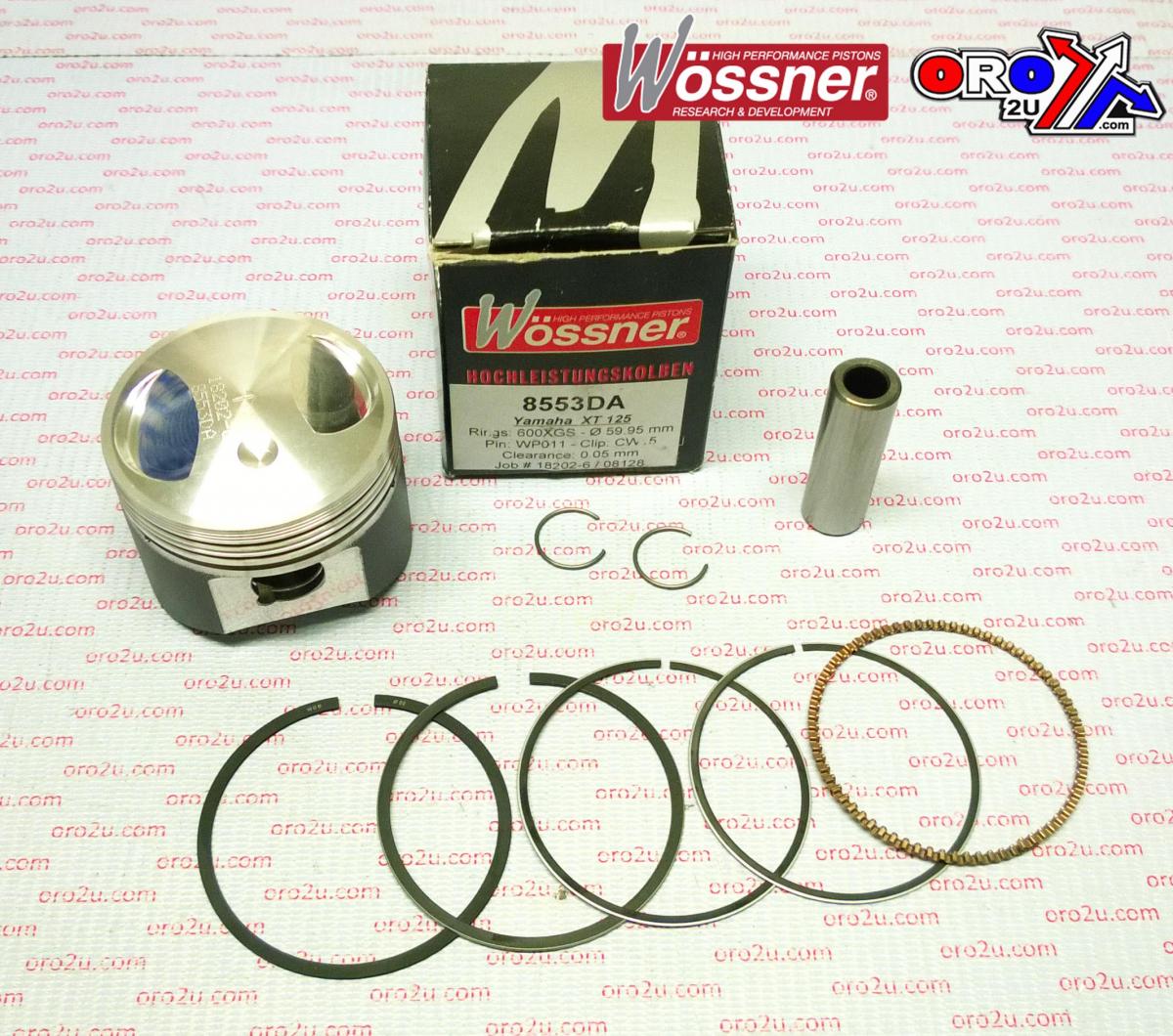

Piston Kit All XT125 60.00, Forged Wossner 8553DA

Piston Kit 60mm Bore 59.95 Wossner 8553DA (STD)

YAMAHA

• XT 125: 1982 - 1993

Features:

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Components:

• Lock P/N: CW15
• Pin P/N: WP011
• Ring Set P/N: 600XKS
• Piston Size: 59.95mm

Specifications:

• Displacement (cm3): 124
• Hub Stroke (mm): 43.90
• Clearance (mm): 0.05
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 10.00:1
• Dome Volume (cm3): +4.80
• Compression Height (mm): 24.00
