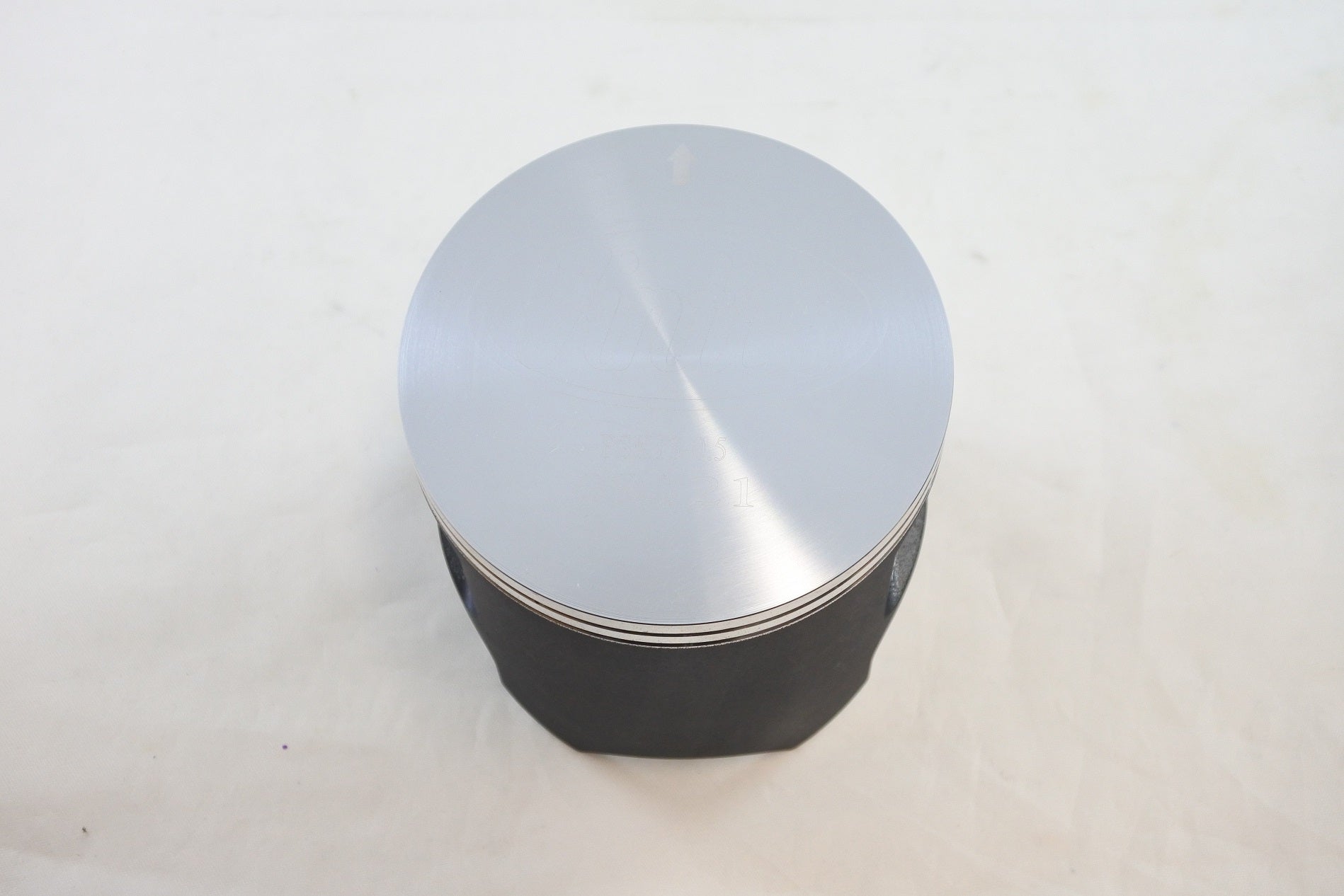

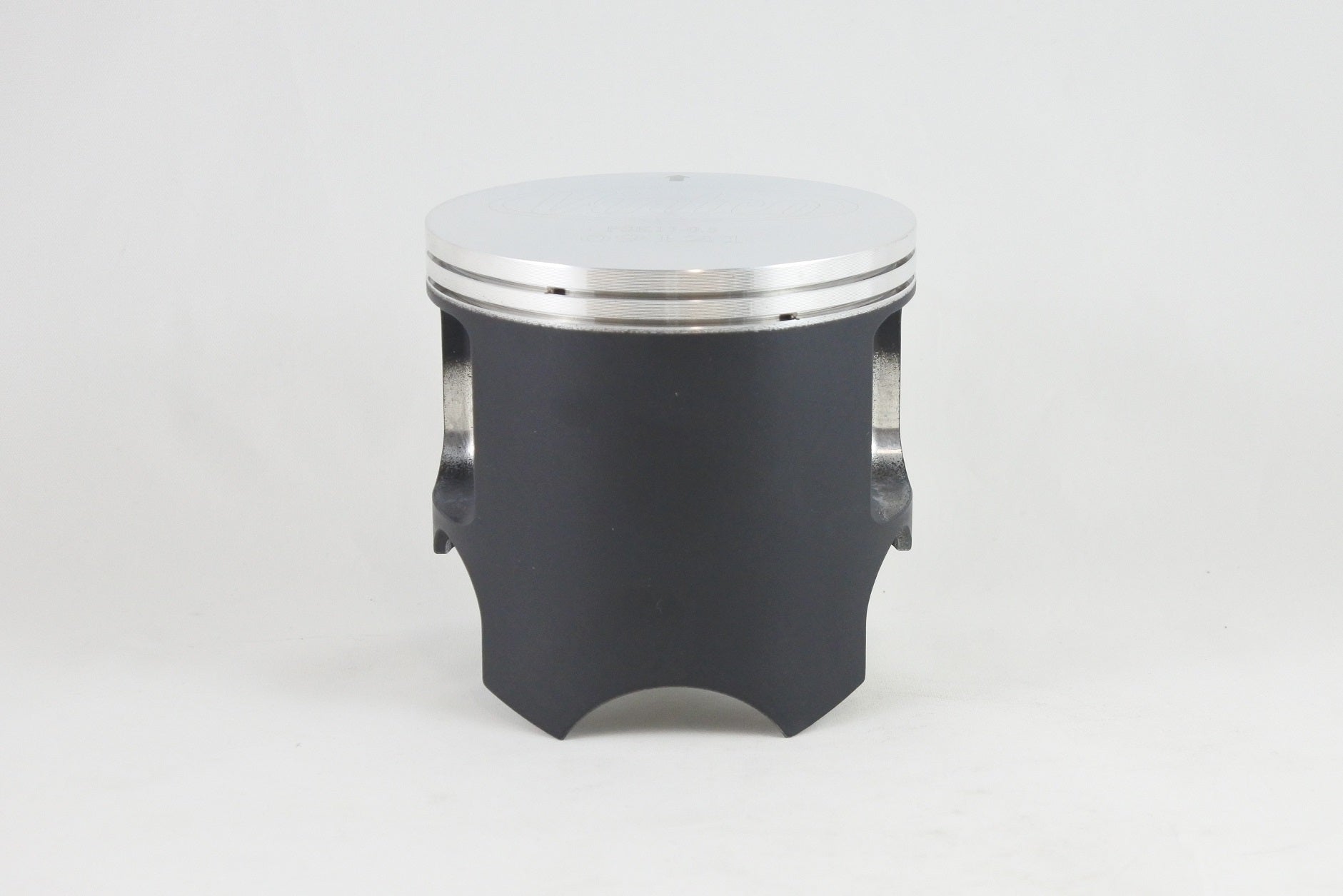

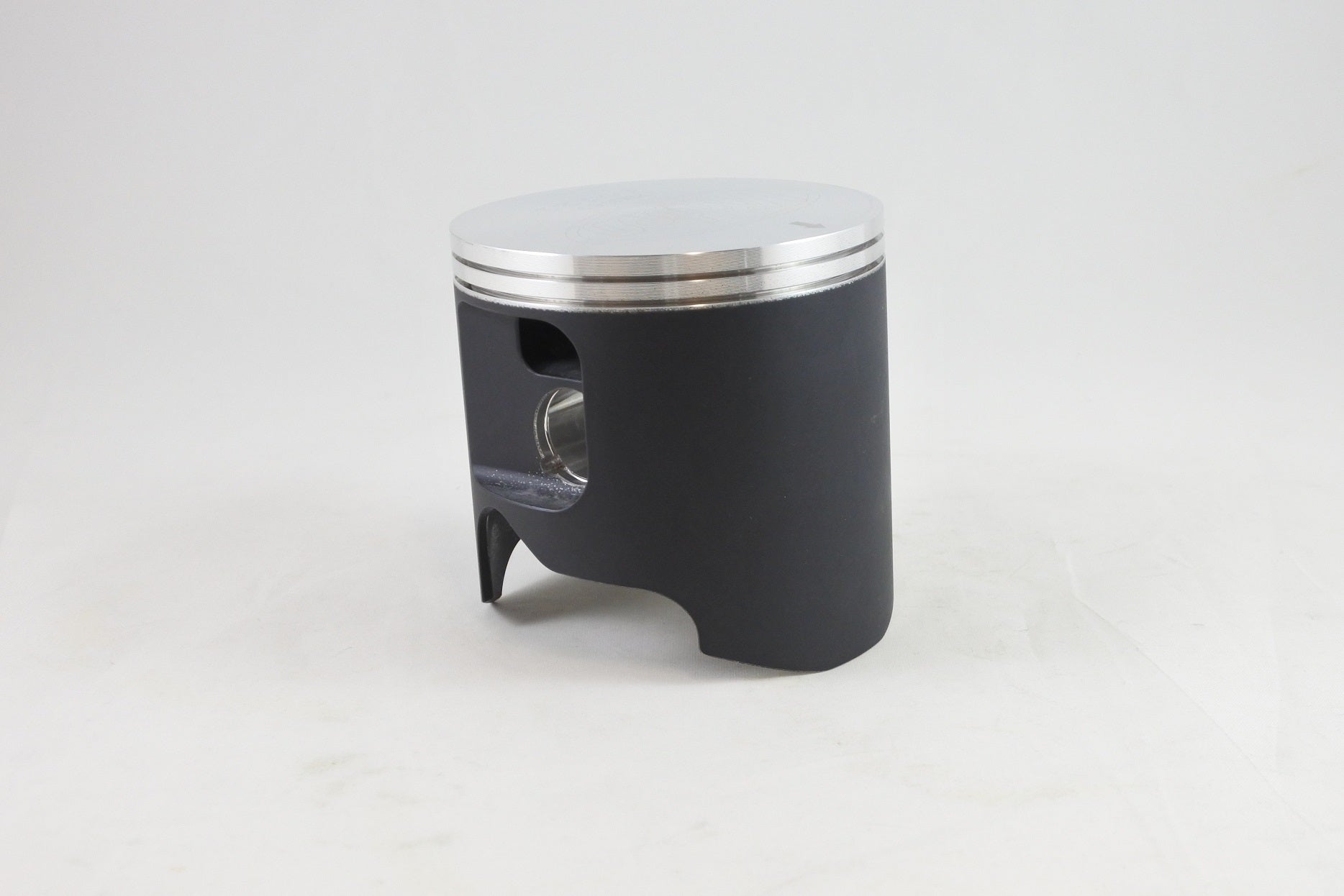

PISTON KIT 88-04 KAWASAKI KX 500 86.5mm 0.5mm OVER VINTCO PSK13-0.5

This piston kit is designed for 1988-2004 Kawasaki KX500 models and is supplied as an 86.5 mm, 0.5 mm oversize assembly. The kit includes the piston, rings, pin and clips, while the wrist pin bearing is supplied separately. It features a forged piston made in Germany and an MoS2 coating to assist during break-in.

Features

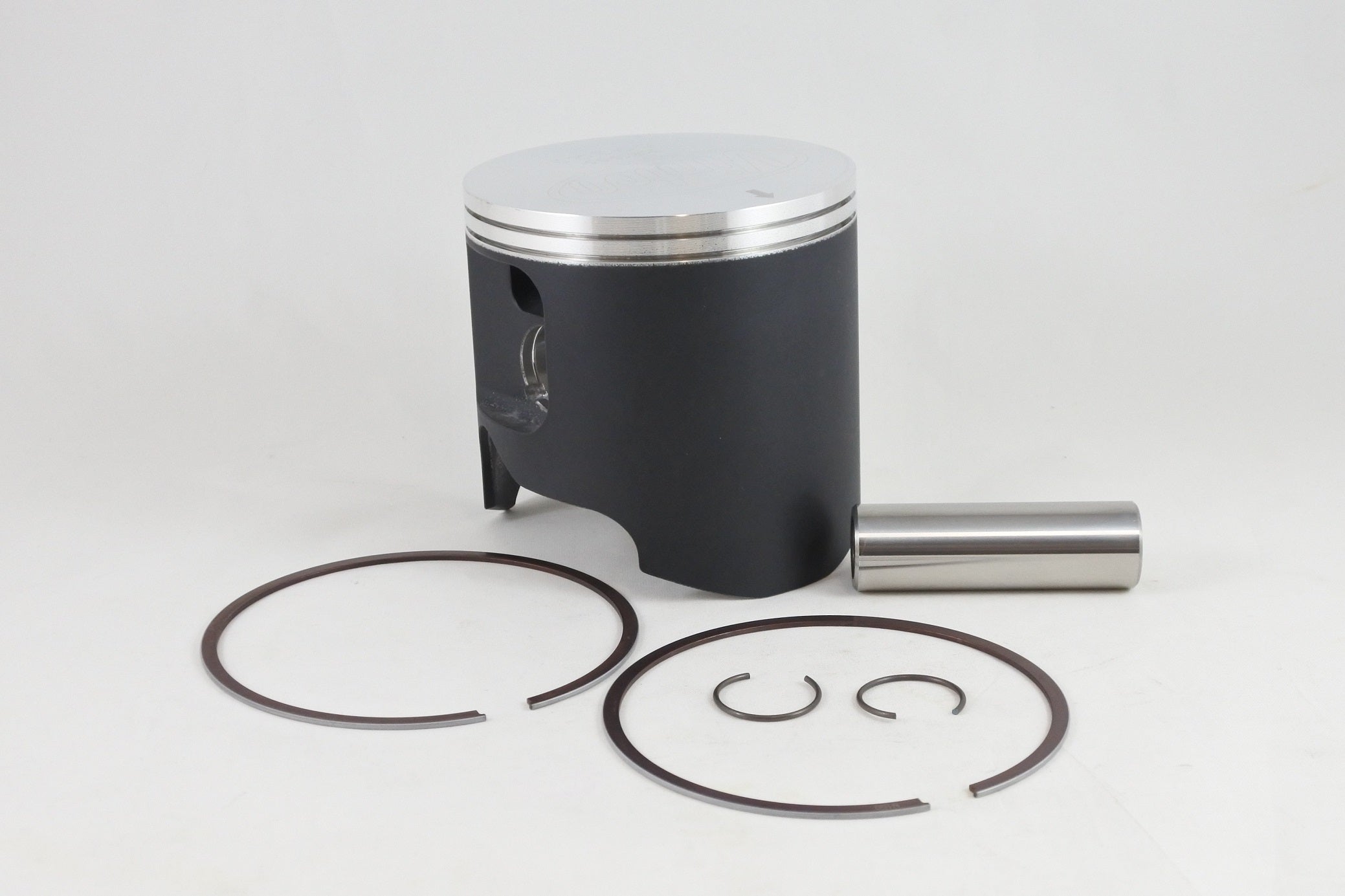

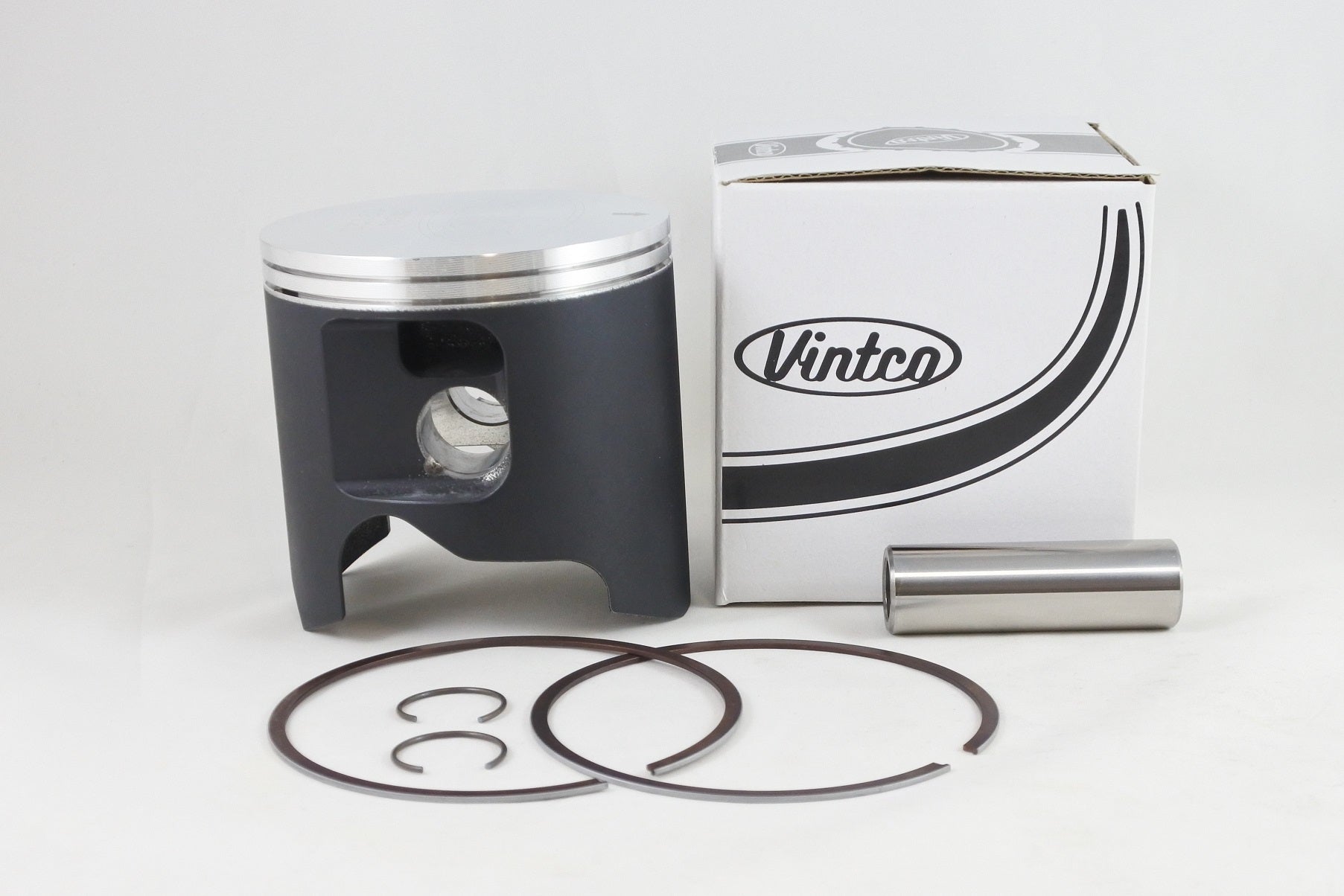

• Complete piston kit with rings, pin and clips
• Wrist pin bearing sold separately
• MoS2-coated for break-in

Specifications

• VintCo Part Number: PSK13-0.5
• Product type: Piston kit
• Nominal size: 86.5 mm
• Oversize: 0.5 mm
• Piston measurement: 86.43 mm
• Clearance: 0.07 mm
• Piston construction: Forged
• Country of manufacture: Germany

Vehicle Fitments

• 1988 Kawasaki KX500
• 1989 Kawasaki KX500
• 1990 Kawasaki KX500
• 1991 Kawasaki KX500
• 1992 Kawasaki KX500
• 1993 Kawasaki KX500
• 1994 Kawasaki KX500
• 1995 Kawasaki KX500
• 1996 Kawasaki KX500
• 1997 Kawasaki KX500
• 1998 Kawasaki KX500
• 1999 Kawasaki KX500
• 2000 Kawasaki KX500
• 2001 Kawasaki KX500
• 2002 Kawasaki KX500
• 2003 Kawasaki KX500
• 2004 Kawasaki KX500
