PISTON KIT 87-90 510cc 91.50, WOSSNER 8511DB HUSQVARNA
  • PISTON KIT 87-90 510cc 91.50, WOSSNER 8511DB HUSQVARNA
  • PISTON KIT 87-90 510cc 91.50, WOSSNER 8511DB HUSQVARNA
  • PISTON KIT 87-90 510cc 91.50, WOSSNER 8511DB HUSQVARNA
  • PISTON KIT 87-90 510cc 91.50, WOSSNER 8511DB HUSQVARNA
Piston Kit 87-90 510cc 91.50, Wossner 8511DB Husqvarna

Piston Kit 87-90 510cc 91.50, Wossner 8511DB Husqvarna

£219.23 GBP
Taxes included. Shipping calculated at checkout.

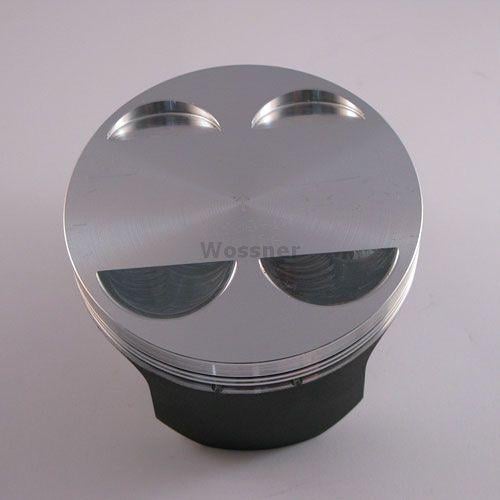

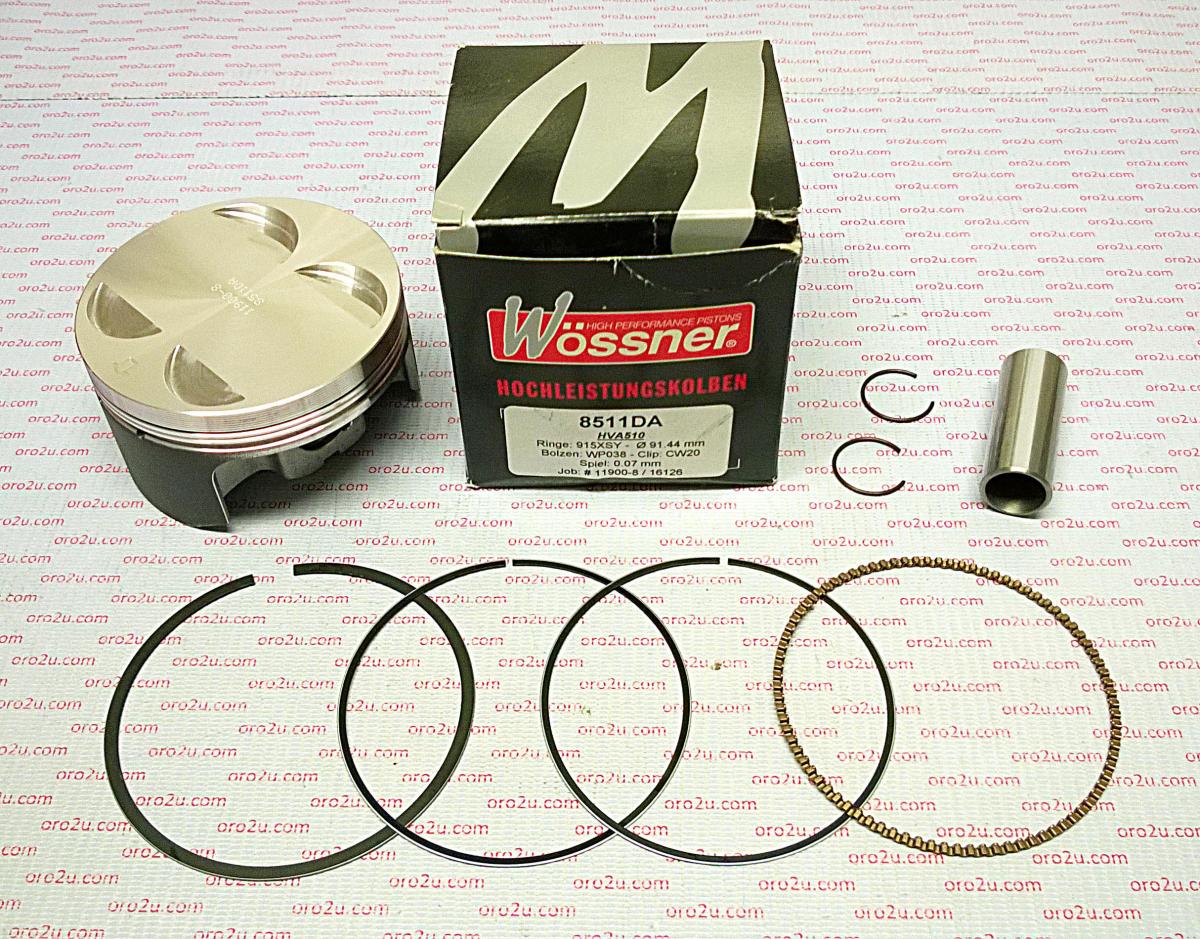

Wossner 91.50mm (91.45mm) forged piston kit is designed for Husqvarna TC 510, TE 510, and WRE 510 models from 1987 to 1990. Engineered for durability and precision, this piston ensures efficient heat transfer and uniform expansion, reducing localized pressure and preventing piston collapse. Manufactured in Germany, it meets high-quality standards for reliable performance.

Features

  • Wossner forged piston for superior strength and durability
  • Optimized heat transfer for enhanced combustion efficiency
  • Elliptical design for uniform bearing surface and reduced localized pressure
  • Precision-engineered for reliable performance
  • Made in Germany

Specifications

  • Bore Size: 91.50mm (91.45mm)
  • Oversize: 0.01mm
  • Displacement: 503cc
  • Stroke: 60.80mm
  • Clearance: 0.06mm
  • Compression Ratio: OEM (11.40:1)
  • Dome Volume: +1.90cm³
  • Compression Height: 24.50mm
  • Lock Part Number: CW20
  • Pin Part Number: WP038
  • Ring Set Part Number: 915XSY

Vehicle Fitments

  • Husqvarna TC 510 (1987-1990)
  • Husqvarna TE 510 (1987-1990)
  • Husqvarna WRE 510 (1987-1990)
