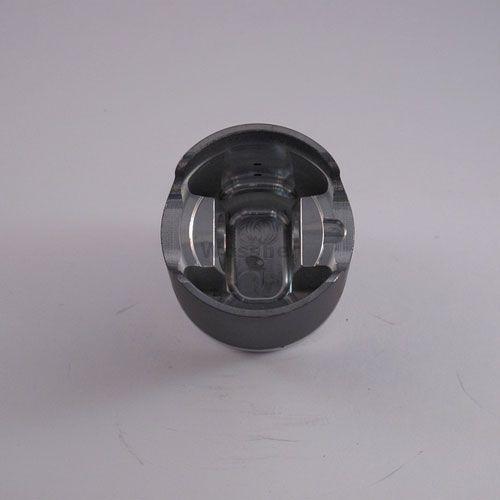

PISTON KIT 86-87 RM80 48.50, WOSSNER 8227D100 SUZUKI MX

This Wossner piston kit features a 48.50mm bore size (48.45mm actual) and is compatible with Suzuki RM80 models from 1986 to 1987. Precision-forged in Germany, the piston is designed for optimal durability and thermal conductivity. Its elliptical shape promotes uniform load distribution under thermal expansion, reducing localised pressure and minimising the risk of piston collapse.

Features

• Forged construction for increased strength

• Elliptical design ensures even load distribution under heat

• Optimised heat transfer from combustion chamber to cylinder walls

• Manufactured in Germany

Specifications

• Bore Size: 48.50mm (48.45mm)

• Display: 80 cm³

• Stroke: 46.80 mm

• Clearance: 0.05 mm

• Compression Height: 27.00 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

• Piston Kit: 8227D100

• Lock: CW14

• Pin: WP058

• Ring Set: RSB4850

• Part No.: 56-W542+100.WO

Vehicle Fitments

• Suzuki RM80 1986

• Suzuki RM80 1987
