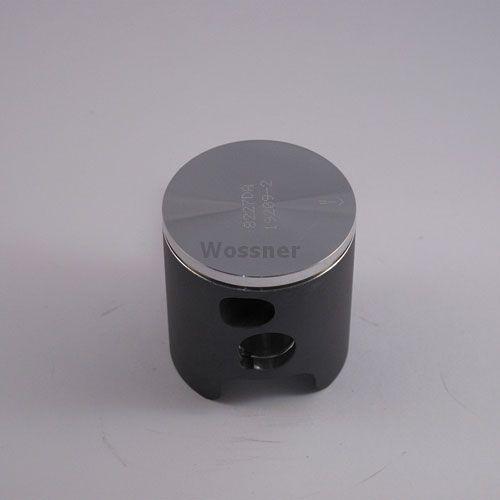

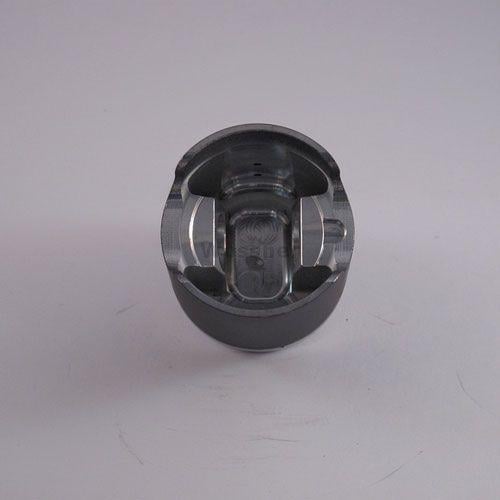

PISTON KIT 86-87 RM80 47.50, WOSSNER 8227DA SUZUKI MX

This Wossner forged piston kit features a 47.50mm bore (47.45mm actual) and is designed for the Suzuki RM80 models from 1986 to 1987. Engineered for durability and thermal performance, the piston facilitates effective combustion heat transfer and uses an elliptical design to ensure even pressure distribution. This reduces the risk of localised stress and piston collapse. Manufactured in Germany, this standard size piston kit includes matching components for compatibility with 2-stroke engine specifications.

Features

• Forged piston construction for enhanced durability

• Efficient heat transfer design to support engine performance

• Elliptical profile for even bearing surface under expansion

• Manufactured in Germany

• Standard bore piston for Suzuki RM80 (1986–1987)

Specifications

• Bore Size: 47.50mm (actual 47.45mm)

• Compression Height: 27.00mm

• Clearance: 0.05mm

• Stroke: 46.80mm

• Display Displacement: 80 cm³

• Compression Ratio: 2-stroke (Wossner and OEM)

Vehicle Fitments

• Suzuki RM80 1986

• Suzuki RM80 1987

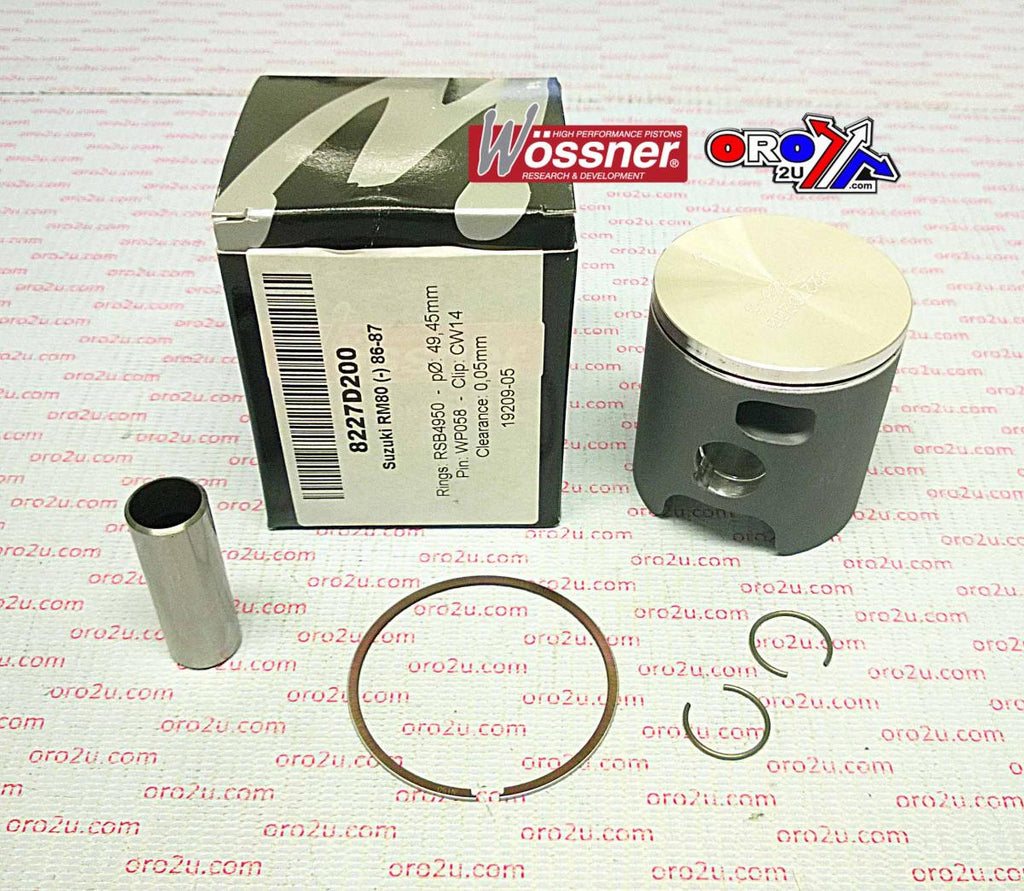

Included Components

• Piston: Wossner 8227DA

• Lock: CW14

• Pin: WP058

• Ring Set: RSB4750
