PISTON KIT 84-87 KLR600 97.50, FORGED WOSSNER 8509D150
  • PISTON KIT 84-87 KLR600 97.50, FORGED WOSSNER 8509D150
  • PISTON KIT 84-87 KLR600 97.50, FORGED WOSSNER 8509D150
  • PISTON KIT 84-87 KLR600 97.50, FORGED WOSSNER 8509D150
  • PISTON KIT 84-87 KLR600 97.50, FORGED WOSSNER 8509D150

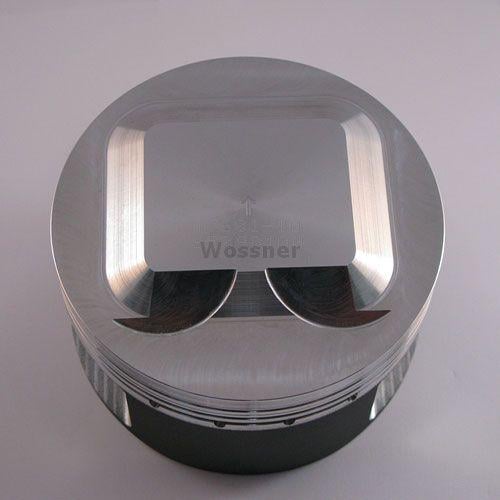

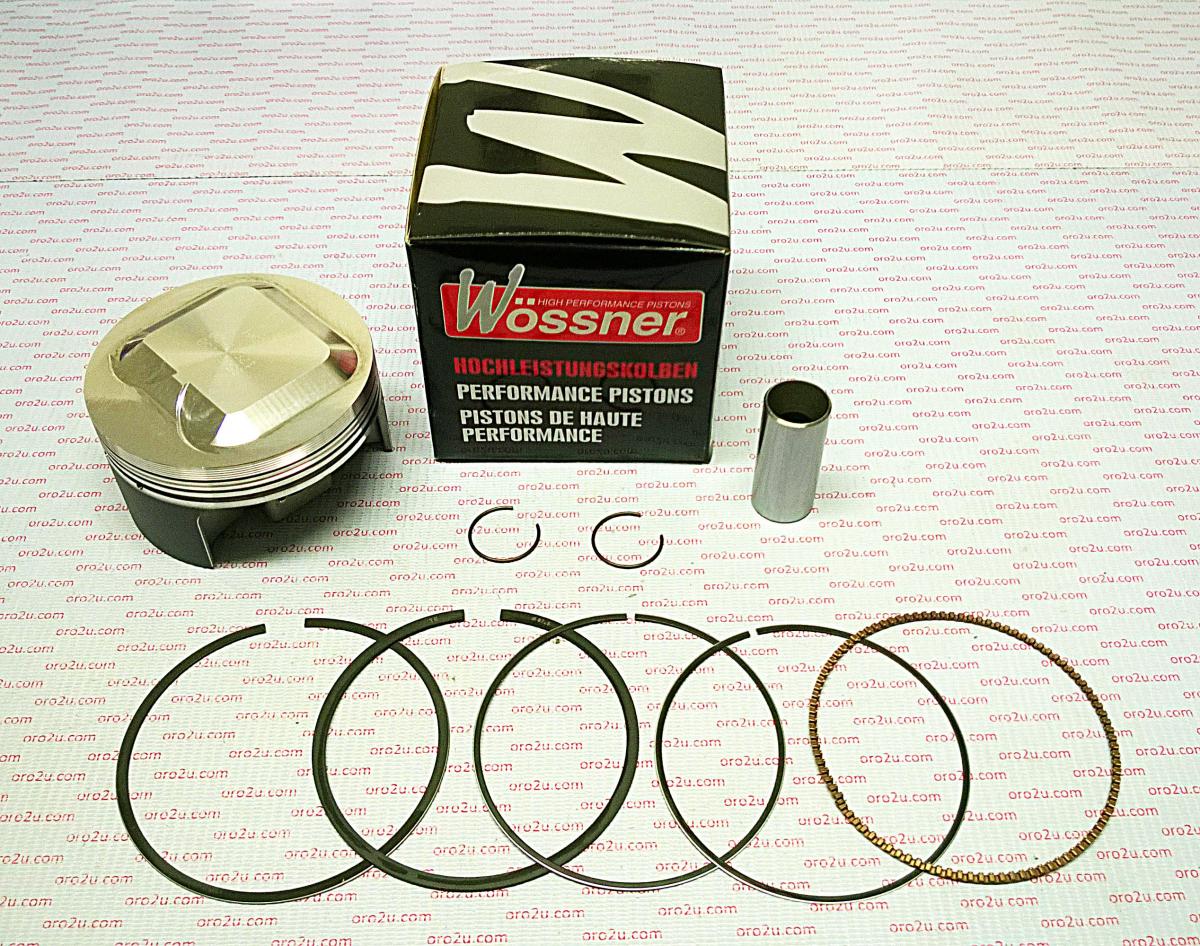

Piston Kit 84-87 KLR600 97.50, Forged Wossner 8509D150

Piston Kit 84-87 KLR600 97.50, Forged Wossner 8509D150

£219.27 GBP
Taxes included. Shipping calculated at checkout.
  • Piston Kit: Wossner 8509D150, with a 97.50mm bore (+1.50mm)
  • Application: Kawasaki KLR600, produced between 1984 and 1985
  • Features:
    • Wossner forged pistons known for superior strength and design
    • Engineered for efficient combustion chamber heat transfer to cylinder walls
    • Elliptical design for a more uniform bearing surface under piston heat expansion, preventing collapse
  • Manufacturing: Made in Germany
  • Additional Parts:
    • Lock: CW23
    • Pin: WP008
    • Ring Set: 975XSY
  • Specifications:
    • Displacement: 564 cm³
    • Hub Stroke: 62.10mm
    • Clearance: 0.05mm
    • Compression Ratio: OEM specified (12.80:1)
    • Dome Volume: +0.90cm³
    • Compression Height: 23.70mm
    • Theoretical Weight: 259.00 grams
