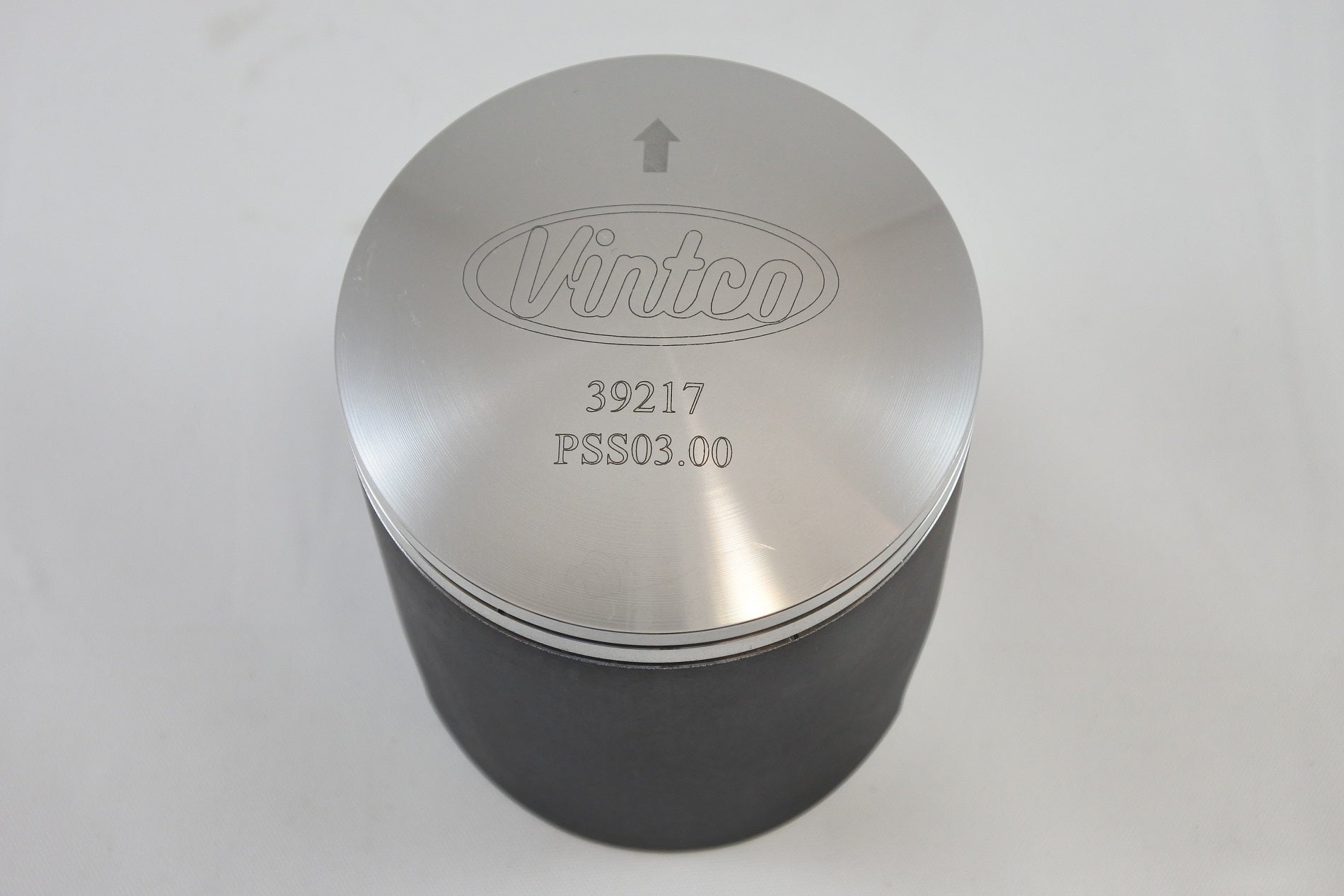

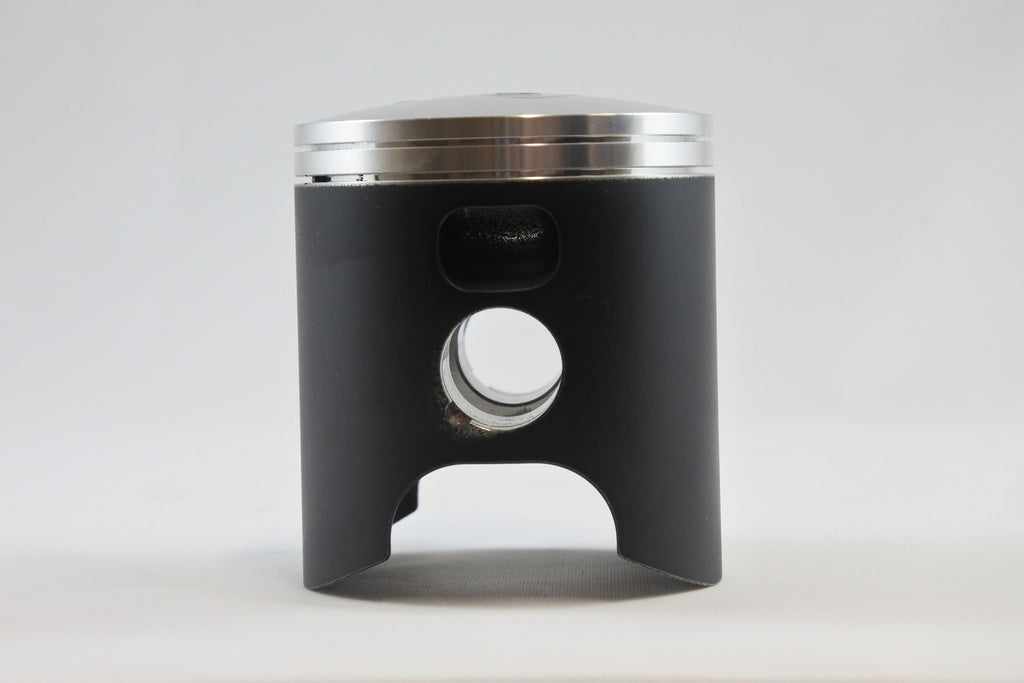

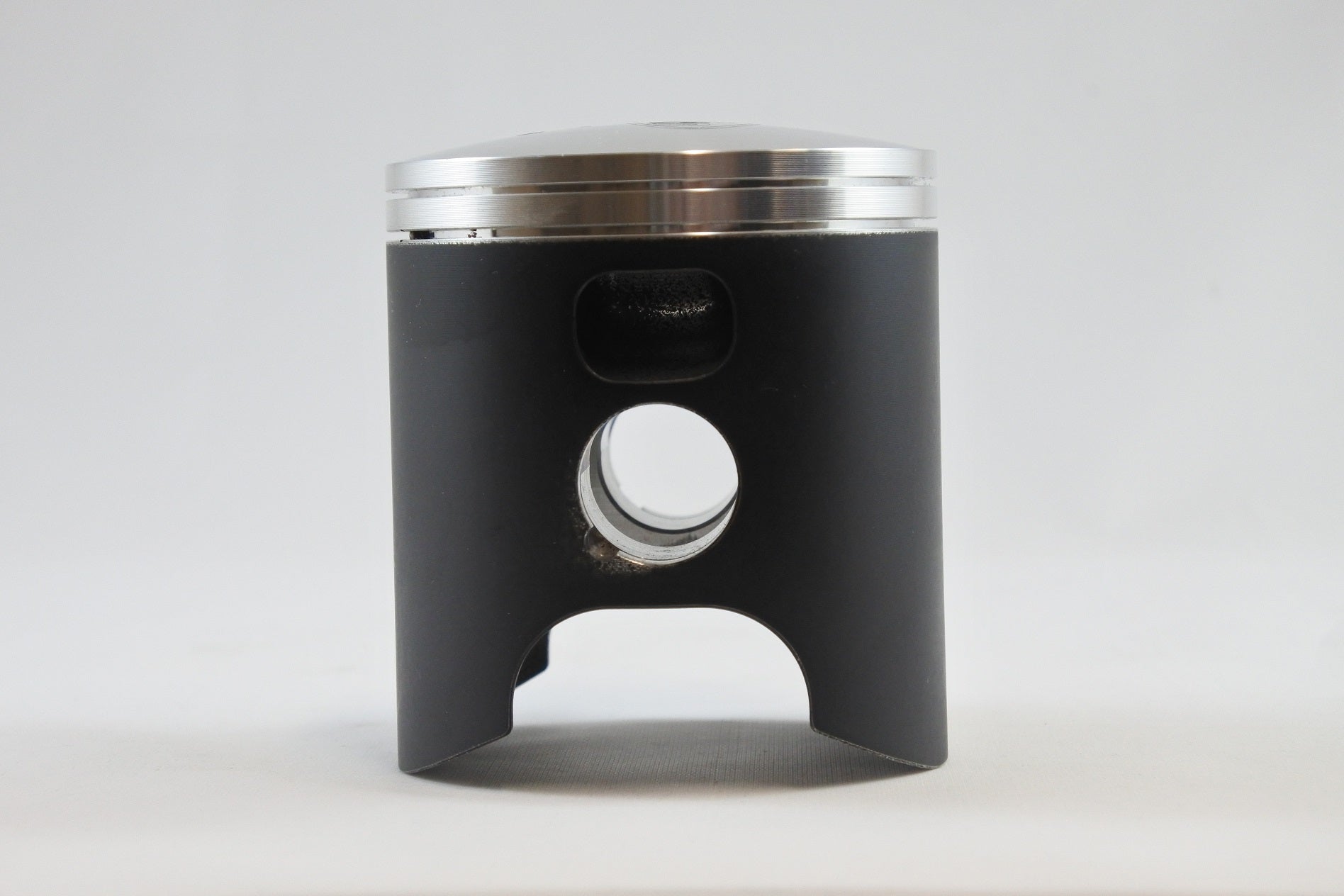

PISTON KIT 77-81 SUZUKI RS RM PE 250 67.0mm STANDARD VINTCO PSS03-00

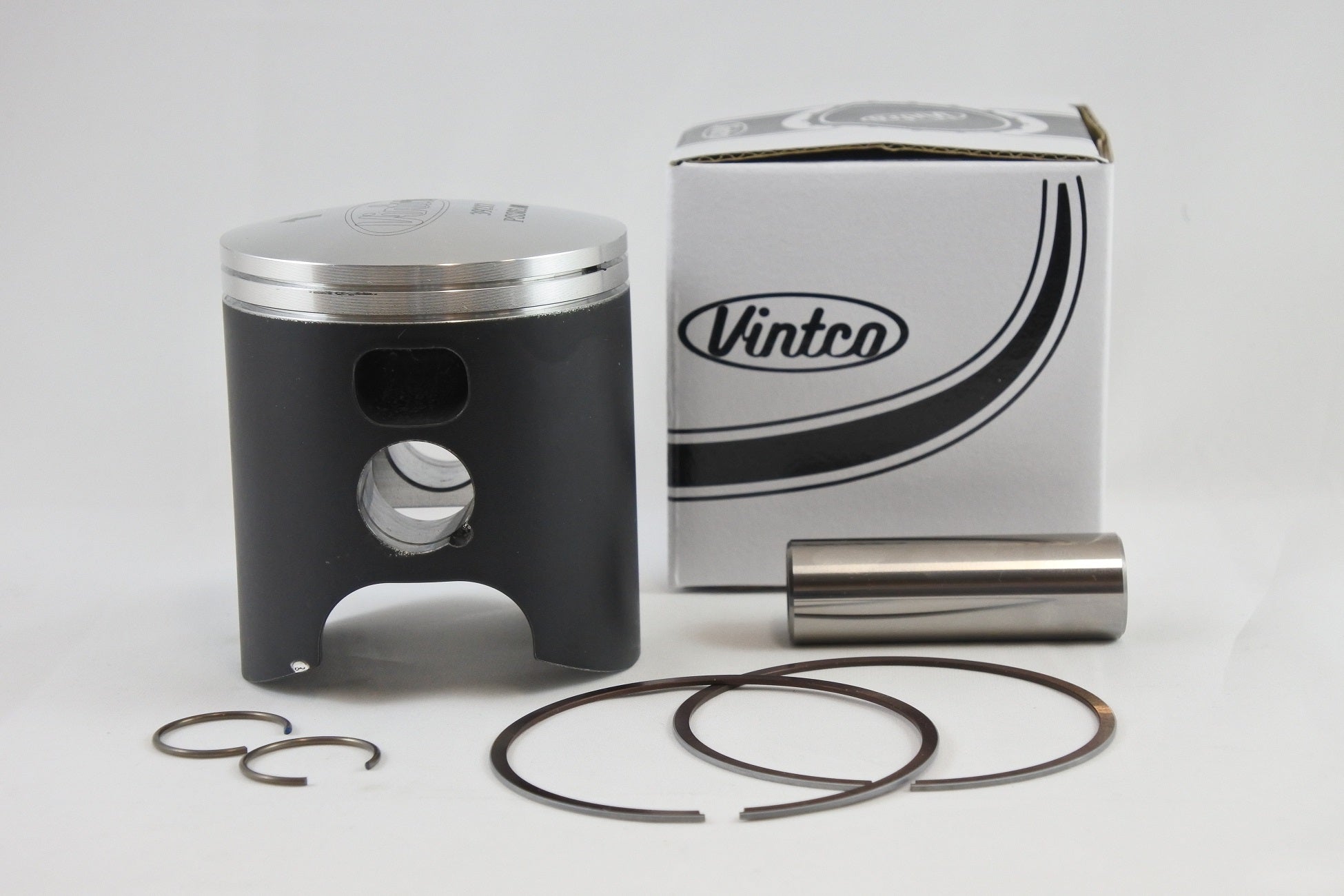

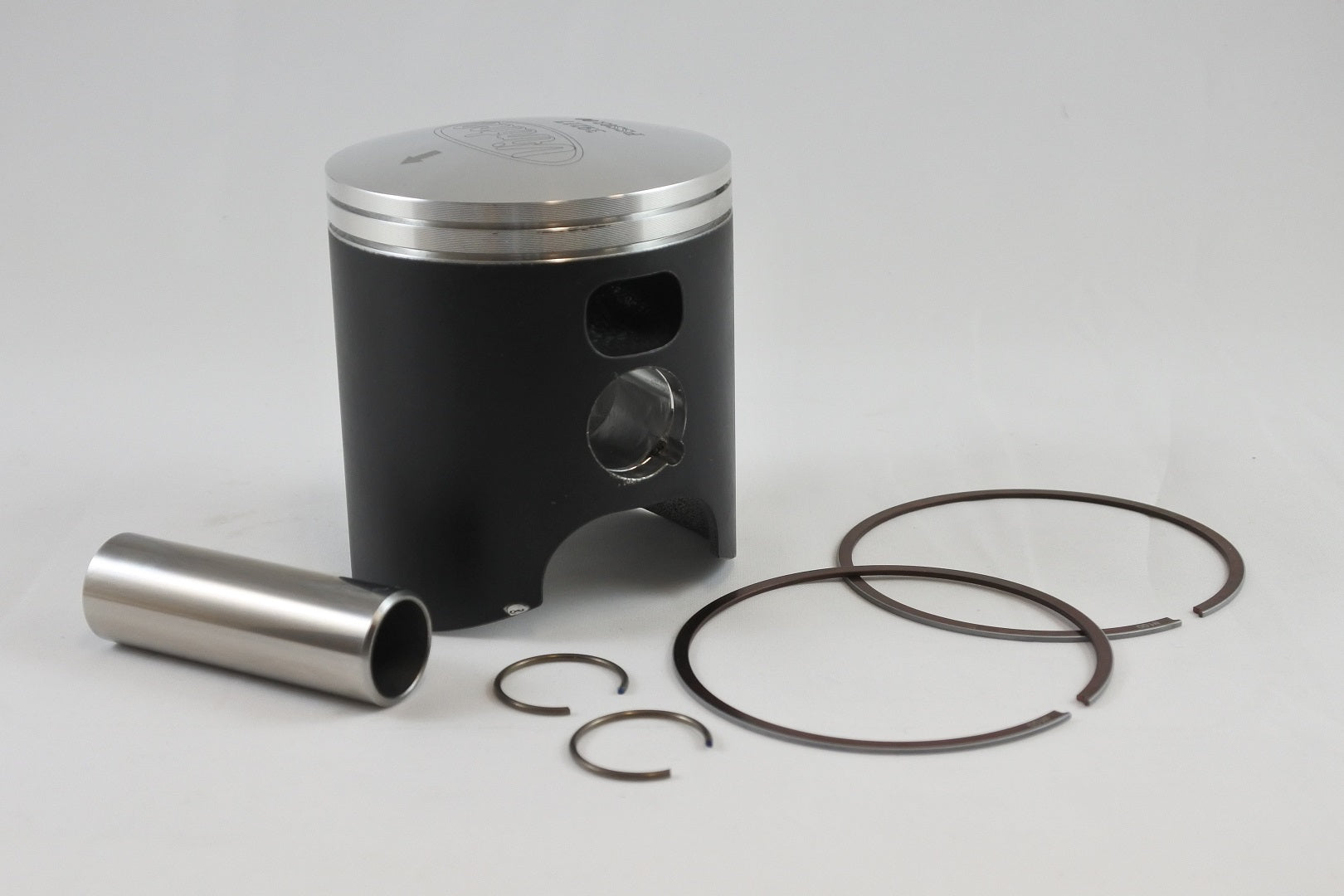

This VintCo piston kit is a standard-bore replacement for vintage Suzuki 250cc 2-stroke models, covering RM250 and PE250 machines from 1977 to 1981 and RS250 models from 1980 to 1981. Produced using modern materials and manufacturing techniques for OEM-equivalent fit and performance, the kit includes the piston, rings, pin and clips for straightforward installation on 67.0 mm standard-bore applications.

Features

• Complete piston kit with piston, rings, pin and clips
• Suitable for vintage 2-stroke engine rebuilds
• OEM-equivalent fit and performance
• Wrist pin bearing available separately
• Other size options available

Specifications

• VintCo Part Number: PSS03-00
• Bore size: 67.0 mm
• Size: Standard
• Piston size: 66.94 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Coating: MoS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• 12110-40312
• 12110-40601

Vehicle Fitments

• 1977 Suzuki RM250
• 1977 Suzuki PE250
• 1978 Suzuki RM250
• 1978 Suzuki PE250
• 1979 Suzuki RM250
• 1979 Suzuki PE250
• 1980 Suzuki RM250
• 1980 Suzuki PE250
• 1980 Suzuki RS250
• 1981 Suzuki RM250
• 1981 Suzuki PE250
• 1981 Suzuki RS250
