PISTON KIT 74-81 YAMAHA DT 125 56.0mm STANDARD VINTCO PSY07-00

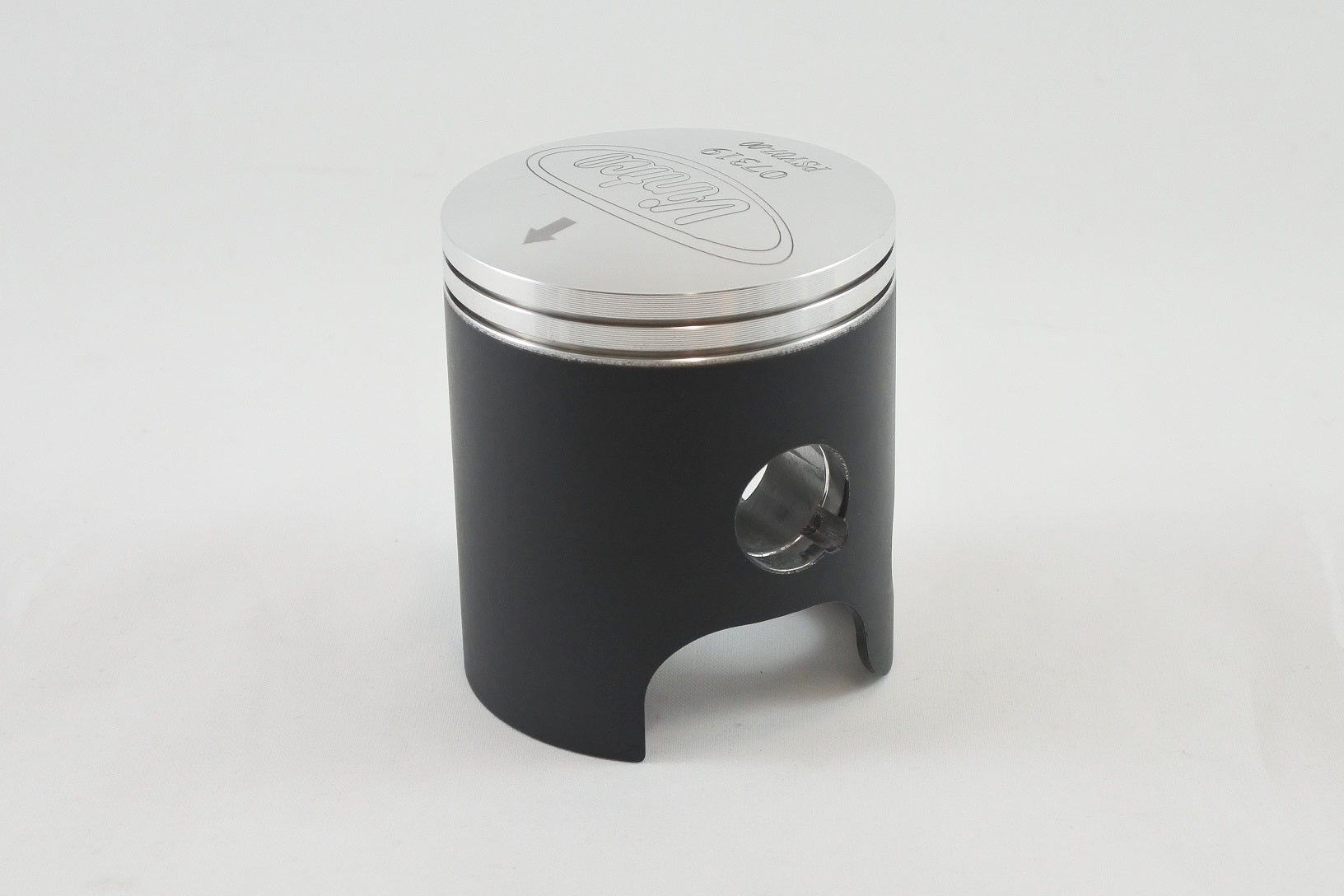

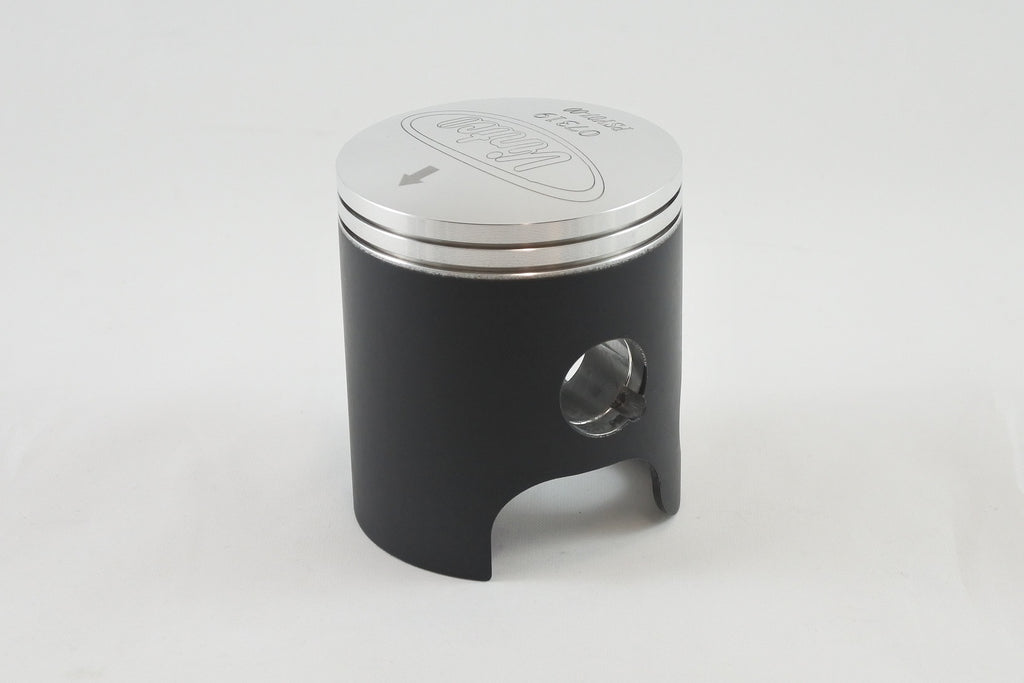

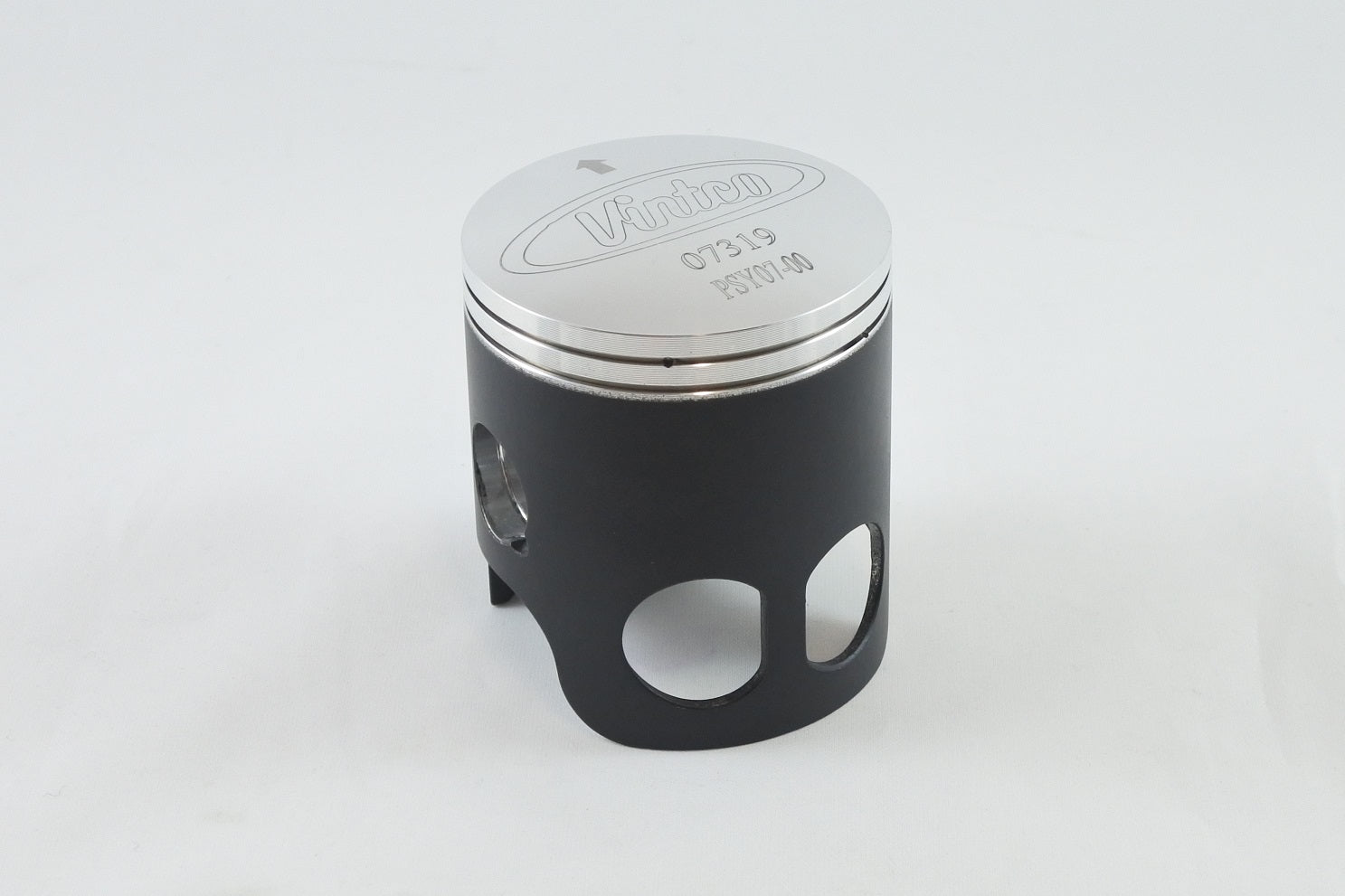

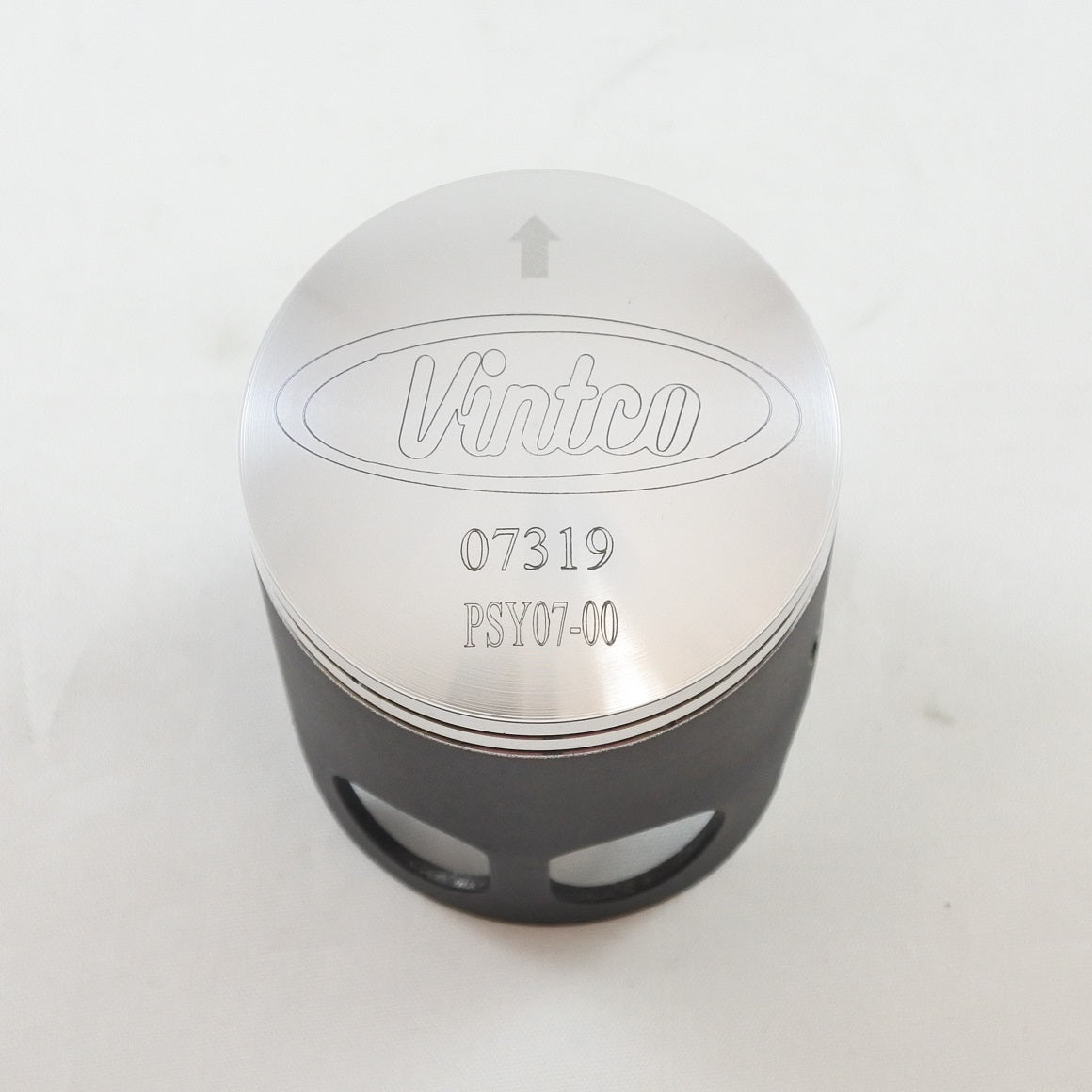

This VintCo piston kit is designed for Yamaha DT125 models from 1974 to 1981 and suits the standard 56.0 mm bore. Intended for vintage 2-stroke engine rebuilds, the kit includes the piston, rings, pin and clips, and is produced using modern materials and manufacturing methods for OEM-equivalent fitment and performance. A wrist pin bearing is available separately, and additional size options are also available.

Features

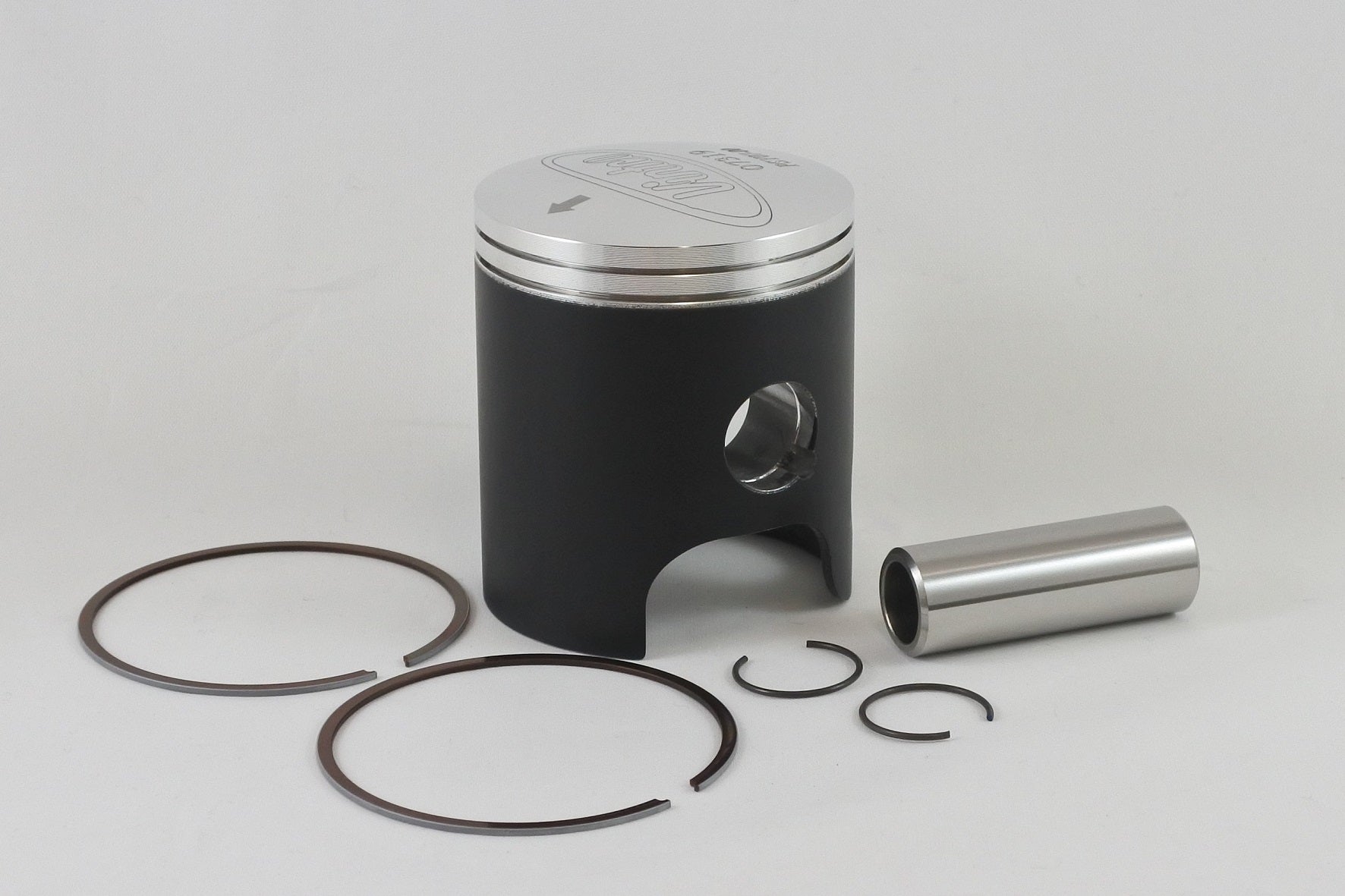

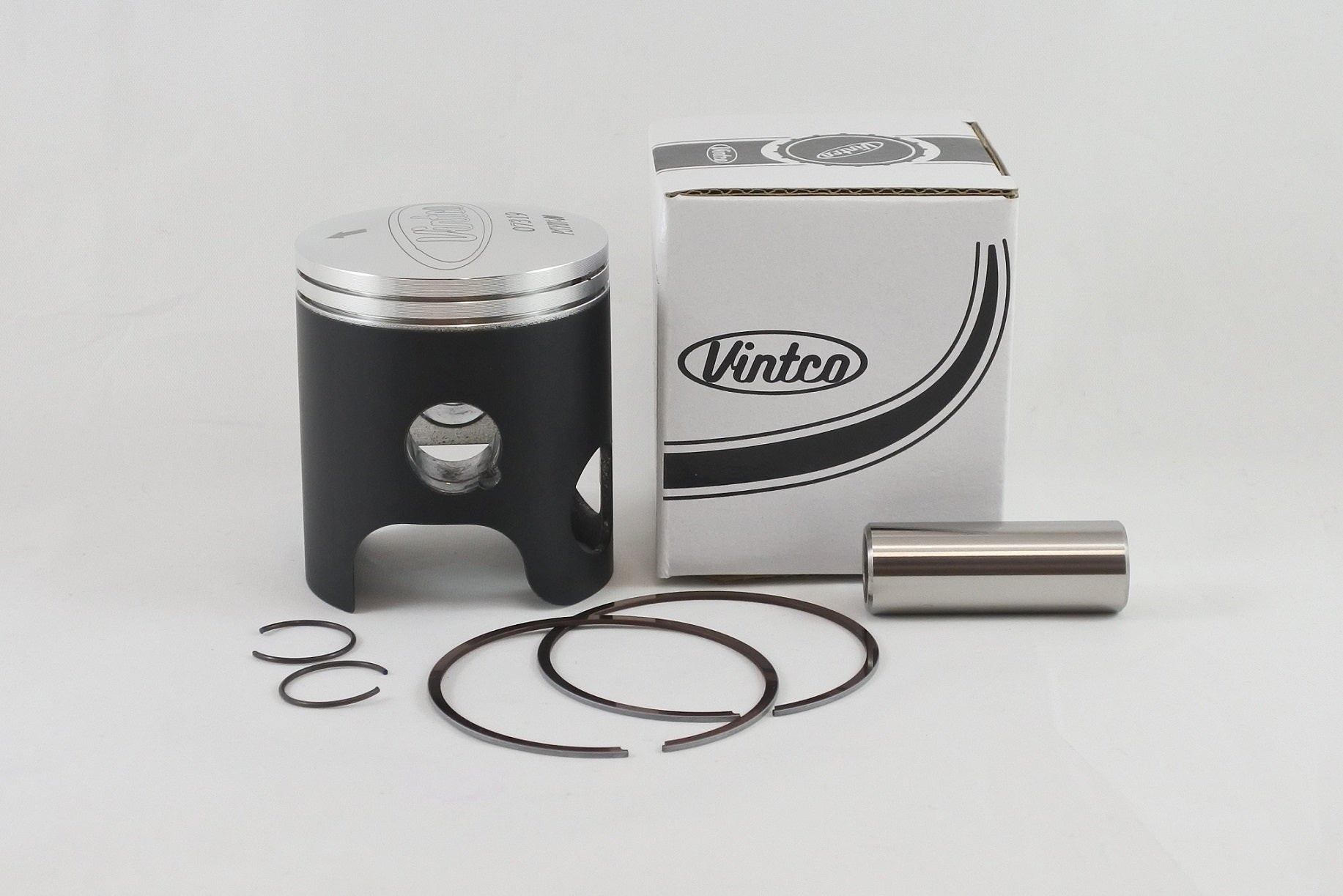

• Complete piston kit including piston, rings, pin and clips
• Suitable for standard-bore engine rebuilds
• Wrist pin bearing sold separately
• Additional size options available
• Intended for vintage 2-stroke Yamaha DT125 models

Specifications

• VintCo Part Number: PSY07-00
• Bore size: 56.0 mm
• Size: Standard
• Piston diameter: 55.94 mm
• Clearance: 0.06 mm
• Forged piston construction
• MoS2 coated for break-in
• Made in Germany

Vehicle Fitments

• 1974 Yamaha DT125
• 1975 Yamaha DT125
• 1976 Yamaha DT125
• 1977 Yamaha DT125
• 1978 Yamaha DT125
• 1979 Yamaha DT125
• 1980 Yamaha DT125
• 1981 Yamaha DT125
