PISTON KIT 74-81 MAICO 400 78.5mm +1.5mm OVER VINTCO PSM02-1.5

PISTON KIT 74-81 MAICO 400 78.5mm +1.5mm OVER VINTCO PSM02-1.5

£182.25 GBP
Taxes included. Shipping calculated at checkout.

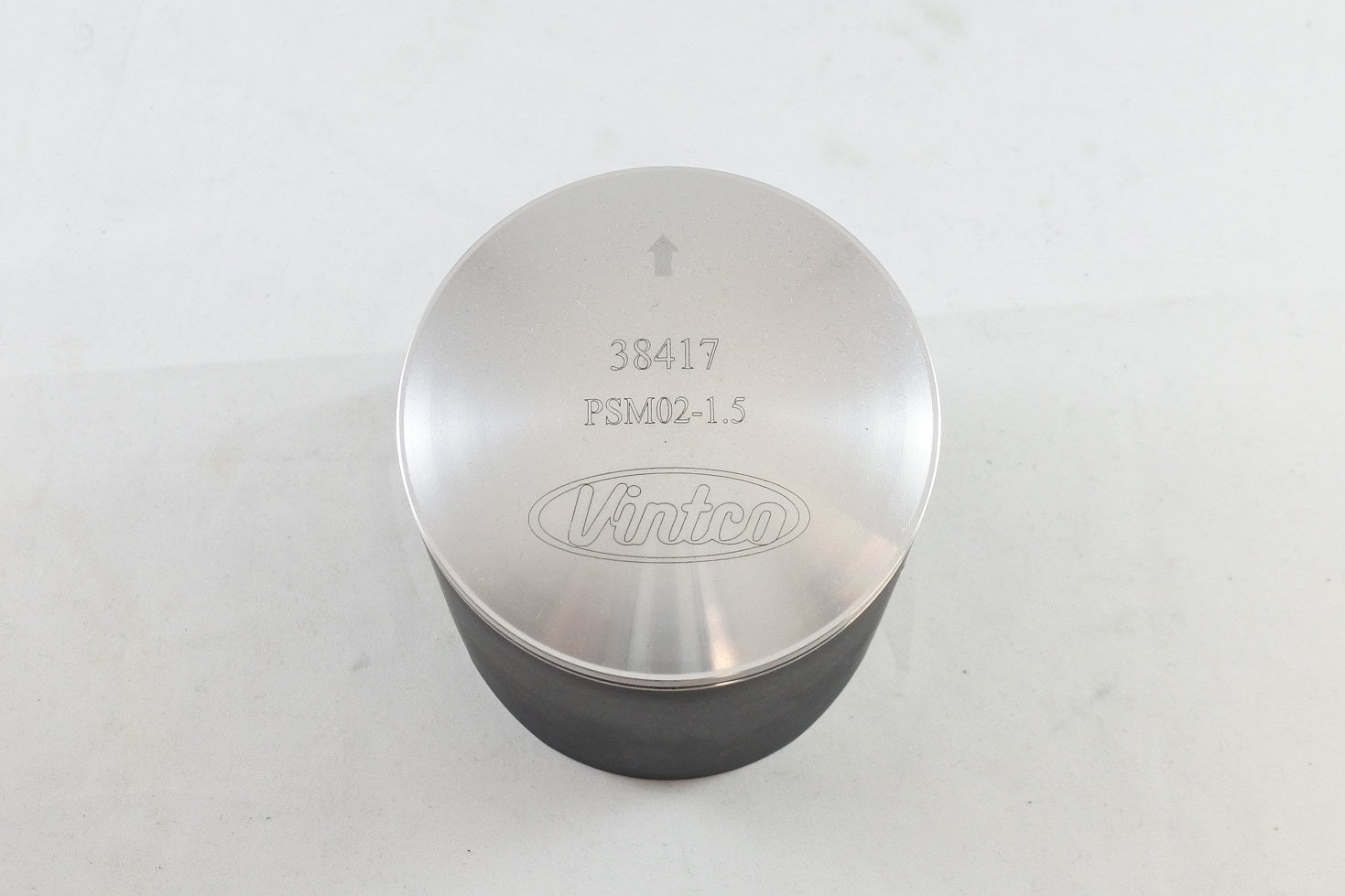

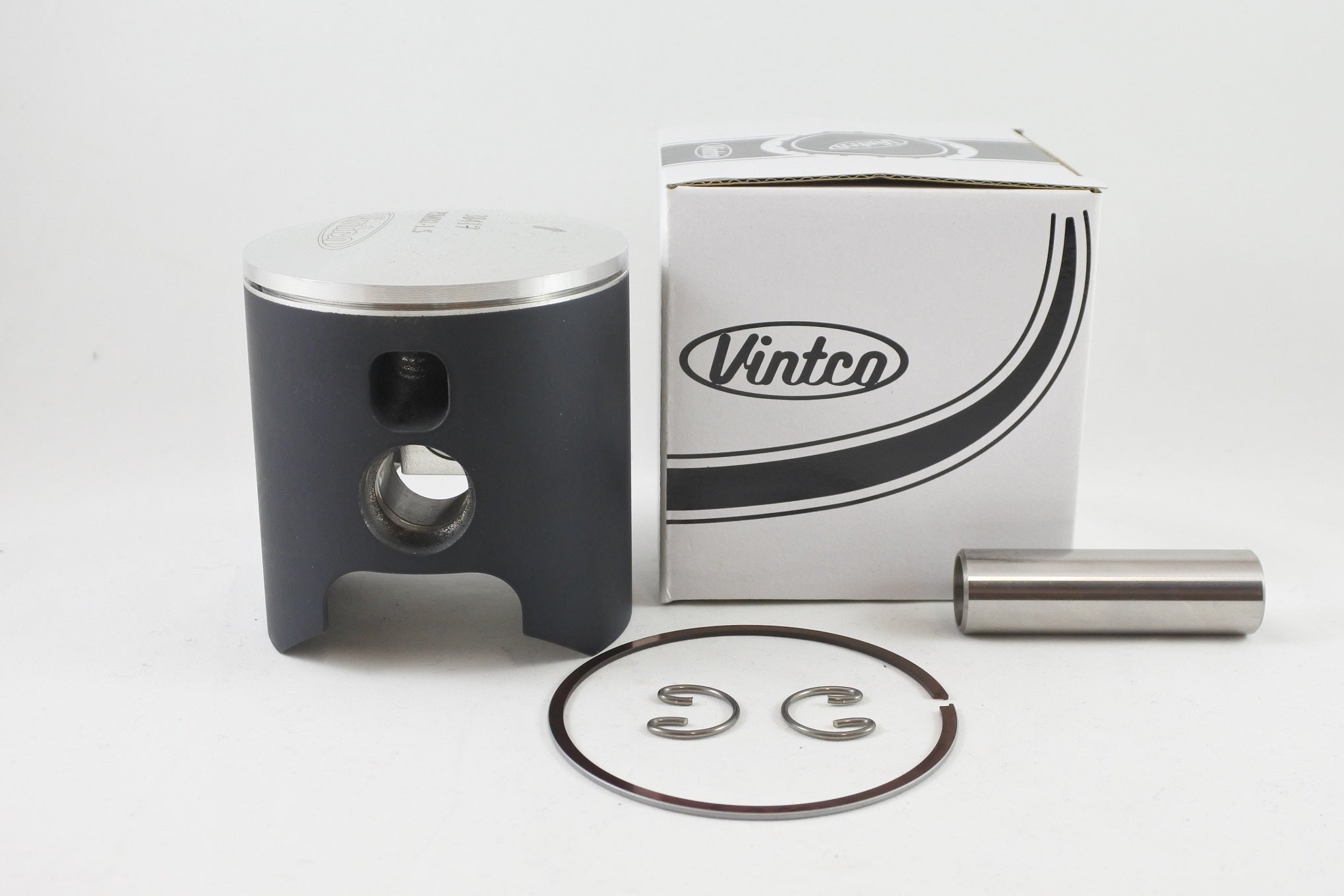

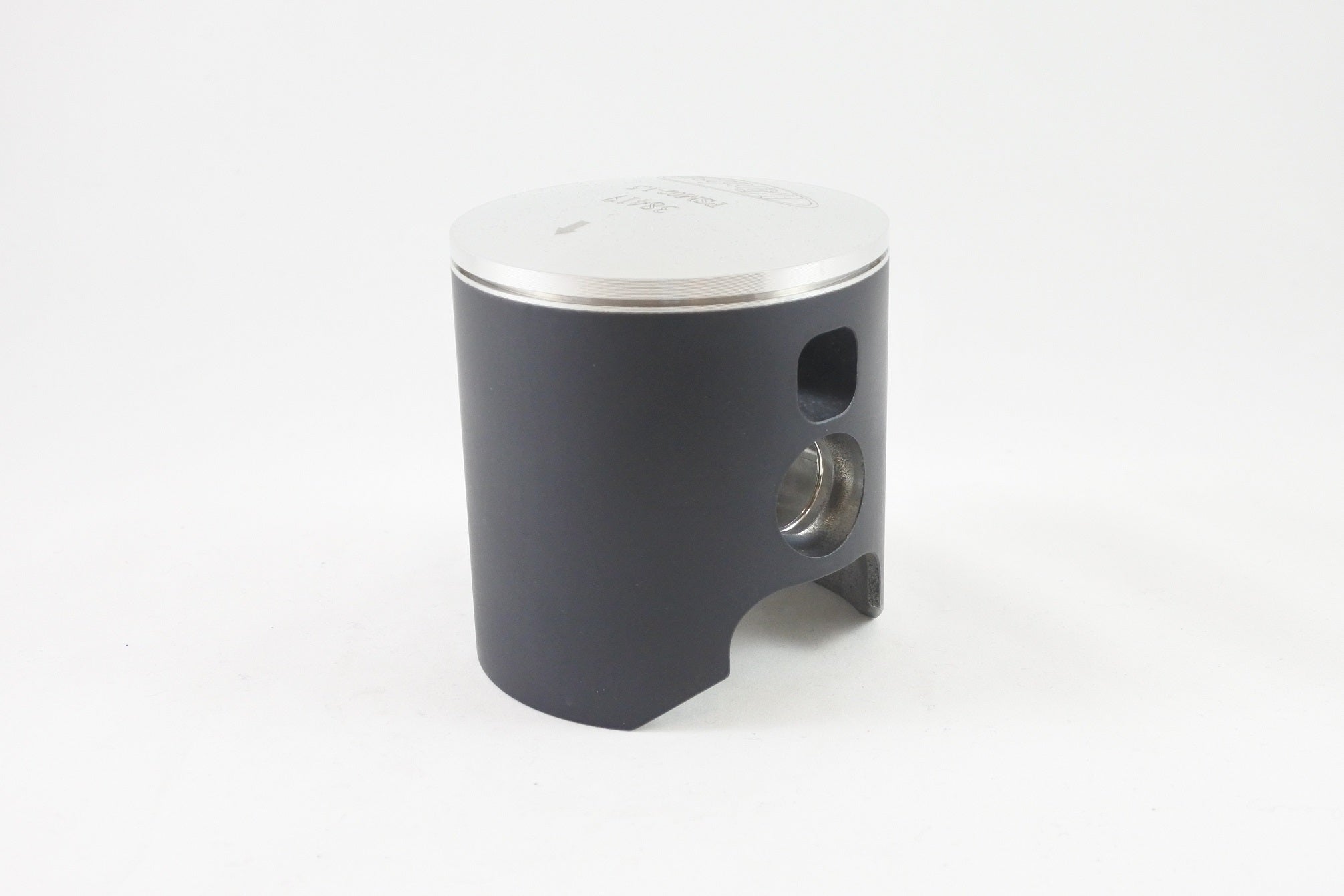

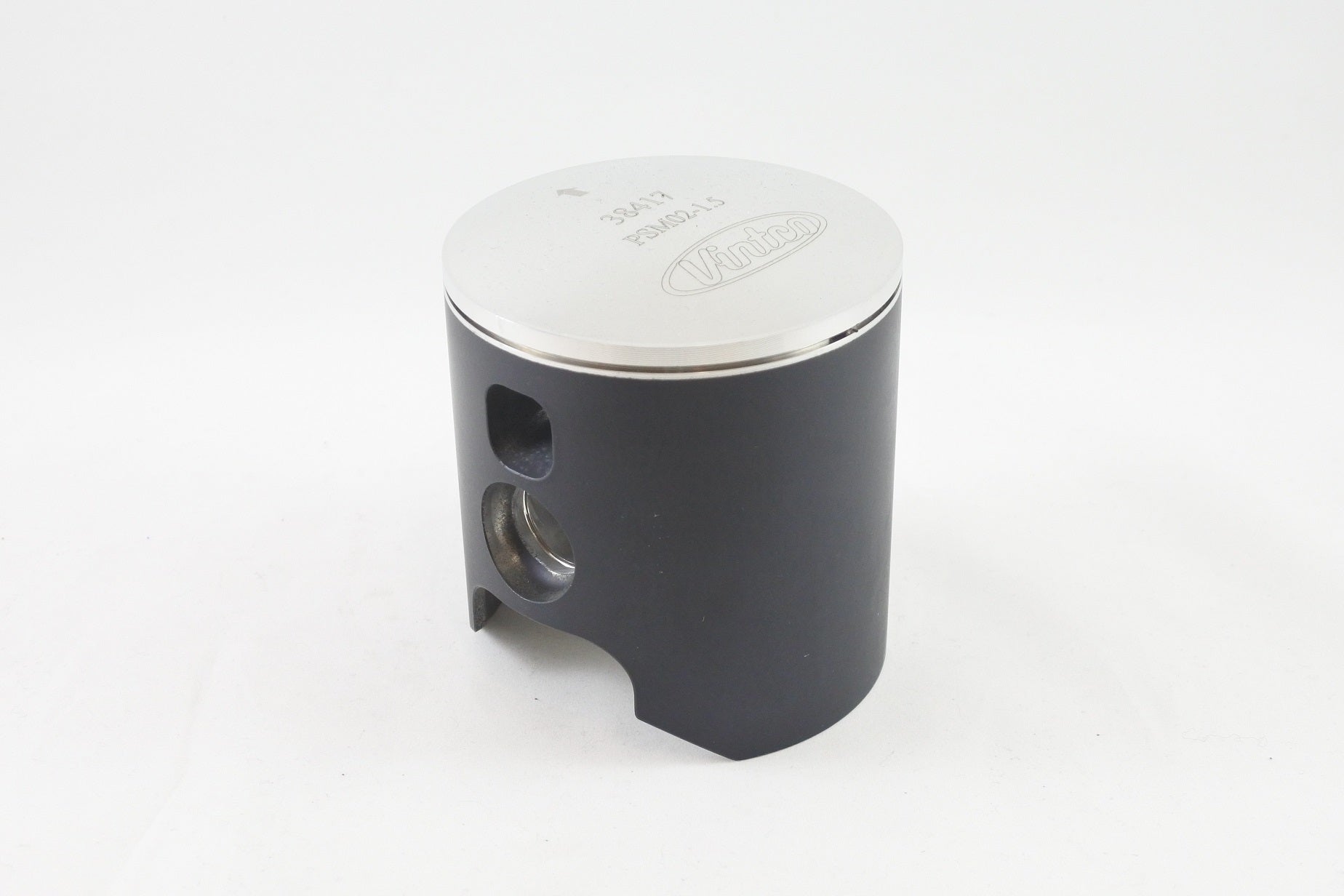

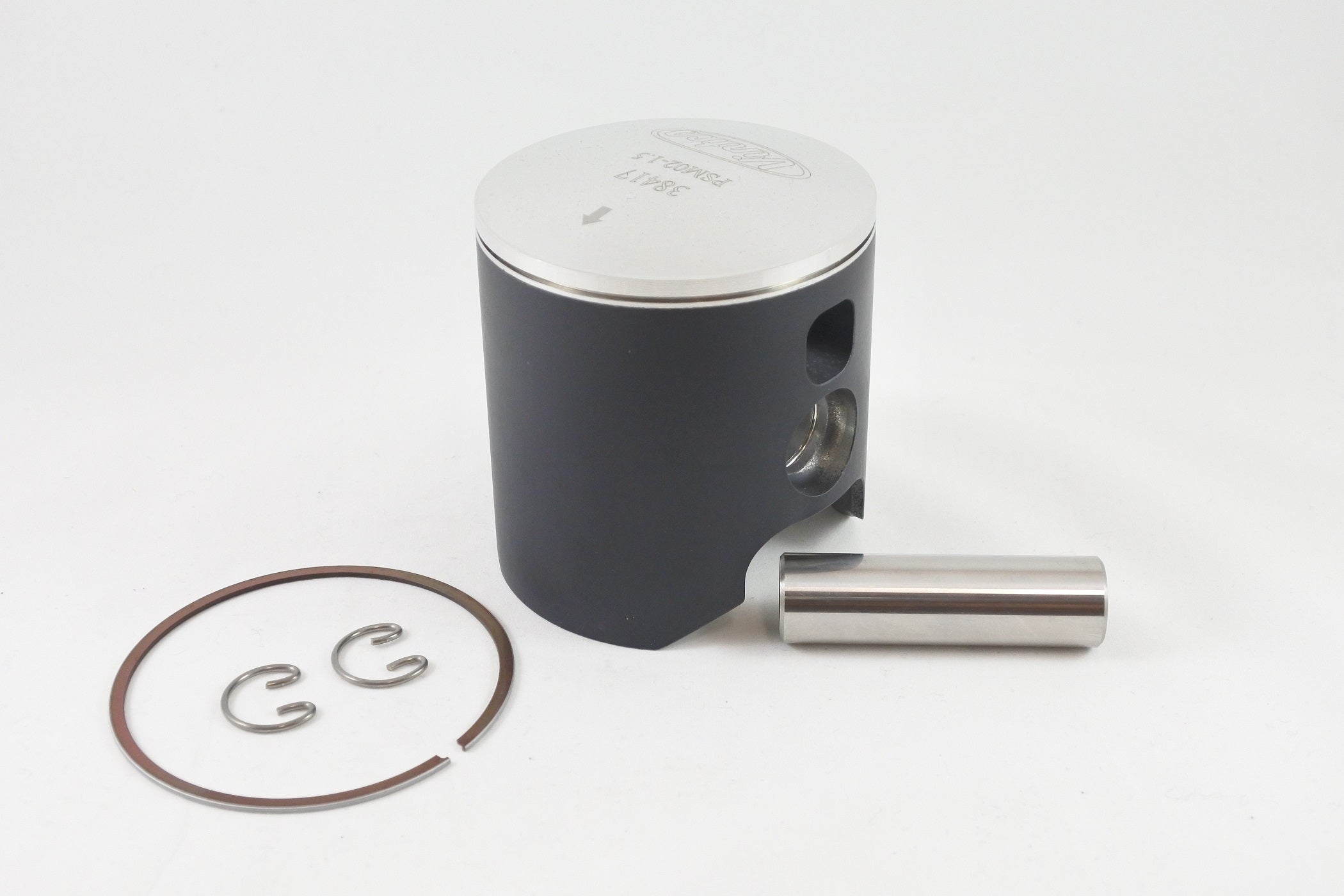

This VintCo piston kit is a replacement piston assembly for Maico 400 models from 1974 to 1981. Sized at 78.5 mm with a +1.5 mm oversize, it is intended for vintage 2-stroke engine rebuilds and includes the piston, rings, pin and clips. It is manufactured using modern materials and production methods for OEM-equivalent fitment and performance, with a wrist pin bearing available separately.

Features

  • Complete piston kit with piston, rings, pin and clips
  • Suitable for vintage 2-stroke engine rebuilds
  • Designed for OEM-equivalent fitment and performance
  • MOS2 coated for break-in
  • Wrist pin bearing sold separately

Specifications

  • VintCo Part Number: PSM02-1.5
  • Piston diameter: 78.5 mm
  • Oversize: +1.5 mm
  • Piston measurement: 78.42 mm
  • Clearance: 0.08 mm
  • Forged piston construction
  • Made in Germany

Vehicle Fitments

  • 1974 Maico 400
  • 1975 Maico 400
  • 1976 Maico 400
  • 1977 Maico 400
  • 1978 Maico 400
  • 1979 Maico 400
  • 1980 Maico 400
  • 1981 Maico 400
