PISTON KIT 73-81 SUZUKI DS RL TS 250 71.0MM 1.0MM OVER VINTCO PSS09-1.0

PISTON KIT 73-81 SUZUKI DS RL TS 250 71.0MM 1.0MM OVER VINTCO PSS09-1.0

£151.16 GBP
Taxes included. Shipping calculated at checkout.

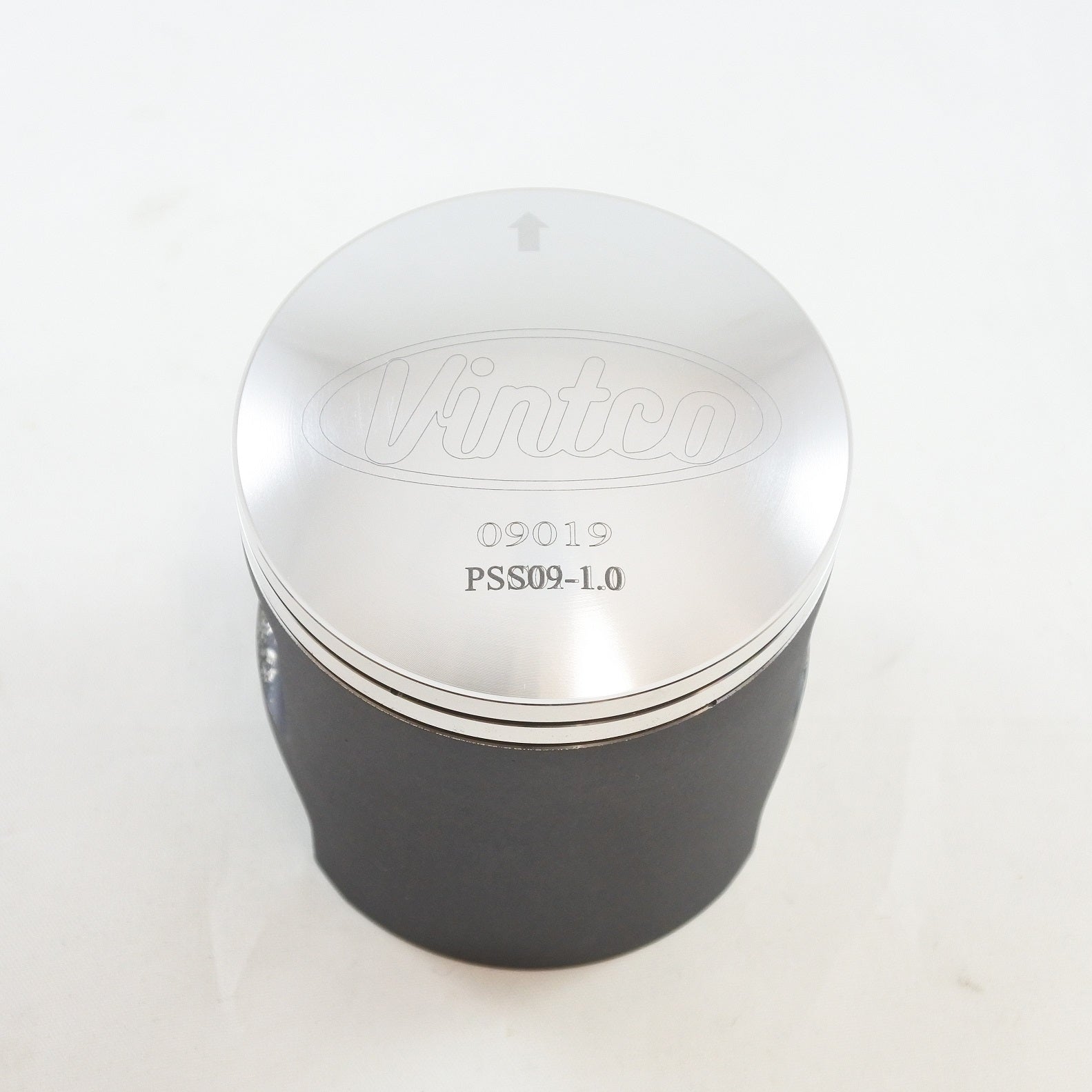

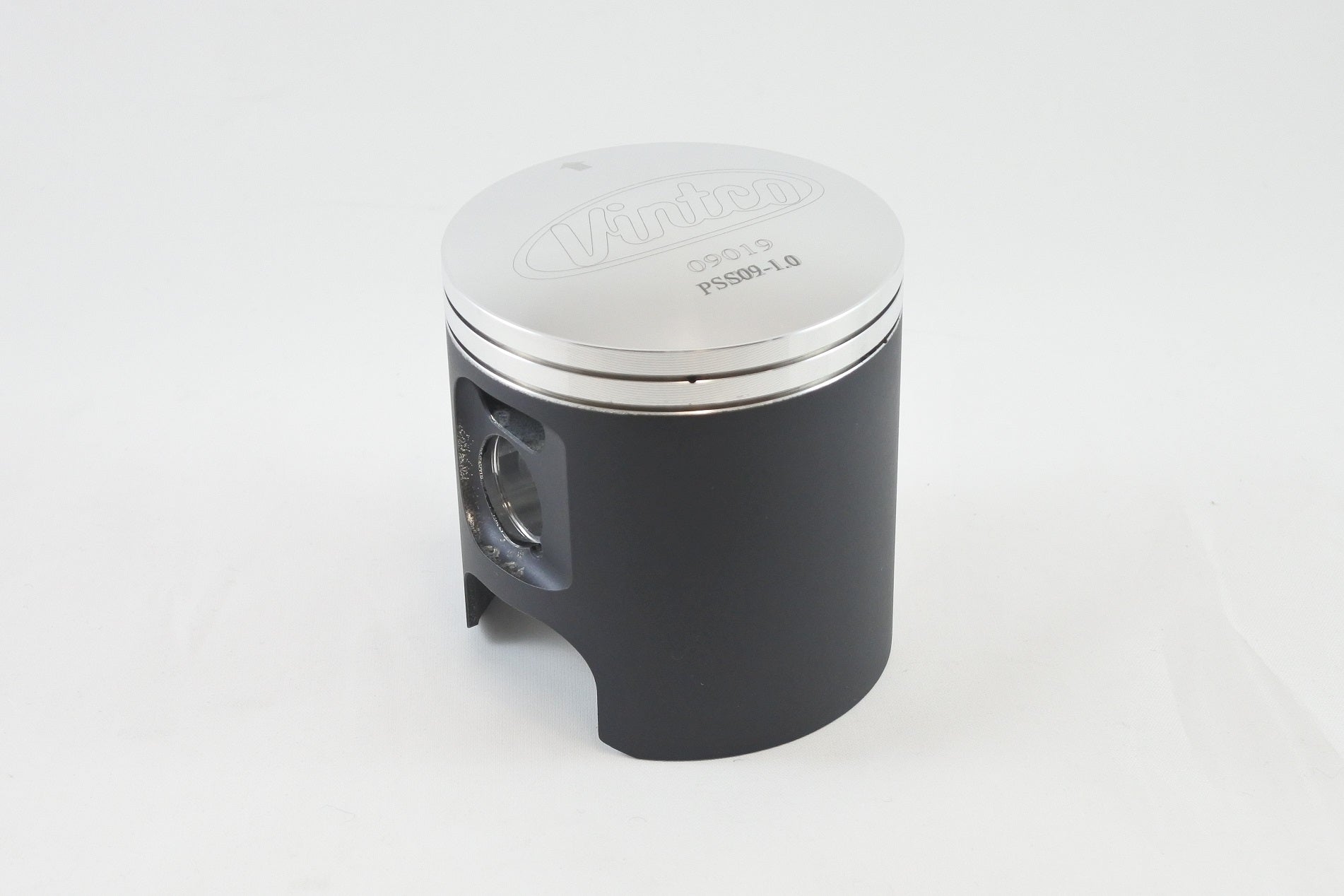

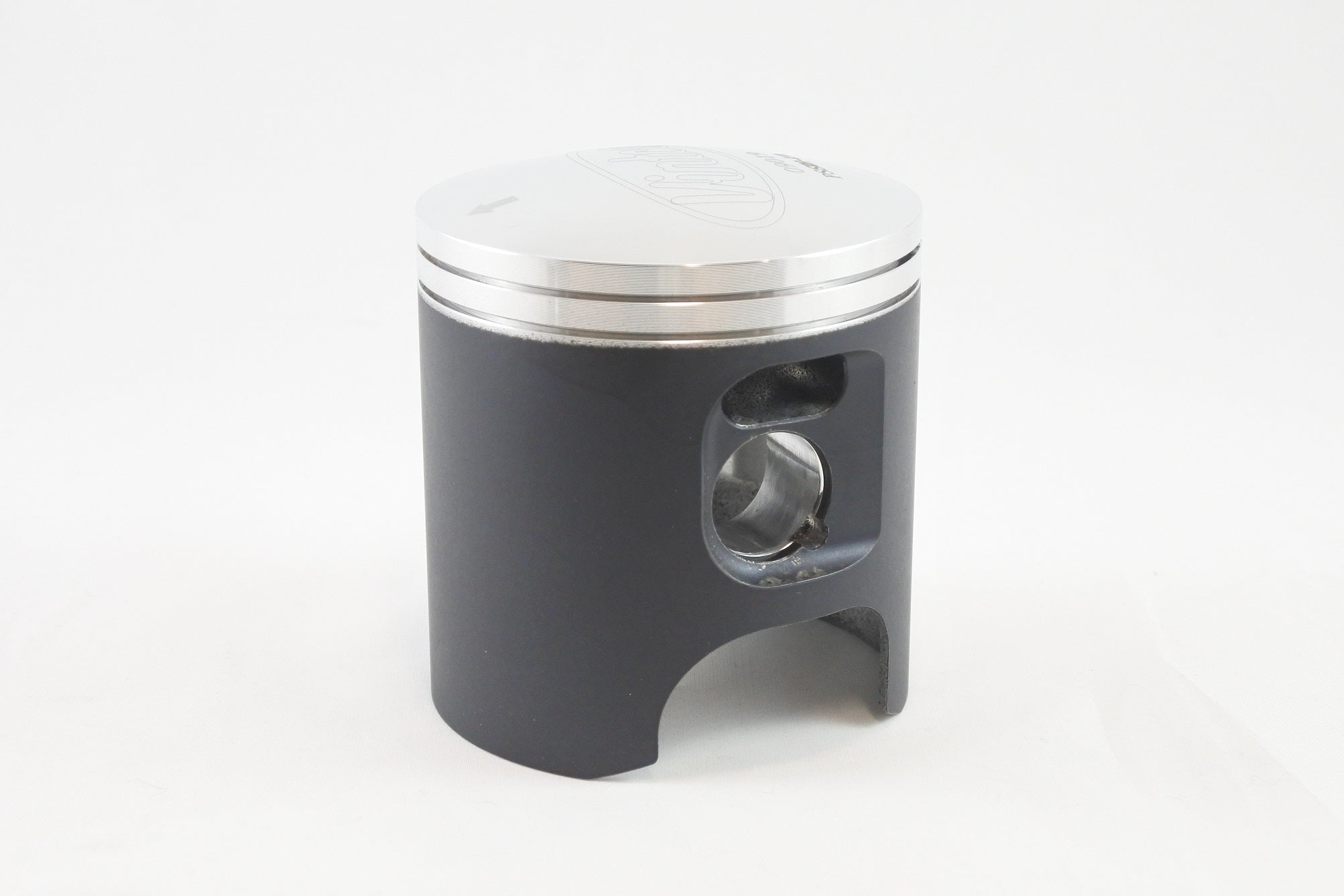

This VintCo piston kit is designed for Suzuki RL250, DS250 and TS250 models, providing a 71.0 mm piston in 1.0 mm oversize for vintage 2-stroke engine rebuilds. The kit includes the piston, rings, pin and clips, and is manufactured using modern production methods for OEM-equivalent fitment and performance. It is suitable for getting the engine back into service with a direct replacement-style assembly, while a wrist pin bearing is available separately and additional size options are also available.

Features

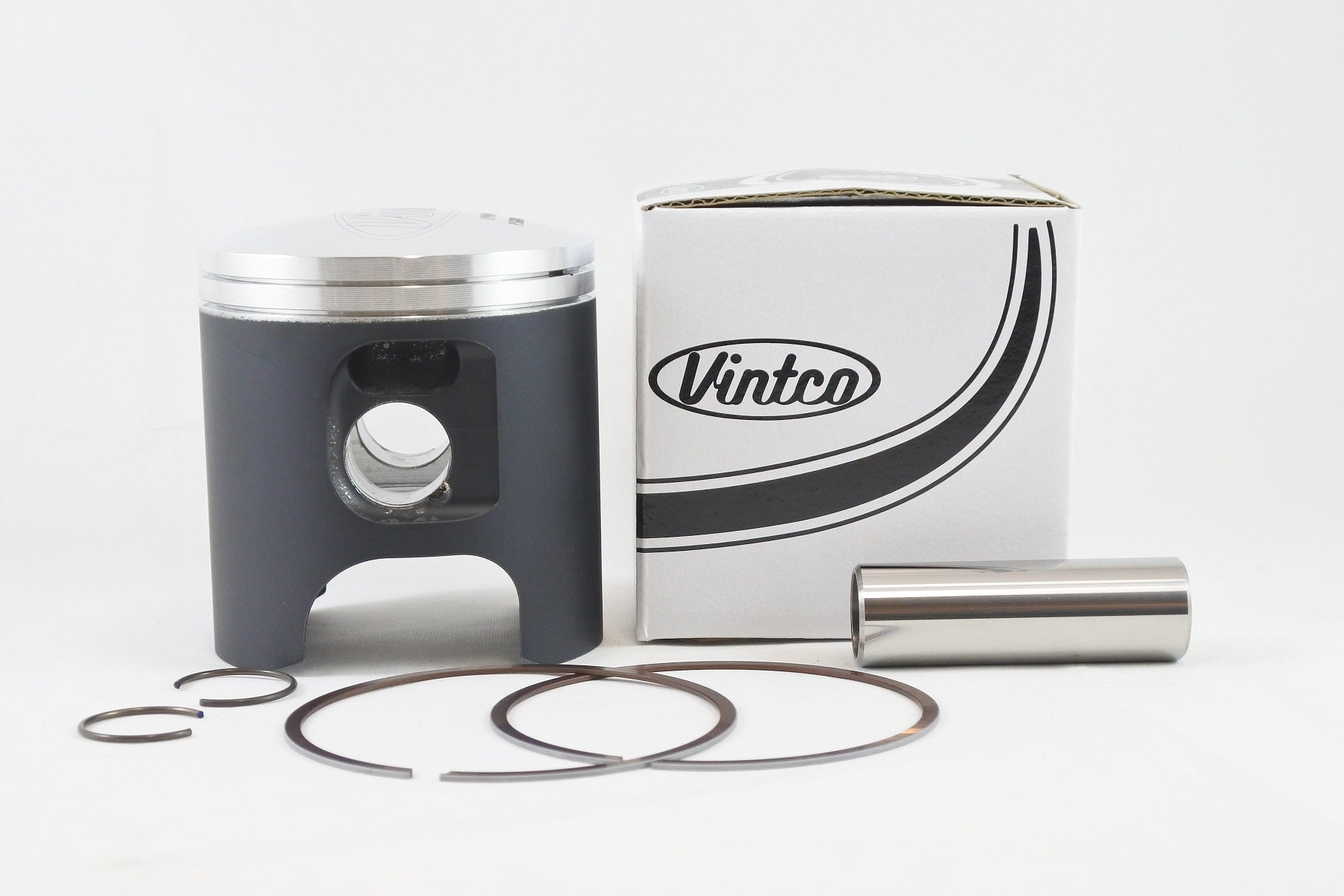

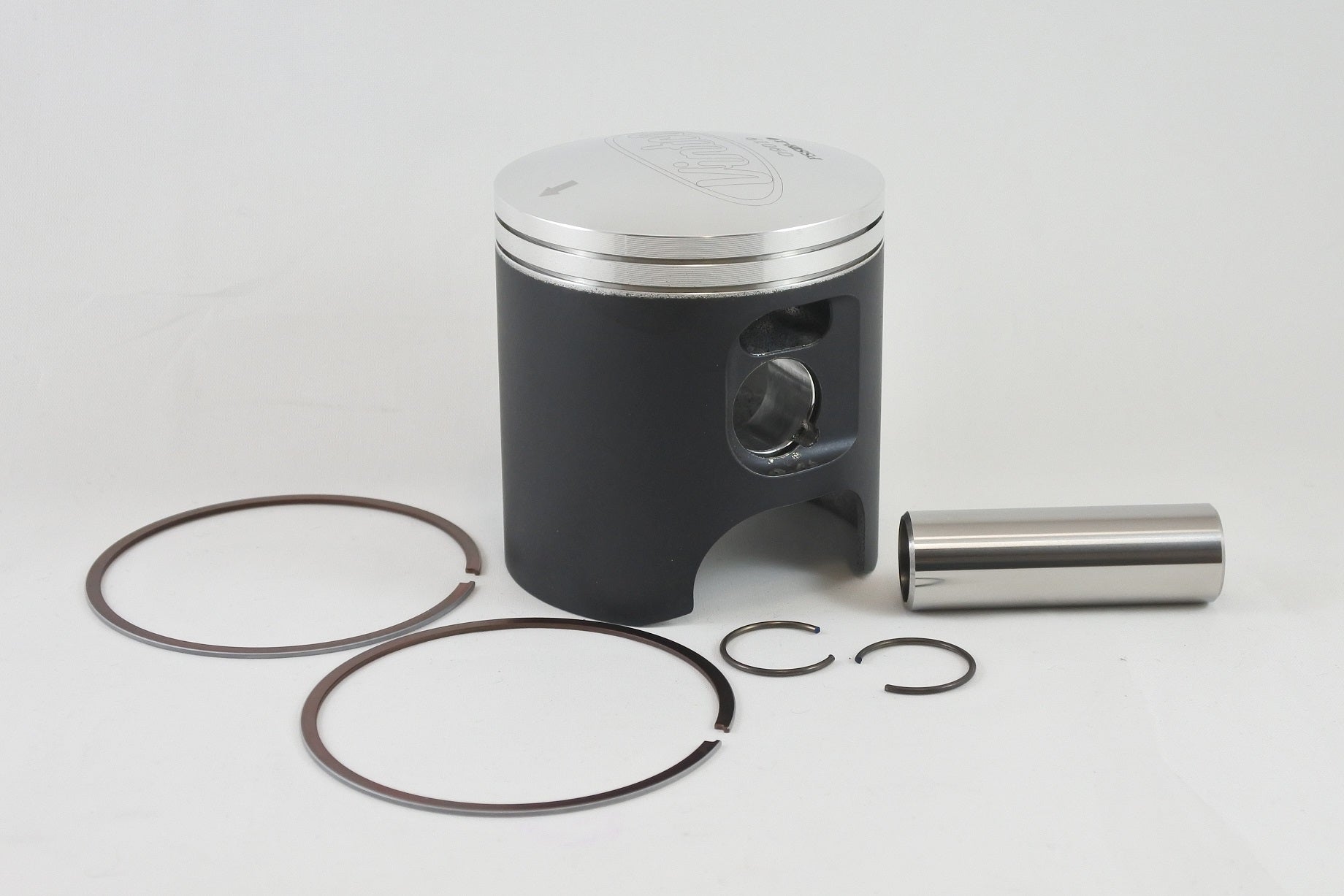

  • Complete piston kit with piston, rings, pin and clips
  • Intended for vintage 2-stroke engine rebuilds
  • Direct replacement-style fitment
  • Wrist pin bearing sold separately
  • Additional size options available
  • MoS2 coated for running-in

Specifications

  • VintCo Part Number: PSS09-1.0
  • Piston diameter: 71.0 mm
  • Oversize: +1.0 mm
  • Forged piston
  • Country of manufacture: Germany
  • Piston size: 70.94 mm
  • Clearance: 0.06 mm

Vehicle Fitments

  • 1973 Suzuki TS250
  • 1974 Suzuki RL250
  • 1974 Suzuki TS250
  • 1975 Suzuki RL250
  • 1975 Suzuki TS250
  • 1976 Suzuki TS250
  • 1977 Suzuki TS250
  • 1978 Suzuki TS250
  • 1979 Suzuki TS250
  • 1980 Suzuki DS250
  • 1980 Suzuki TS250
  • 1981 Suzuki TS250
