Piston Kit 71-81 Suzuki Rv TC Ds Ts 125 56.5mm +0.5mm Over Vintco PSS07-0.5
  • Piston Kit 71-81 Suzuki Rv TC Ds Ts 125 56.5mm +0.5mm Over Vintco PSS07-0.5
  • Piston Kit 71-81 Suzuki Rv TC Ds Ts 125 56.5mm +0.5mm Over Vintco PSS07-0.5
  • Piston Kit 71-81 Suzuki Rv TC Ds Ts 125 56.5mm +0.5mm Over Vintco PSS07-0.5
  • Piston Kit 71-81 Suzuki Rv TC Ds Ts 125 56.5mm +0.5mm Over Vintco PSS07-0.5
  • Piston Kit 71-81 Suzuki Rv TC Ds Ts 125 56.5mm +0.5mm Over Vintco PSS07-0.5
  • Piston Kit 71-81 Suzuki Rv TC Ds Ts 125 56.5mm +0.5mm Over Vintco PSS07-0.5
  • Piston Kit 71-81 Suzuki Rv TC Ds Ts 125 56.5mm +0.5mm Over Vintco PSS07-0.5
  • Piston Kit 71-81 Suzuki Rv TC Ds Ts 125 56.5mm +0.5mm Over Vintco PSS07-0.5
  • Piston Kit 71-81 Suzuki Rv TC Ds Ts 125 56.5mm +0.5mm Over Vintco PSS07-0.5
  • Piston Kit 71-81 Suzuki Rv TC Ds Ts 125 56.5mm +0.5mm Over Vintco PSS07-0.5
Piston Kit 71-81 Suzuki Rv TC Ds Ts 125 56.5mm +0.5mm Over Vintco PSS07-0.5

Piston Kit 71-81 Suzuki Rv TC Ds Ts 125 56.5mm +0.5mm Over Vintco PSS07-0.5

£120.92 GBP
Taxes included. Shipping calculated at checkout.

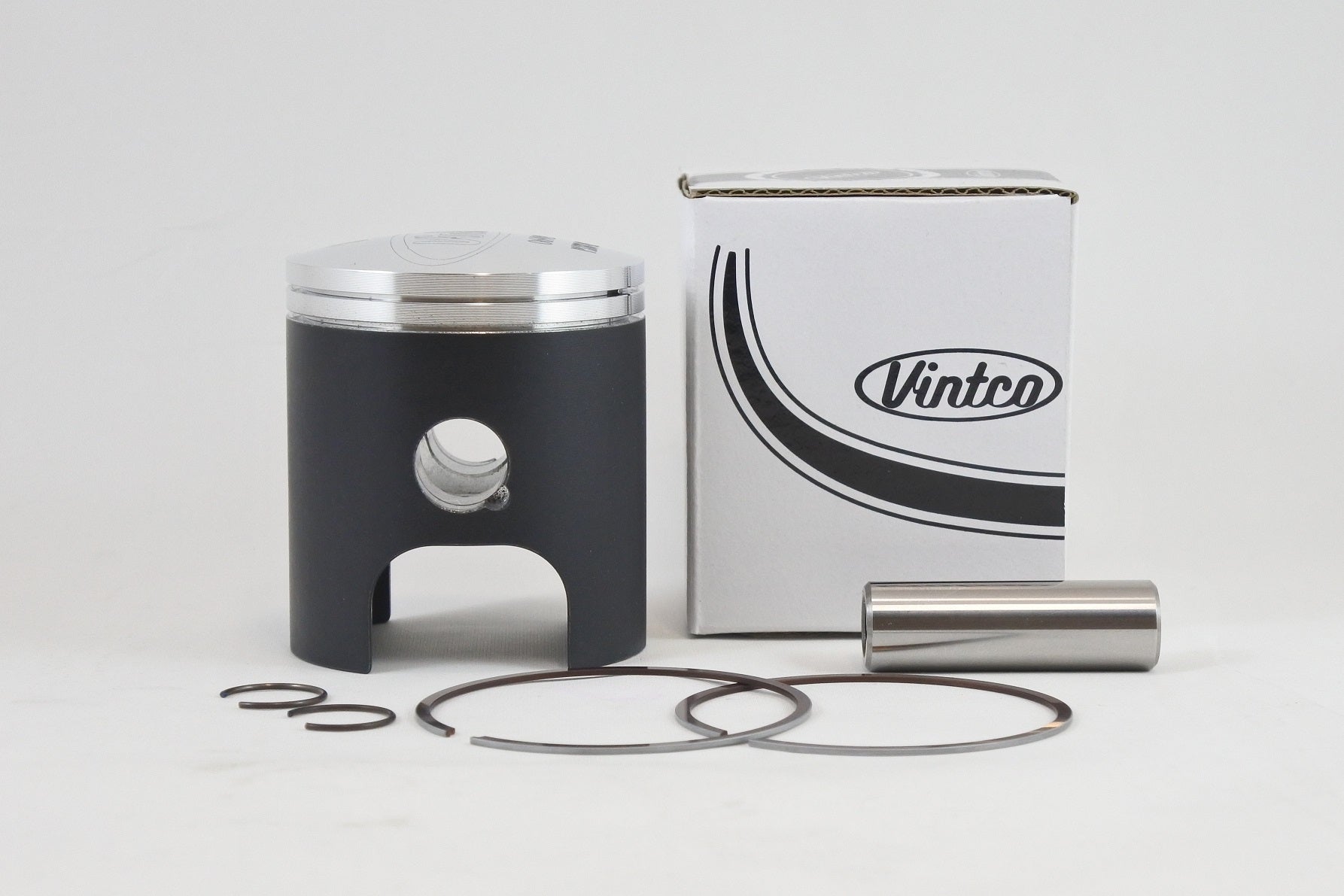

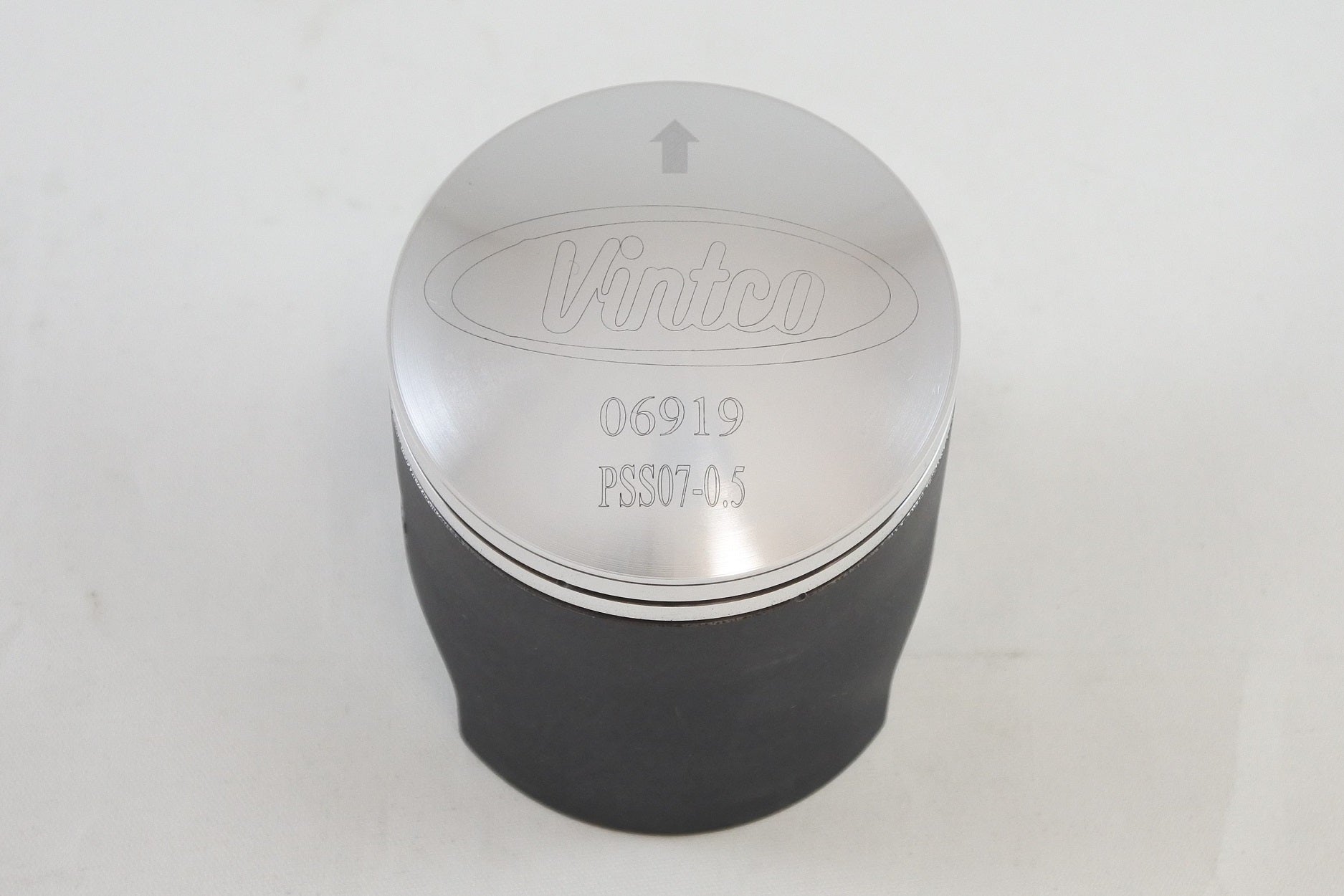

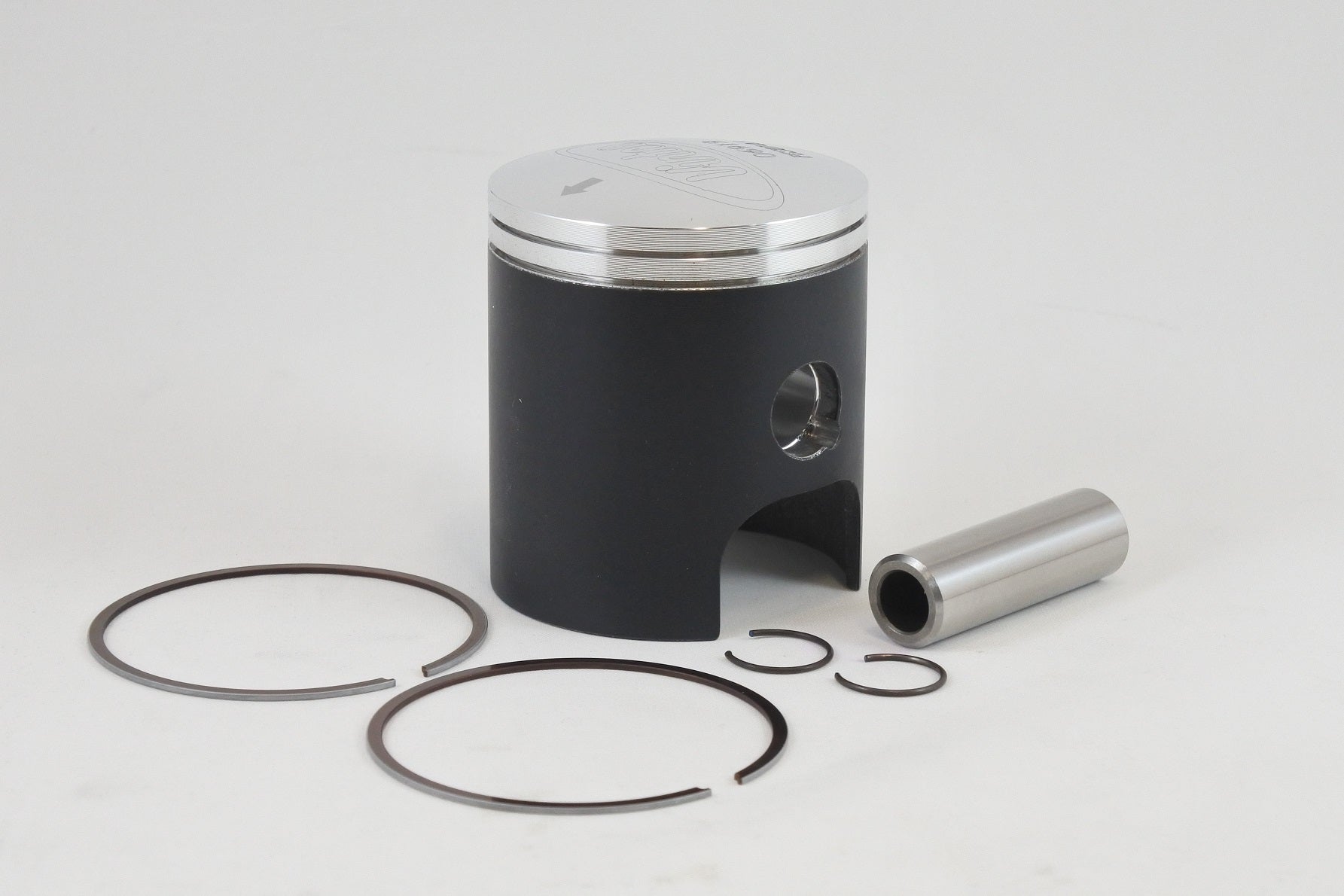

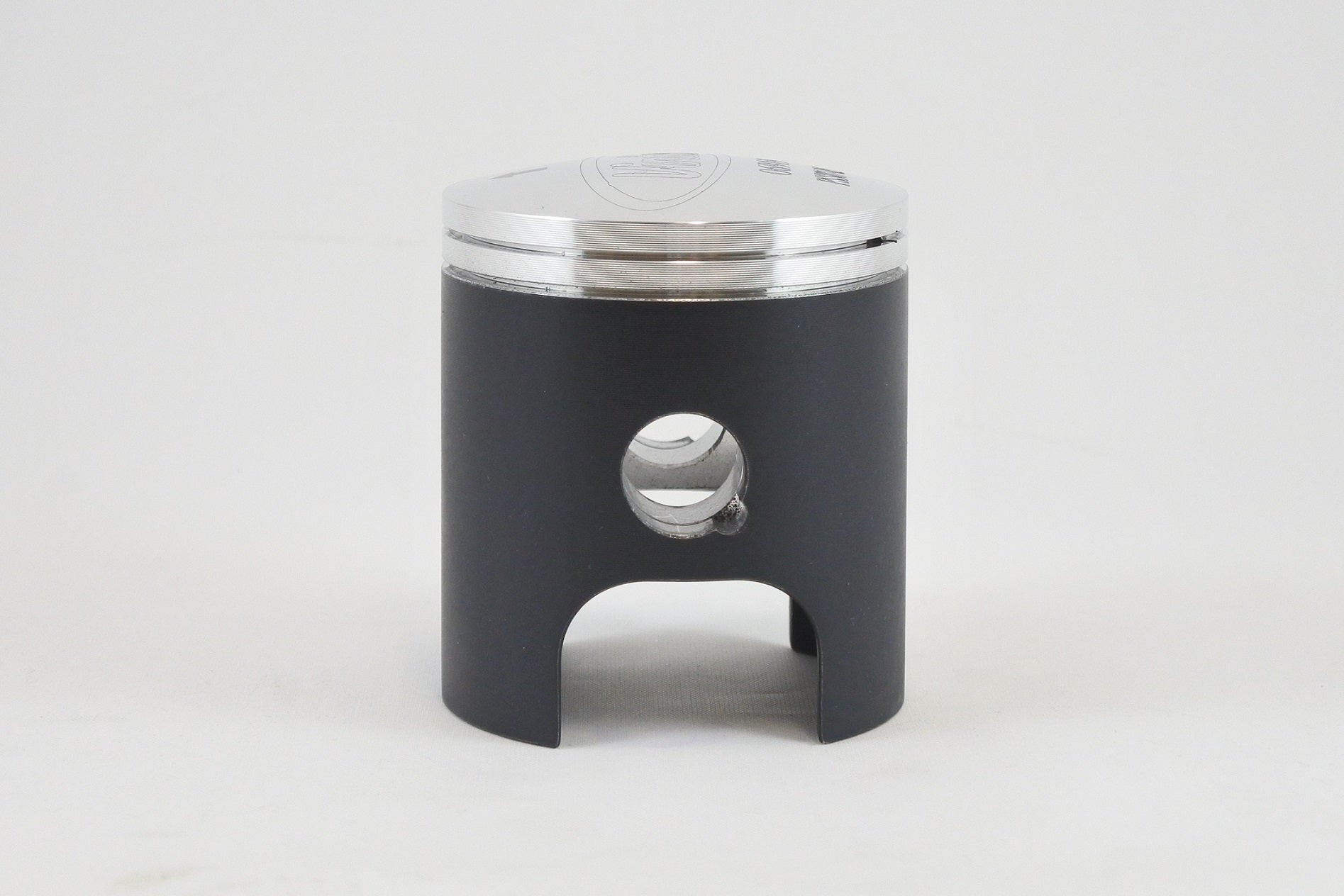

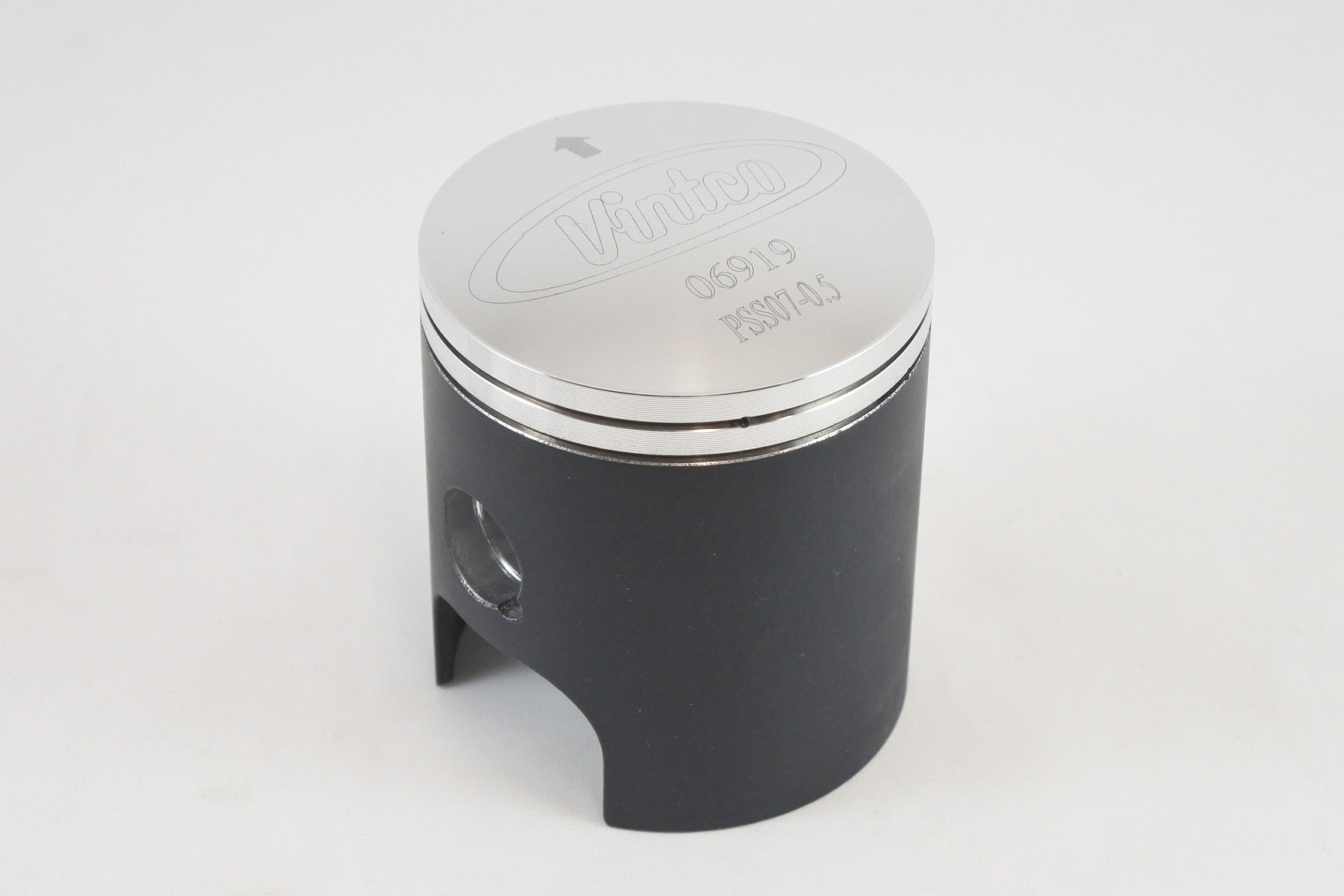

VintCo piston kit PSS07-0.5 is a 56.5 mm, +0.5 mm oversize replacement kit for selected Suzuki 125 two-stroke models from 1971 to 1981. It is supplied with the piston, rings, pin and clips, and is manufactured in Germany using modern materials and production methods for OEM-style fitment and performance. A wrist pin bearing is available separately, and additional size options are also available.

Features

  • Complete piston kit with piston, rings, pin and clips
  • Suitable for vintage Suzuki 125 two-stroke applications
  • Manufactured for OEM-style fitment and performance
  • Wrist pin bearing sold separately
  • Additional size options available

Specifications

  • VintCo Part Number: PSS07-0.5
  • Piston size: 56.5 mm
  • Oversize: +0.5 mm
  • Piston diameter: 56.44 mm
  • Clearance: 0.06 mm
  • Piston construction: Forged
  • Coating: MoS2 break-in coating

Vehicle Fitments

  • 1971 Suzuki TS125
  • 1972 Suzuki TS125
  • 1972 Suzuki TC125
  • 1973 Suzuki TC125
  • 1973 Suzuki TS125
  • 1973 Suzuki RV125
  • 1974 Suzuki TC125
  • 1974 Suzuki TS125
  • 1974 Suzuki RV125
  • 1975 Suzuki TC125
  • 1975 Suzuki TS125
  • 1975 Suzuki RV125
  • 1976 Suzuki TC125
  • 1976 Suzuki TS125
  • 1976 Suzuki RV125
  • 1977 Suzuki TC125
  • 1977 Suzuki TS125
  • 1977 Suzuki RV125
  • 1978 Suzuki TS125
  • 1979 Suzuki DS125
  • 1979 Suzuki TS125
  • 1980 Suzuki DS125
  • 1980 Suzuki TS125
  • 1981 Suzuki DS125
  • 1981 Suzuki TS125
