Piston Kit 71-81 Suzuki Ds TC Ts 185 65.0mm +1.00mm Over Vintco PSS11-1.0

Piston Kit 71-81 Suzuki Ds TC Ts 185 65.0mm +1.00mm Over Vintco PSS11-1.0

£151.16 GBP
Taxes included. Shipping calculated at checkout.

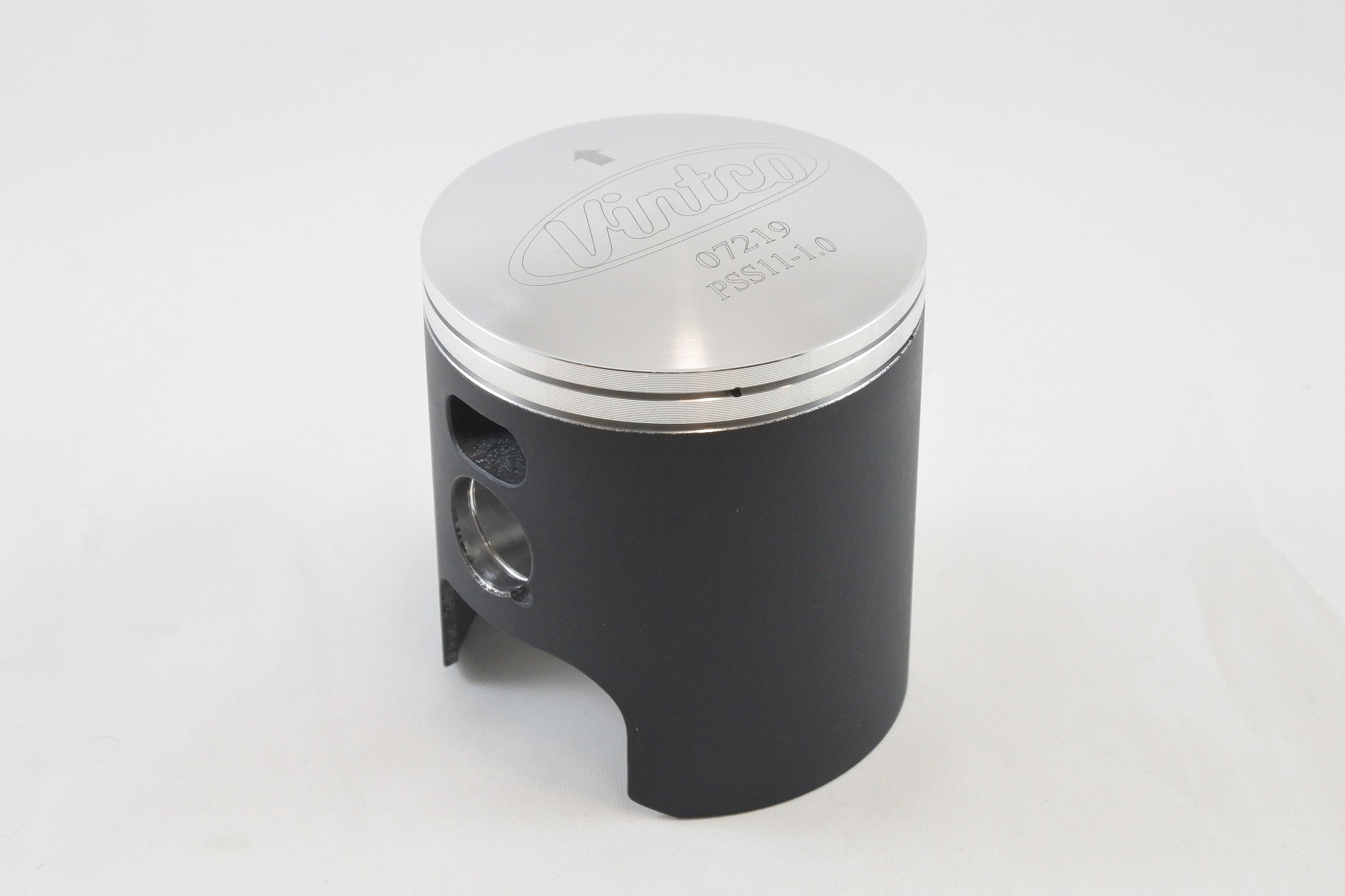

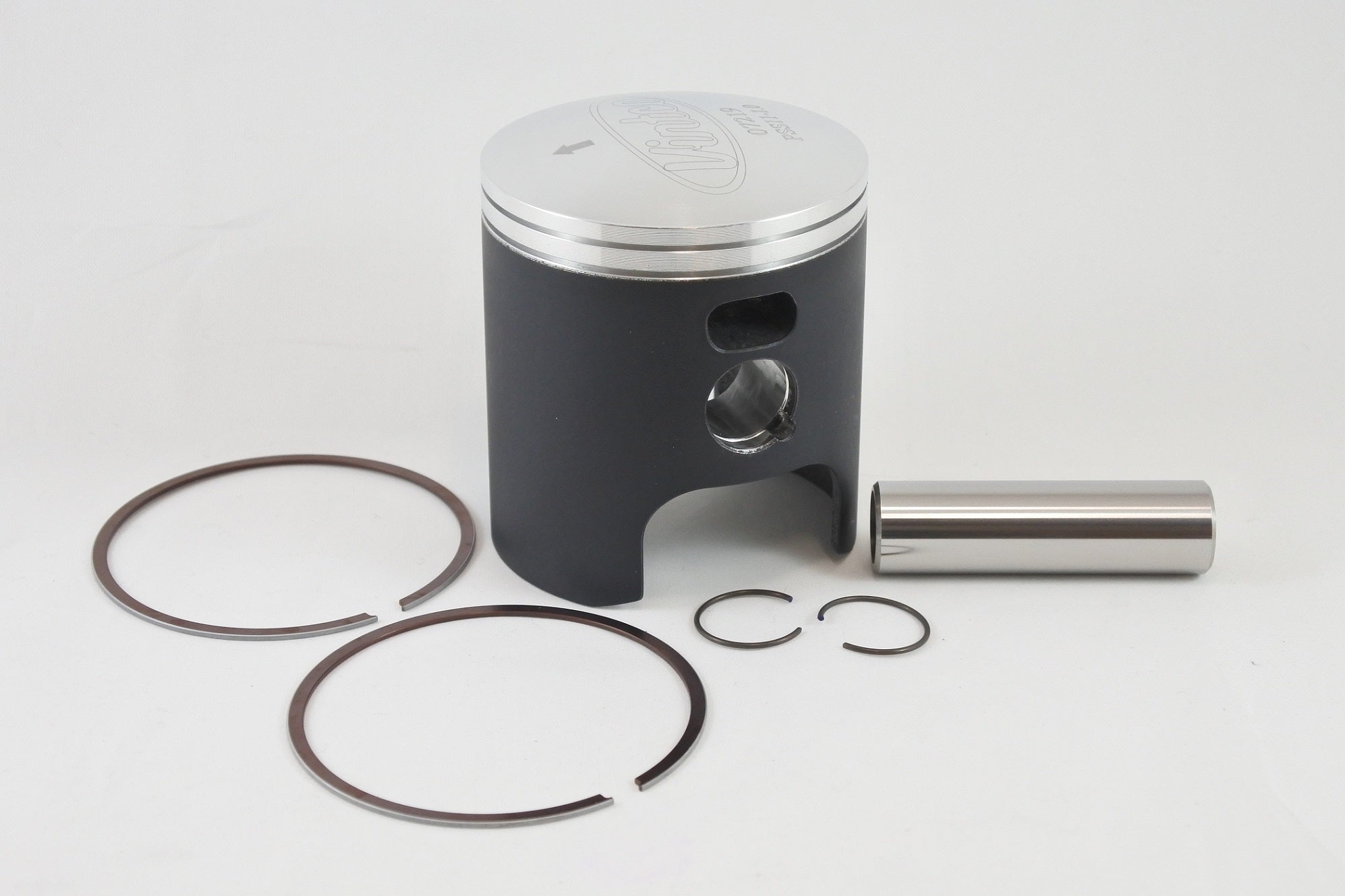

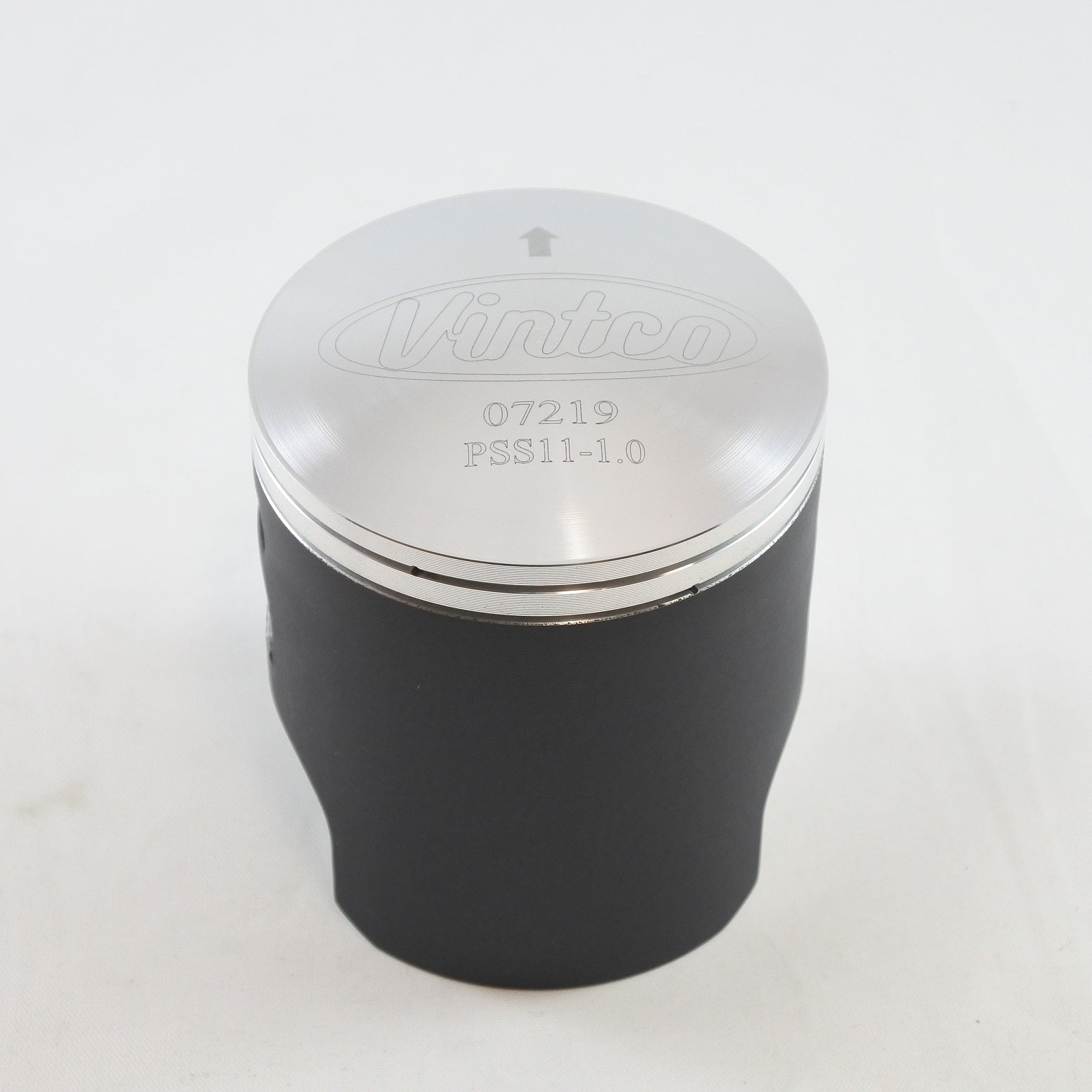

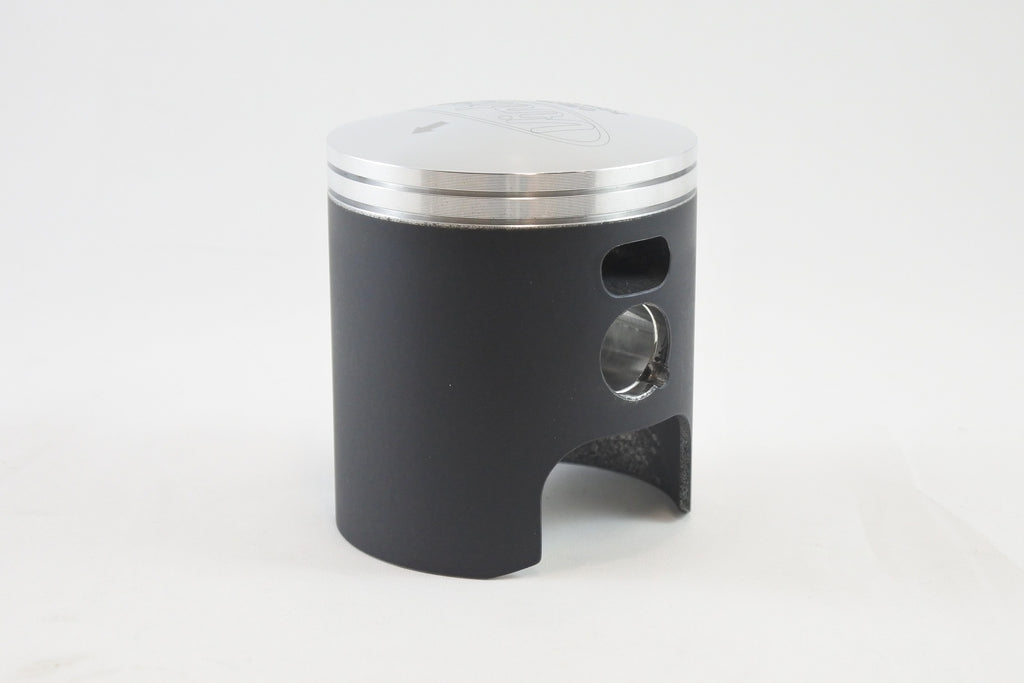

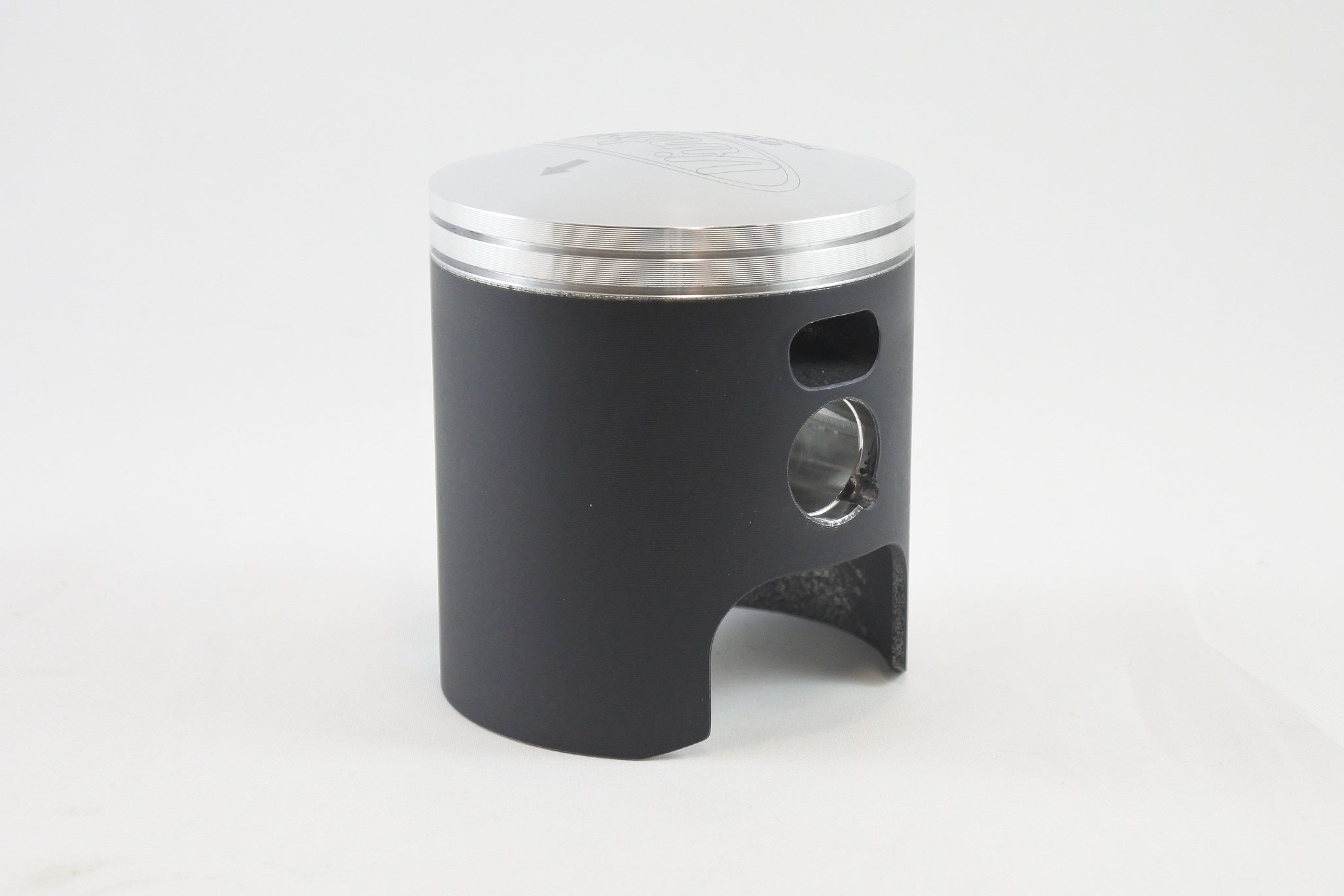

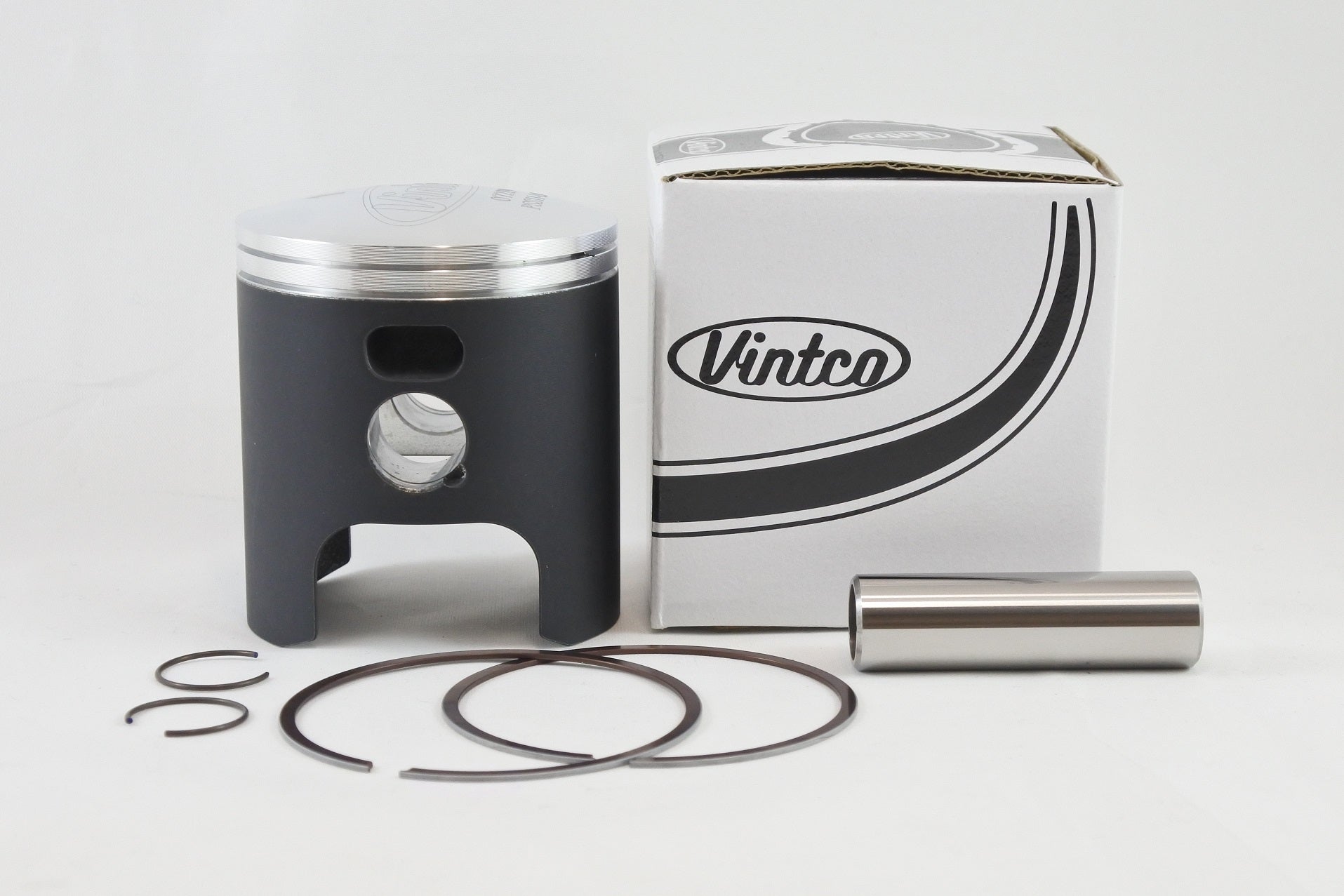

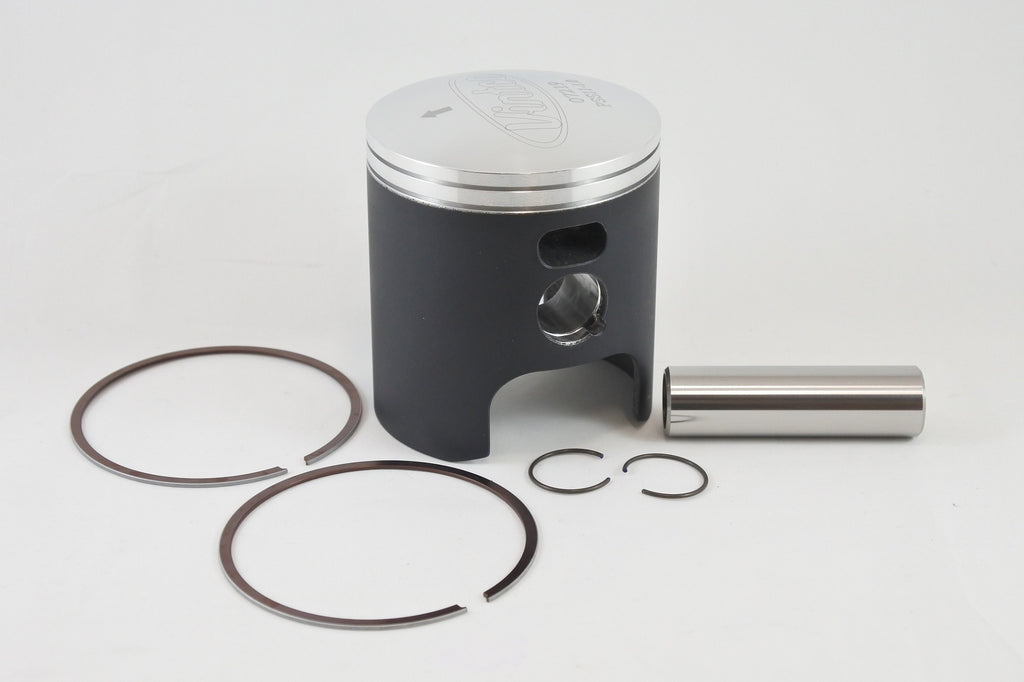

This VintCo piston kit is a +1.00 mm oversize replacement for vintage 2-stroke Suzuki DS185, TC185 and TS185 models. It includes the piston, rings, pin and clips, and is manufactured using modern materials and production methods for OEM-style fitment and performance. The forged piston is made in Germany and features an MoS2 coating to assist running-in. A wrist pin bearing is available separately, and additional size options are also available.

Features

  • Complete piston kit with piston, rings, pin and clips
  • Suitable for vintage 2-stroke Suzuki DS185, TC185 and TS185 models
  • OEM-style replacement fitment
  • Wrist pin bearing sold separately
  • Additional size options available

Specifications

  • VintCo Part Number: PSS11-1.0
  • Bore Size: 65.0 mm
  • Oversize: +1.00 mm
  • Piston Diameter: 64.93 mm
  • Clearance: 0.07 mm
  • Construction: Forged piston
  • Coating: MoS2
  • Country of Manufacture: Germany

Vehicle Fitments

  • 1971 Suzuki TS185
  • 1972 Suzuki TS185
  • 1973 Suzuki TS185
  • 1974 Suzuki TS185
  • 1974 Suzuki TC185
  • 1975 Suzuki TS185
  • 1975 Suzuki TC185
  • 1976 Suzuki TS185
  • 1976 Suzuki TC185
  • 1977 Suzuki TS185
  • 1977 Suzuki TC185
  • 1978 Suzuki DS185
  • 1978 Suzuki TS185
  • 1979 Suzuki DS185
  • 1979 Suzuki TS185
  • 1980 Suzuki DS185
  • 1980 Suzuki TS185
  • 1981 Suzuki TS185
