Piston Kit 71-81 Suzuki Ds Rv TC Ts 125 57.0mm 1.0mm Over Vintco PSS07-1.0

Piston Kit 71-81 Suzuki Ds Rv TC Ts 125 57.0mm 1.0mm Over Vintco PSS07-1.0

£120.92 GBP
Taxes included. Shipping calculated at checkout.

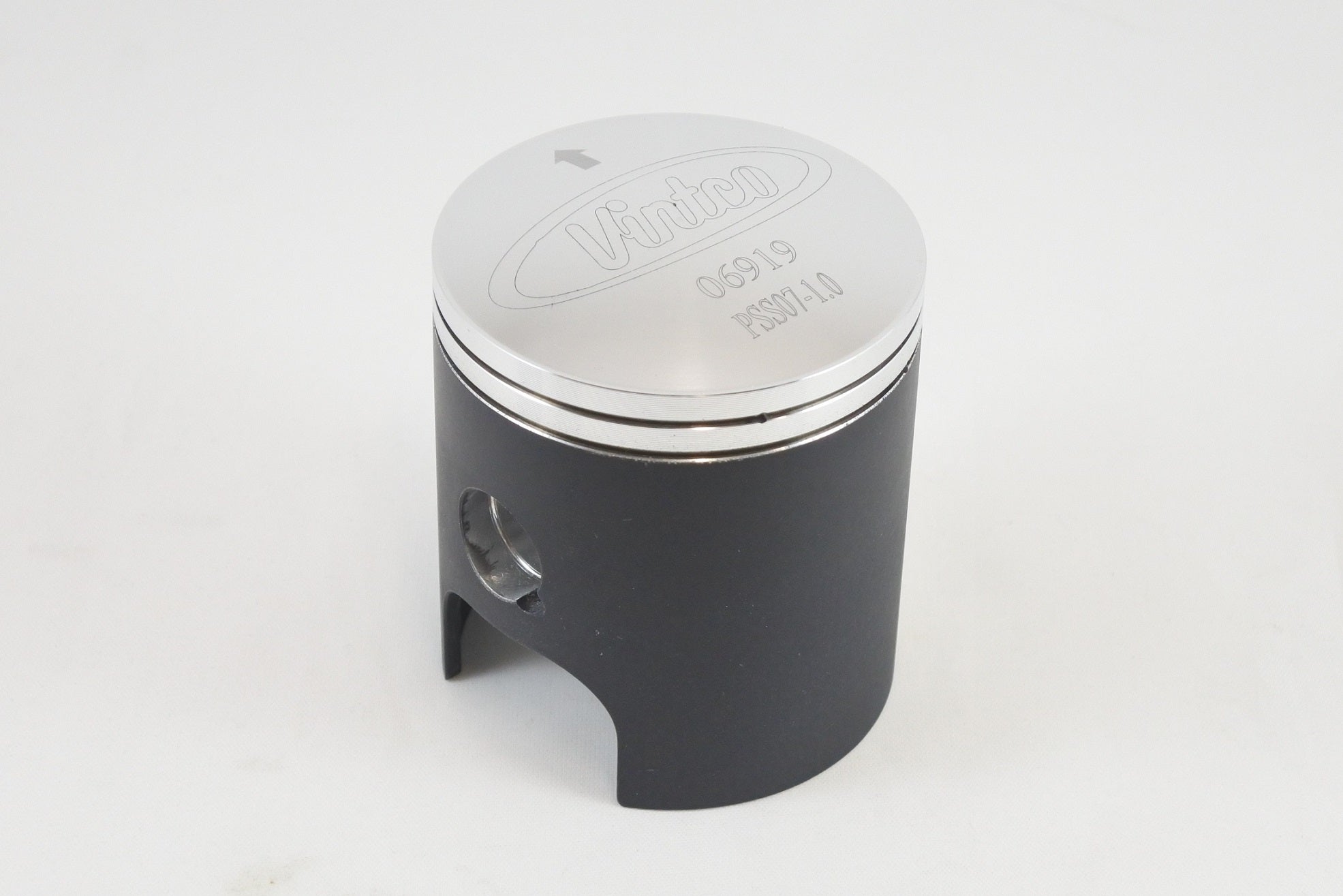

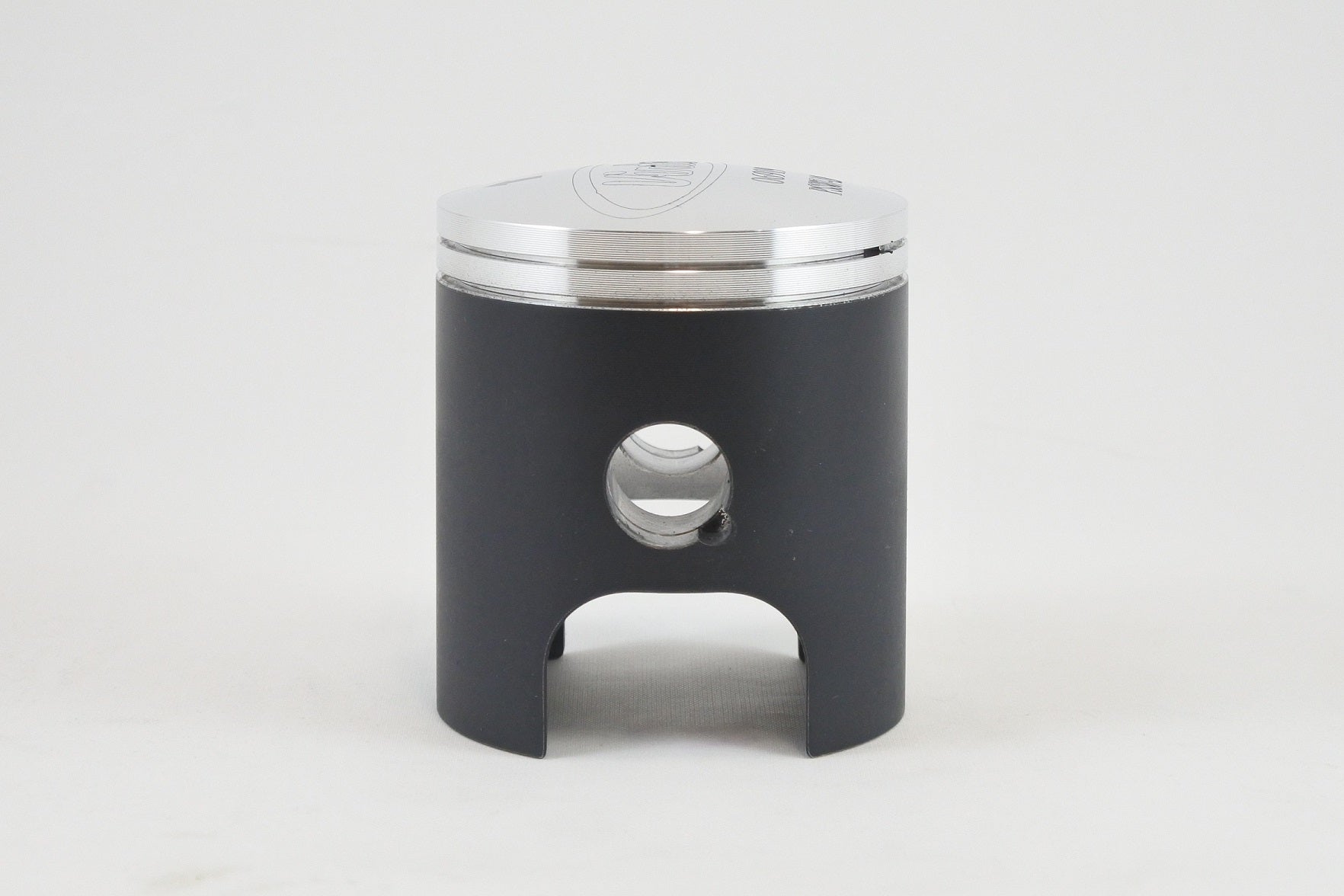

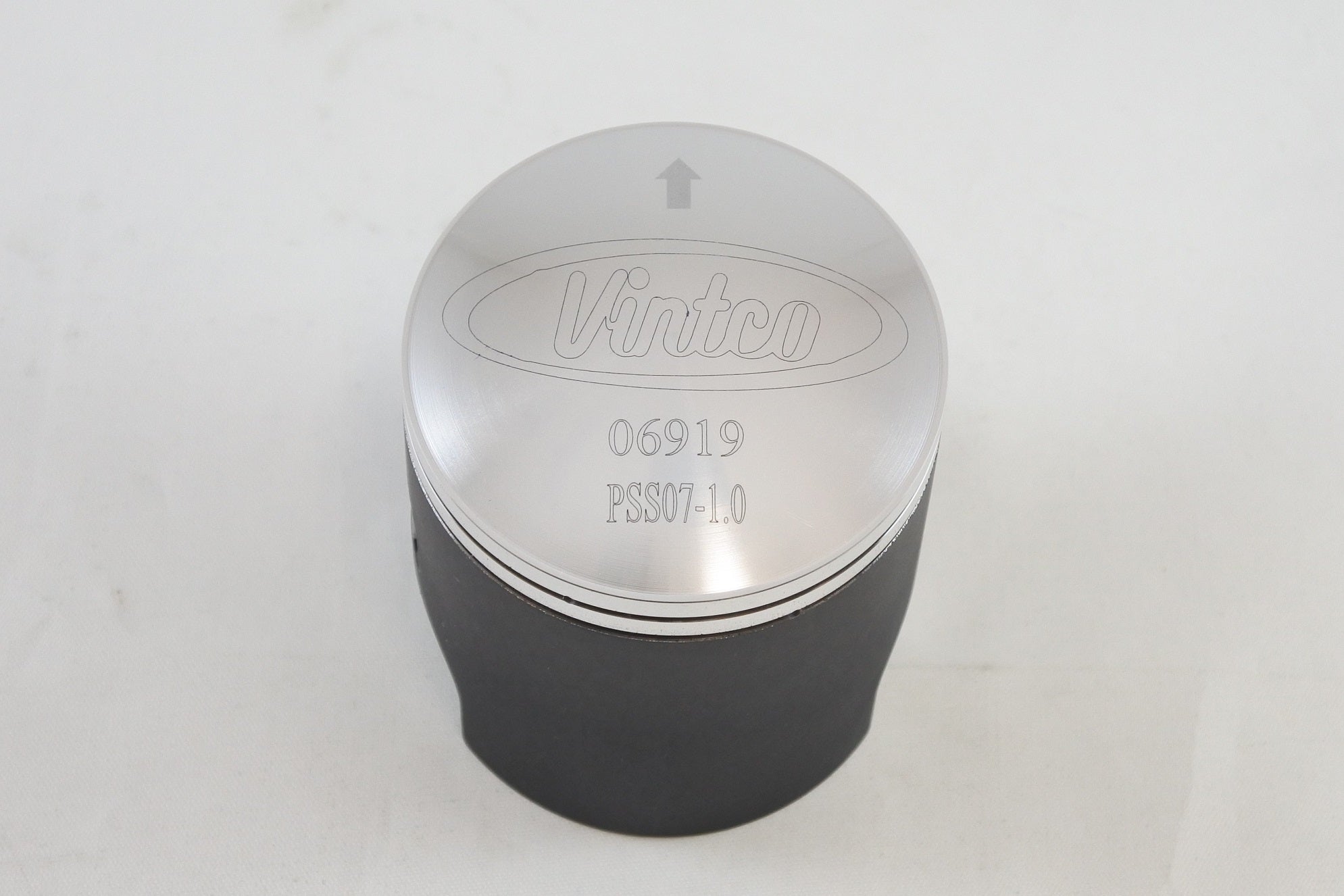

This VintCo piston kit is a 57.0 mm +1.0 mm oversize replacement for selected 1971-1981 Suzuki DS125, RV125, TC125 and TS125 2-stroke models. Manufactured in Germany using modern materials and production methods, it is intended to provide OEM-standard fitment and performance for vintage engine rebuilds. The kit includes the piston, rings, pin and clips, with the wrist pin bearing available separately.

Features

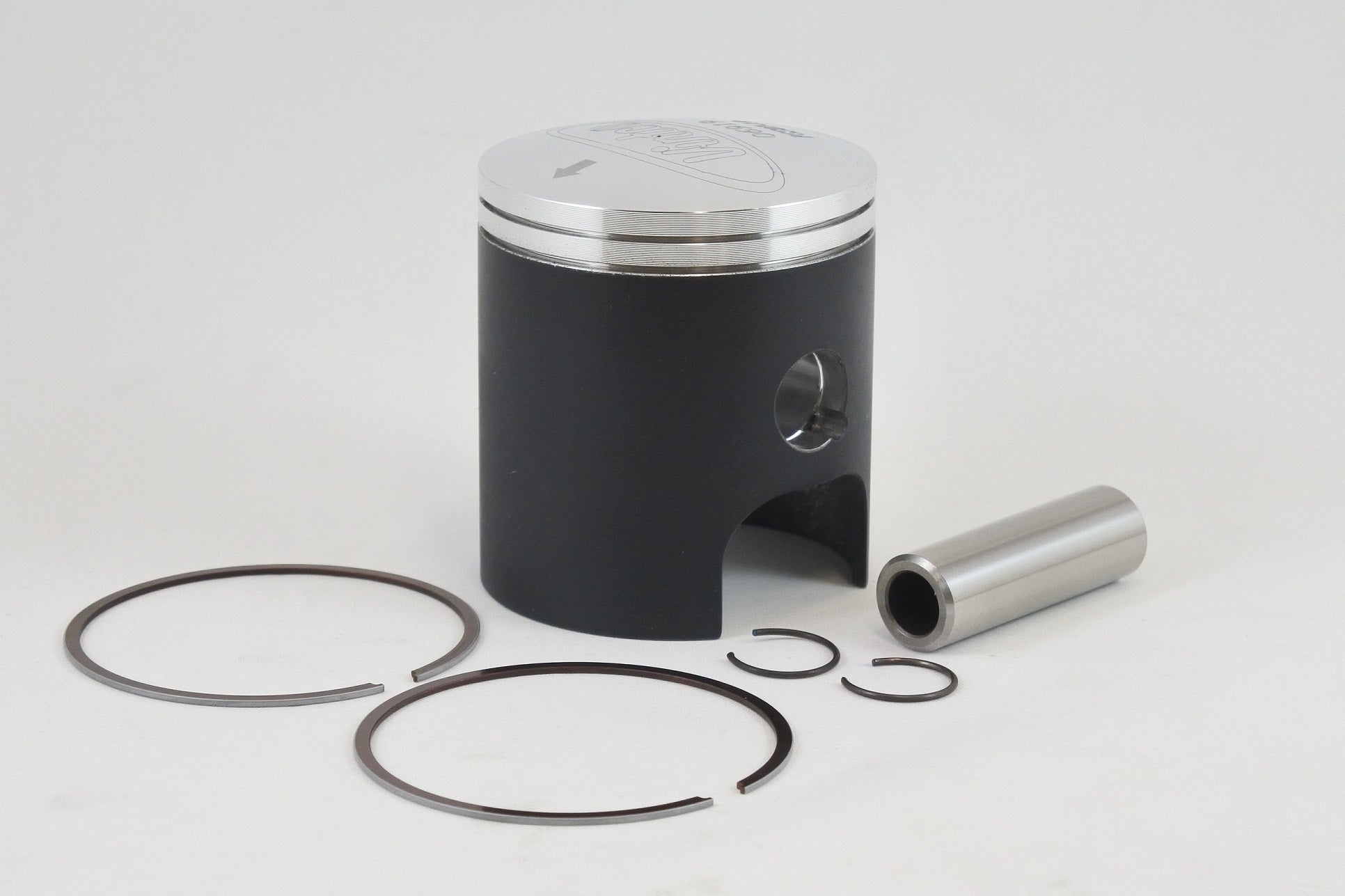

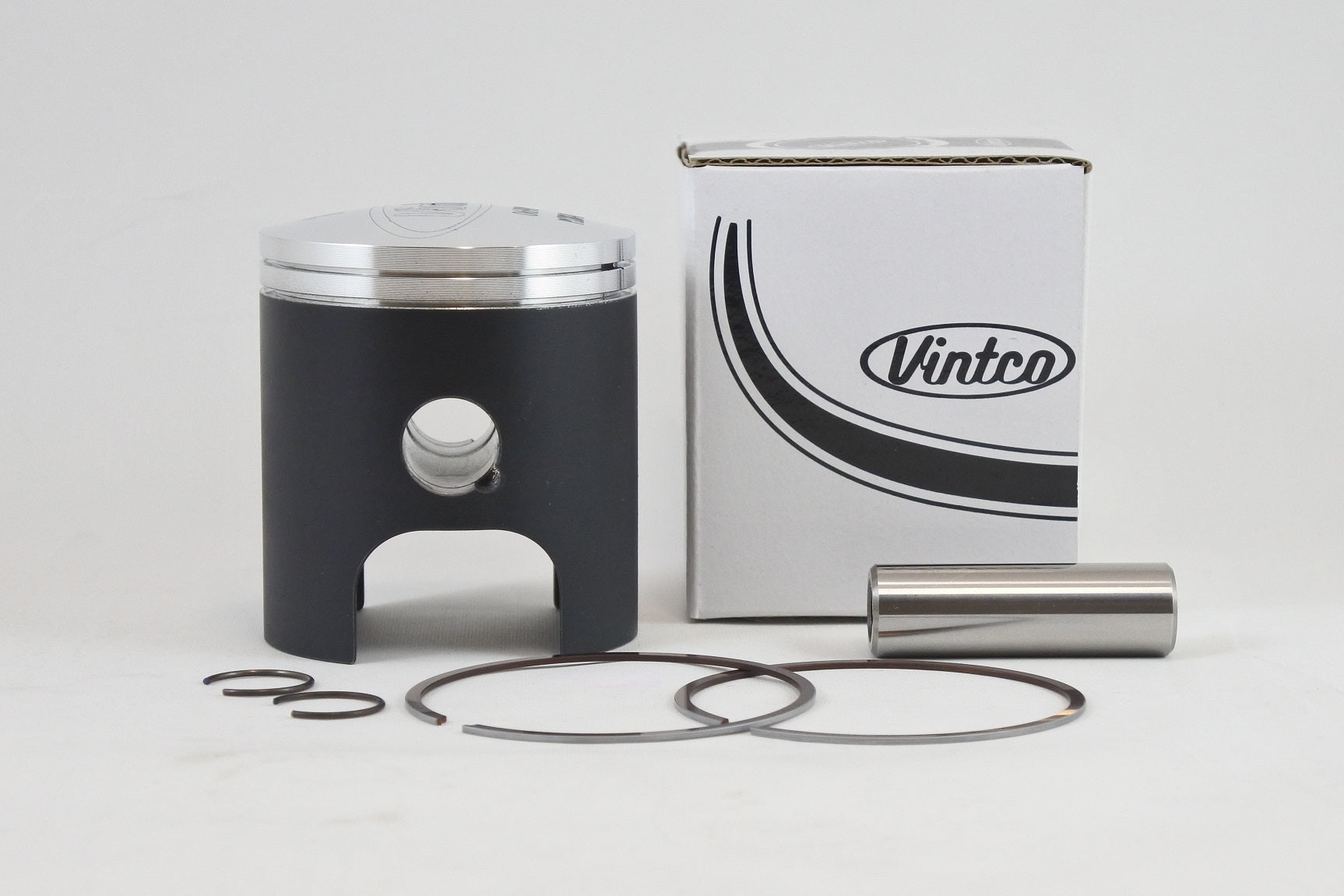

  • Complete piston kit with piston, rings, pin and clips
  • Intended for vintage Suzuki 2-stroke engine rebuilds
  • Designed for OEM-standard fitment and performance
  • Wrist pin bearing sold separately
  • Coated to aid running-in
  • Additional size options available

Specifications

  • VintCo Part Number: PSS07-1.0
  • Piston diameter: 57.0 mm
  • Oversize: +1.0 mm
  • Piston size: 56.94 mm
  • Clearance: 0.06 mm
  • Construction: Forged piston
  • Coating: MoS2
  • Country of manufacture: Germany

Vehicle Fitments

  • 1971 Suzuki TS125
  • 1972 Suzuki TS125
  • 1972 Suzuki TC125
  • 1973 Suzuki TC125
  • 1973 Suzuki TS125
  • 1973 Suzuki RV125
  • 1974 Suzuki TC125
  • 1974 Suzuki TS125
  • 1974 Suzuki RV125
  • 1975 Suzuki TC125
  • 1975 Suzuki TS125
  • 1975 Suzuki RV125
  • 1976 Suzuki TC125
  • 1976 Suzuki TS125
  • 1976 Suzuki RV125
  • 1977 Suzuki TC125
  • 1977 Suzuki TS125
  • 1977 Suzuki RV125
  • 1978 Suzuki TS125
  • 1979 Suzuki DS125
  • 1979 Suzuki TS125
  • 1980 Suzuki DS125
  • 1980 Suzuki TS125
  • 1981 Suzuki DS125
  • 1981 Suzuki TS125
