Piston Kit 71-81 Suzuki Ds Rv TC Ts 125 56.0mm Standard Vintco PSS07-00

Piston Kit 71-81 Suzuki Ds Rv TC Ts 125 56.0mm Standard Vintco PSS07-00

£120.92 GBP
Taxes included. Shipping calculated at checkout.

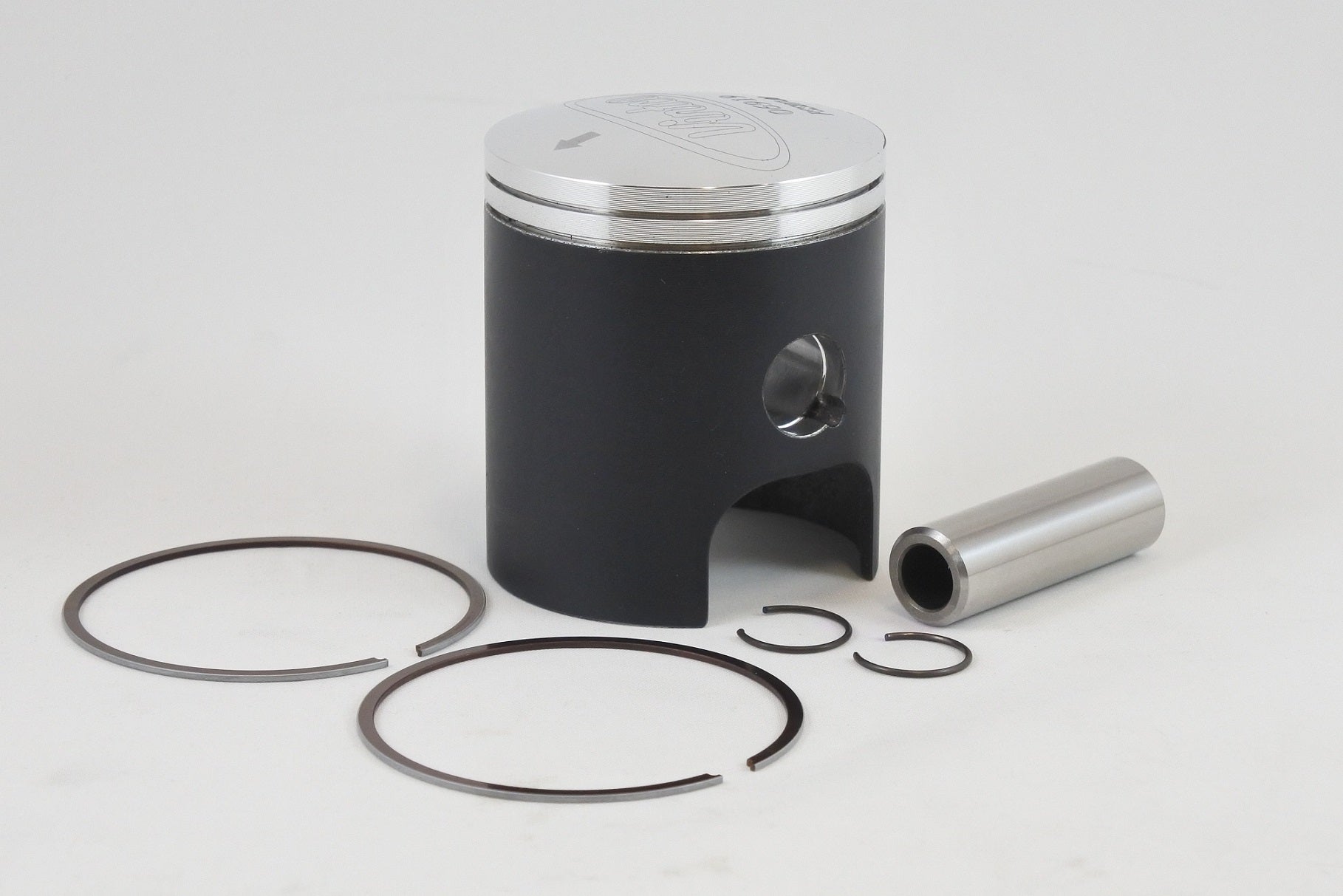

VintCo PSS07-00 is a 56.0 mm standard-bore piston kit for listed Suzuki DS125, RV125, TC125 and TS125 vintage 2-stroke models from 1971 to 1981. Manufactured in Germany using modern materials and production techniques, this kit is intended for OEM-equivalent fitment and rebuild work, and includes the piston, rings, pin and clips. It is supplied with a MoS2 coating for running-in, while the wrist pin bearing is available separately and other size options are also offered.

Features

  • Includes piston, rings, pin and clips
  • Intended for vintage Suzuki 125cc 2-stroke engine rebuilds
  • Designed for OEM-equivalent fitment and performance
  • Wrist pin bearing sold separately
  • Additional size options available

Specifications

  • VintCo Part Number: PSS07-00
  • Bore size: 56.0 mm
  • Size: Standard
  • Piston diameter: 55.94 mm
  • Clearance: 0.06 mm
  • Piston type: Forged
  • Coating: MoS2
  • Country of manufacture: Germany

Vehicle Fitments

  • 1971 Suzuki TS125
  • 1972 Suzuki TS125
  • 1972 Suzuki TC125
  • 1973 Suzuki TC125
  • 1973 Suzuki TS125
  • 1973 Suzuki RV125
  • 1974 Suzuki TC125
  • 1974 Suzuki TS125
  • 1974 Suzuki RV125
  • 1975 Suzuki TC125
  • 1975 Suzuki TS125
  • 1975 Suzuki RV125
  • 1976 Suzuki TC125
  • 1976 Suzuki TS125
  • 1976 Suzuki RV125
  • 1977 Suzuki TC125
  • 1977 Suzuki TS125
  • 1977 Suzuki RV125
  • 1978 Suzuki TS125
  • 1979 Suzuki DS125
  • 1979 Suzuki TS125
  • 1980 Suzuki DS125
  • 1980 Suzuki TS125
  • 1981 Suzuki DS125
  • 1981 Suzuki TS125
