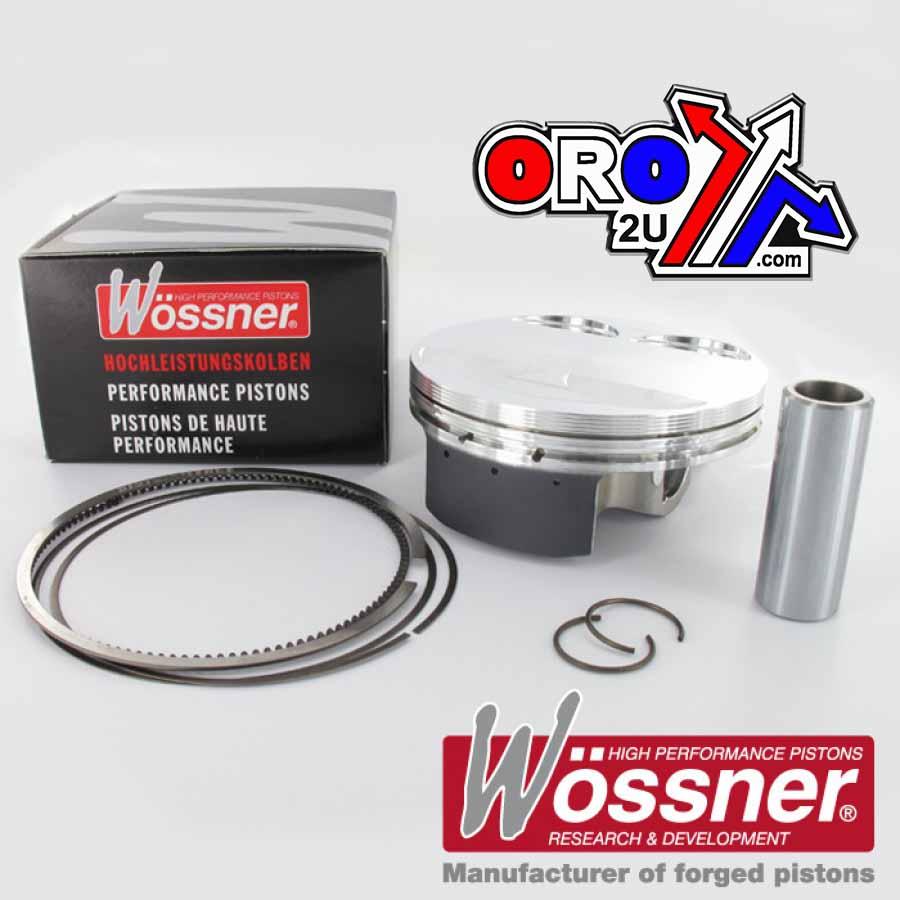

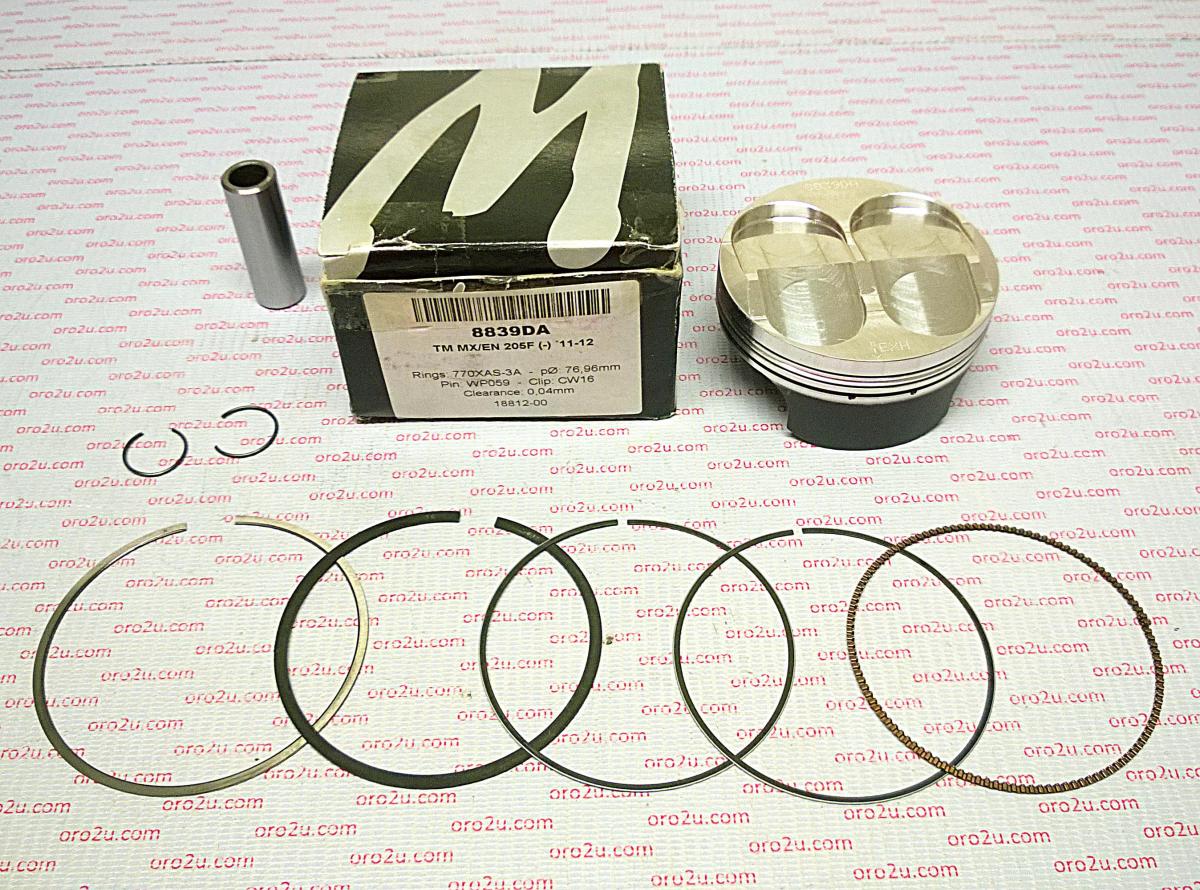

Piston Kit 11-12 TM250F Fi 77, Forged Wossner 8839DA

Piston kit 77mm Bore 76.96 Wossner 8839DA (STD)

TM
MX250F 2011 - 2012,
EN250F 2011 - 2012,
(Fuel injection)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W4958.A.WO
WOSSNER PISTON KIT 8839DA SIZE. A 76.96mm
Lock P/N CW16,
Pin P/N WP059,
Ring Set P/N 770XAS-2

Display (cm3) 250
Hub stroke (mm) 53.60
Clearance (mm) 0.04
Wossner compression Ratio:
OEM Compression ratio:
Dome volume (cm3) -2.10
Compression height (mm) 22.20
Theorectical weight (G)
