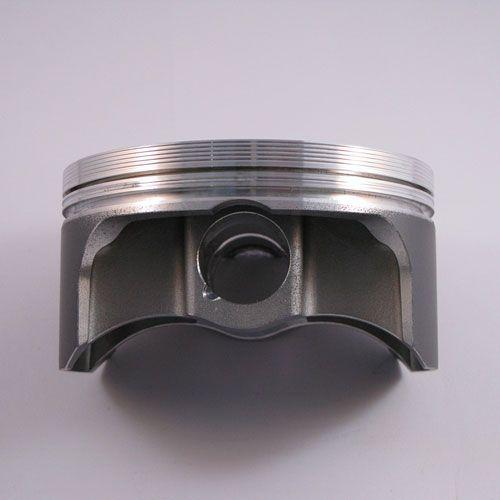

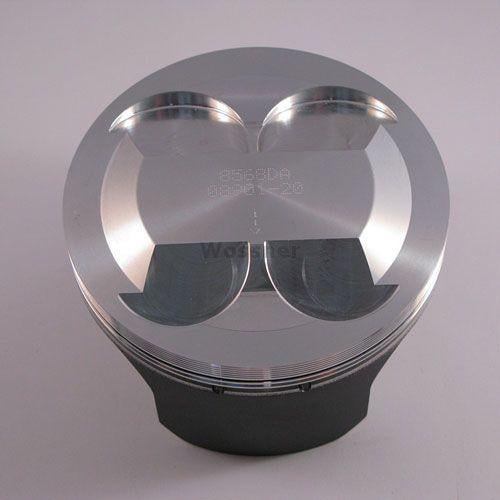

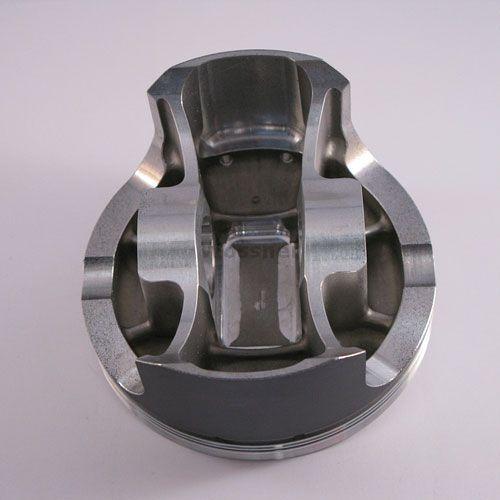

Piston Kit 06-10 TC TE610 98mm, Wossner 8815DB Husqvarna

Piston Kit 98.01mm Bore 97.95 Wossner 8515DA (+0.01)

Husqvarna

• TC 610: 2006 - 2010
• TE 610: 2006 - 2010

Features:

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

• Wossner Piston: Husqvarna TC610 98.01 mm Bore (PN# 8815DB)
• Lock P/N: CW22
• Pin P/N: WP009
• Ring Set P/N: 980XSY

Specifications:

• Display (cm3): 577
• Hub stroke (mm): 76.40
• Clearance (mm): 0.06
• Wossner compression Ratio: OEM
• OEM Compression ratio: 11.00:1
• Dome volume (cm3): +8.20
• Compression height (mm): 25.00
