PISTON KIT 03-09 RM250 67.50, WOSSNER 8086D110 2-RING SUZUKI

PISTON KIT 03-09 RM250 67.50, WOSSNER 8086D110 2-RING SUZUKI

£122.39 GBP
Taxes included.

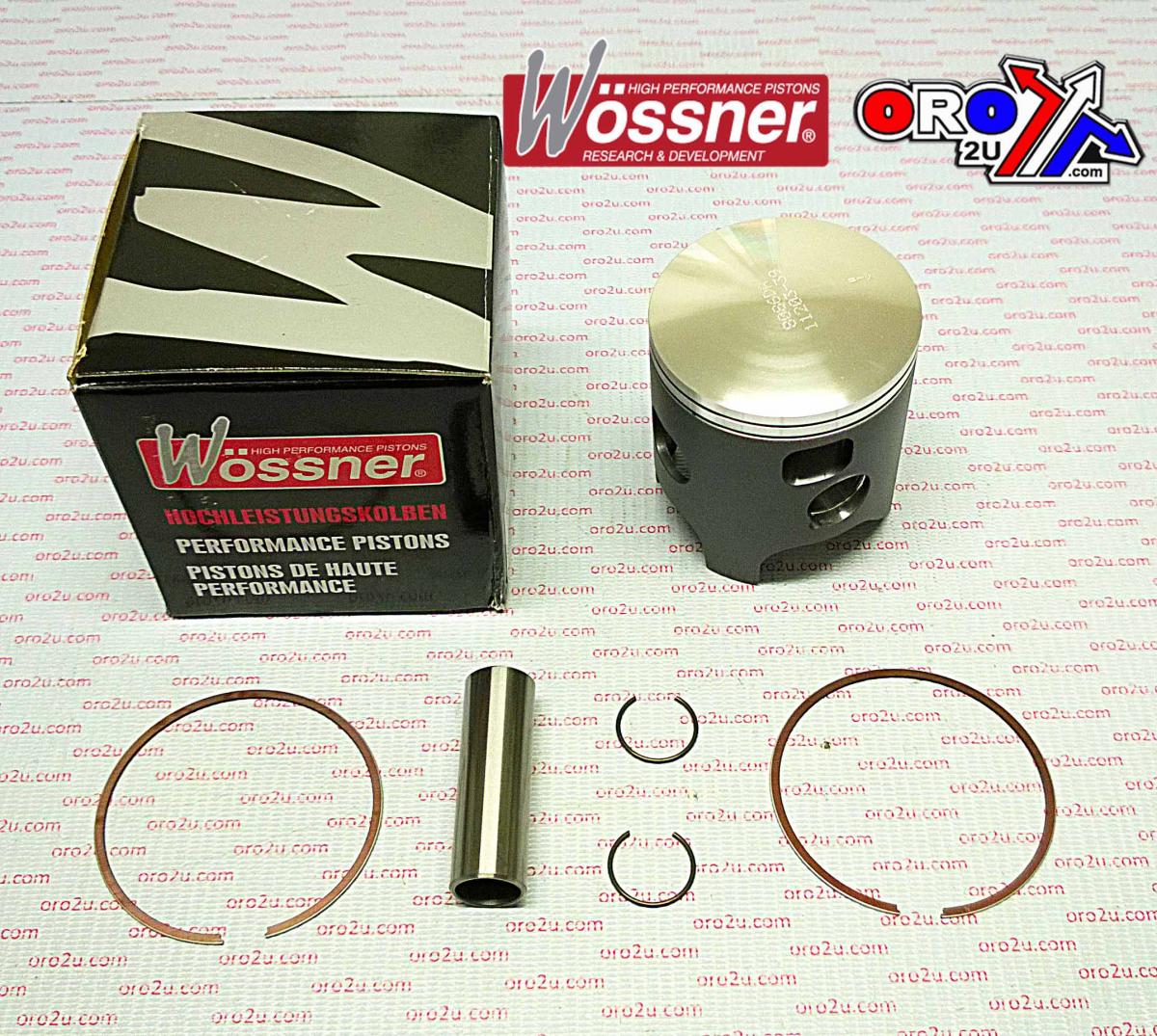

This Wossner forged piston kit is developed for the Suzuki RM250 models from 2003 to 2012. With a 67.50mm bore and a piston diameter of 67.44mm, this +1.10 oversize piston is built to handle increased performance demands while ensuring structural integrity and efficient thermal performance.

Features

  • High-strength forged construction for maximum durability under extreme conditions

  • Engineered to provide efficient heat dissipation from the combustion chamber to cylinder walls

  • Elliptical piston design distributes thrust loads evenly, reducing localised pressure and preventing piston collapse

  • Precision-manufactured in Germany for consistent quality and fit

Specifications

  • Bore Size: 67.50 mm

  • Piston Diameter: 67.44 mm

  • Compression Height: 38.00 mm

  • Stroke: 72.00 mm

  • Clearance: 0.06 mm

  • Compression Ratio: 2-stroke (Wossner and OEM)

  • Displacement: 249 cm³

Cross-Reference OEM Part Numbers

  • Wossner Piston Kit: 8086D110

  • Alternate Piston Kit Reference: 56-W823.110.WO

  • Lock: CW18

  • Pin: WP033

  • Ring Set: RSB6750 x2

  • Rod: P2025

Vehicle Fitments

  • 2003 Suzuki RM250

  • 2004 Suzuki RM250

  • 2005 Suzuki RM250

  • 2006 Suzuki RM250

  • 2007 Suzuki RM250

  • 2008 Suzuki RM250

  • 2009 Suzuki RM250

  • 2010 Suzuki RM250

  • 2011 Suzuki RM250

  • 2012 Suzuki RM250
