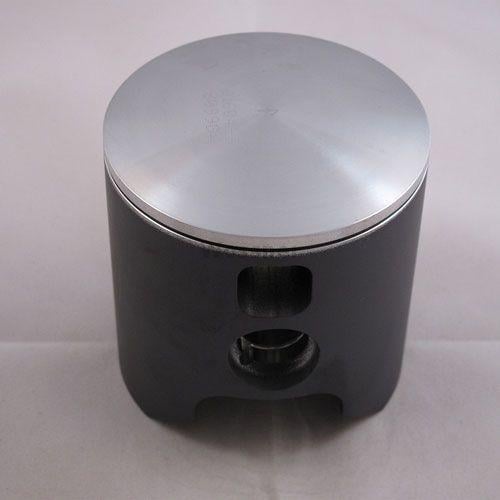

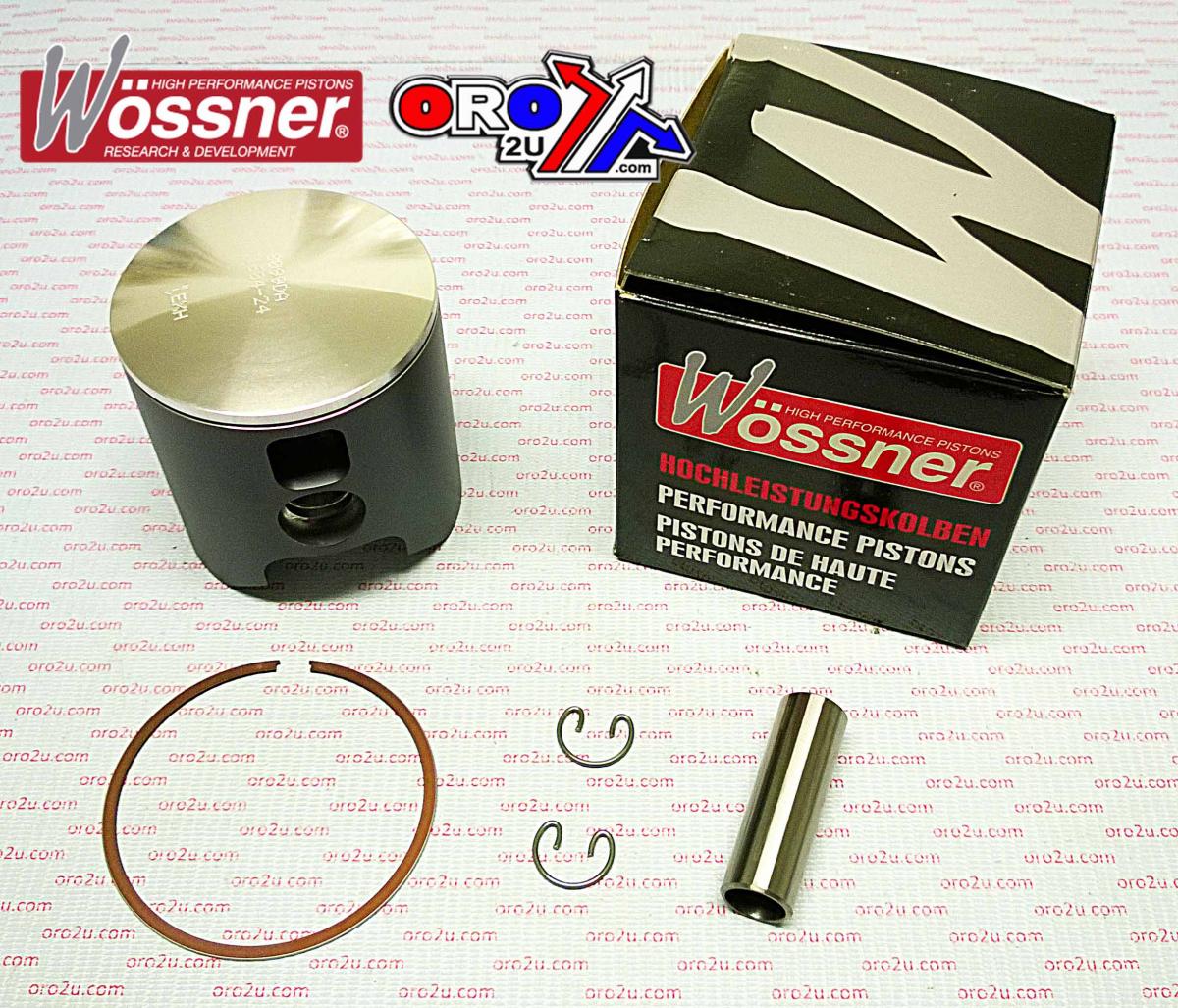

Piston 73-81 Maico 440 83.00, Forged Wossner Kit 8099D100

Wossner 83.00mm (82.92mm) forged piston kit is designed for Maico MC 440 and MD 440 models from 1973 to 1981. Engineered for strength and precision, this piston ensures efficient heat transfer to the cylinder walls, providing uniform expansion and reducing localized pressure. The elliptical design distributes thrust loads evenly, preventing piston collapse. A hard Teflon skirt coating ensures a precise fit and optimal conformability to the cylinder bore. Manufactured in Germany, it meets high-quality standards for reliable performance.

Features

• Wossner forged piston for superior strength and durability
• Optimized heat transfer for improved combustion efficiency
• Elliptical design for uniform bearing surface and reduced localized pressure
• Hard Teflon skirt coating for improved fit and reduced friction
• Precision-engineered to prevent piston collapse
• Made in Germany

Specifications

• Bore Size: 83.00mm (82.92mm)
• Oversize: +1.00mm
• Displacement: 438cc
• Stroke: 83.00mm
• Clearance: 0.08mm
• Compression Ratio: 2-stroke
• Compression Height: 41.70mm
• Lock Part Number: CA18
• Pin Part Number: WP039
• Ring Set Part Number: RSC8300
• Theoretical Weight: Not specified

Vehicle Fitments

• Maico MC 440 (1973-1981)
• Maico MD 440 (1973-1981)
