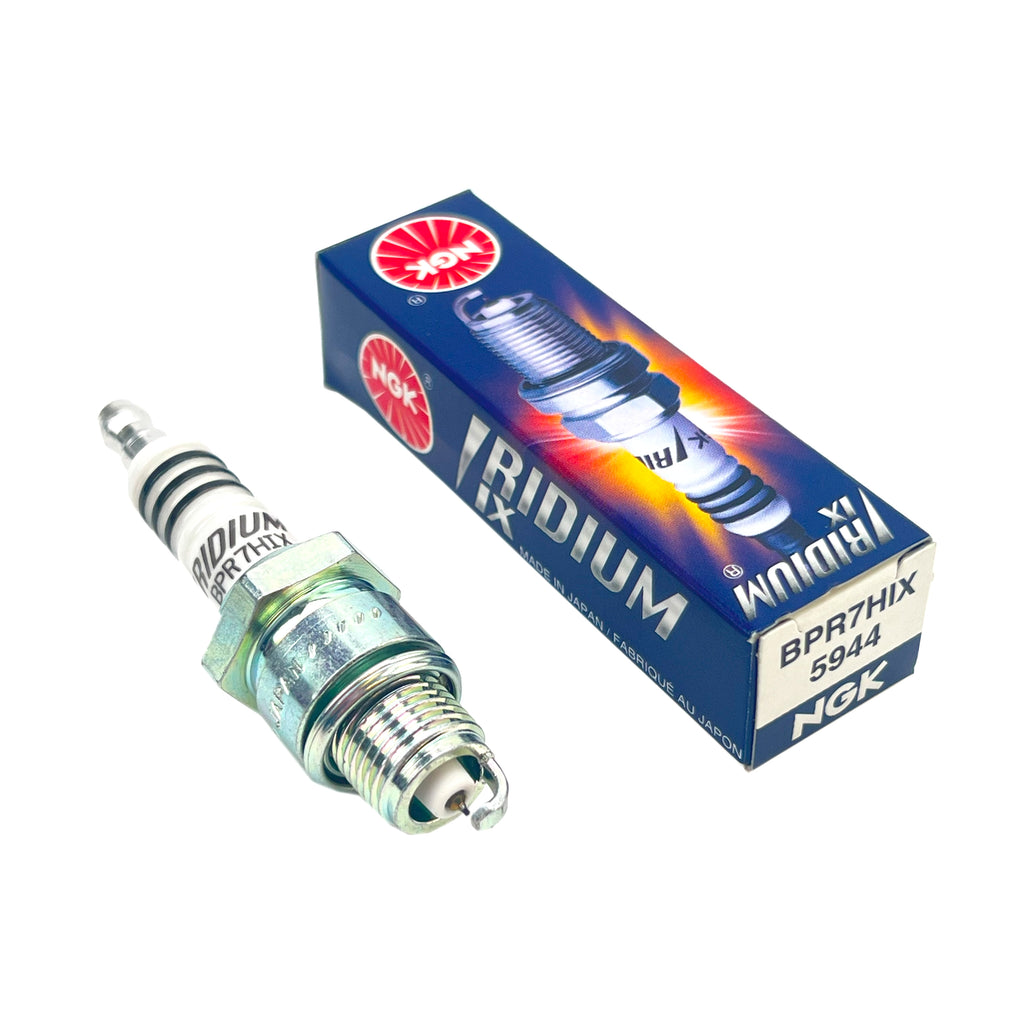

NGK SPARK PLUG BPR7HIX 5944

NGK Iridium IX Spark Plug - BPR7HIX

Features:

• Ultimate in spark plug technology and performance from the industry leader.
• Iridium Electrode: 25% smaller than platinum and 1/4 the size of a conventional nickel electrode.
• Ultra-Small Diameter Center Electrode: Reduces voltage requirements and extends ignition system life.
• New metal shell plating provides enhanced anticorrosion qualities.
• Sold individually.

Specifications:

• Heat Range: 7
• Thread Size: 14 mm
• Reach: 12.7 mm (1/2")
• Hex Size: 13/16" (20.6 mm)
• Seat Type: Gasket
• Type: Resistor
• Terminal Nut: Removable Terminal Nut
• Tip Configuration: Projected Tip
• Center Electrode: Fine Wire (0.6 mm) Iridium
• Ground Electrode: Tapered Cut
• Gap: .031" (0.8 mm)
• Units: Each
• Weight: 0.12 lbs

Alternate/OEM Part Numbers:

• 5944
• BPR7HIX

Part Number: 37-BPR7HIX (oro2u.com)

Compatible Vehicles:

Arctic Cat:

• 50 Automatic: 2005, 2004
• 90 Models: 2004, 2003, 2002

Bombardier:

• DS 50: 2006–2002
• DS 90: 2006–2002
• Quest 50 & Quest 90: 2004–2002

E-Ton:

• Impuls Models (50 & 90): 2001, 2000
• Lightning 50: 2001, 2000
• Sierra 90 Models: 2005–2000
• Viper Models: 2007–2002

Kawasaki:

• KSF80 KFX: 2006–2003

Polaris:

• Predator Models (50 & 90): 2006–2004
• Scrambler Models (50 & 90): 2003–2001
• Sportsman 90: 2006–2001
• Sportsman 90 Limited Edition: 2005

Yamaha:

• CW50 Zuma: 1989
• CW50T Zuma II: 1990
• YJ50R Vino Models: 2004–2001
• YJ50RA Vino Classic: 2005–2002
• YW50 Zuma Models: 2005–2002

Details:

Iridium IX Plug: Represents the pinnacle of spark plug technology and performance.

• Stronger and harder than platinum.
• Enables an ultra-fine (0.6 mm) center electrode for reduced voltage requirements and brighter, stronger sparks.
• Tapered Ground Electrode: Reduces quenching for improved flame core growth and ignitability.

Additional Features:

• Corrugated Ribs: Prevent flashover.
• Pure Alumina Silicate Ceramic Insulator: Provides superior strength and better heat transfer.
• Copper Core: Aids in heat removal.
• Triple Seals: Prevent leakage.
• Improves performance, acceleration, and fuel efficiency.
