Jack Shaft Harley-Davidson, Allballs 79-2105 33126-90, 93

One Piece Jackshaft Kit - ALLBALLS 79-2105

Compatible Models:

Harley-Davidson:

• FLHS Electra Glide Sport (1989-1993)
• FLHTC Electra Glide Classic (1989-1993)
• FLHTCU Electra Glide Ultra Classic (1989-1992)
• FLHTCU Ultra Classic Electra Glide (1993)
• FLSTC Heritage Classic (1993)
• FLSTC Heritage Softail Classic (1989-1992)
• FLSTF Fat Boy (1989-1993)
• FLSTN Heritage Special Nostalgia (1993)
• FLTC Tour Glide Classic (1989-1992)
• FLTCU Tour Glide (1993)
• FLTCU Tour Glide Ultra Classic (1989-1992)
• FXDBD Dyna Sturgis (1992)
• FXDBS Dyna Daytona (1989-1992)
• FXDC Super Glide Custom (1992)
• FXDL Dyna Low Rider (1993)
• FXDWG Dyna Wide Glide (1993)
• FXLR Low Rider Custom (1989-1993)
• FXR Super Glide (1989-1993)
• FXRS Conv Low Rider (1989-1992)
• FXRS Low Rider (1989-1992)
• FXRS-CON Super Glide - Low Rider Sport Convertible (1993)
• FXRS-SP Low Rider Sport (1989-1993)
• FXRT Sport Glide (1989-1992)
• FXSTC Softail Custom (1989-1993)
• FXSTS Softail Springer (1989-1993)

Description:

• The one-piece design jackshaft assembly delivers more torque to the primary and is more tolerant of misalignment problems, all at a lower cost than stock jackshaft assemblies. This kit replaces the existing shaft, couplings, and pinion gear.

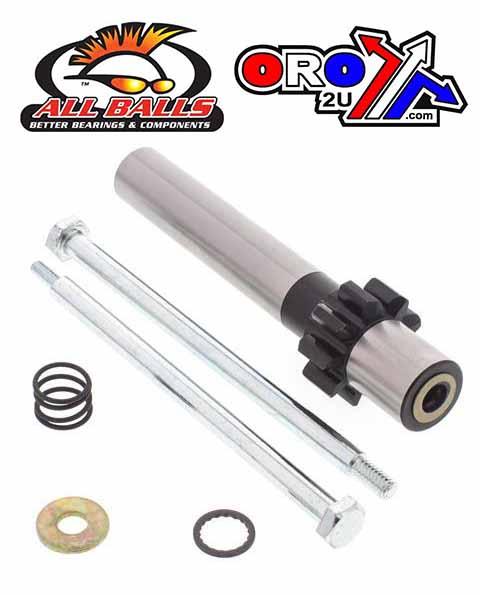

Includes:

• Jackshaft
• Starter shaft bolt
• Spring
• Washer
• Snap ring

Specifications:

• Dimension: 22.30mm OD on End
• Teeth: 9
• Rotation: CW (Clockwise)
• Part Number: 19-5004.AB (available at

Cross Reference Numbers:

• SHD5300 (ARROWHEAD)
• 6199-430
• 46-3045 (TUCKER ROCKY)
• 33126-90
• 33126-93
