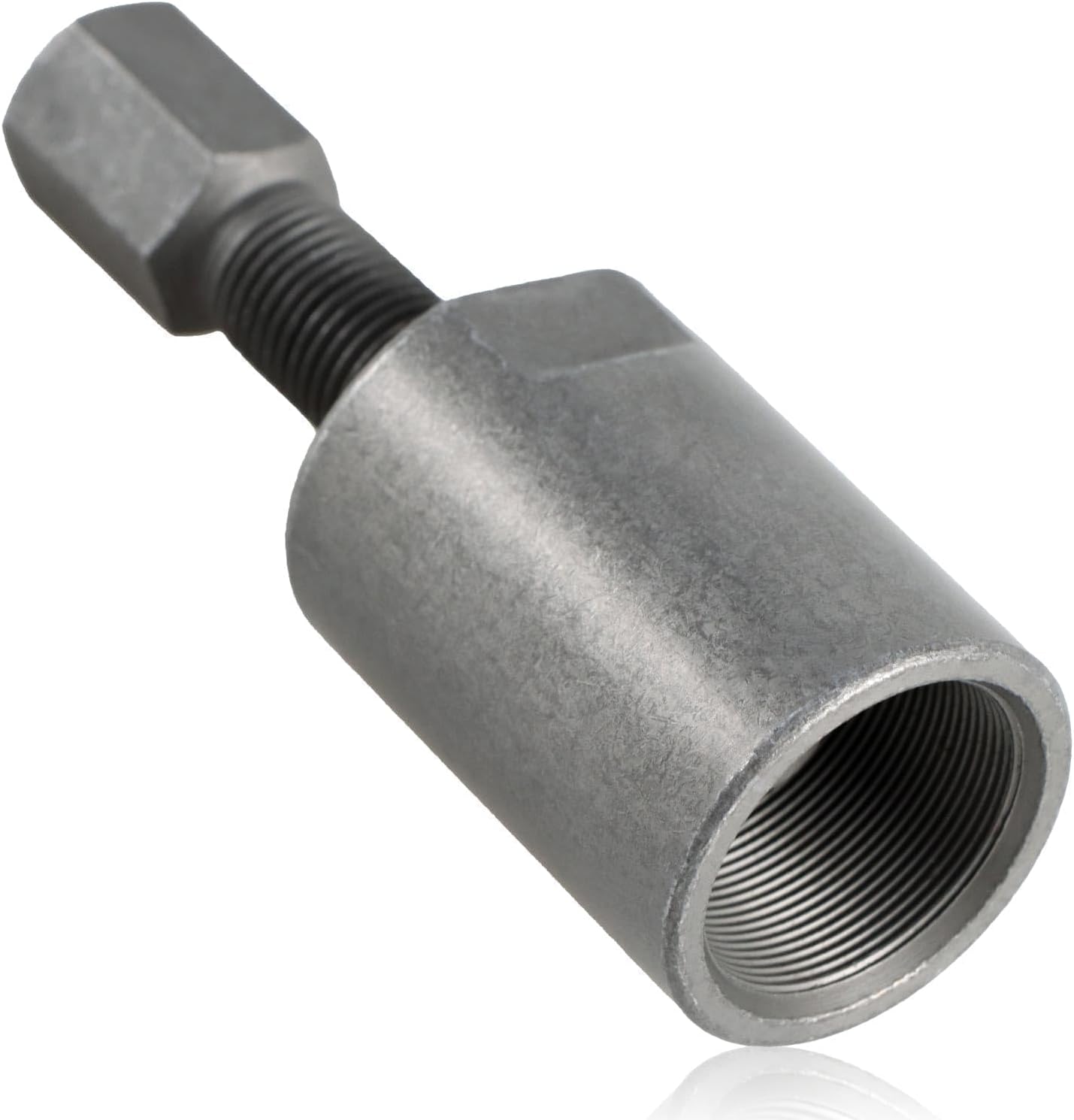

Flywheel Puller M28 X 1.00 Rh Thread

M28 x 1.0 right-hand thread flywheel puller designed to remove rotor/magneto flywheels on a wide range of off-road motorcycles and ATVs. Manufactured from 1045 steel for strength, hardness and wear resistance, with accurately machined threads for secure engagement.

Features

• 1045 steel construction for durability and wear resistance
• Right-hand M28 x 1.0 female thread for rotor/magneto flywheels
• Accurate sizing for a precise fit
• Straightforward installation and removal procedure using the thrust bolt

Specifications

• Thread size: M28 x 1.0 RH
• Material: 1045 steel
• Function: Flywheel/rotor/magneto puller tool
• Operation: Back out push bolt, thread puller onto rotor, wind in thrust bolt to remove flywheel

Vehicle Fitments

• Honda TRX450ER (2006–2009, 2012–2014)
• Honda TRX450R (2006–2009)
• Honda CRF250R (2010–2023)
• Honda CRF250RX (2019–2023)
• Honda CRF450L (2019–2020)
• Honda CRF450R (2009–2023)
• Honda CRF450R 50th Anniversary Edition (2023)
• Honda CRF450R Works Edition (2019–2023)
• Honda CRF450R-S (2022)
• Honda CRF450RL (2021–2023)
• Honda CRF450RX (2017–2023)
• Honda CRF450X (2005–2009, 2012–2017, 2019–2023)
• Kawasaki KX250 (2019–2023)
• Kawasaki KX250X (2021–2023)
• Kawasaki KX250F (2012–2018)
• Kawasaki KX450 (2019–2023)
• Kawasaki KX450X (2021–2023)
• Kawasaki KX450F (2009–2018)
• Kawasaki KX450SR (2022–2023)
• Kawasaki KLX110 (2003–2020)
• Kawasaki KLX110L (2010–2020)
• Kawasaki KLX110R (2021–2023)
• Kawasaki KLX110R L (2021–2023)
• Kawasaki KLX450R (2008–2009)
• Kawasaki KFX450R (2008–2014)
• Suzuki RM-Z250 (2010–2023)
• Suzuki RM-Z450 (2008–2023)
• KTM 250 SX-F (2016–2023)
• KTM 250 SX-F Factory Edition (2016–2017)
• KTM 250 XC-F (2016–2023)
• KTM 350 SX-F (2016–2023)
• KTM 350 XC-F (2016–2023)
• KTM 350 XC-F Factory Edition (2022–2023)
• KTM 450 SX-F (2016, 2019–2023)
• KTM 450 SX-F Factory Edition (2016, 2019–2022)
• KTM 450 XC-F (2016, 2019–2023)
