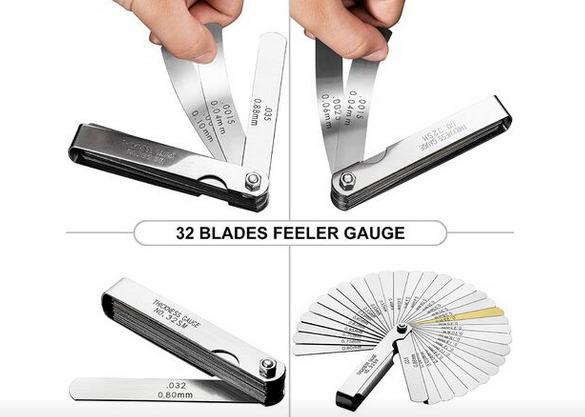

Feeler Gauge 32 Blade Metric and Imperial 0.04€“0.88mm

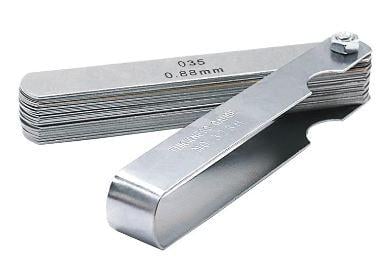

This 32-blade feeler gauge is designed for precise measurement of gaps and clearances, offering both metric and imperial units for versatility. With blade thicknesses ranging from 0.04mm to 0.88mm (or 0.0015" to 0.035"), it is compliant with DIN2275 and JIS B 7524-1992 standards. The blades are made from hardened and tempered 65# Mn steel, polished for durability, and stored in a foldable steel case with a locknut mechanism for secure blade positioning.

Features

• Measures flatness or gaps between mating parts

• Includes 32 individual blades

• Locknut holds one or more blades in place

• Blades fold into holder for storage

• Blade surfaces hardened, tempered, and polished

• Clear etching of thickness on each blade

• Metric and inch measurement comparison

Specifications

• Piece length: approx. 89mm

• Total length: approx. 180mm

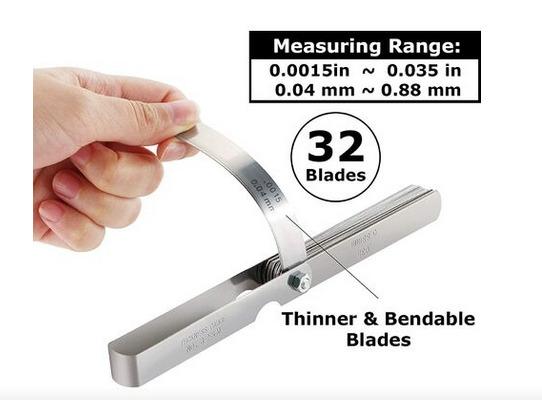

• Measuring range: 0.04–0.88mm

• Accuracy: +0.005 / -0.003mm

• Foot body material: 65# Mn

• Polished surface finish

• Foot body length: 3.5"

• Standards: DIN2275, JIS B 7524-1992

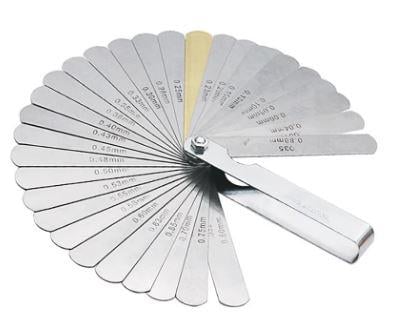

Blade Sizes – Metric

• 0.04, 0.05, 0.06, 0.08, 0.10, 0.13, 0.15, 0.18, 0.20, 0.23, 0.25, 0.28, 0.30, 0.33, 0.35, 0.38, 0.40, 0.43, 0.45, 0.48, 0.50, 0.53, 0.55, 0.58, 0.60, 0.63, 0.65, 0.70, 0.75, 0.80, 0.88mm

Blade Sizes – Imperial

• 0.0015, 0.002, 0.0025, 0.003, 0.004, 0.005, 0.006, 0.007, 0.008, 0.009, 0.010, 0.011, 0.012, 0.013, 0.014, 0.015, 0.016, 0.017, 0.018, 0.019, 0.020, 0.021, 0.022, 0.023, 0.024, 0.025, 0.026, 0.028, 0.030, 0.032, 0.035 inch
