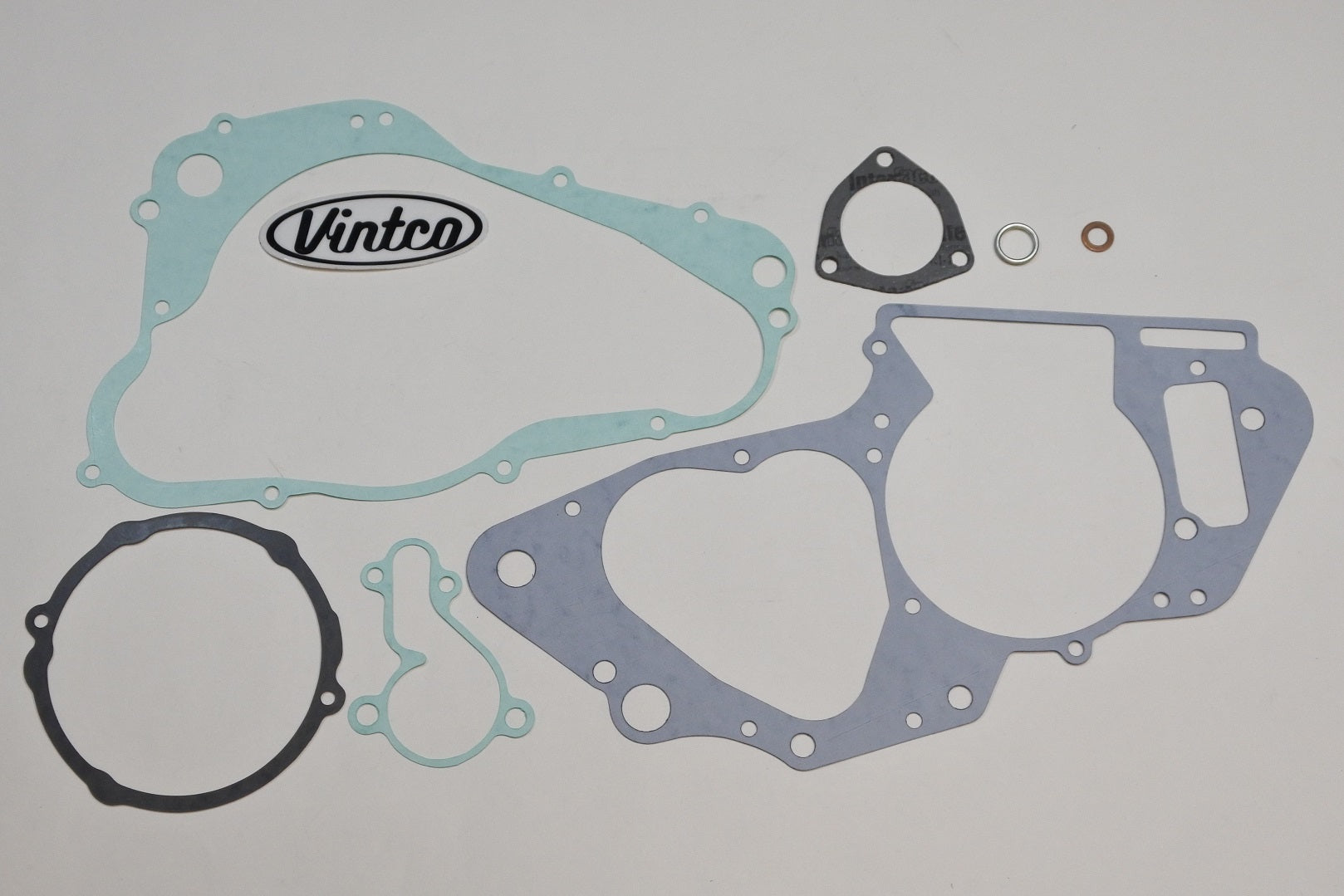

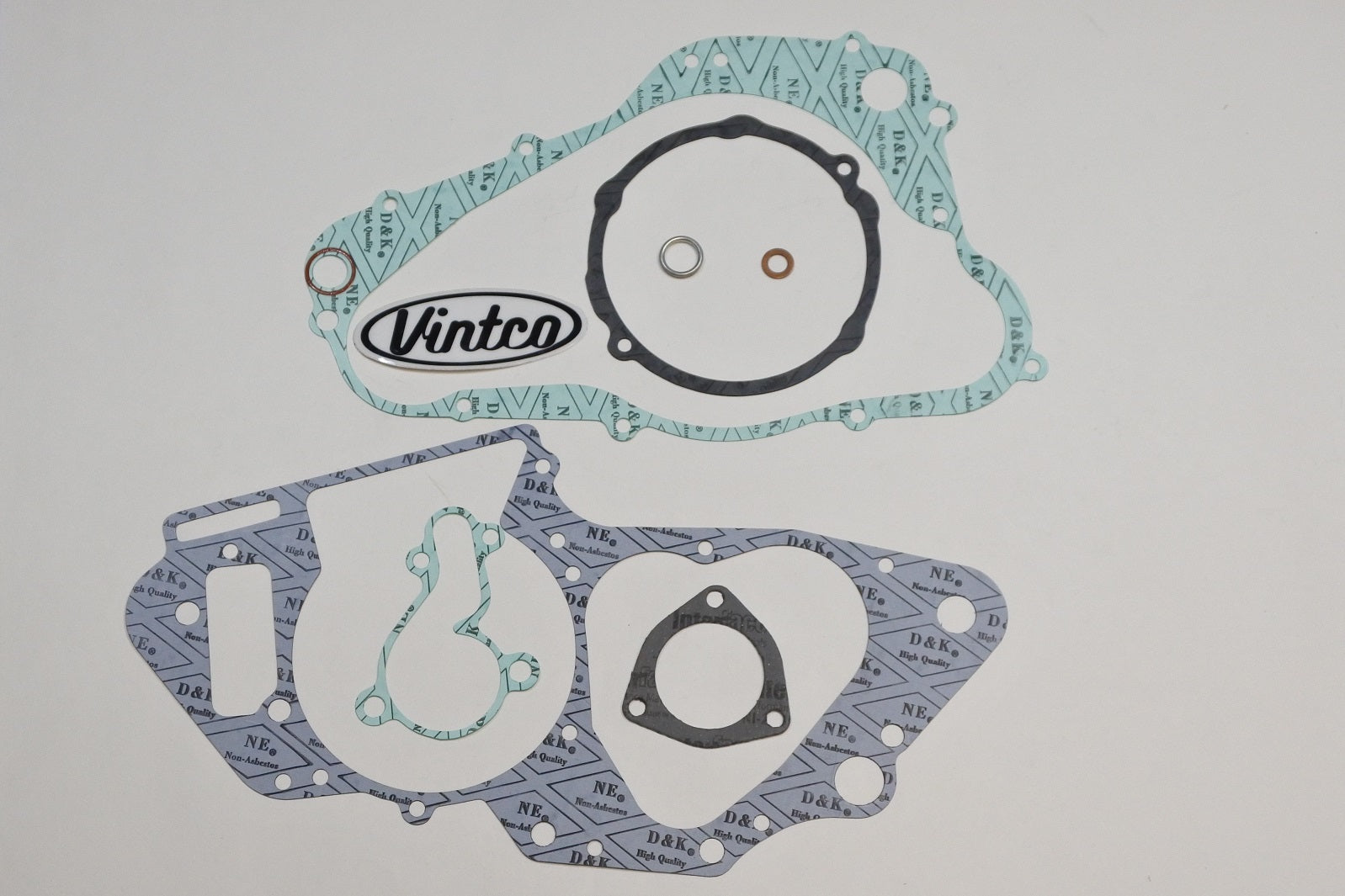

Engine Gasket Kit 86-86 Suzuki RM 250 Vintco KEG065

Engine gasket kit for the 1986 Suzuki RM250, supplied by VintCo for engine servicing and rebuild work. This kit includes the key gaskets required for crankcase, water pump, exhaust, magneto cover and clutch cover sealing on the listed machine.

Features

• Complete engine gasket kit for the listed Suzuki RM250 application
• Includes crankcase gasket
• Includes water pump drain gasket
• Includes drain plug gasket
• Includes exhaust gasket
• Includes magneto cover gasket
• Includes clutch cover gasket
• Includes water pump case gasket

Specifications

• VintCo Part Number: KEG065

Cross-Reference OEM Part Numbers

• Crankcase Gasket: 11481-00B01-H17
• Water Pump Drain Gasket: 09168-08016
• Drain Plug Gasket: 09168-14004
• Exhaust Gasket: 14181-16300-H17
• Magneto Cover Gasket: 11483-14301-H17
• Clutch Cover Gasket: 11482-02B00-H17
• Water Pump Case Gasket: 17431-00B00-H17

Vehicle Fitments

• 1986 Suzuki RM250
