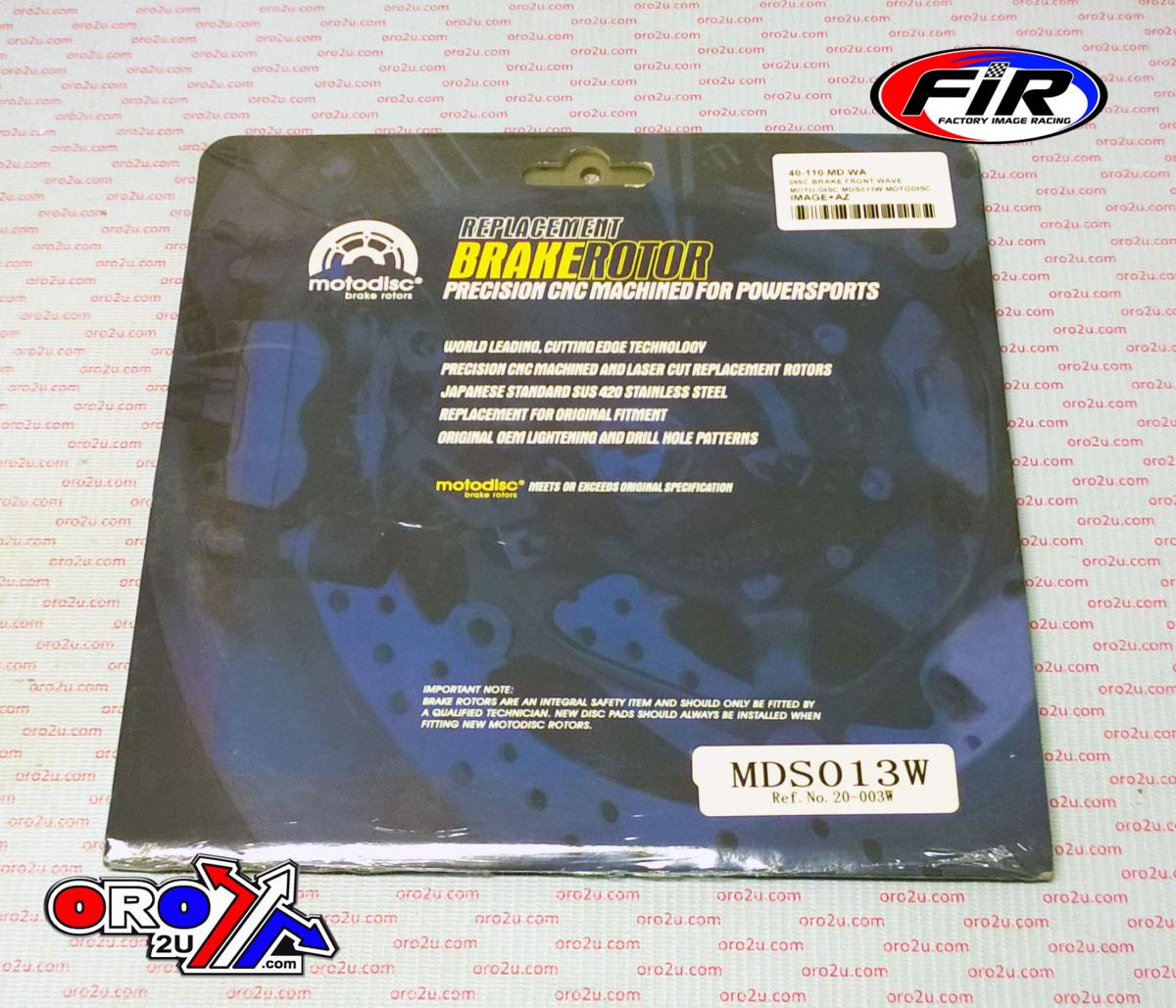

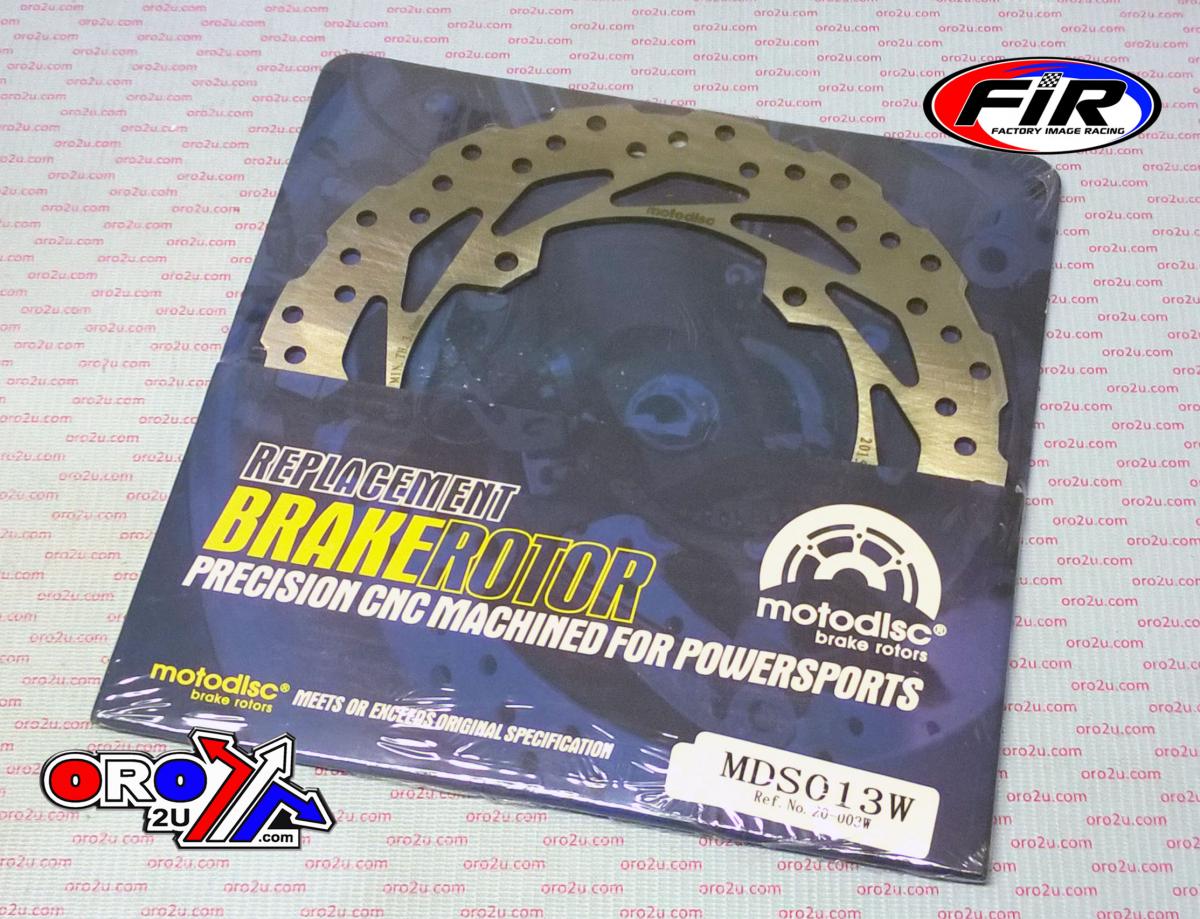

DISC BRAKE FRONT WAVE MDS013W MOTODISC

This front brake disc, designated 40-110.MD.WA, is a wave-style rotor designed for off-road use. Constructed by MTX Parts, it offers enhanced stopping power through a higher-friction rotor material compared to plain stainless steel. It is intended for use with standard hubs and weighs approximately 0.676kg.

Features

• Rotor material offers higher friction than plain stainless steel for improved stopping power
• Wave-style design
• Intended for use with standard hubs

Specifications

• Outer diameter: 240mm
• Inner diameter: 118mm
• Thickness: 3mm
• Number of bolt holes: 4
• Bolt hole diameter: 6.5mm
• Bolt hole pitch: 134mm
• No countersink
• Weight: 0.676kg

Cross-Reference OEM Part Numbers

• 20171108
• 45351-KZ1-771
• 45351-KPS-900
• BRAKING HO09FID
• EBC MD6001
• 5100-160
• MOTO-MASTER 110295
• MX-05549W

Vehicle Fitments

• Honda XR250R (1984–2004)
• Honda CR125R (1987–1994; 1992–1994)
• Honda CR250R (1987–1994; 1992–1994)
• Honda XR250L (1991–1993; 1991–1996)
• Honda XR350R (1984–1985)
• Honda XL350R (1984–1985)
• Honda MTX80 (1983–1995)
• Honda MTX125 (1983–1995)
• Honda MTX200 (1983–1995)
• Honda CR500R (1992–1994)
• Honda CRF150F (2003–2009)
• Honda CRF230F (2003–2015)
• Honda CRF230L (2008–2011)
• Honda CRF230M (2009–2011)
• Honda NX250 (1988–1990)
• Honda XR250R Pro Link (1991–1995)
• Honda XR400R (1996–2004)
• Honda XR600R (1991–2000)
• Honda XR650L (1993–1999; 2012–2018)
• Honda XR650R (2000–2007)
