CYLINDER SLEEVE 80-84 SUZUKI PE 175 62mm VINTCO SLS08A

This VintCo cylinder sleeve is a USA-made cast-iron replacement for 1980-1984 Suzuki PE175 models, produced for VintCo by Advanced Sleeve. It is intended to restore serviceability where an original cylinder is difficult to source, and is manufactured using modern production methods for OEM-style fit and performance. The ports are correctly angled to reduce port-matching work, and the supplied dimensions are intended for installation by an experienced, qualified machinist. The sleeve can be bored and honed to suit the stock-size VintCo piston kit.

Features

• Replacement cylinder sleeve for vintage Suzuki PE175 models
• Intended for repair of worn or damaged cylinders
• Correctly angled ports reduce port-matching work during installation
• Can be bored and honed to suit the stock-size VintCo piston kit
• Intended for installation by an experienced and qualified machinist

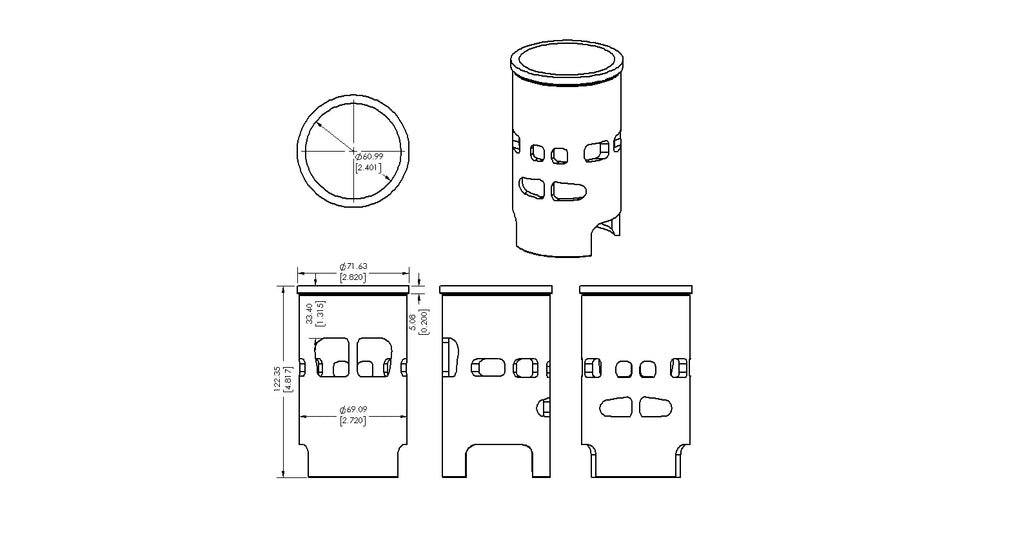

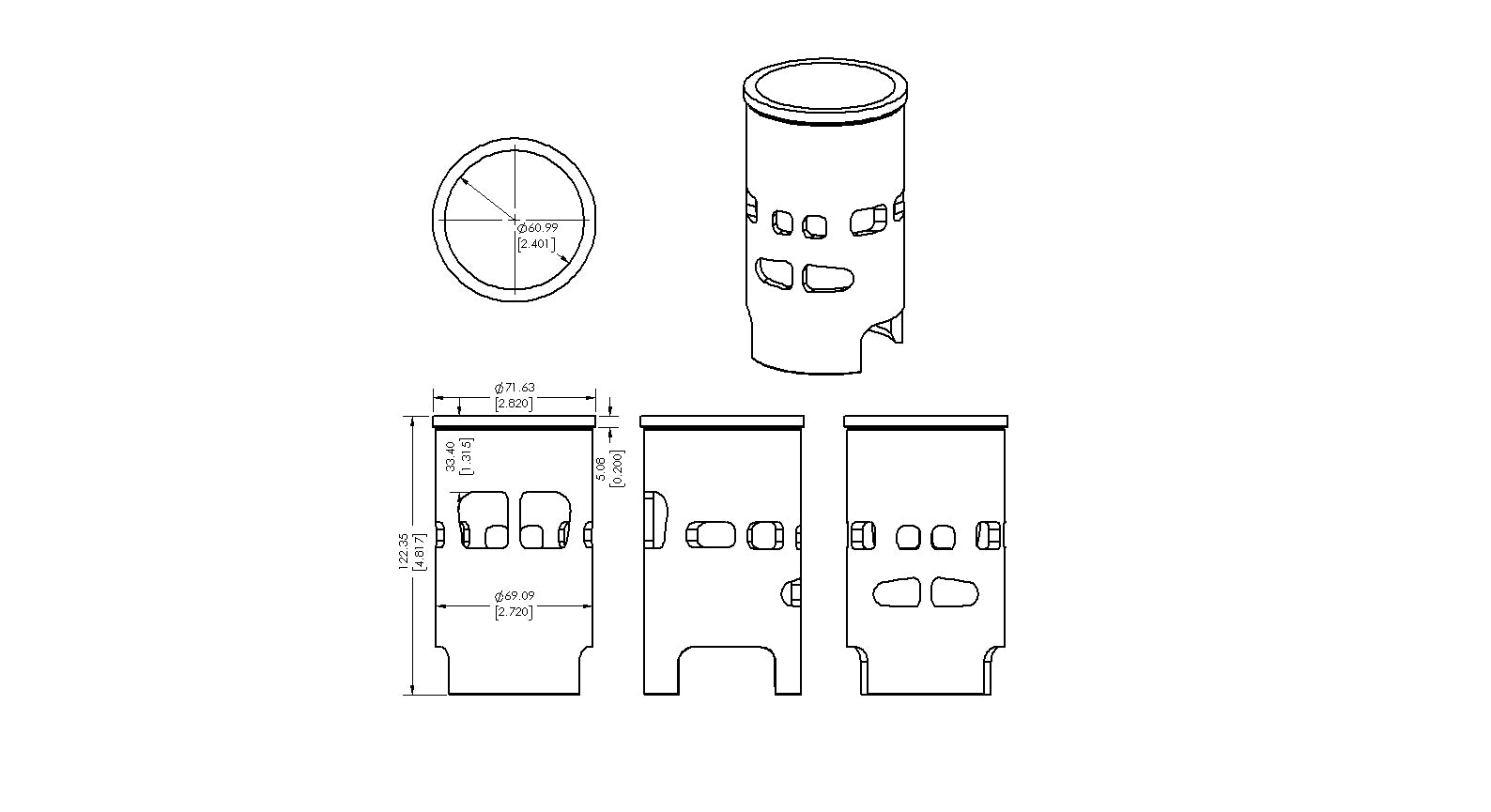

Specifications

• VintCo Part Number: SLS08A
• Piston Part Number: PSS08-00
• Material: Cast iron
• Bore: 62 mm
• Height: 122.4 mm
• Outside Diameter: 69.1 mm
• Flange Outside Diameter: 71.6 mm
• Flange Height: 5.1 mm
• Wall Thickness: 4.1 mm
• Intake: 13 mm
• Exhaust Port Location: 33.2 mm

Vehicle Fitments

• 1980 Suzuki PE175
• 1981 Suzuki PE175
• 1982 Suzuki PE175
• 1983 Suzuki PE175
• 1984 Suzuki PE175
