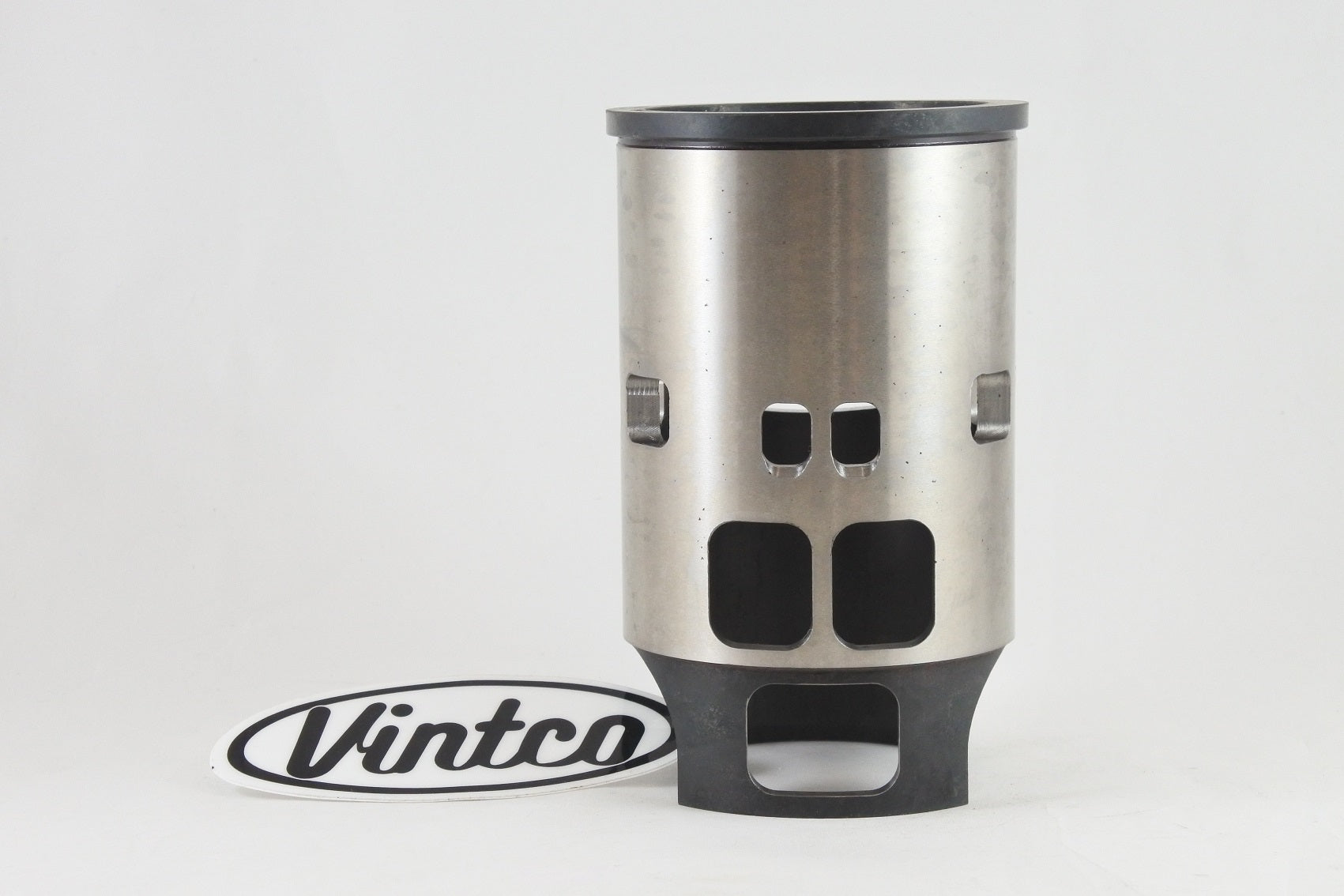

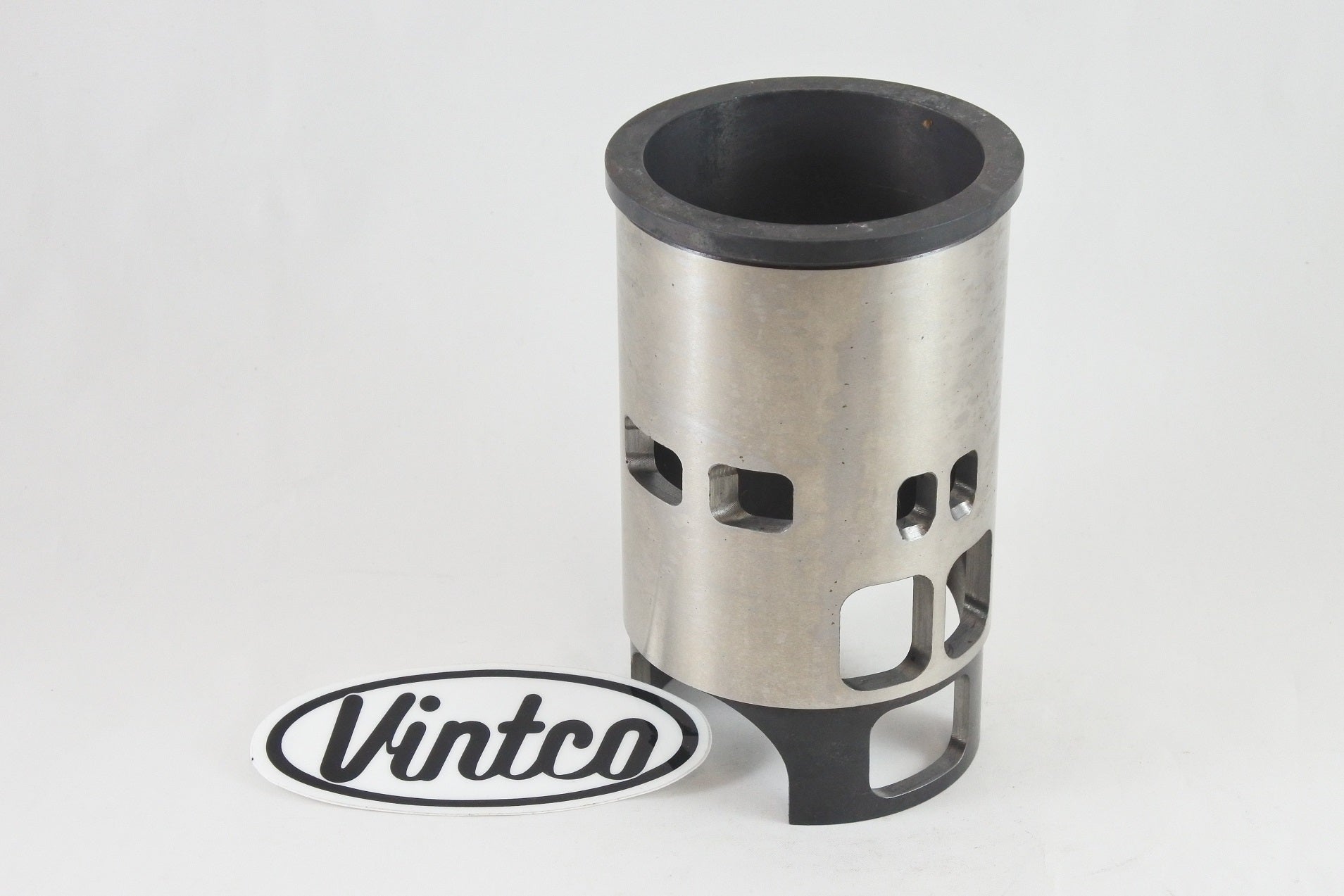

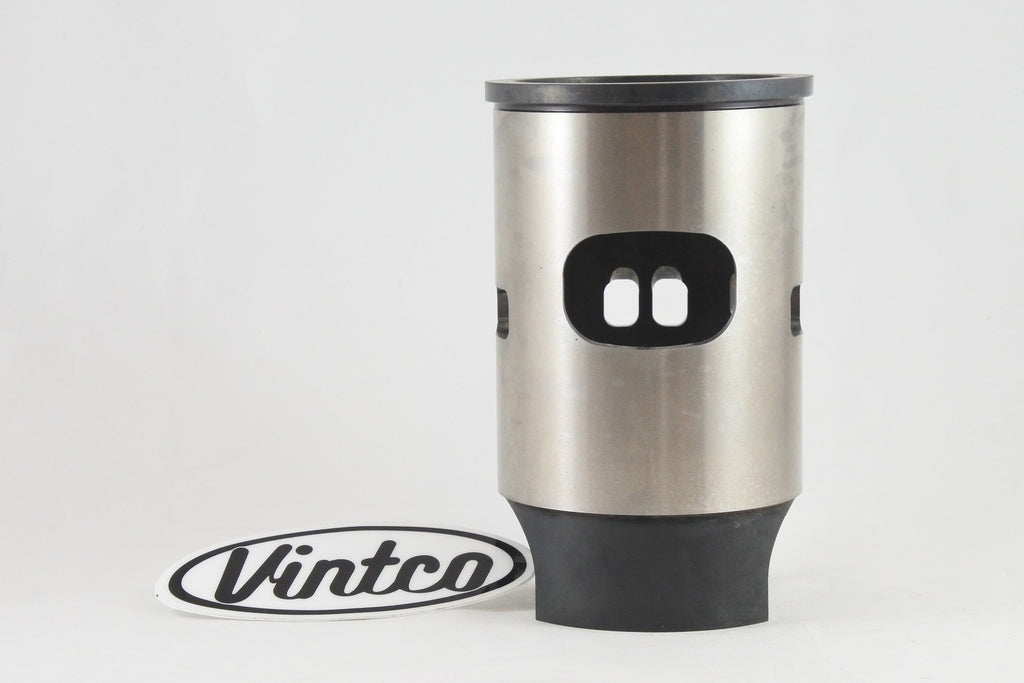

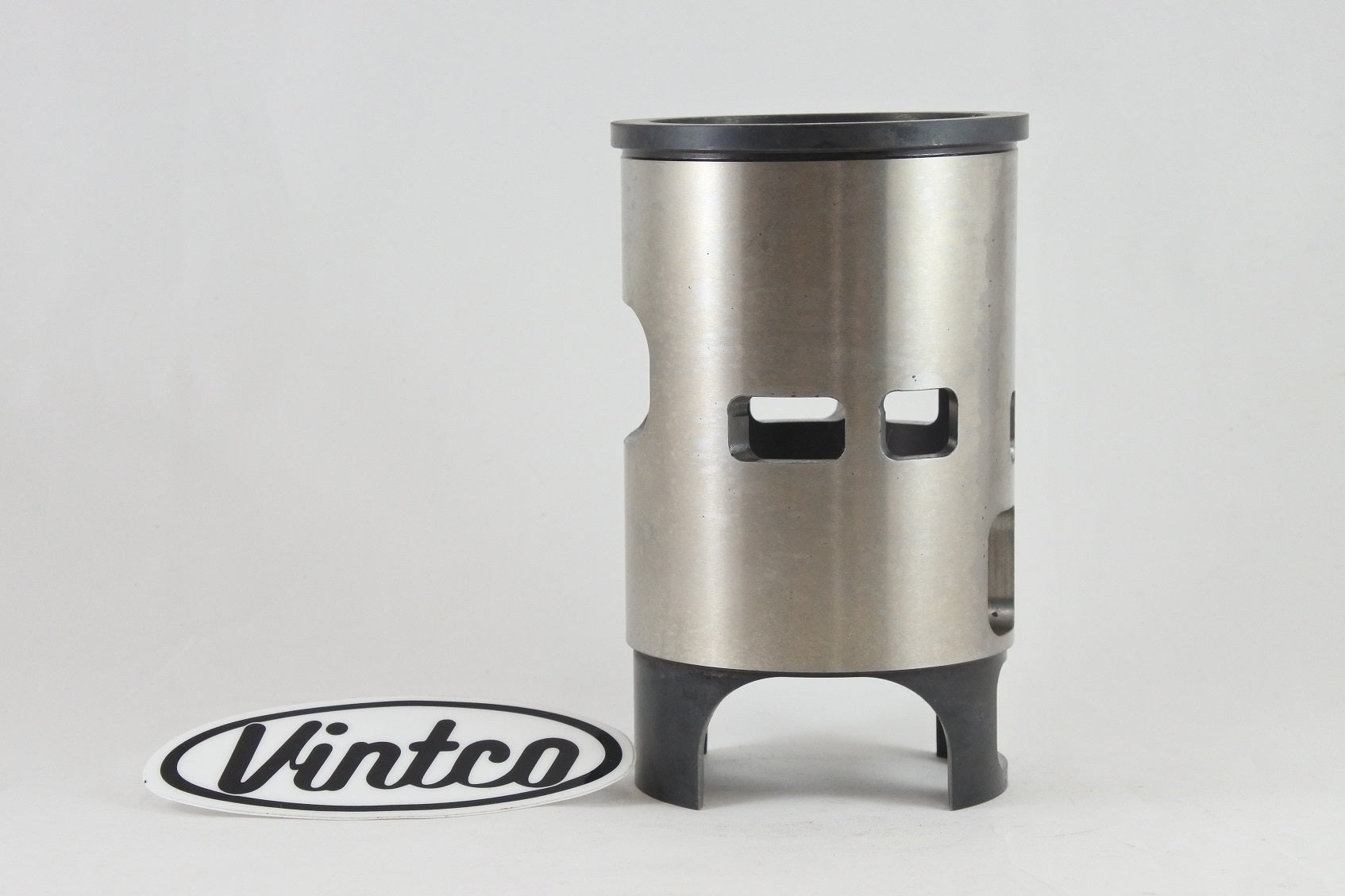

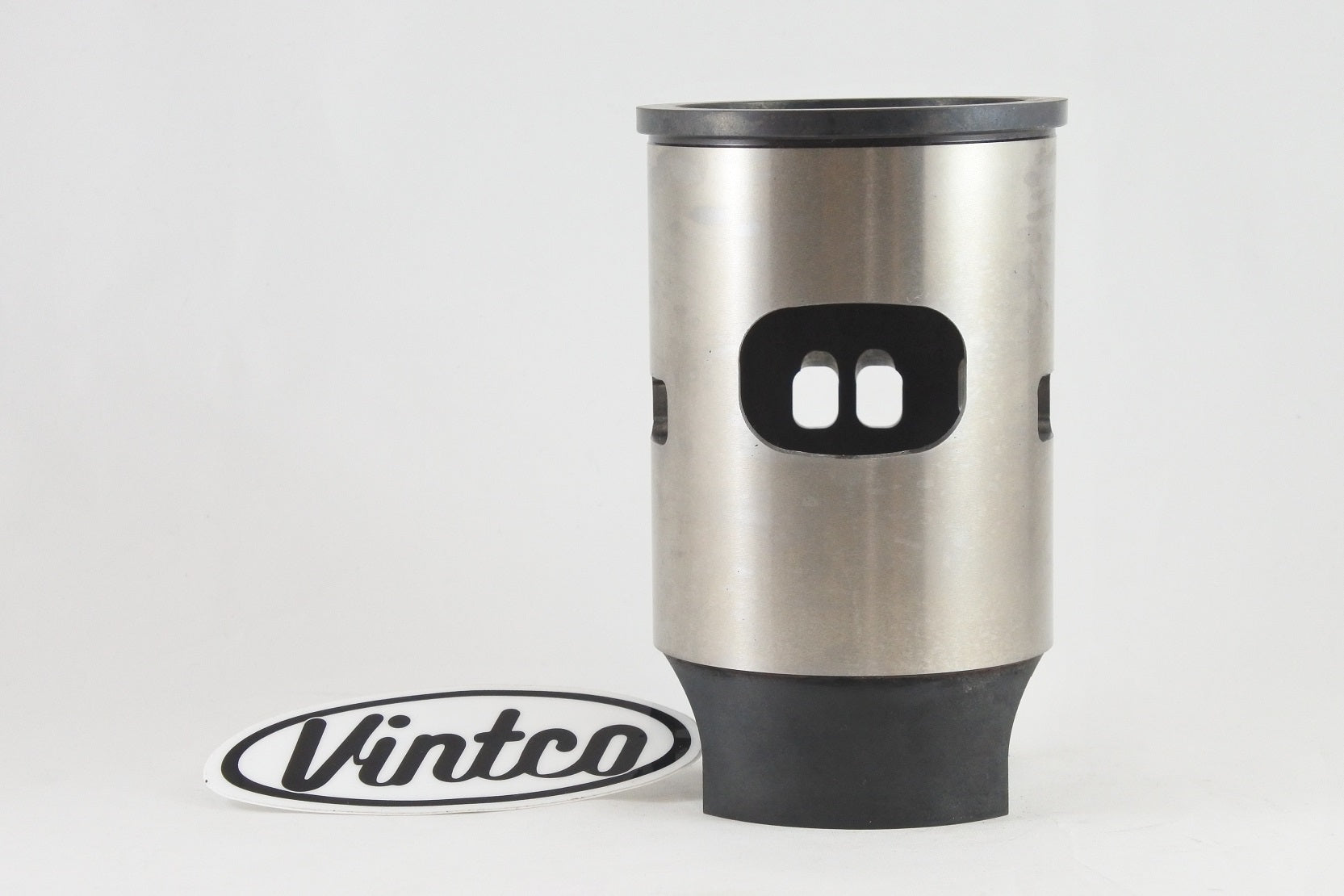

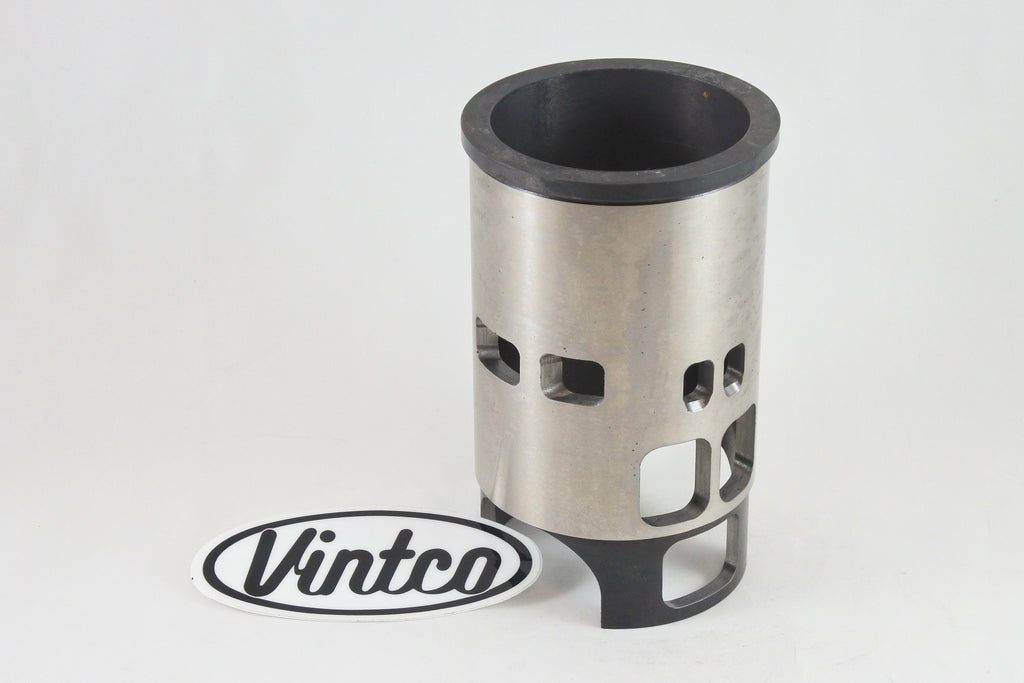

Cylinder Sleeve 73-81 Suzuki Ds Rl Ts 250 71mm Vintco SLS09A

This cylinder sleeve is a replacement component for vintage Suzuki DS250, RL250 and TS250 models. It is intended for rebuilding worn or damaged cylinders and is manufactured in the USA for VintCo using modern production methods for OEM-style fitment and performance. The sleeve is designed with correctly angled ports to reduce port-matching work and can be bored and honed to suit a stock-size VintCo piston kit. Installation dimensions are provided for use by an experienced and qualified machinist.

Features

• Replacement cylinder sleeve for rebuilding worn or damaged cylinders
• Fits selected Suzuki DS250, RL250 and TS250 models
• Correctly angled ports reduce port-matching work
• Can be bored and honed to suit a stock-size VintCo piston kit
• Intended for installation by an experienced and qualified machinist
• Made in the USA
• Made for VintCo by Advanced Sleeve

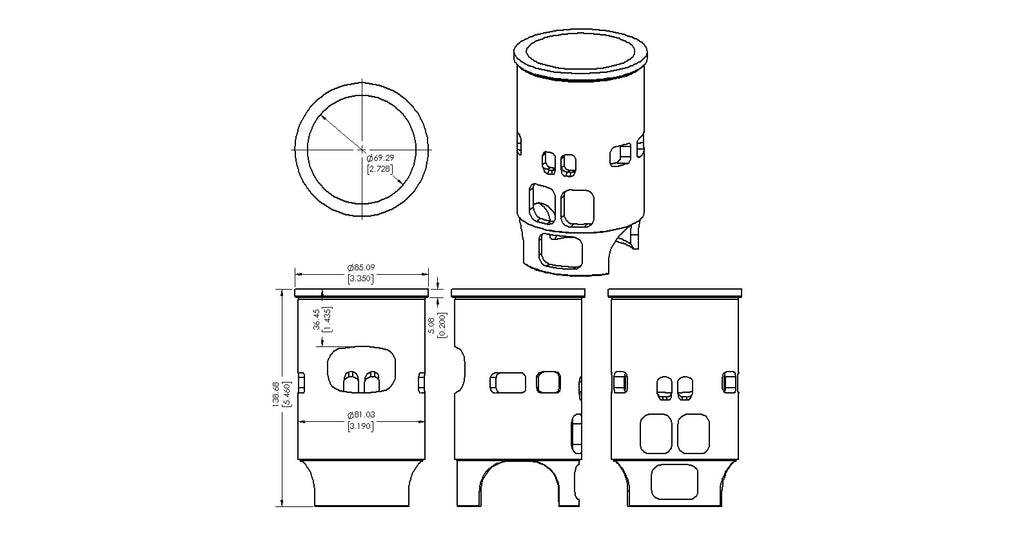

Specifications

• VintCo Part Number: SLS09A
• Product type: Cylinder sleeve
• Material: Cast iron
• Compatible piston part number: PSS09-1.0
• Bore: 71 mm
• Height: 138.7 mm
• Outside diameter: 81 mm
• Flange outside diameter: 85.1 mm
• Flange height: 5.1 mm
• Wall thickness: 5.9 mm
• Intake: 25 mm
• Exhaust port location: 36.2 mm

Vehicle Fitments

• 1973 Suzuki TS250
• 1974 Suzuki RL250
• 1974 Suzuki TS250
• 1975 Suzuki RL250
• 1975 Suzuki TS250
• 1976 Suzuki TS250
• 1977 Suzuki TS250
• 1978 Suzuki TS250
• 1979 Suzuki TS250
• 1980 Suzuki DS250
• 1980 Suzuki TS250
• 1981 Suzuki TS250
