Cylinder Kit TRX520 96mm Bore Honda 12100-HR6-B00

Cylinder Piston gasket Rebuild Overhaul Kit 96mm Bore

Model:

• Honda Foreman 500 TRX520FE2 4x4 ES EPS  2020-2024
• Honda Foreman 500 TRX520FM1 4x4  2020-2024
• Honda Foreman 500 TRX520FM2 4x4 EPS  2020-2024
• Honda Foreman Rubicon 500 TRX520FA5 4x4 Auto DCT  2021-2023
• Honda Foreman Rubicon 500 TRX520FA6 4x4 Auto DCT EPS  2021-2023
• Honda Foreman Rubicon 500 TRX520FA7 4x4 Auto DCT EPS DLX  2021-2023
• Honda Foreman Rubicon 500 TRX520FM6 4x4 EPS  2021-2023
• Honda Foreman Rubicon 500 TRX520FM6 EPS  2020
• Honda Pioneer 520 SXS520M2  2021-2023 2025
• Honda Pioneer 520 SXS520M  2021-2023 2025

Specifications:

• Condition: Aftermarket 100% Brand New
• Quantity: 1 Set
• Material: Aluminum
• Displacement: 518cc
• Bore Type: Standard Bore
• Bore diameter: STD 96mm
• Stroke: 71.5mm
• Pin diameter: 19mm

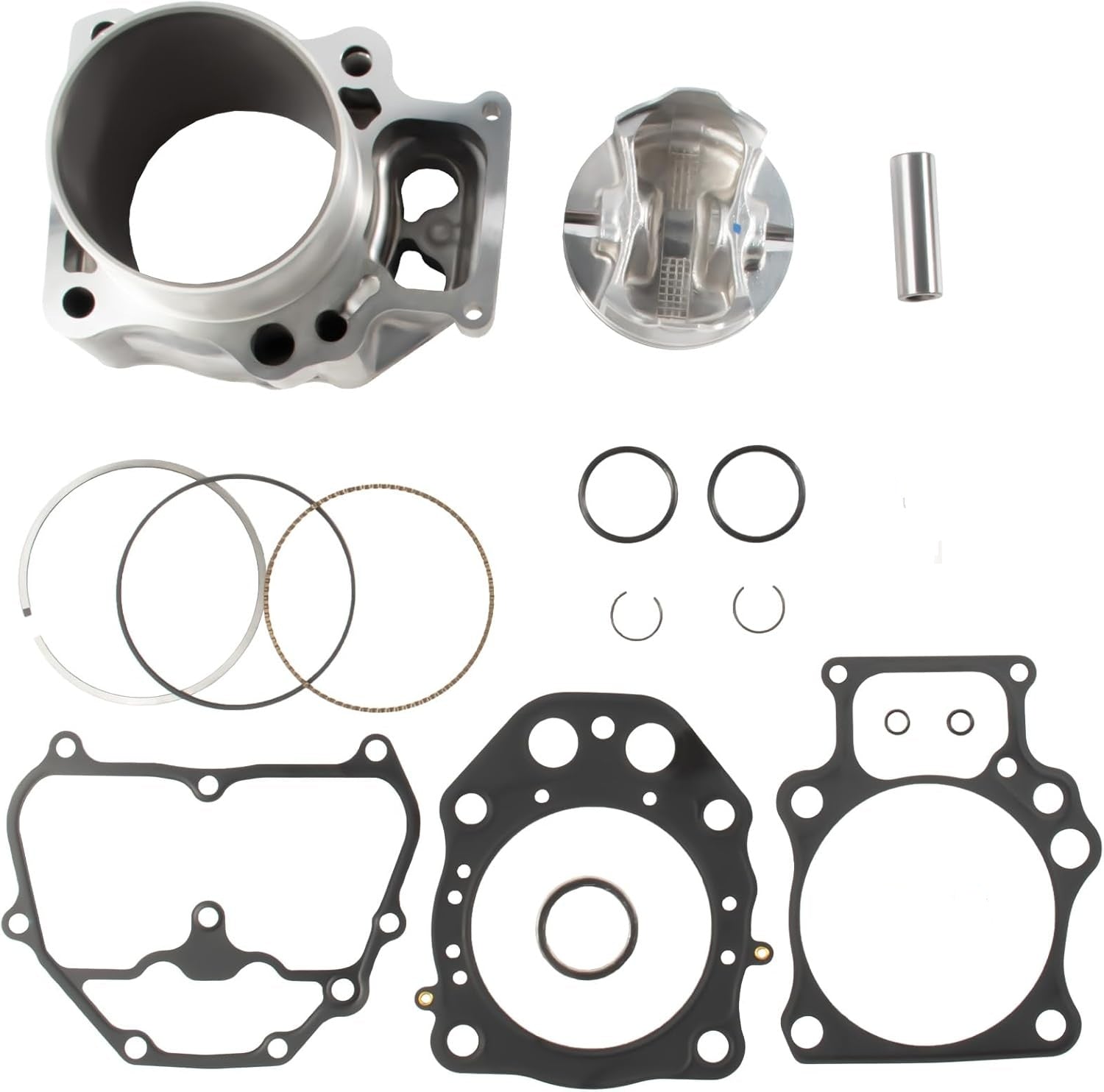

Package Included:

• 1 x Cylinder
• 1 x Piston
• 1 x Piston ring kit
• 1 x Wristpin
• 1 x Circlips(2)
• 1 x Cylinder head gasket
• 1 x Cylinder base gasket
• 1 x Cylinder Head Cover gasket
• (As shown in the figure)

Description

• Unmatched reliability and performance from high-tech materials.
• Manufactured to exacting standards so the engine can be rebuilt with total confidence.
• Meets or exceeds OEM quality.
• Direct oem replacement.
• Please see image before ordering to avoid mistakes.
• Best value for money.
• This is a quality motorcycle part supplied by 2Bros MCS Ltd.
• Easy to install but if unsure please use a professional

Cross reference numbers ONLY.

• Cylinder: 12100-HR6-B00
• Cylinder Base Gasket: 12191-HR6-B01
• Cylinder Head Gasket: 12251-HR6-B01
• Cylinder Head Cover Gasket: 12315-HR0-F01
• Piston (Std): 13101-HR6-B00
• Pin, Piston: 13111-HP5-600
• Piston Ring Set (Std): 13010-HR6-305
• Circlips, piston (2): 13112-MAT-000
