Cylinder Kit STD 50mm 2019-2025 Honda CRF110 F 12100-KYK-D10

This 50 mm cylinder, piston and gasket kit is a direct OEM-style replacement for selected Honda 110 cc fuel-injected and carburetted models. It uses a standard-bore 50 mm cylinder with a 90° temperature sensor port and is designed to meet or exceed OEM quality while handling increased power loads.

Features

• Meets or exceeds OEM quality
• Direct OEM replacement
• Uses stock mounting locations
• Designed to handle increased power loads
• All components made to OEM specifications and match the original equipment in appearance
• Best value for money
• Easy to install; if unsure, please use a professional
• Please check the image before ordering to avoid mistakes

Specifications

• Engine: 4-stroke
• Displacement: 109 cc
• Bore type: Standard bore
• Bore diameter: 50 mm
• Stroke: 55.6 mm
• Piston pin diameter: 13 mm
• Temperature sensor port: Yes
• Temperature sensor port angle: 90°

Cross-Reference OEM Part Numbers

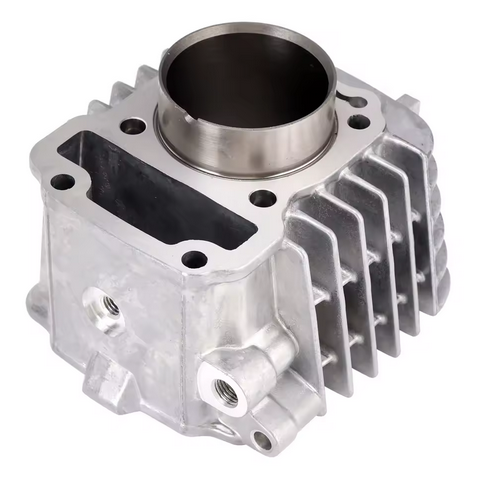

• CYLINDER 12100-KWB-600 / 12100-KYK-D10 / 12100-K03-H10

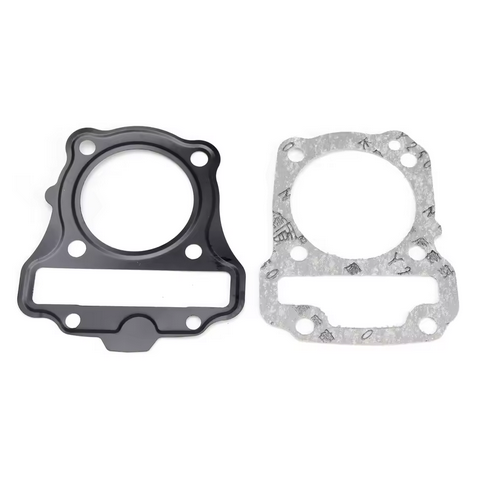

• GASKET, CYLINDER 12191-K58-TC0
• GASKET, CYLINDER HEAD 12251-KWB-601

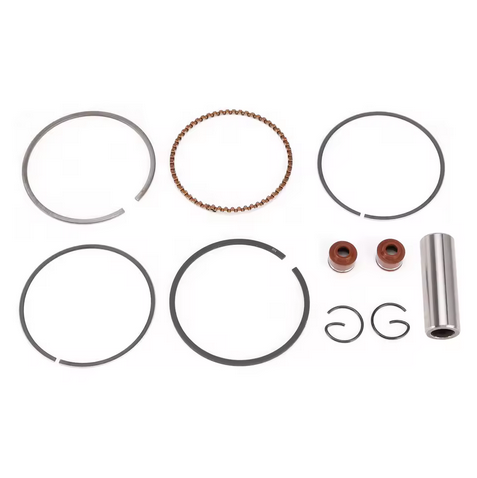

• RING SET, PISTON (STD) (RIKEN) 13011-KWW-740

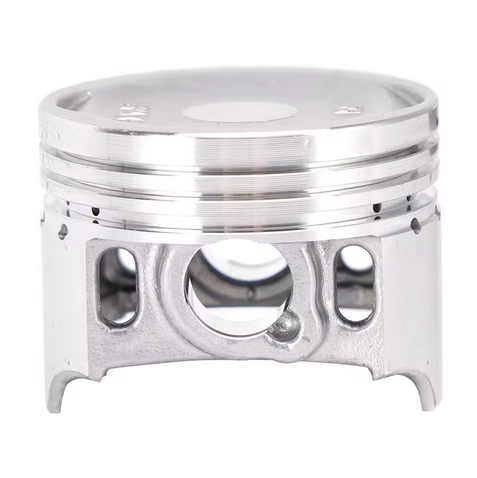

• PISTON (STD) 13101-KWW-740
• PIN, PISTON 13111-KVR-C00
• CLIP, PISTON PIN 13115-KVR-C00
• Valve Stem Seal (2) 12209-GB4-682

Vehicle Fitments

• Honda CRF110 / CRF110F 2019–2025
• Honda Wave 110i AFS110 (EFI) 2011–2013
• Honda EX5 Dream 110i
• Honda Cross Cub 110 / C110 Super Cub / NBC110 2012–2017
• Honda Super Cub 110 C110 JA10 2018–2019
• Honda Cross Cub 110 CC110 JA10 2018–2019
• Honda CRF110F fuel-injected models 2013–2025
