Cylinder Kit +598 Rzr XP1000 Cylinder Works 61003-K01

Cylinder Kit

Compatible Modles:

POLARIS

• GENERAL 1000 EPS
• RZR 1000 60 INCH
• RZR XP 1000 / XP 4
• RZR XP 1000 / XP 4 ENGINE SERIAL NUMBERS 0120549257166 to 0120549258232
• RZR XP1000 2014 - 2016
• RZR XP 4 1000 2015 - 2017
• RZR XP1000 2014 - 2016 [BIG BORE 1110cc]
• RZR XP 4 1000 2015 - 2016 [BIG BORE 1110cc]
• Big Bore 98mm Cylinder Kit (+5mm) Comp 10.5:1

CYLINDER WORKS 61003-K01

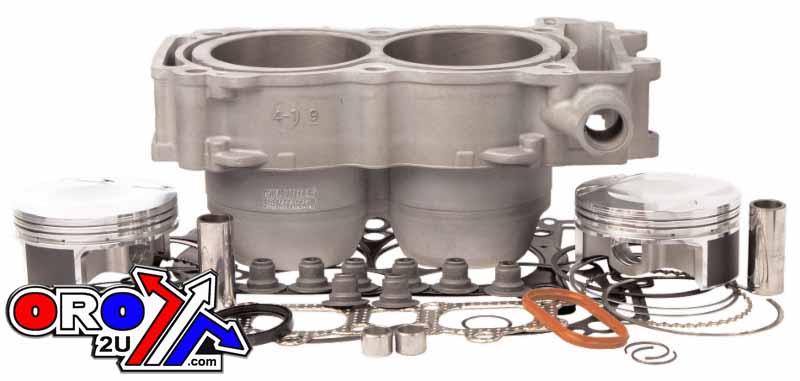

Cylinder Works has three new cylinder options for 2014-2015 Polaris RZR XP 1000. Now you have the aftermarket option of a standard bore replacement cylinder, a 11.5:1 high compression option, and a bolt-on +5mm 1100cc big bore kit that all match the appearance of the standard OE cylinder, at an affordable price. If you are a competent do-it-yourself or a repair shop looking for quality standard and big bore cylinder kits, check out these new options from Cylinder Works. Three kit options to choose from: Standard Bore, Standard Bore Hi-Compression, and Big Bore. Cylinder kits include matched Vertex pistons to ensure longevity, performance, and reduced engine noise. Nickel Silicon Carbide plated for long life. Kits come complete with gaskets, cylinder, piston, rings, pin, and clips. Big bore cylinders do not require machine work. Included in each complete kit is a pair of forged Vertex piston kits, top-end gasket kit, and a new nickel-plated standard or big bore Cylinder Works cylinder. Standard bore cylinders are also available separately so builders can use the replacement piston of their choice.

• +5mm Big Bore Cylinder Kit. 10.5:1 comp. 1110cc. Includes (Cylinder, Piston Kits, & Top-End Gasket Kit). Uses Vertex.
• +5mm Big Bore Cylinder Kit. 10.5:1 comp. 1110cc. Includes (Cylinder, Piston Kits, & Top-End Gasket Kit). Uses Vertex #24029. Must use heavy-duty aftermarket connecting rods. Hot Rods part# 8708 or crankshaft part# 4421. Bolt on and go!

Cross-reference numbers ONLY:

• 3022594,
• AT-09480-2

Polaris

• 2017 Polaris Ranger 1000 RZR 4 XP EPS
• 2016 Polaris Ranger 1000 RZR 4 XP EPS
• 2015 Polaris Ranger 1000 RZR 4 XP EPS
• 2017 Polaris Ranger 1000 RZR 4 XP EPS High Lifter Edition
• 2016 Polaris Ranger 1000 RZR 4 XP EPS High Lifter Edition
• 2017 Polaris Ranger 1000 RZR S EPS
• 2016 Polaris Ranger 1000 RZR S EPS
• 2014 Polaris Ranger 1000 RZR XP 4 LE EPS Titanium Matte Metallic
• 2014 Polaris Ranger 1000 RZR XP 4 LE EPS White Lightning
• 2017 Polaris Ranger 1000 RZR XP EPS
• 2016 Polaris Ranger 1000 RZR XP EPS
• 2015 Polaris Ranger 1000 RZR XP EPS
• 2015 Polaris Ranger 1000 RZR XP EPS Desert Edition
• 2015 Polaris Ranger 1000 RZR XP EPS Fox Edition
• 2017 Polaris Ranger 1000 RZR XP EPS High Lifter Edition
• 2016 Polaris Ranger 1000 RZR XP EPS High Lifter Edition
• 2015 Polaris Ranger 1000 RZR XP EPS High Lifter Edition
• 2017 Polaris Ranger 1000 RZR XP EPS LE
• 2014 Polaris Ranger 1000 RZR XP LE EPS Black Pearl
• 2014 Polaris Ranger 1000 RZR XP LE EPS Matte Nuclear Sunset
• 2014 Polaris Ranger 1000 RZR XP LE EPS Titanium Matte Metallic
• 2014 Polaris Ranger 1000 RZR XP LE EPS White Lightning
