Cylinder Kit 55mm Big Bore 132CC 2013-2025 Honda CRF110F Fuel Injected Models

This 132 cc big-bore cylinder, piston and top-end gasket rebuild kit provides a complete replacement top end, featuring an aluminium cylinder with a cast-iron liner, matched piston set, and comprehensive gaskets. The cylinder includes a 90° oil temperature sensor port and is designed as a plug-and-play solution without crankcase machining; tuning is required to suit the increased displacement.

Features

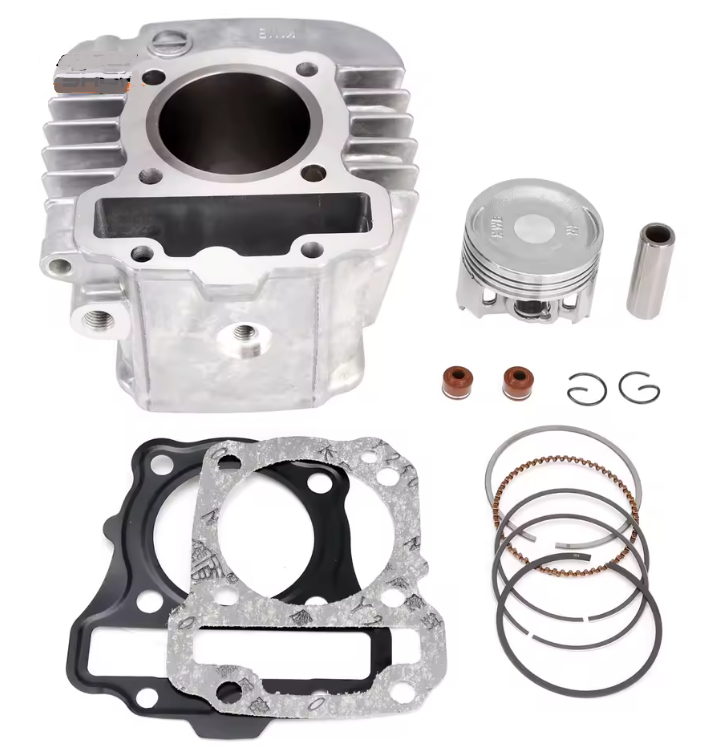

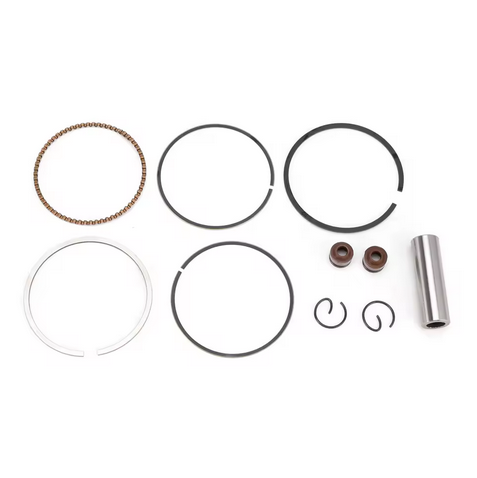

• Complete kit: cylinder, piston, rings, pin, clips and top-end gasket kit (exactly as pictured)

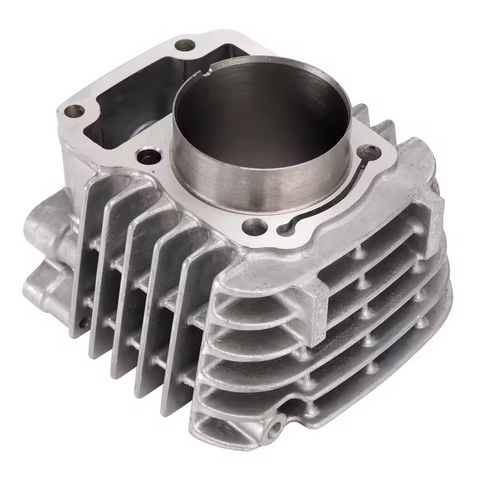

• Aluminium cylinder with internal cast-iron jacket (not a Nikasil-treated bore)
• Performance gasket materials for durability and reliability
• Includes all gaskets pictured to rebuild the top end

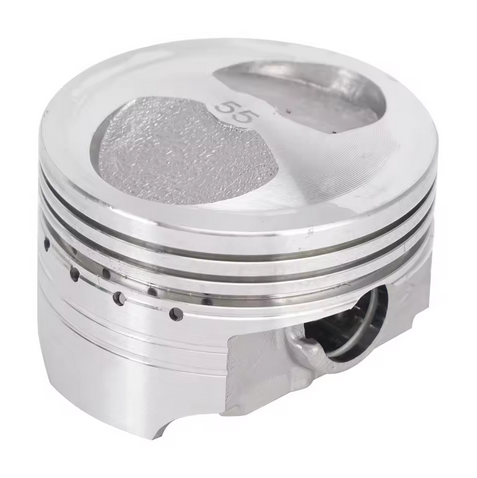

• Big-bore size: 55 mm bore with 13 mm steel piston pin
• Plug-and-play installation; no crankcase machining required
• Compatible with or without a big-valve kit and high-performance cam
• All year models will require tuning for the larger displacement
• Excellent low-cost replacement for defects in the original cylinder
• Meets or exceeds OEM quality
• Direct OEM replacement
• Stock mounting locations
• Designed to handle increased power loads
• Best value for money
• Made to OEM specifications and matches original equipment appearance
• Please check the image before ordering to avoid mistakes
• Easy to install, but if unsure please use a professional
• Always compare part numbers to your parts schematics and cross-reference appropriately
• This is not a genuine part; OEM numbers are for identification and comparison only

Specifications

• Condition: Aftermarket, 100% brand new
• Quantity: 1 set
• Materials: Aluminium, steel
• Engine type: 4-stroke
• Displacement: 132 cc
• Bore type: Big bore
• Oil temperature sensor port: Yes
• Oil temperature sensor port angle: 90°
• Bore diameter: 55 mm
• Piston pin diameter: 13 mm

Cross-Reference OEM Part Numbers

• Cylinder: 12103-KWB-550
• Cylinder base gasket: 12191-K58-TC0
• Cylinder head gasket: 12251-KWB-601
• Pin, piston: 13111-KVR-C00
• Circlips, piston (2): 13115-KVR-C00
• Valve stem seal (2): 12209-GB4-682

Vehicle Fitments

• This cylinder kit can be installed on almost all typical 110i fuel-injected Honda engines
• Honda Wave 110i AFS110 (EFI) 2011–2013
• Honda EX5 Dream 110i
• Honda Cross Cub 110, C110 Super Cub, NBC110 2012–2017
• Honda Super Cub 110 C110 JA10 2018–2019
• Honda Cross Cub 110 CC110 JA10 2018–2019
• Honda CRF110F fuel-injected models 2013–2025
• This cylinder block has a 90° oil temp sensor port and is plug-and-play for fuel-injected CRF110F
• Uses a straight mount for the oil temp sensor and does not use the sensor cover
• For CRF110F with this cylinder, the KWB-type cylinder head must also be installed
• For carburetted bikes, the oil temp sensor port must be blanked with a bolt and copper washer
• Compatibility chart is for reference only; compare with your faulty unit and the provided image to confirm fitment
