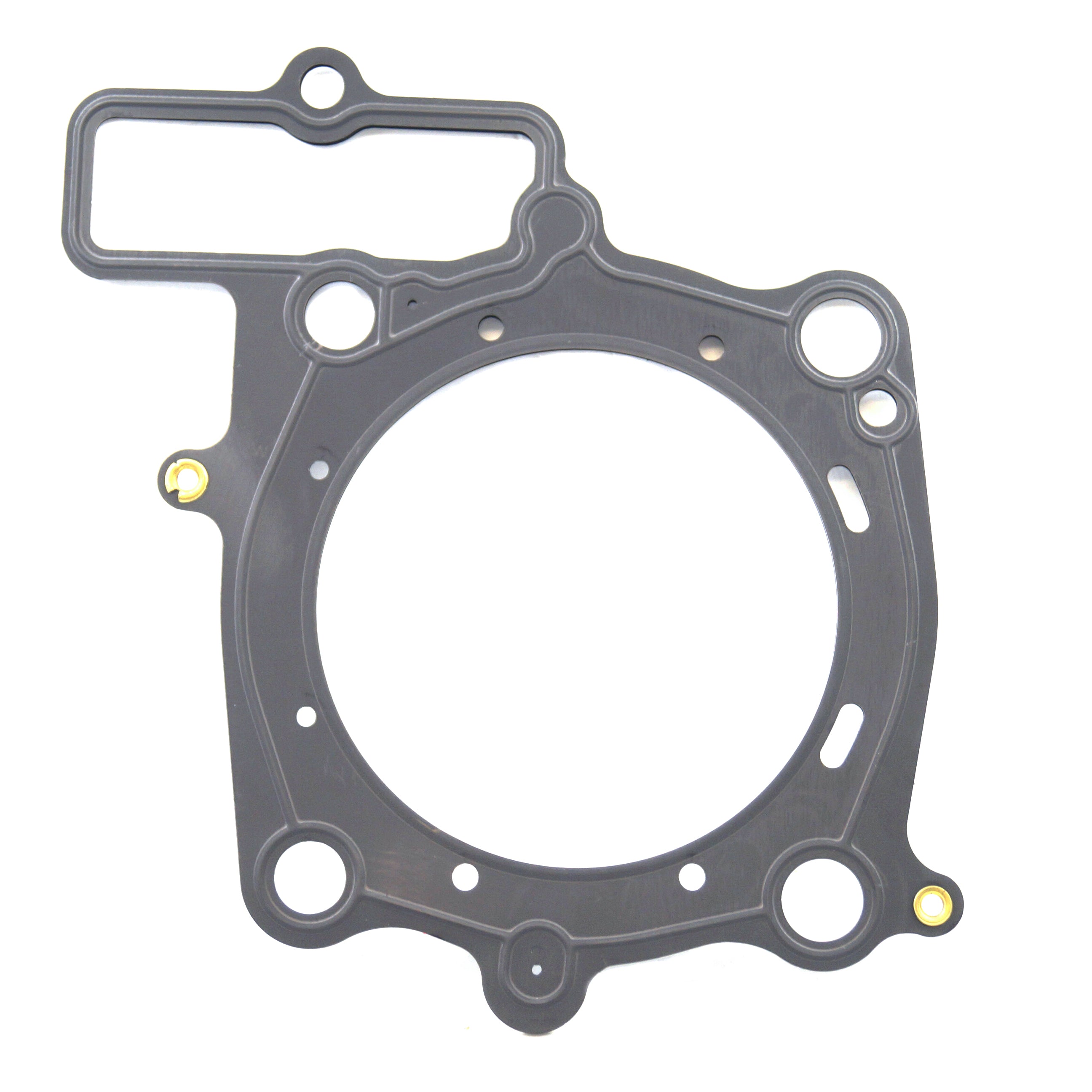

CYLINDER HEAD GASKET RXV/SXV 550 06-11, ATHENA S410010001013 APRILIA

ATHENA Cylinder Head Gasket thickness same as OE - S410010001013

Description

The head gasket is a complex and crucial technological component. To meet the ongoing needs of the market, Athena conducts meticulous checks on its head gaskets, both during the design phase and during bench tests. Athena head gasket can be produced using different technologies, such as metal/elastomer combinations or multilayer with Athena steel and coating materials. Choosing a Top-quality gasket is the first step towards a reliable engine.

Depending on the type, it is submitted to:

1.1. High precision cutting

Thanks to latest generation lasers, it is possible to obtain a high degree of precision and purity, completely eliminating production burrs. These can cause various elements (oil, water, compression gas) to infiltrate compromising engine operations.

2.2. Alignment of reliefs

This solution increases the elasticity of the gasket during operation, guaranteeing excellent grip over time, even in extreme conditions. On the contrary, a misalignment of the reeds would cause an immediate flattening of the gasket, eliminating the function of elastic memory and the consequent loss of compression.

Partner OEM code

• APRILIA AP9150509

Vehicle compatibility

• APRILIA RXV 550 cc 2006/2011
• APRILIA SXV 550 cc 2006/2011

Part No. 28-5766.ATH (oro2u.com)
