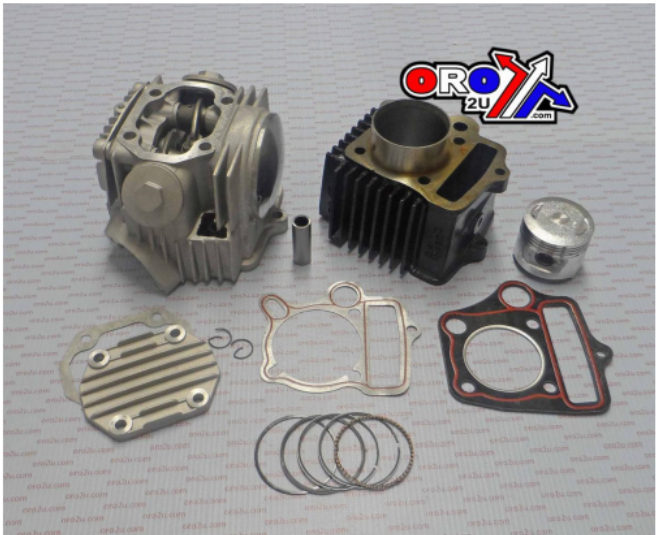

Cylinder & Head Cam Valve Piston Gasket Kit 90cc 1993-2005 Honda C90 TRX90 Bore 47mm 86CM3 Top End Rebuild Kit

Honda C90 Scooter 86cm³ & TRX90 ATV (1993-2005)

Top End Rebuild Cylinder Kit (Bore 47mm)

Kit Contents:

• Piston
• Rings
• Pin
• Cylinder
• Cylinder Head
• Gaskets

Features:

• Unmatched reliability and performance from high-tech materials.
• Manufactured to exacting standards, enabling the engine to be rebuilt with total confidence.
• Meets or exceeds OEM quality.
• Direct OEM replacement.
• Please view the image before ordering to avoid mistakes.
• Best value for money.
• ORO products are high-quality replacement parts and carry our guarantee of your satisfaction.
• Easy to install, but professional installation is recommended if unsure.

Cross reference numbers.
RING SET, PISTON (STD) (RIKEN) 13011-GB5-305
PISTON (STD) 13101-GT0-000
PIN, PISTON 13111-GB0-910
CLIP, PISTON PIN 13115-001-000 94601-13000
CLIP, PISTON PIN (13MM) 94601-13000
CYLINDER 12101-HF7-A10
2GASKET, CYLINDER 12191-GW8-681
CYLINDER HEAD Use up to Engine SN 2108211 12200-HF7-A10
CYLINDER HEAD Use from Engine SN 2108212 12200-HF7-A11
GASKET, CYLINDER HEAD 12251-HF7-A11
SEAL, VALVE STEM (NOK) 12209-GB4-681
CAMSHAFT 14100-HF7-A10
PLATE, STOPPER 14150-GN5-911
ARM, VALVE ROCKER 14431-GN5-911
SHAFT, VALVE ROCKER ARM 14451-035-000
VALVE, IN. 14711-GN5-913
VALVE, EX. 14721-GF6-010
SPRING, VALVE (OUTER) (NIPPON HATSUJO) 14751-GN5-911
SPRING, VALVE (INNER) (NIPPON HATSUJO) 14761-GN5-911
RETAINER, VALVE SPRING 14771-GB4-680
1SEAT, VALVE SPRING (OUTER) 14775-MA6-000
2COTTER, VALVE 14781-MA6-000
SCREW, TAPPET ADJUSTING 90012-333-000
NUT, TAPPET ADJUSTING 90206-001-000
