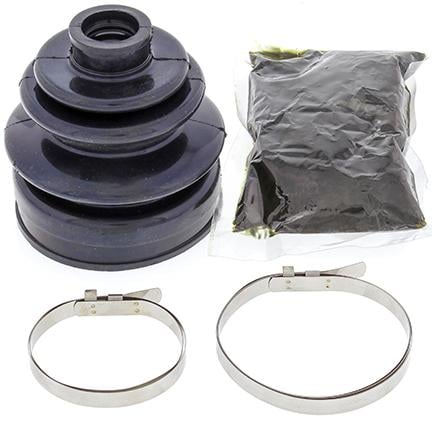

CV BOOT KIT HON/YAM/KAW, ALLBALLS 19-5009 FRONT OUTER

All Balls CV Boot Kit - Part No. 19-5009

Features:

• Grease Included: Molybdenum grease (Lithium-based) for increased CV joint life.
• Design: Suitable for high joint angles and modern ATV/UTV requirements.

Material Strength:

• Abrasion resistance increased by 50%.
• 40% higher tensile strength compared to conventional materials.
• Installation: Includes two stainless steel clamps; no special tools required.

Dimensions:

• Shaft ID: 18mm
• CV Body ID: 66mm
• Length: 82mm

Applications:

CV Boot Repair Kit - Front, Inner:

• Polaris: ACE 325 (2016), ACE 325 EU (2015), ACE 325 HD (2015), ACE 500 (2017-2018), ACE 570 (2016-2017), ACE 570 EU (2015-2018), ACE 570 HD (2015-2018), ACE 570 MD (2016), ACE 900 EFI EPS (2016)

CV Boot Repair Kit - Front, Outer:

Honda:

• TRX500FA (2001-2014)
• TRX500FE (2005-2013)
• TRX500FGA (2004-2007)
• TRX500FM (2005-2013)
• TRX500FPA (2011-2014)
• TRX500FPE (2011-2013)
• TRX500FPM (2011-2013)
• TRX650 Rincon (2003-2005)
• TRX680 Rincon (2006-2018)

Kawasaki:

• KVF650 I Brute Force (2006-2008)
• KVF750 Brute Force (2005-2007)

Yamaha:

• 450 RHINO (2006-2009)
• 660 RHINO (2004-2005)

CV Boot Repair Kit - Rear, Outer:

Yamaha:

• 450 RHINO (2006-2009)
• 660 RHINO (2005-2007)

Detailed Honda Models:

• TRX500FA Foreman Rubicon 4x4: 2001-2007
• TRX500FE Foreman ES 4x4: 2005-2007
• TRX500FGA Foreman Rubicon 4x4 GPScape: 2004-2007
• TRX500FM Foreman S 4x4: 2005-2012
• TRX500FPE Foreman ES 4x4 w/Power Steering: 2011-2013
• TRX500FPM Foreman 4x4 w/Power Steering: 2011-2013
• TRX650FA Rincon 4x4: 2003-2005
• TRX680FA Rincon 4x4: 2006-2012

Detailed Kawasaki Models:

• KVF650F Brute Force 4x4i: 2006-2008
• KVF750A Brute Force 4x4i: 2005-2007

Detailed Yamaha Models:

• YXR450F Rhino 4x4: 2006-2009
• YXR450FA Rhino 450 4x4: 2006-2008
• YXR660FA Rhino 4x4: 2004-2007

Part No.: 17-3136.AB (Available at oro2u.com)

Size: Approx. 18 x 66 x 82mm
