Crankshaft 72-75 Kawasaki H2 750 STD 16mm Wrist Pin Vintco CR2009

Crankshaft 72-75 Kawasaki H2 750 STD 16mm Wrist Pin Vintco CR2009

£1,112.24 GBP
Taxes included. Shipping calculated at checkout.

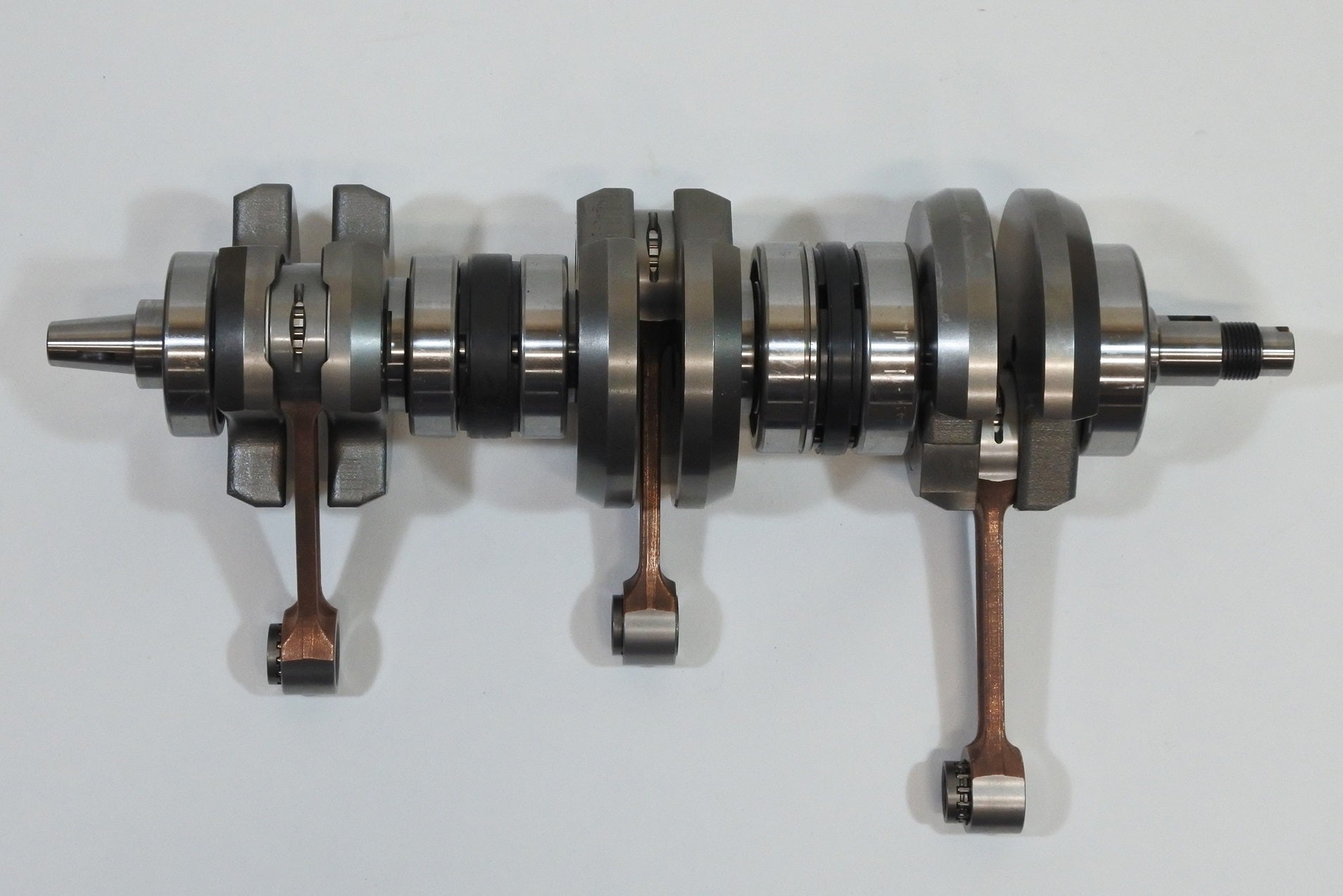

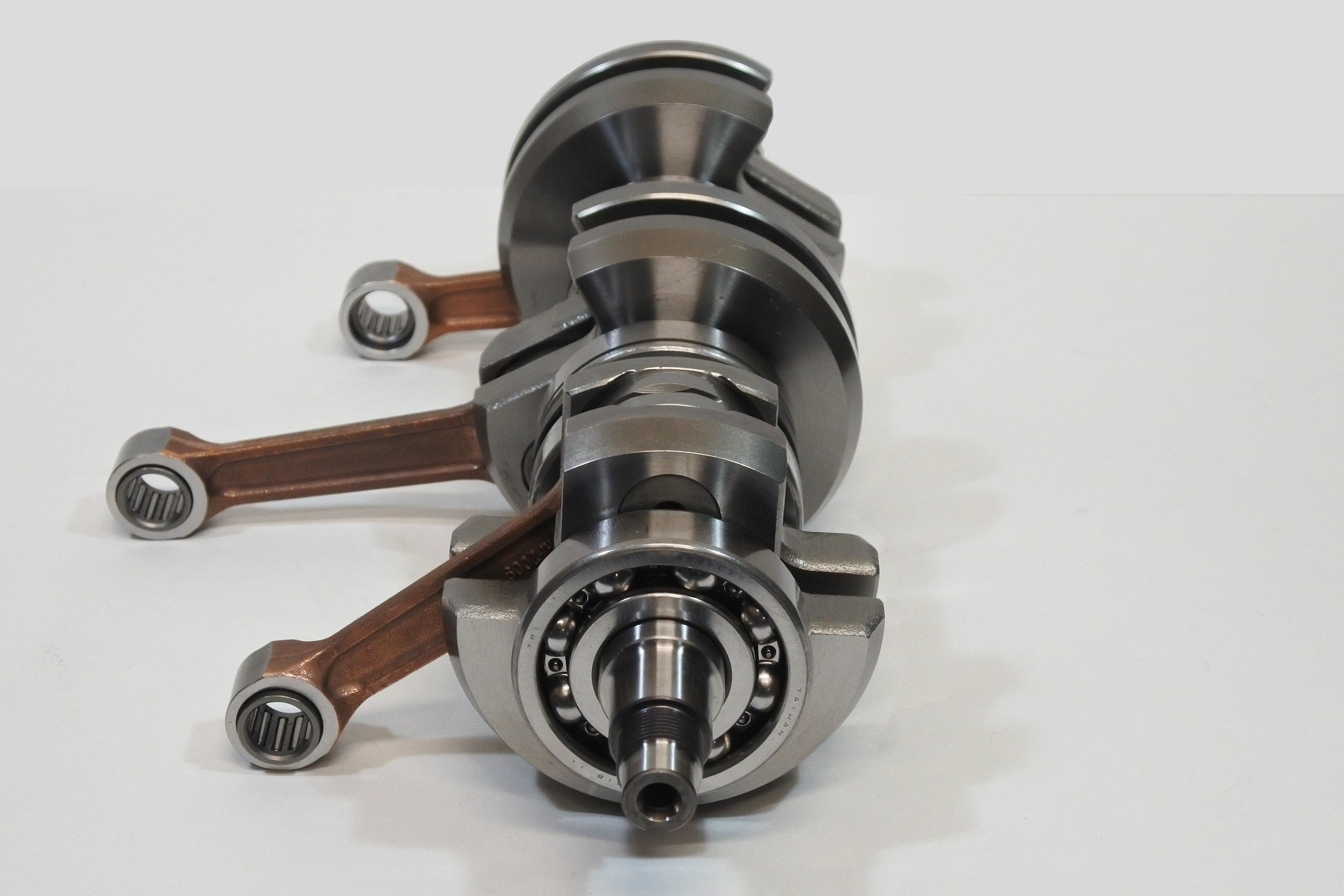

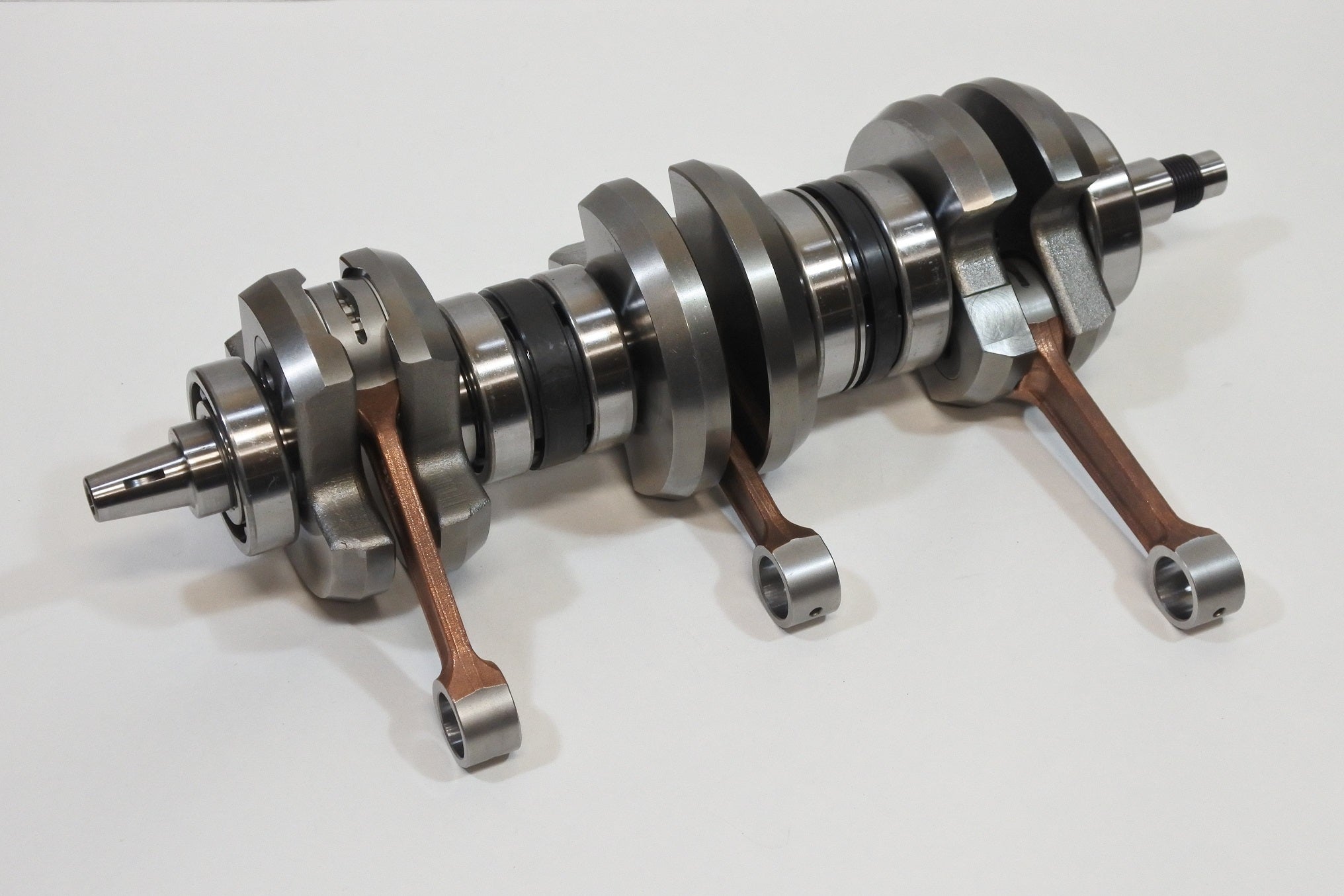

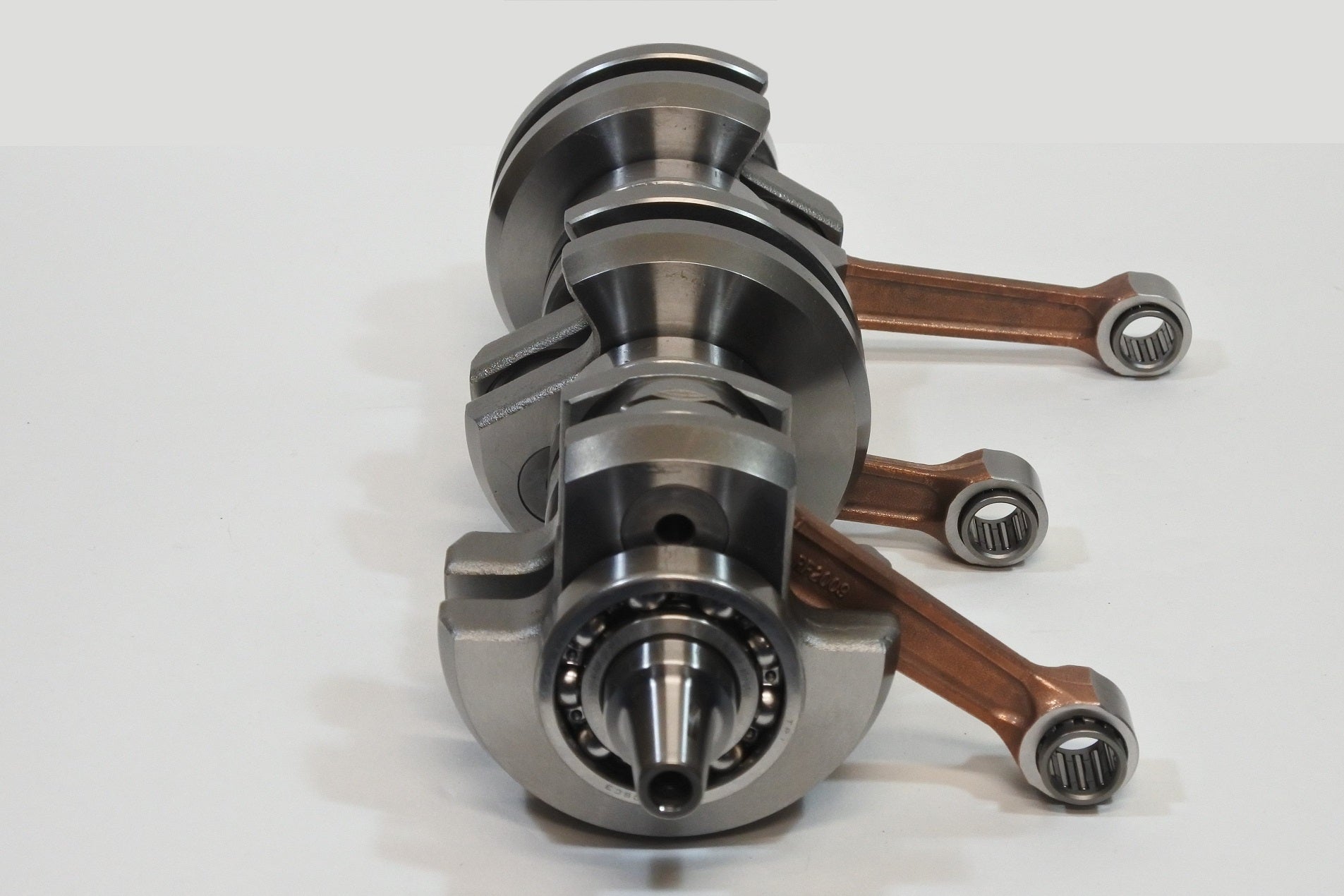

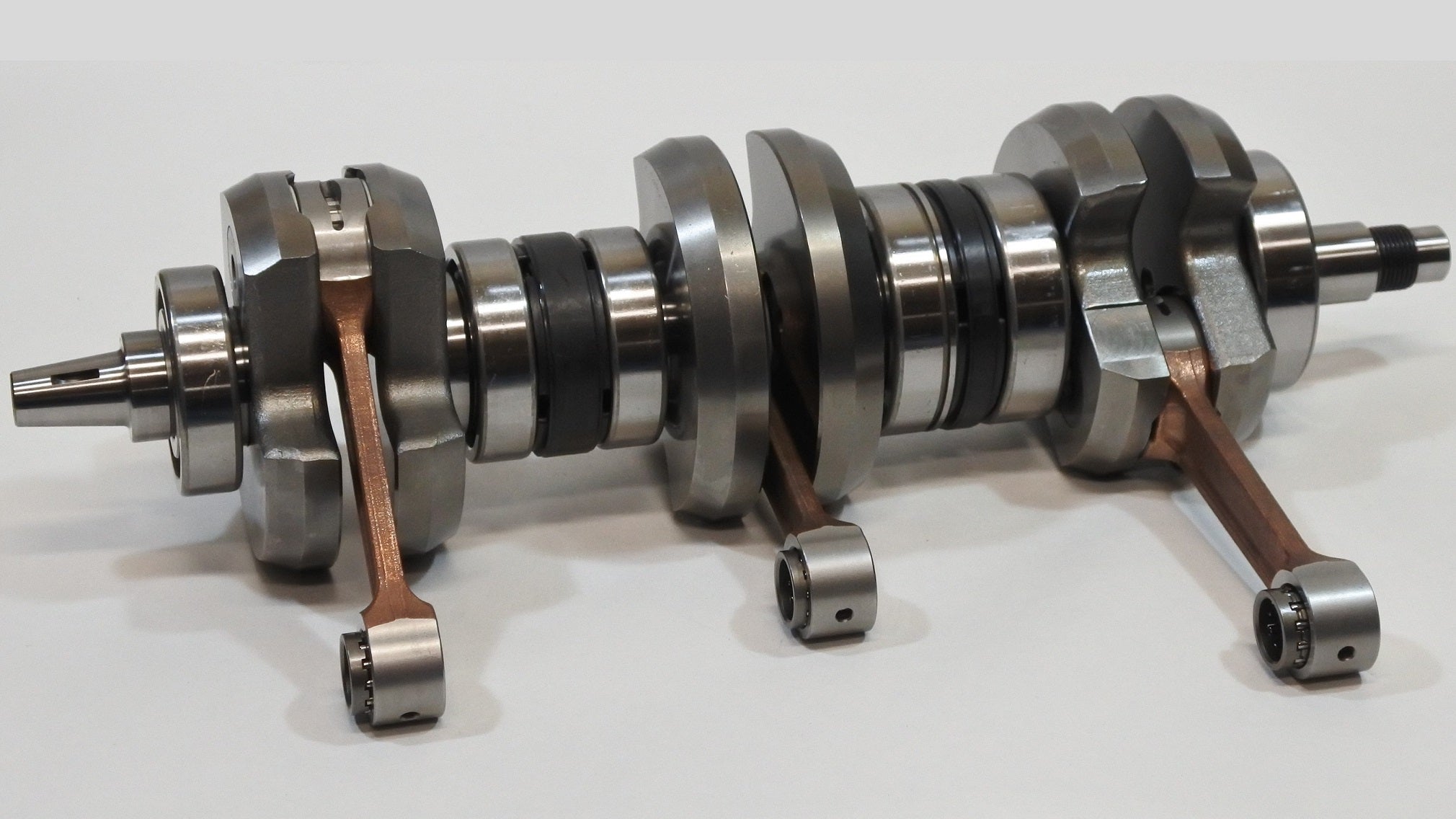

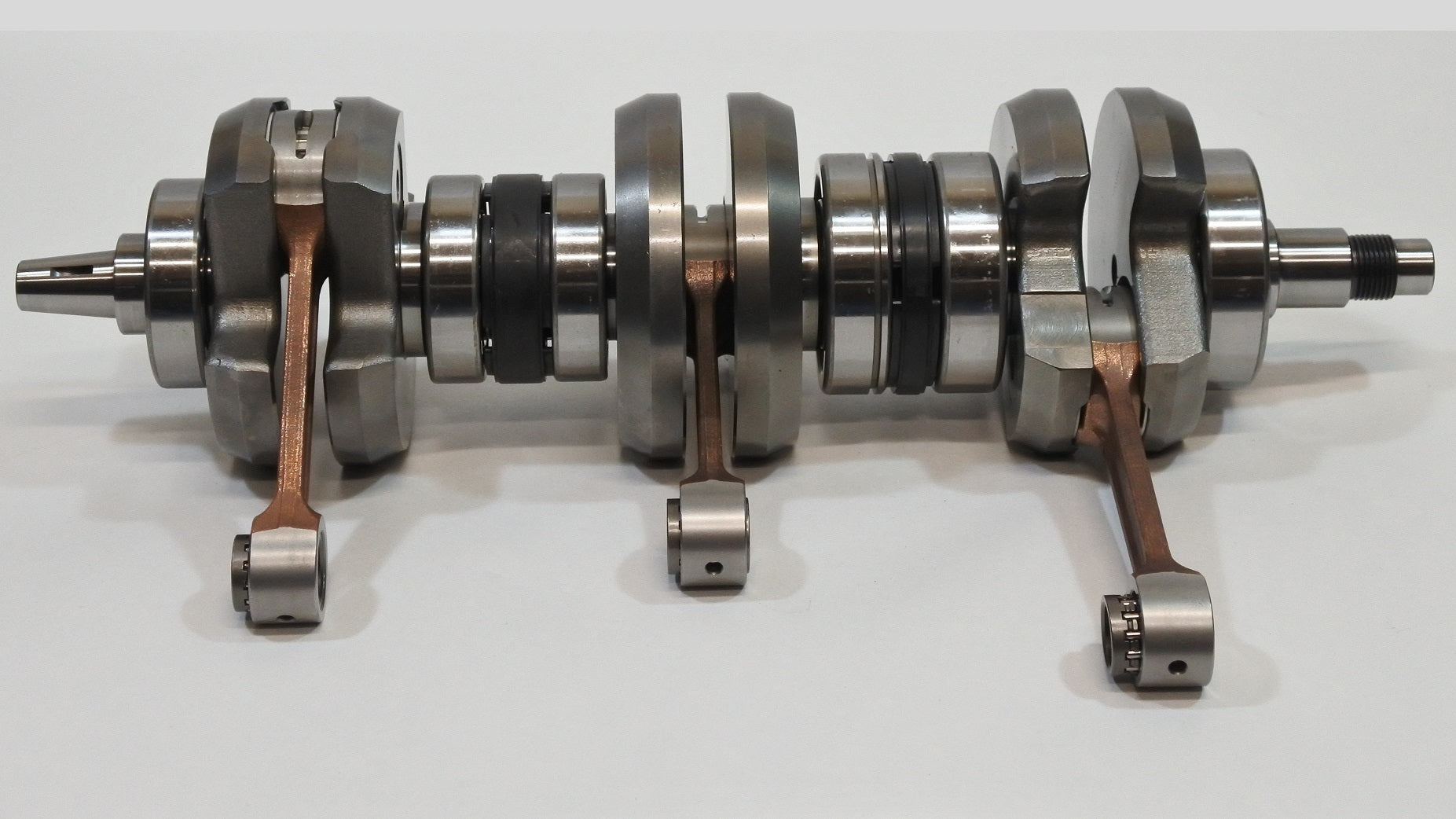

This complete, newly manufactured crankshaft assembly is designed for 1972-1975 Kawasaki H2-750 models and is supplied in the standard 16 mm wrist pin configuration. Intended for the three-cylinder, two-stroke 750 cc engine, it comes fully assembled with connecting rods, wrist pin bearings, main bearings and oil seals, providing a replacement crankshaft for engine rebuilds without reworking the original unit. It is manufactured using modern materials and production methods, with updated rod and bearing design details and a factory-pinned assembly to reduce torque slip.

Features

  • Complete new crankshaft assembly for Kawasaki H2-750 models
  • Fully assembled replacement unit for engine rebuilds
  • Includes wrist pin bearings
  • Updated slotted connecting rod design for improved lubrication and cooling of the rod bearings
  • Modern flat-profile rod bearing design with additional needle rollers and an updated cage design
  • Factory pinned to help eliminate torque slip
  • Supplied with the correct multi-lip rubber oil seals
  • Supplied with main bearings
  • Does not use the oil slinger
  • High-performance version also available separately and requires custom VintCo pistons

Specifications

  • VintCo Part Number: CR2009
  • Application: 1972-1975 Kawasaki H2-750
  • Engine type: three-cylinder, two-stroke
  • Engine capacity: 750 cc
  • Wrist pin diameter: 16 mm standard
  • Connecting rods: heavy-duty forged steel
  • Lower bearing coating: Polyetheretherketone (PEEK)
  • Main bearings: NTN/TPI with large rivet cage
  • Oil seals: multi-lip rubber
  • Alternative version available separately: 18 mm wrist pin

Vehicle Fitments

  • 1972 Kawasaki H2-750
  • 1973 Kawasaki H2-750
  • 1974 Kawasaki H2-750
  • 1975 Kawasaki H2-750
