CONNECTING ROD KIT HONDA TLR200 XL200R XR200 13201-446-770

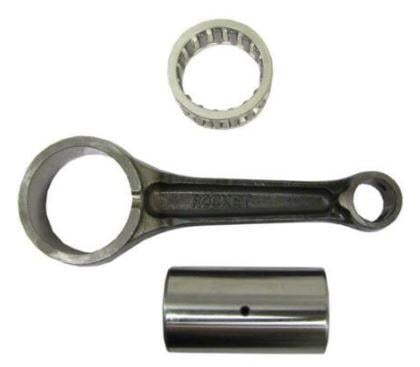

CONNECTING ROD REBUILD KIT

SIZE: MM

• Center-to-Center: 103.50
• Small End Bearing: NONE
• Small End Bore Ø: 15
• Small End Width: 18
• Big End Bearing: 30x38x18
• Big End Bore Ø: 38
• Big End Width: 18
• Big End Pin Ø: 30
• Big End Pin Length: 53.80
• Washer Thickness: None
• Overall Length of Rod: 139mm

Features:

• Heavy-duty OE replacement connecting rods.
• Certified Chrome alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case-hardened.
• Psychic Rods use the latest caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and silver-coated.
• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing, and thrust washers if needed.
• Fully compatible with aftermarket and OE crankshafts.
• Manufactured to exacting standards for complete confidence in crankshaft rebuilds.
• Meets or exceeds OEM quality.
• Direct OEM replacement.
• Please refer to the image before ordering to avoid mistakes.
• Best value for money.
• ORO products are high-quality replacement parts and come with our guarantee of your satisfaction.

SIZE (Alternate):

• Rod Center-to-Center: 105.50mm
• Rod Eyes: 18.00mm (both)
• Big End Pin: 30x54.05mm
• Overall Length of Rod: 139mm

Compatible with the following HONDA models:

• XL125R
• TLR200 (1986-1987)
• XL200R (1983-1984)
• XR200 (1983-1984)
• XR200R (1981-1983)

Cross-reference numbers ONLY:

• PROX 03.1255
• OEM -446, 56-162.PROX.X 13201-446-770
