Connecting Rod Kit 88-07 Honda CR 125 Vintco KR2048

VintCo connecting rod kit KR2048 is a newly manufactured heavy-duty replacement assembly for Honda CR125 models from 1988 to 2007. It provides a practical alternative to replacing the complete crankshaft and is manufactured from heavy-duty forged steel using modern materials and manufacturing techniques for OEM-equivalent fitment and performance. The kit includes the connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers.

Features

• Heavy-duty replacement connecting rod kit
• Fits Honda CR125 models from 1988 to 2007
• Alternative to replacing a complete crankshaft
• Manufactured using modern materials and manufacturing techniques
• Designed for OEM-equivalent fitment and performance

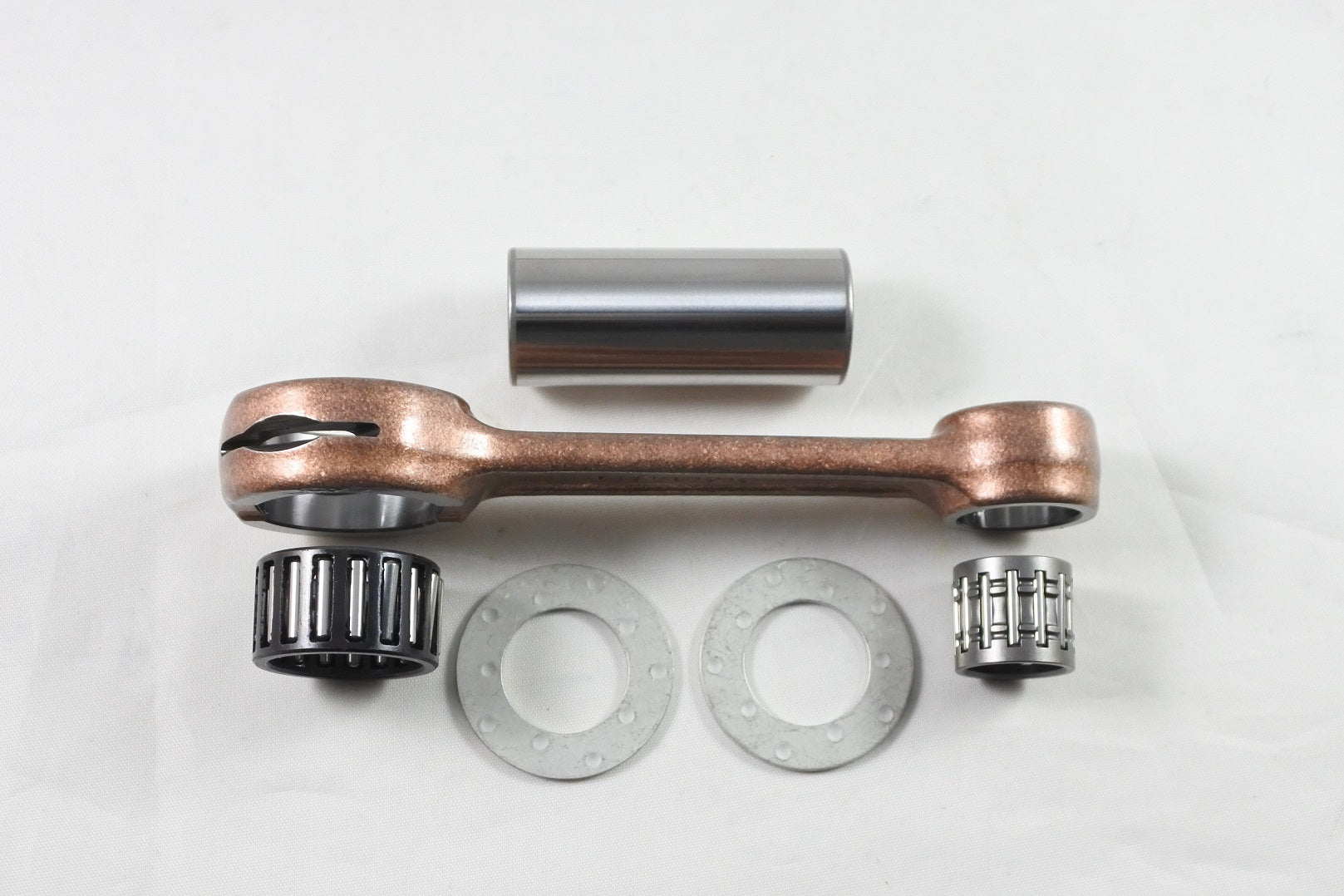

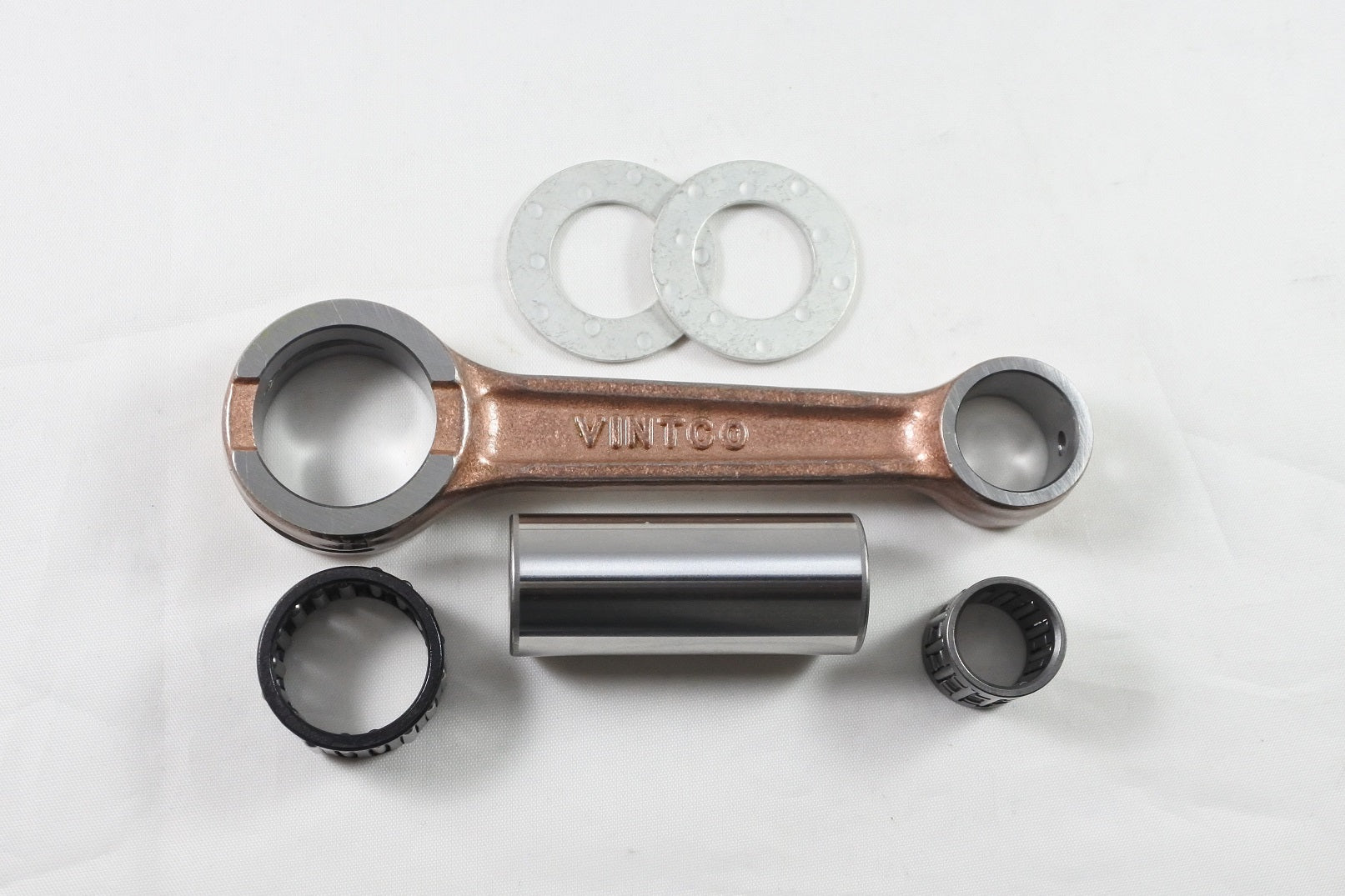

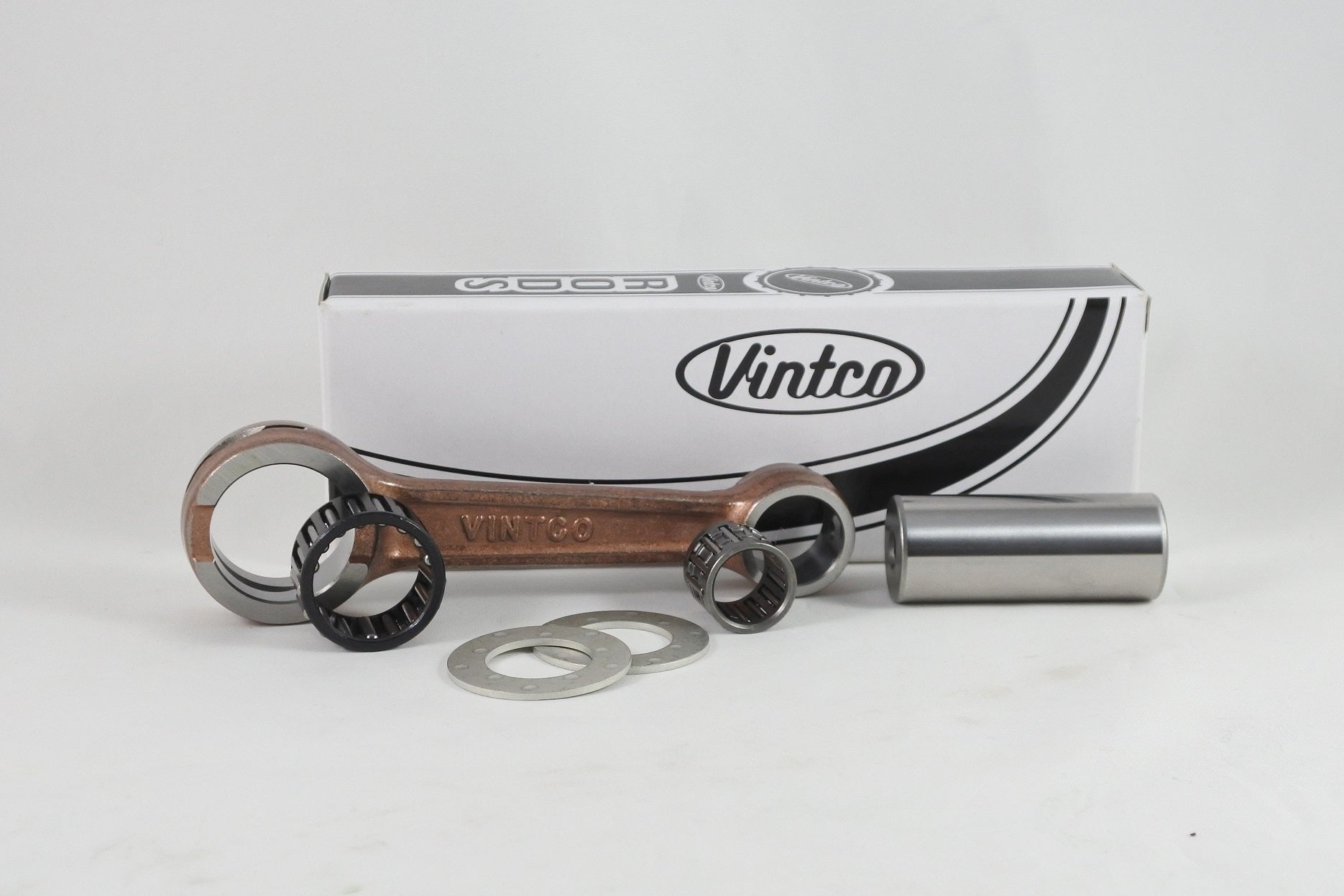

• Includes connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers

Specifications

• VintCo Part Number: KR2048
• Application: Honda CR125
• Connecting rod material: Heavy-duty forged steel
• Connecting rods included: 1
• Crank pins included: 1
• Crank pin dimensions: 7 x 22 x 53 mm
• Big end bearings included: 1
• Big end bearing dimensions: 22 x 28 x 15.8 mm
• Wrist pin bearings included: 1
• Wrist pin bearing dimensions: 15 x 19 x 16.8 mm
• Thrust washers included: 2
• Thrust washer dimensions: 22.25 x 35 x 1 mm

Vehicle Fitments

• 1988 Honda CR125
• 1989 Honda CR125
• 1990 Honda CR125
• 1991 Honda CR125
• 1992 Honda CR125
• 1993 Honda CR125
• 1994 Honda CR125
• 1995 Honda CR125
• 1996 Honda CR125
• 1997 Honda CR125
• 1998 Honda CR125
• 1999 Honda CR125
• 2000 Honda CR125
• 2001 Honda CR125
• 2002 Honda CR125
• 2003 Honda CR125
• 2004 Honda CR125
• 2005 Honda CR125
• 2006 Honda CR125
• 2007 Honda CR125
