Connecting Rod Kit 87-92 Suzuki Lt R 250 Vintco KR2059

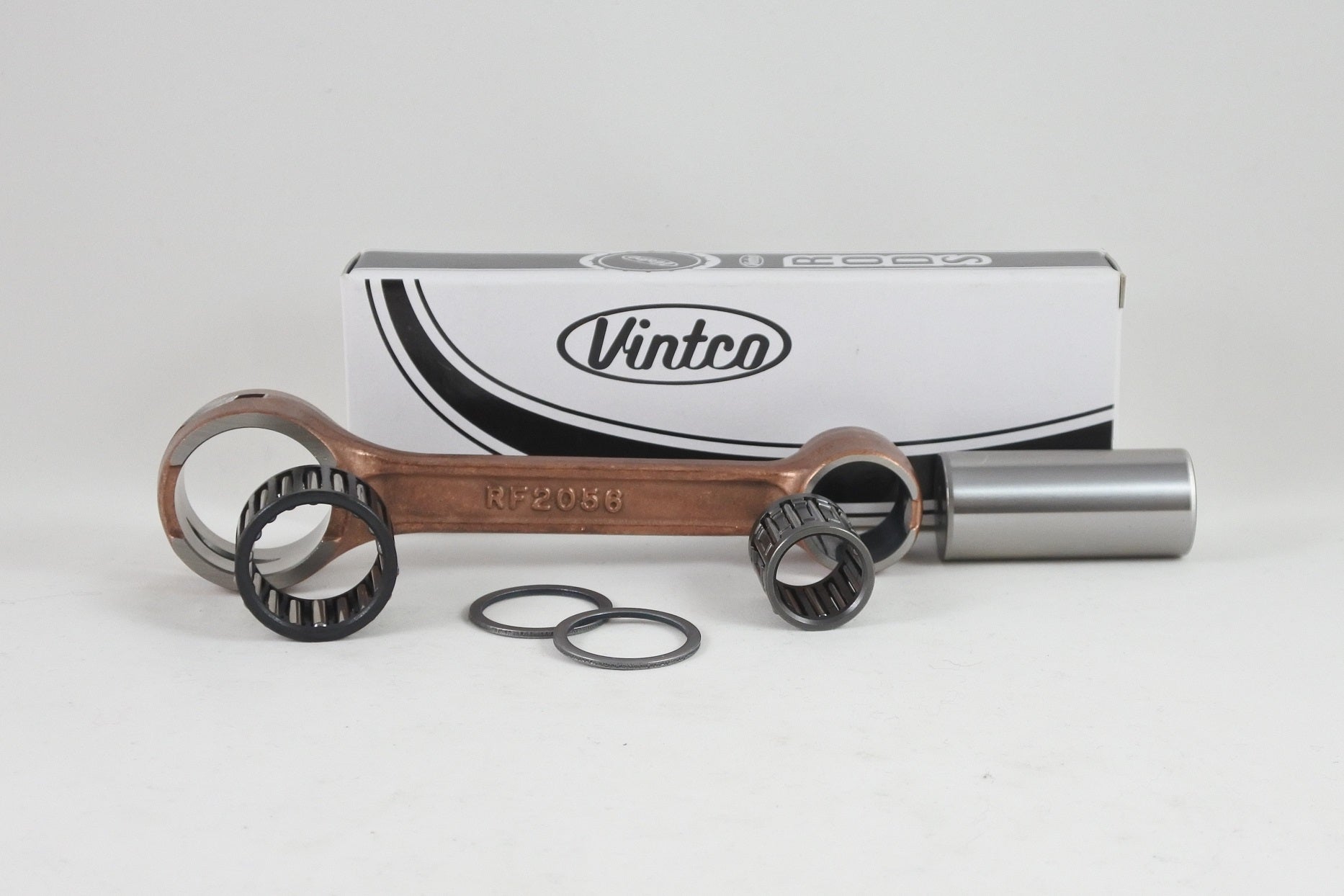

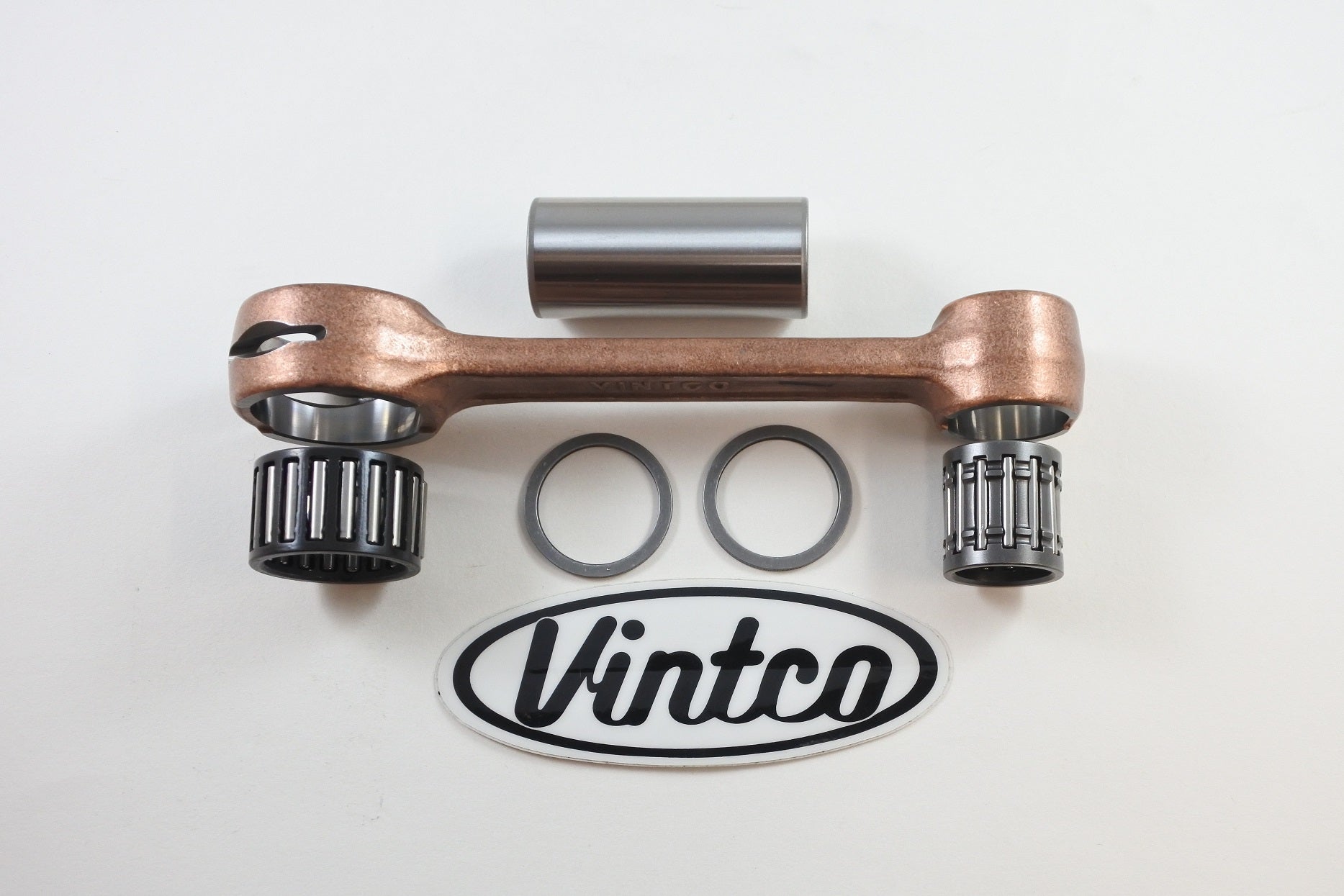

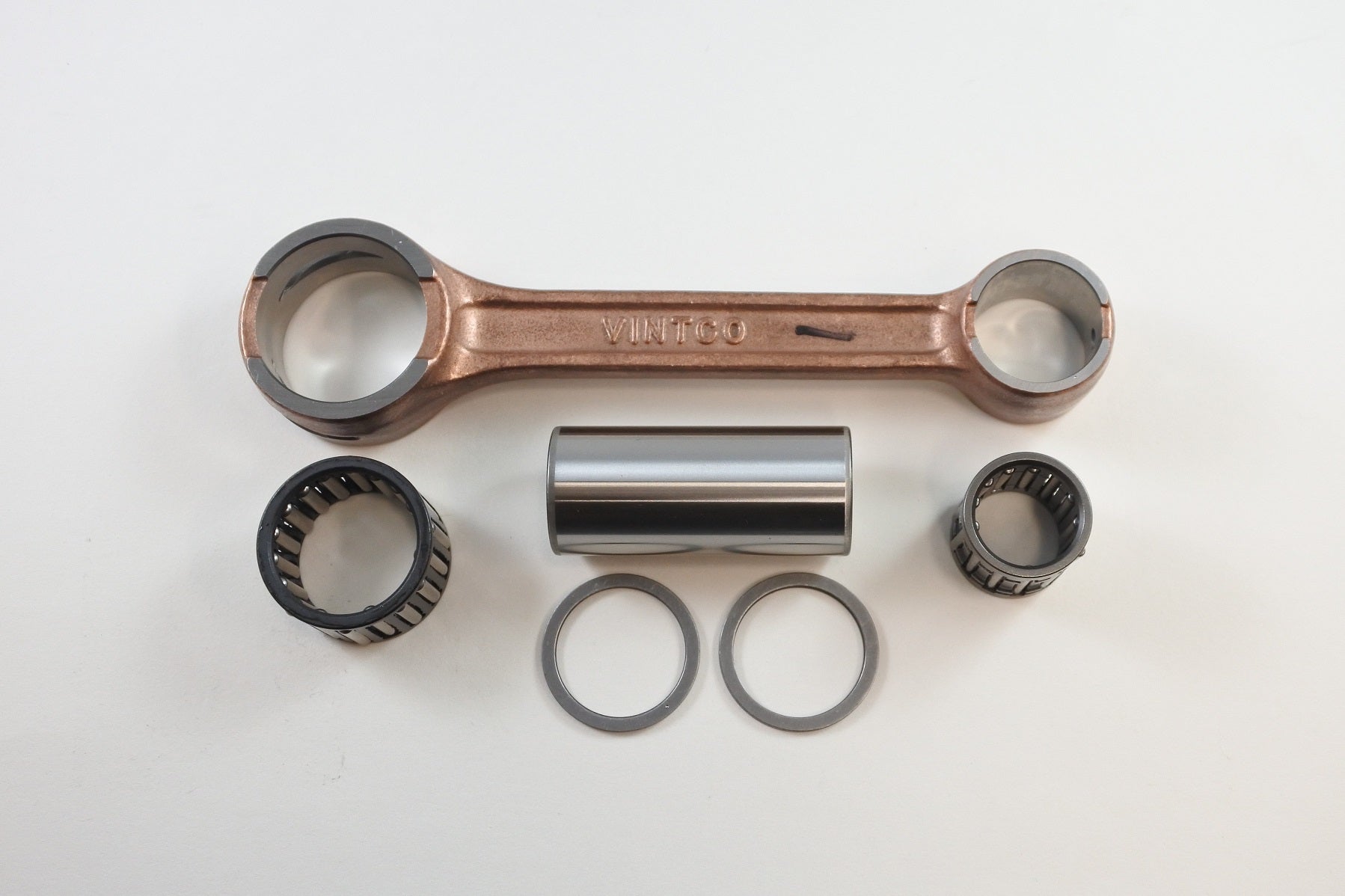

The VintCo KR2059 connecting rod kit is a newly manufactured replacement kit for Suzuki LT250R models from 1987 to 1992. It is intended as an alternative to replacing the complete crankshaft and includes the components required for connecting rod service: one connecting rod, one crank pin, one big end bearing, one wrist pin bearing, and two thrust washers. The kit is manufactured using modern materials and production techniques for OEM-level fitment and performance.

Features

• Heavy duty connecting rod kit for Suzuki LT250R models
• Suitable for connecting rod replacement without replacing the complete crankshaft
• Manufactured for OEM-level fitment and performance
• Includes connecting rod, crank pin, big end bearing, wrist pin bearing, and thrust washers
• Newly manufactured replacement component set

Specifications

• VintCo Part Number: KR2059
• Connecting rod material: Forged steel
• Crank pin size: 8 x 24 x 54.5 mm
• Big end bearing size: 24 x 32 x 19.8 mm
• Wrist pin bearing size: 18 x 23 x 23.8 mm
• Thrust washer size: 24.2 x 28.8 x 1.5 mm
• Quantity included: 1 connecting rod
• Quantity included: 1 crank pin
• Quantity included: 1 big end bearing
• Quantity included: 1 wrist pin bearing
• Quantity included: 2 thrust washers

Vehicle Fitments

• 1987 Suzuki LT250R
• 1988 Suzuki LT250R
• 1989 Suzuki LT250R
• 1990 Suzuki LT250R
• 1991 Suzuki LT250R
• 1992 Suzuki LT250R
