Connecting Rod Kit 86-98 Suzuki RM Rmx 250 Vintco KR2056

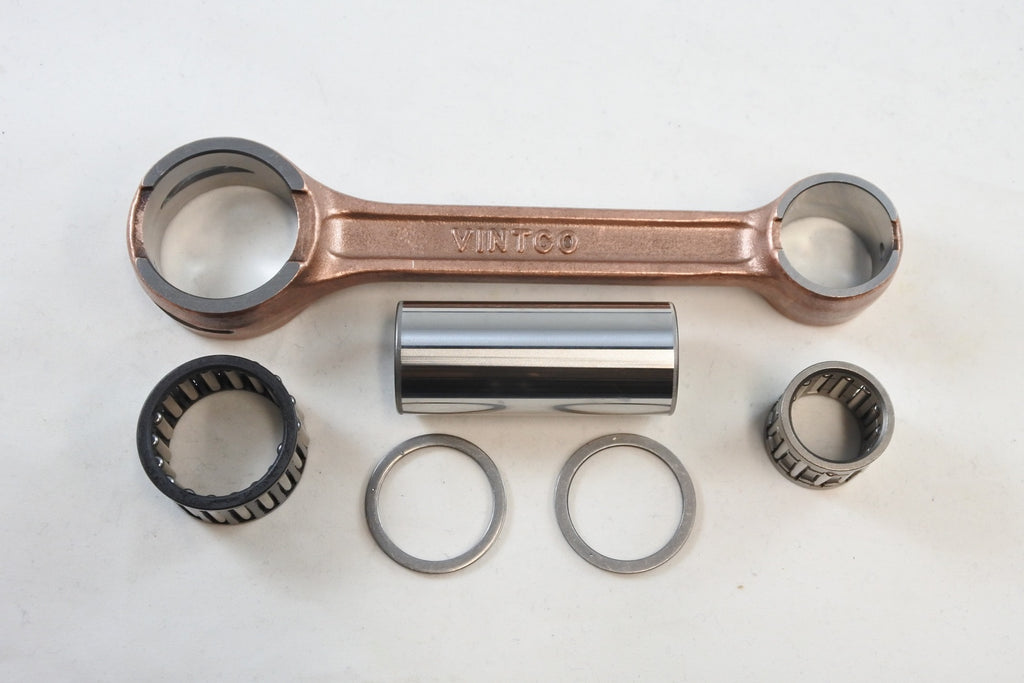

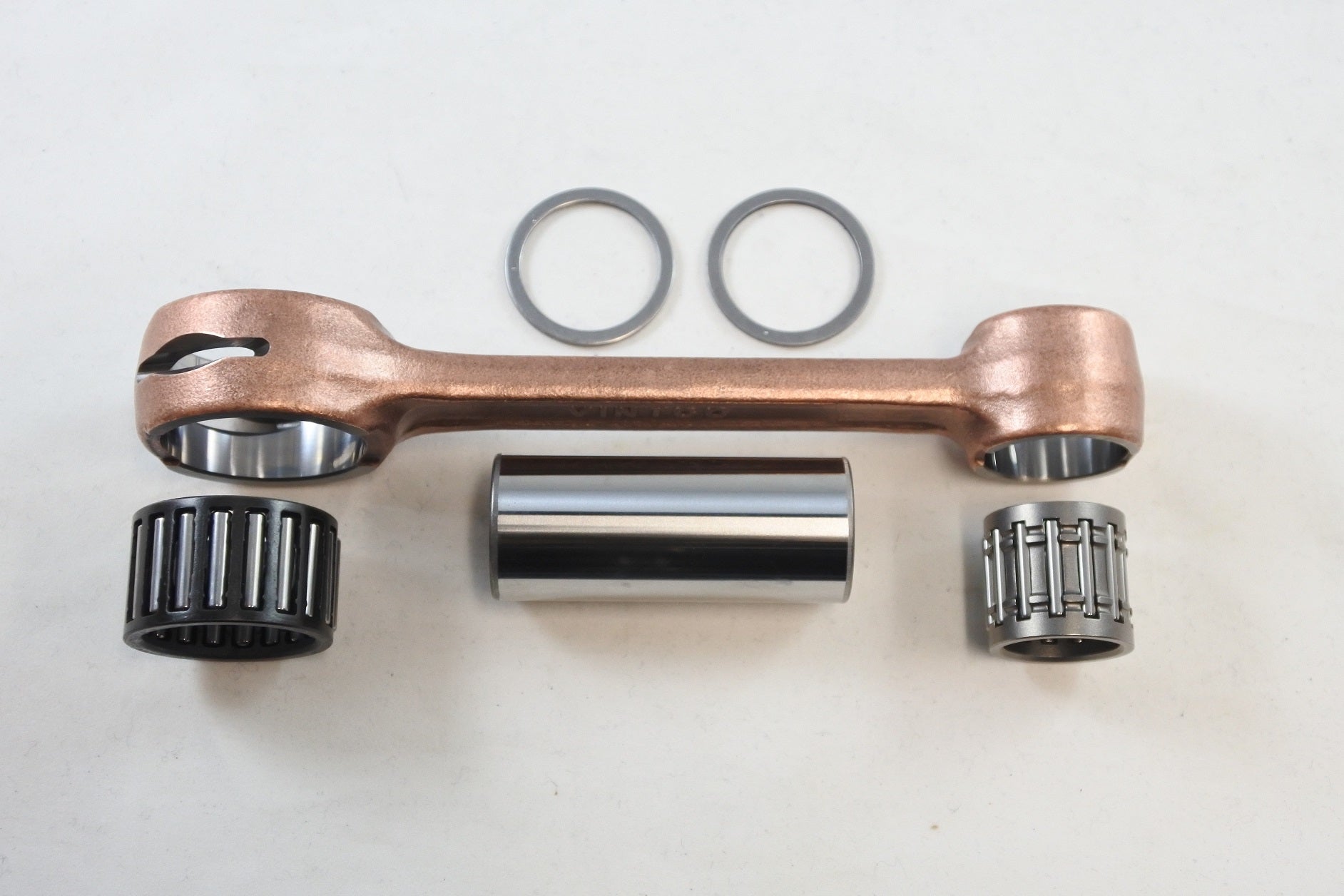

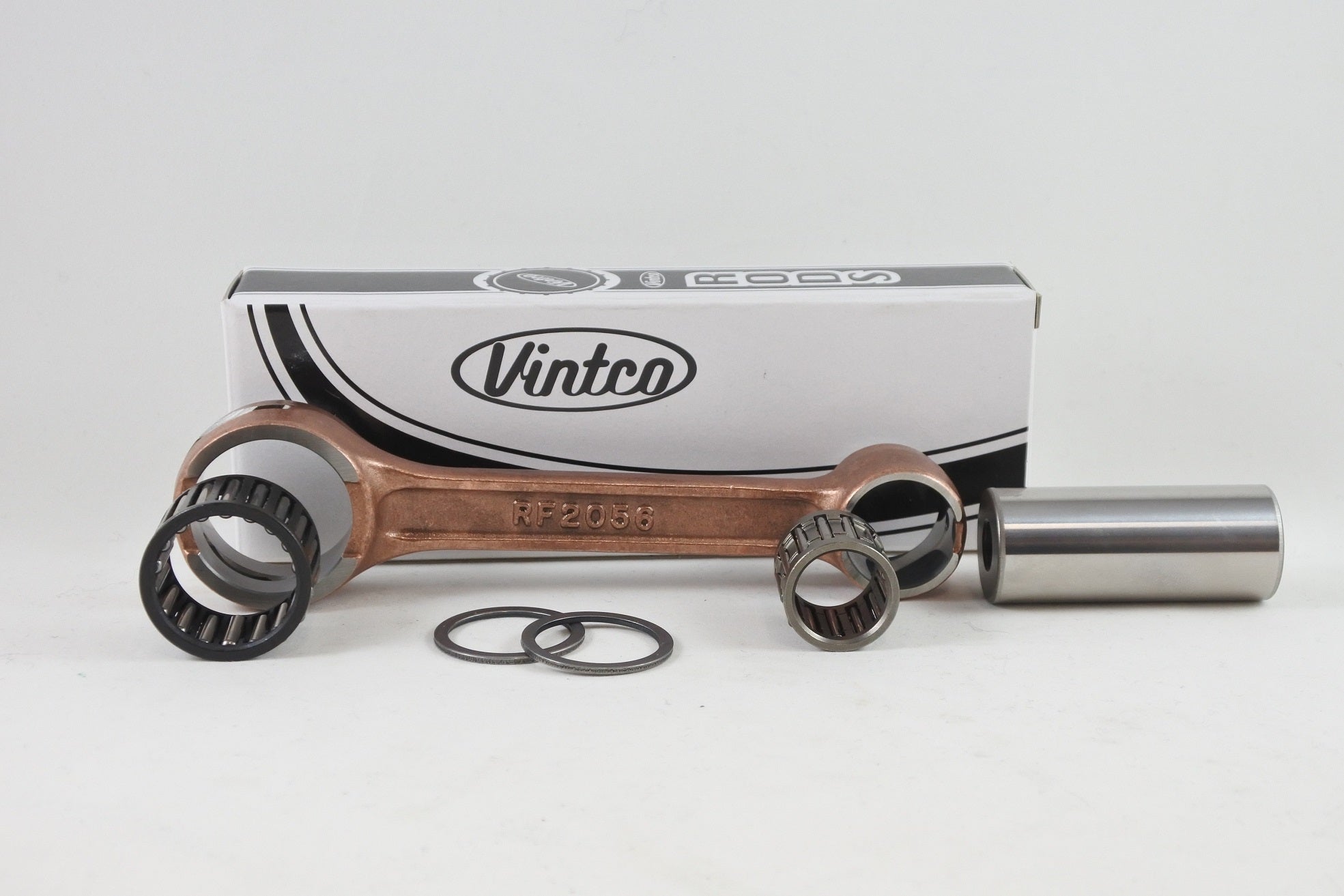

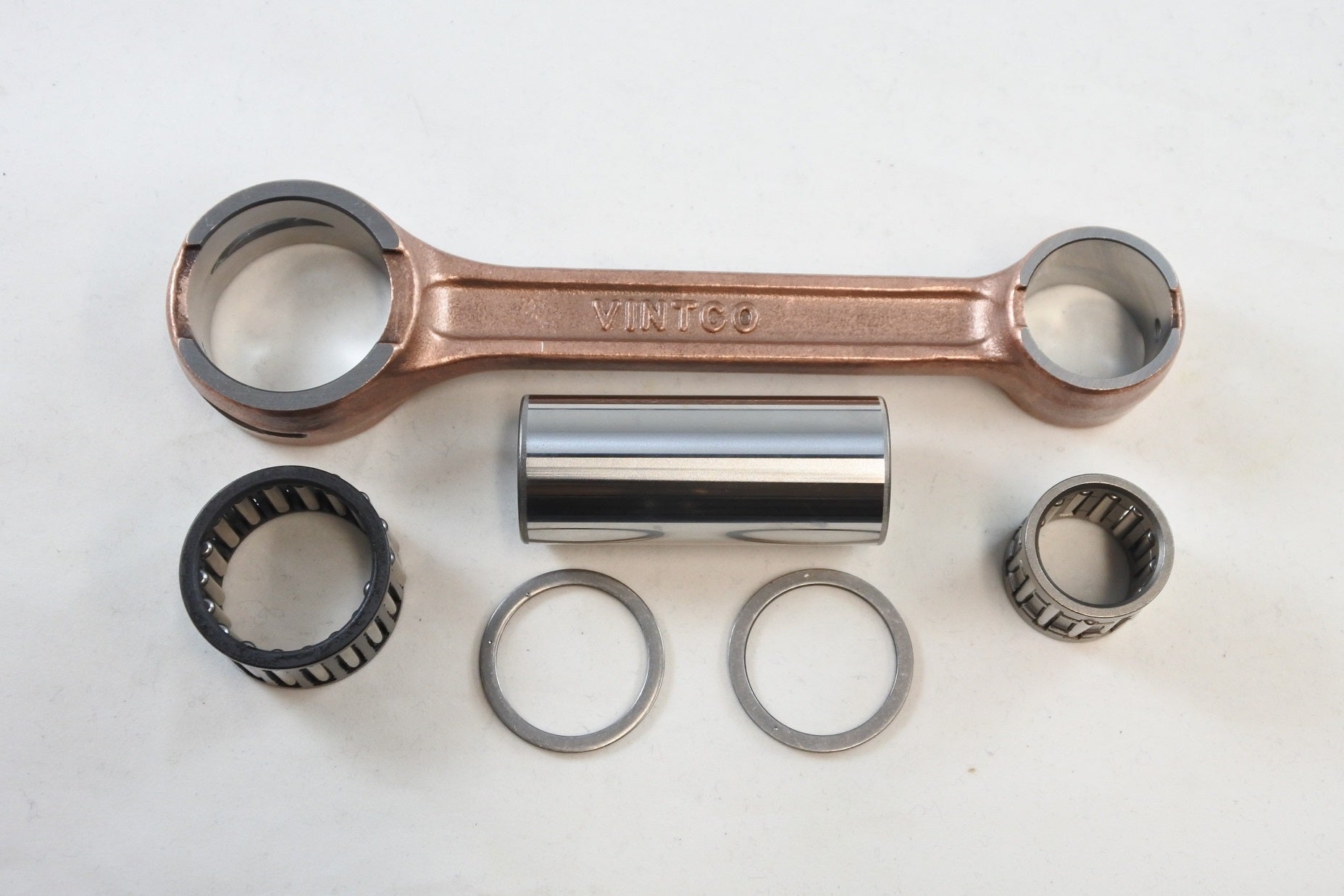

The VintCo KR2056 connecting rod kit is a newly manufactured replacement assembly for Suzuki RM250 and RMX250 models, intended for crankshaft rebuilds without replacing the complete crankshaft. It includes the connecting rod, crank pin, big end bearing, wrist pin bearing and two sets of thrust washers to cover the listed model ranges, and is manufactured to provide OEM-equivalent fitment and performance.

Features

• Replacement connecting rod kit for crankshaft rebuilds
• Suitable for listed Suzuki RM250 and RMX250 models
• Alternative to complete crankshaft replacement
• Complete kit includes rod, crank pin, big end bearing, wrist pin bearing and thrust washers
• Designed for OEM-equivalent fitment and performance
• Newly manufactured component set

Specifications

• VintCo Part Number: KR2056
• Connecting rod material: heavy duty forged steel
• Crank pin size: 10 x 24 x 57.9 mm
• Big end bearing size: 24 x 32 x 19.8 mm
• Wrist pin bearing size: 18 x 23 x 21.8 mm
• Thrust washer size: 24.2 x 28.8 x 1.5 mm
• Thrust washer application: RM250 1987-1991 and RMX250 1989-1992
• Thrust washer quantity: 2
• Thrust washer size: 24 x 39 x 1.5 mm
• Thrust washer application: RM250 1992-1996 and RMX250 1993-1998
• Thrust washer quantity: 2
• Included components: 1 connecting rod, 1 crank pin, 1 big end bearing, 1 wrist pin bearing

Vehicle Fitments

• 1987 Suzuki RM250
• 1988 Suzuki RM250
• 1989 Suzuki RM250
• 1989 Suzuki RMX250
• 1990 Suzuki RM250
• 1990 Suzuki RMX250
• 1991 Suzuki RM250
• 1991 Suzuki RMX250
• 1992 Suzuki RM250
• 1992 Suzuki RMX250
• 1993 Suzuki RM250
• 1993 Suzuki RMX250
• 1994 Suzuki RM250
• 1994 Suzuki RMX250
• 1995 Suzuki RM250
• 1995 Suzuki RMX250
• 1996 Suzuki RMX250
• 1997 Suzuki RMX250
• 1998 Suzuki RMX250
