CONNECTING ROD KIT 83-01 HONDA ATC250R CR250 VINTCO KR2043

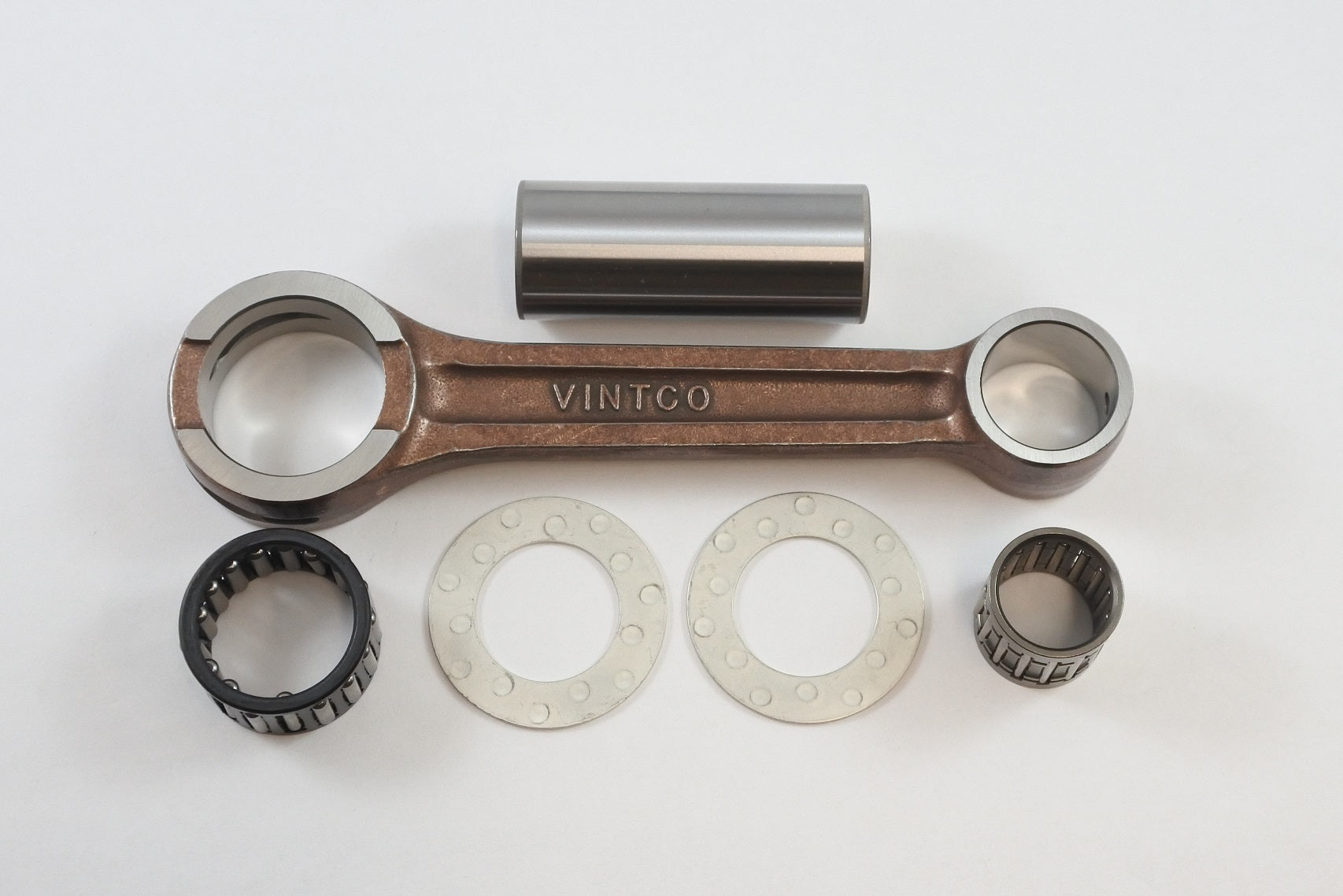

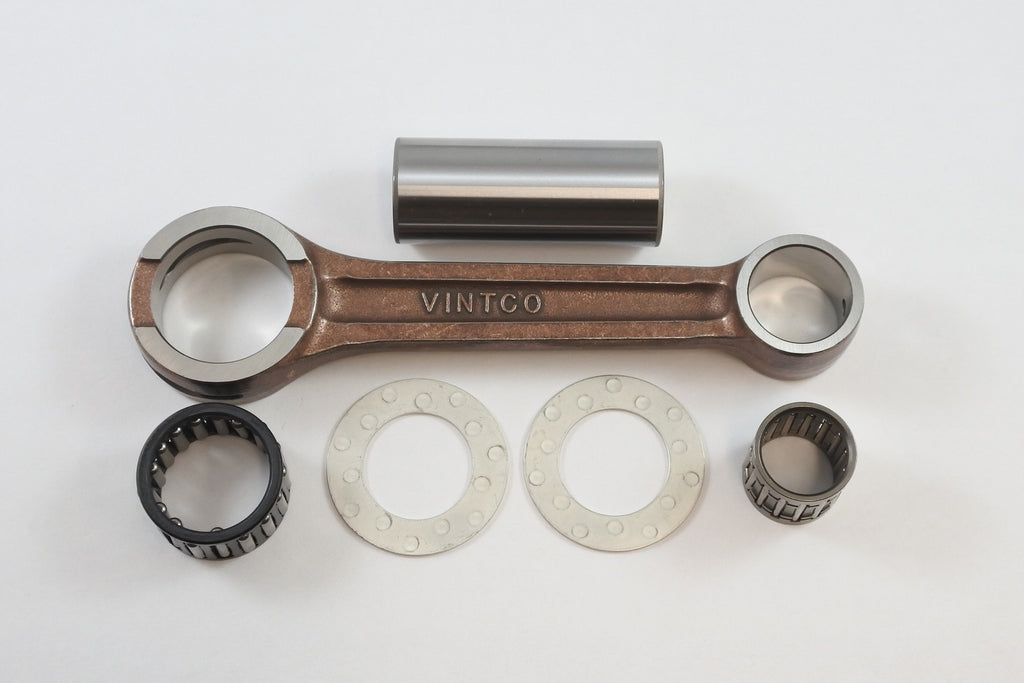

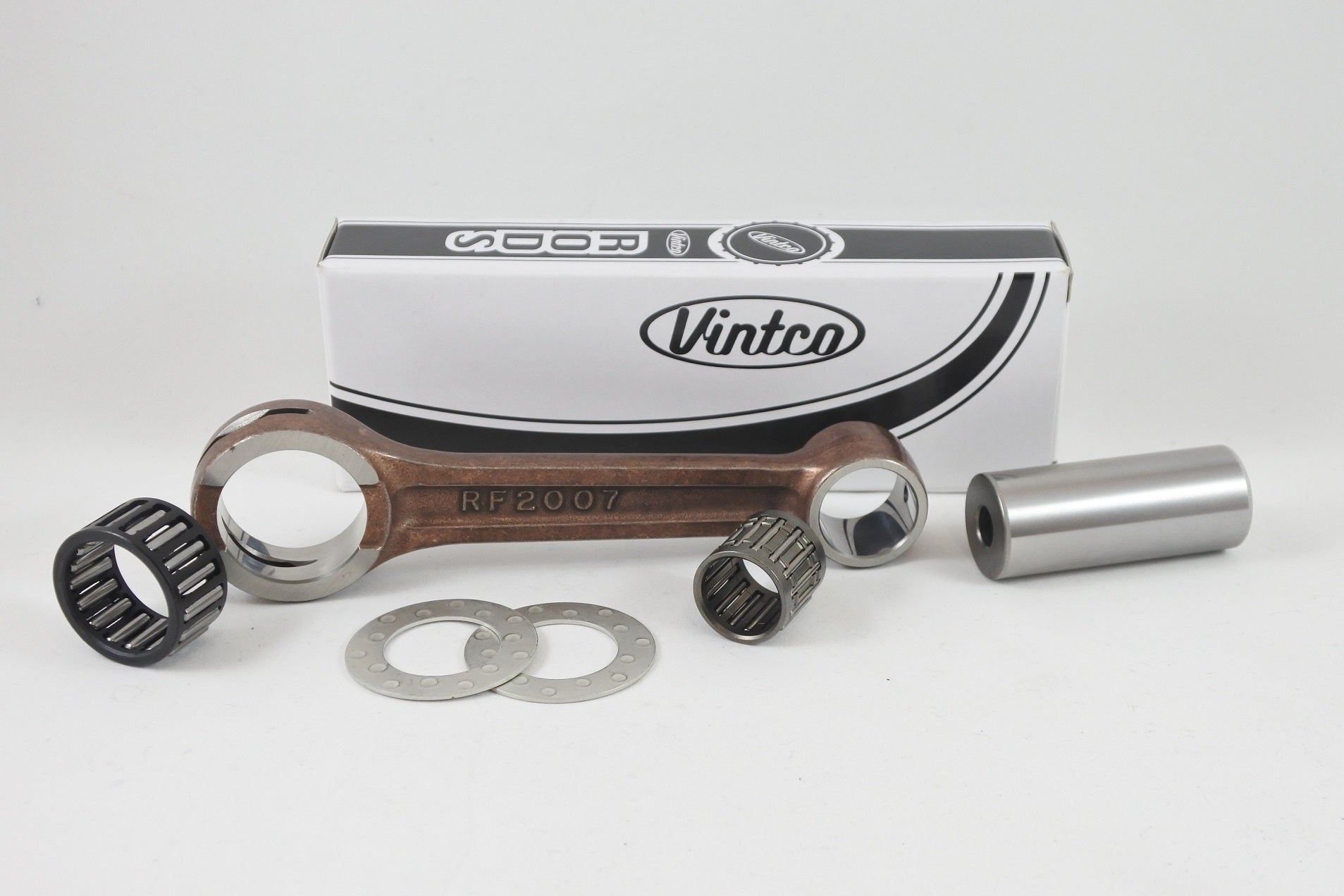

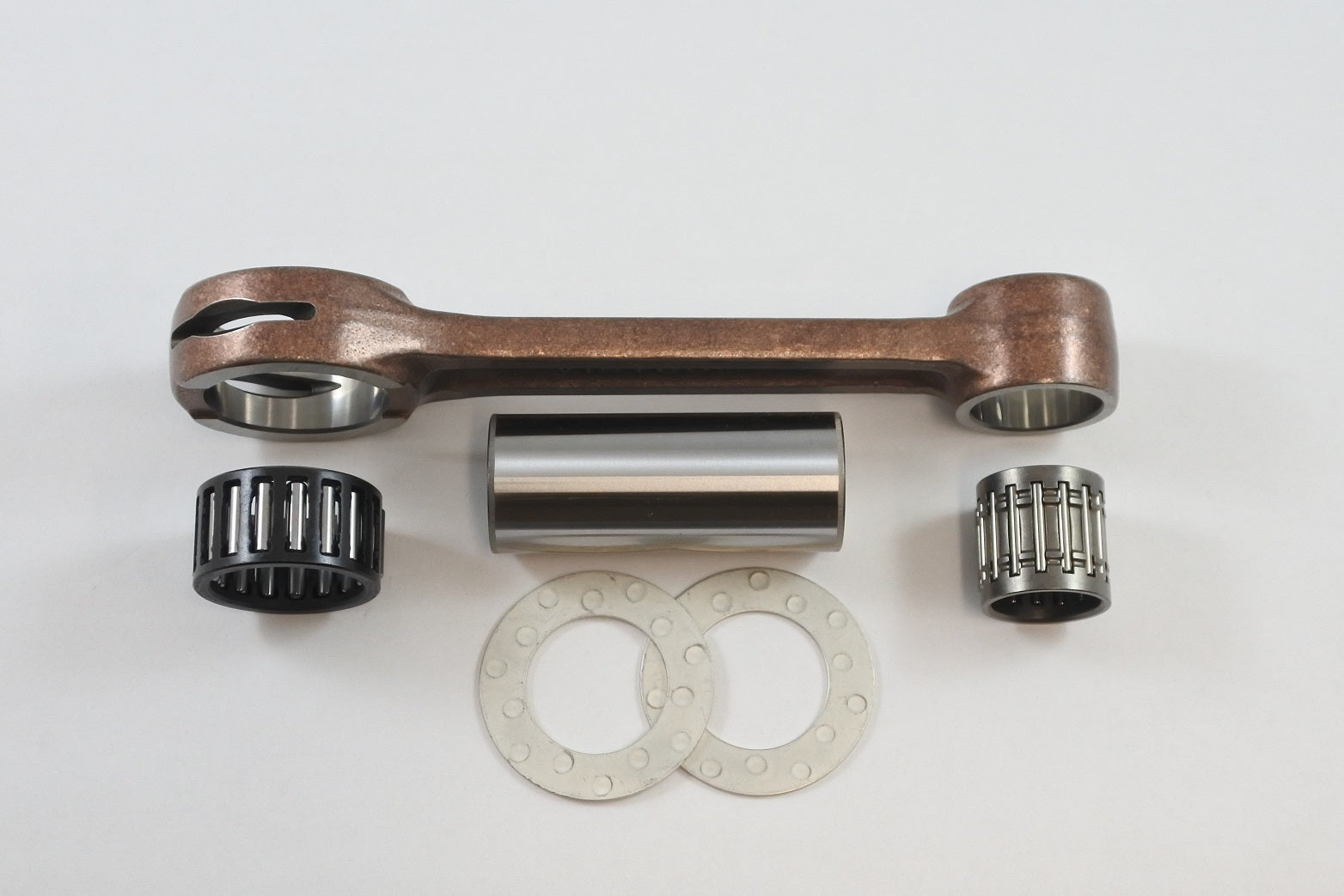

This VintCo KR2043 connecting rod kit is a newly manufactured replacement assembly for 1983-2001 Honda CR250 and 1985-1986 Honda ATC250R models. It provides an alternative to replacing the complete crankshaft and is manufactured using modern materials and production techniques for OEM-equivalent or better fit and performance. The kit includes one connecting rod, one crank pin, one big end bearing, one wrist pin bearing and two thrust washers.

Features

• Replacement connecting rod kit for listed Honda CR250 and ATC250R models
• Alternative to replacing the complete crankshaft
• Newly manufactured for vintage applications
• Manufactured using modern materials and production techniques
• Designed for OEM-equivalent or better fit and performance
• Includes connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers

Specifications

• VintCo Part Number: KR2043
• Connecting rod material: heavy duty forged steel
• Connecting rod quantity: 1
• Crank pin size: 9 x 24 x 56.5 mm
• Crank pin quantity: 1
• Big end bearing size: 24 x 31 x 17 mm
• Big end bearing quantity: 1
• Wrist pin bearing size: 18 x 22 x 22 mm
• Wrist pin bearing quantity: 1
• Thrust washer size: 24 x 40 x 1 mm
• Thrust washer quantity: 2

Vehicle Fitments

• 1983 Honda CR250
• 1984 Honda CR250
• 1985 Honda ATC250R
• 1985 Honda CR250
• 1986 Honda ATC250R
• 1986 Honda CR250
• 1987 Honda CR250
• 1988 Honda CR250
• 1989 Honda CR250
• 1990 Honda CR250
• 1991 Honda CR250
• 1992 Honda CR250
• 1993 Honda CR250
• 1994 Honda CR250
• 1995 Honda CR250
• 1996 Honda CR250
• 1997 Honda CR250
• 1998 Honda CR250
• 1999 Honda CR250
• 2000 Honda CR250
• 2001 Honda CR250
