CONNECTING ROD KIT 81-84 HONDA ATC R 250 VINTCO KR2039

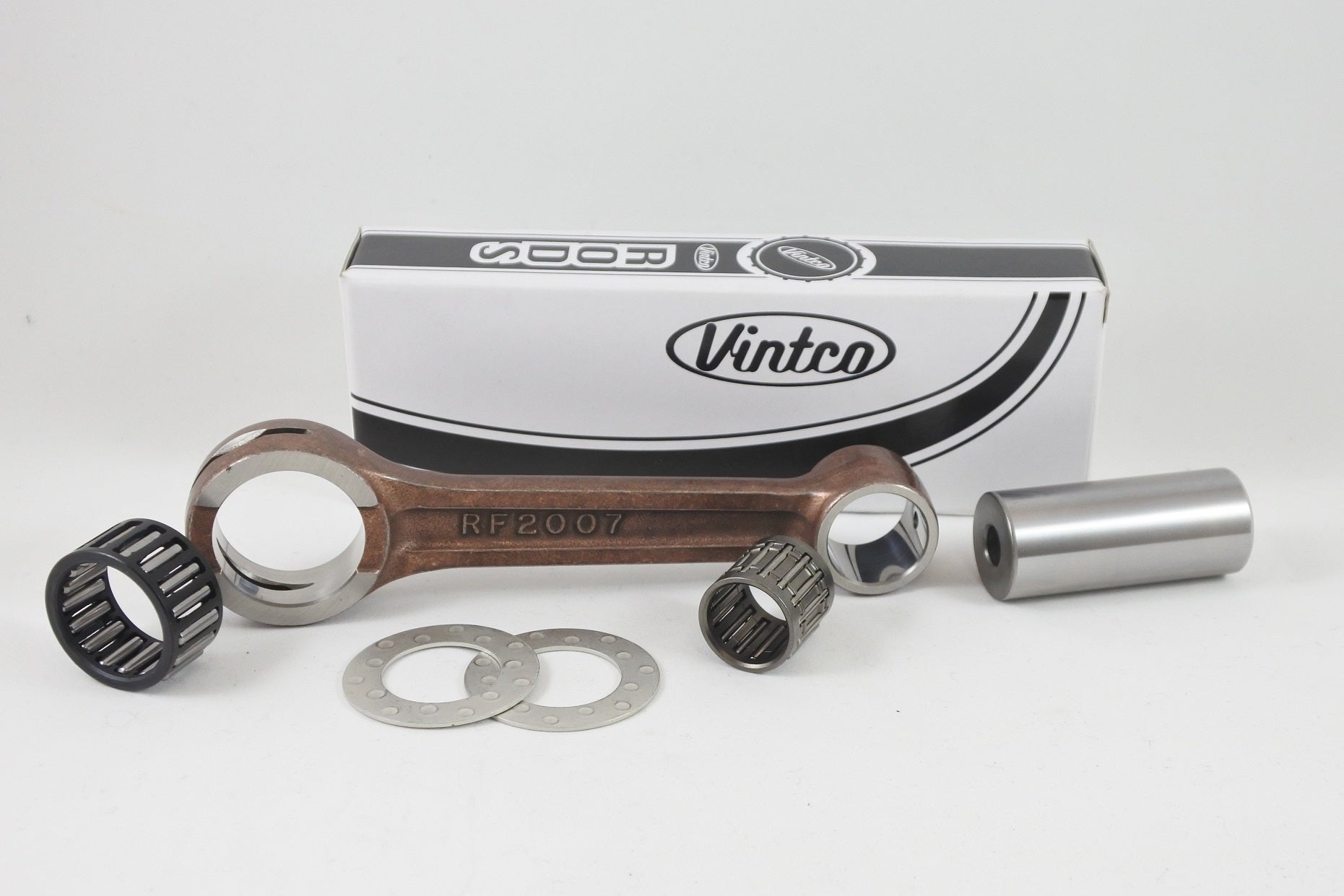

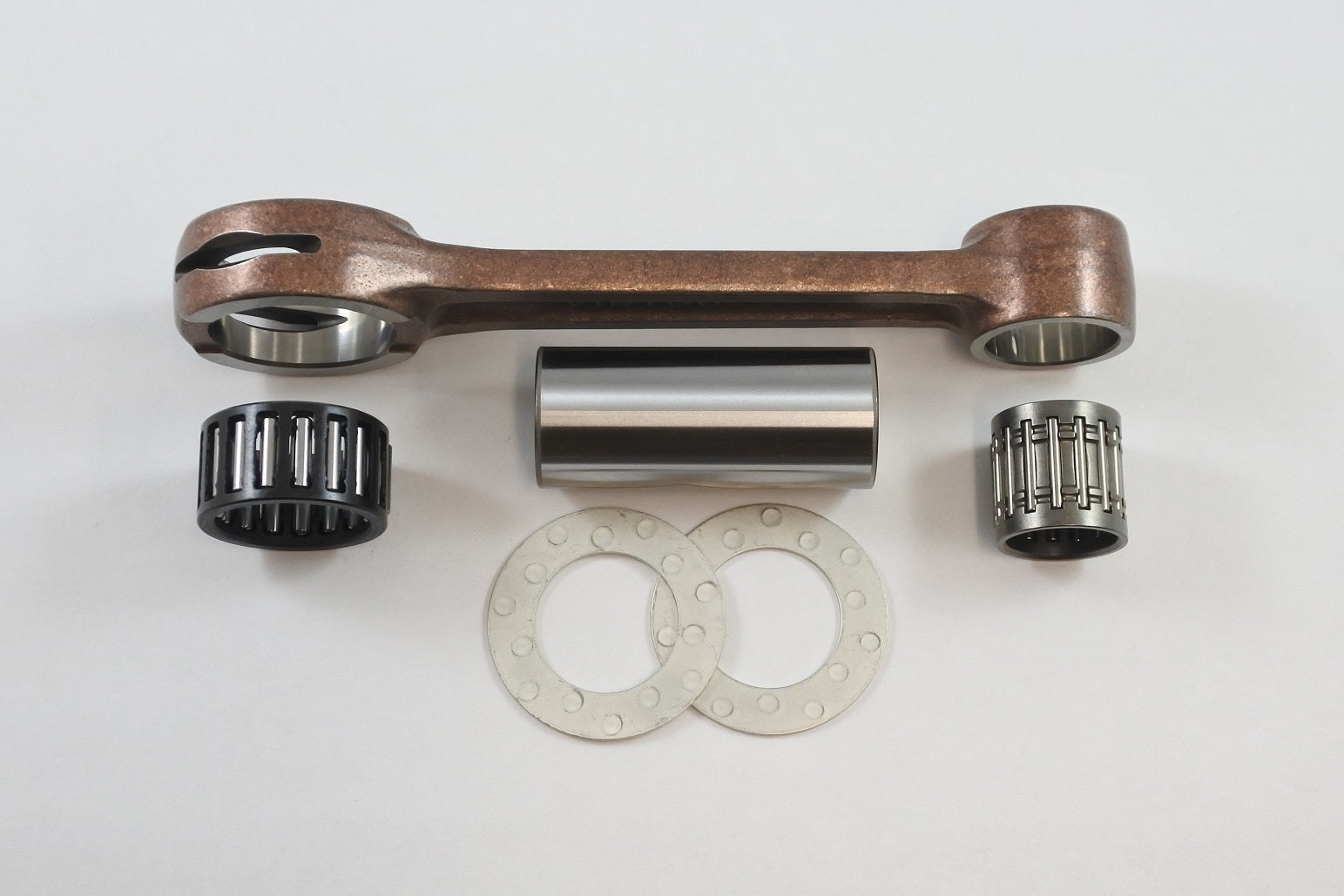

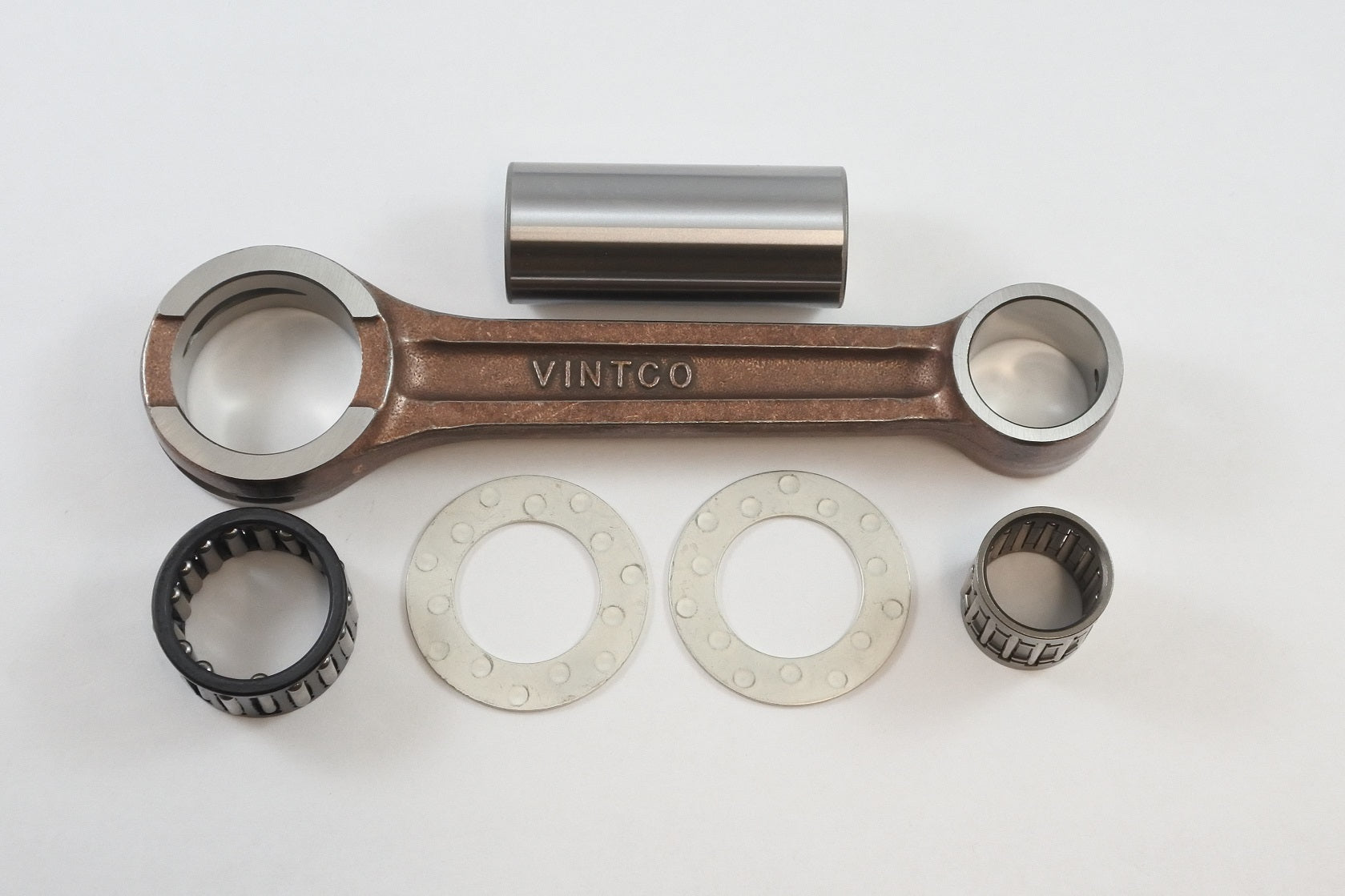

Newly manufactured VintCo heavy-duty connecting rod kit for 1981-1984 Honda ATC250R models, intended to replace worn connecting rod components during crankshaft service without the expense of a complete new crankshaft. Manufactured using modern materials and manufacturing techniques, it is designed to provide OEM-equivalent or better fitment and performance. The kit includes the connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers.

Features

• Replacement connecting rod kit for crankshaft service
• Suitable for worn or damaged connecting rod assemblies
• Alternative to replacing the complete crankshaft
• Designed for OEM-equivalent or better fitment and performance
• Includes the principal components required for connecting rod installation

Specifications

• VintCo Part Number: KR2039
• Product Type: Connecting rod kit
• Connecting rod construction: Heavy-duty forged steel
• Connecting rod included: 1
• Crank pin included: 1
• Crank pin dimensions: 9 x 24 x 56.5 mm
• Big end bearing included: 1
• Big end bearing dimensions: 24 x 31 x 17 mm
• Wrist pin bearing included: 1
• Wrist pin bearing dimensions: 18 x 22 x 22 mm
• Thrust washers included: 2
• Thrust washer dimensions: 24 x 40 x 1 mm

Vehicle Fitments

• 1981 Honda ATC250R
• 1982 Honda ATC250R
• 1983 Honda ATC250R
• 1984 Honda ATC250R
