CONNECTING ROD KIT 80-81 KTM 420 495 VINTCO KR2029

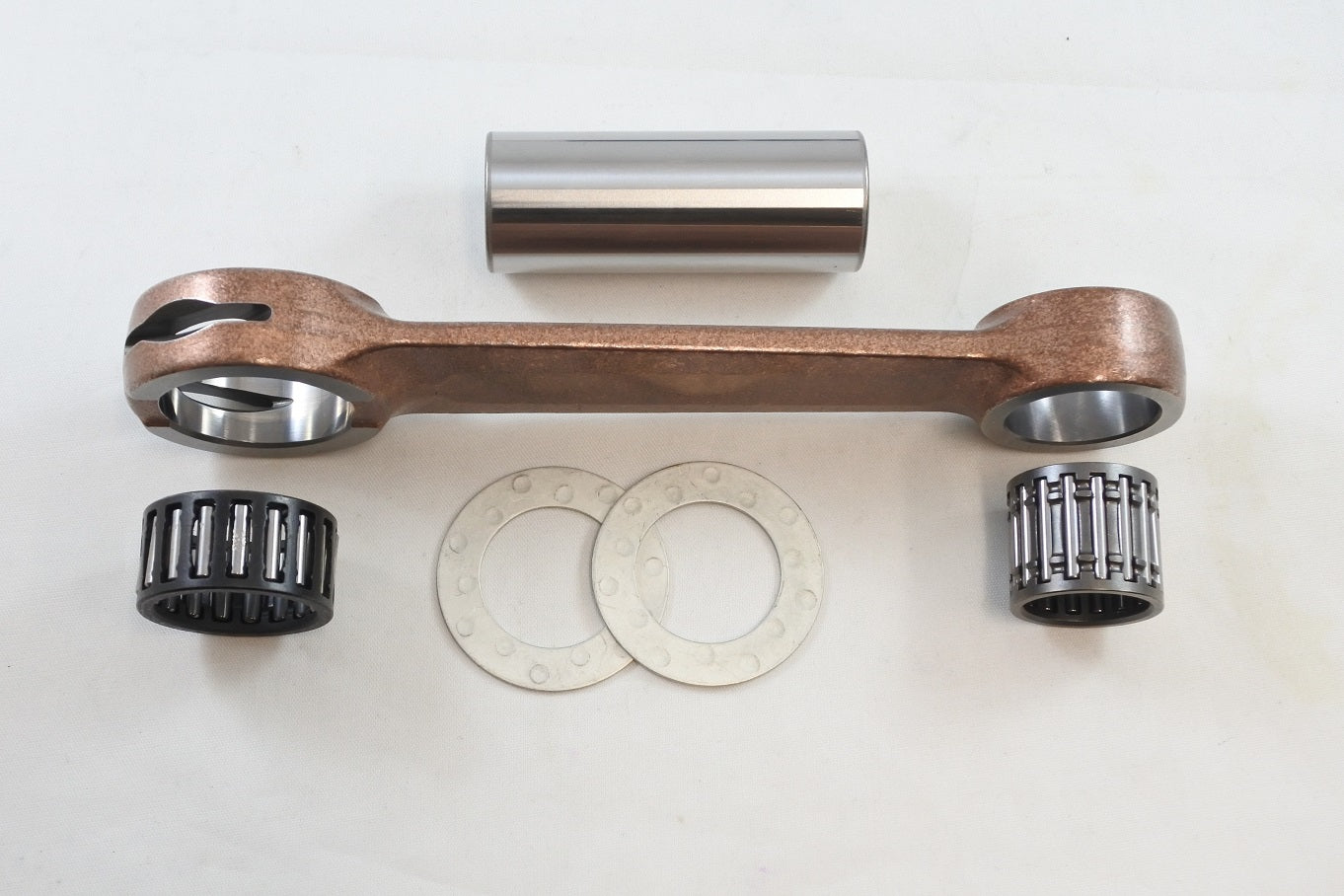

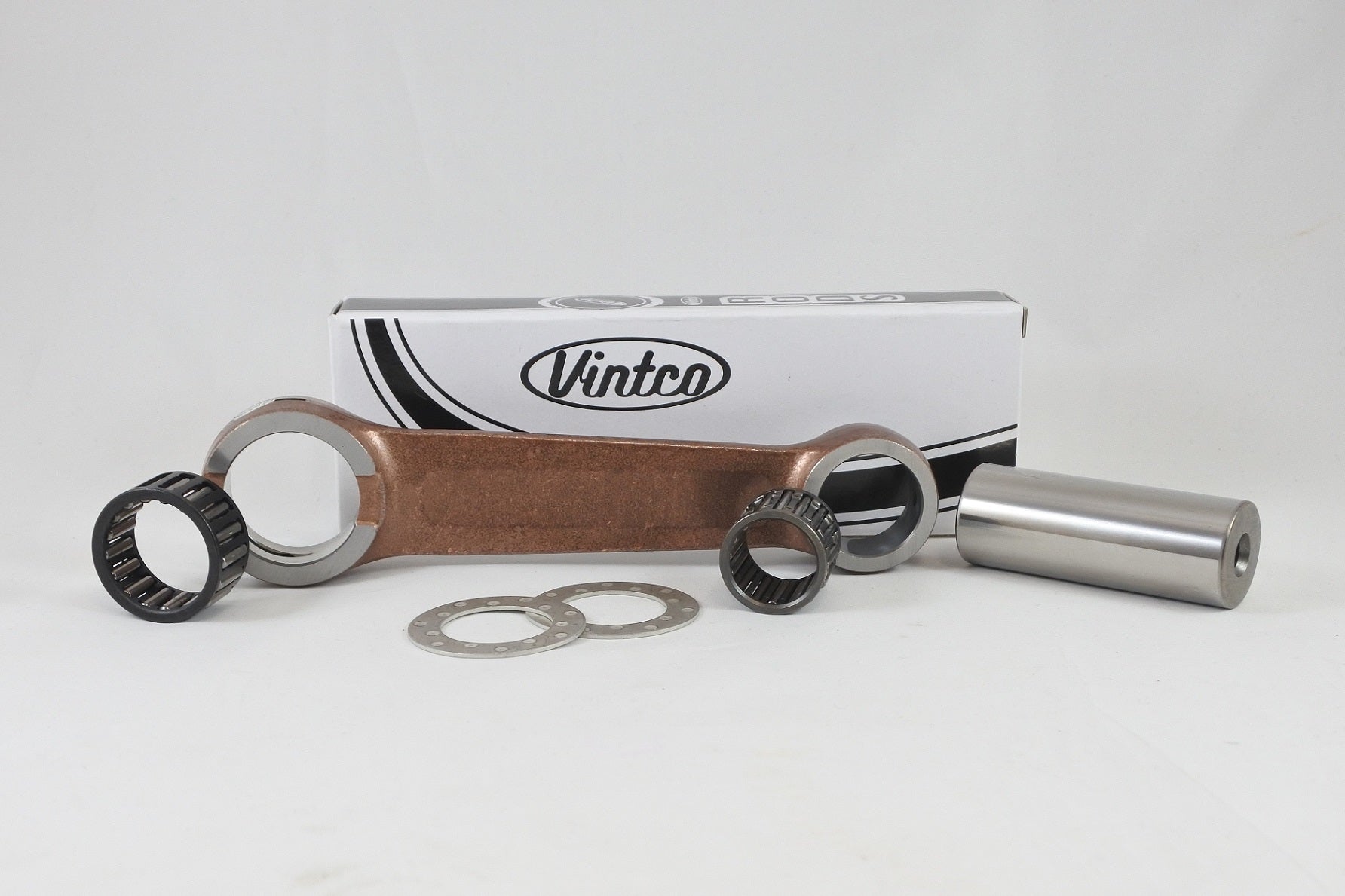

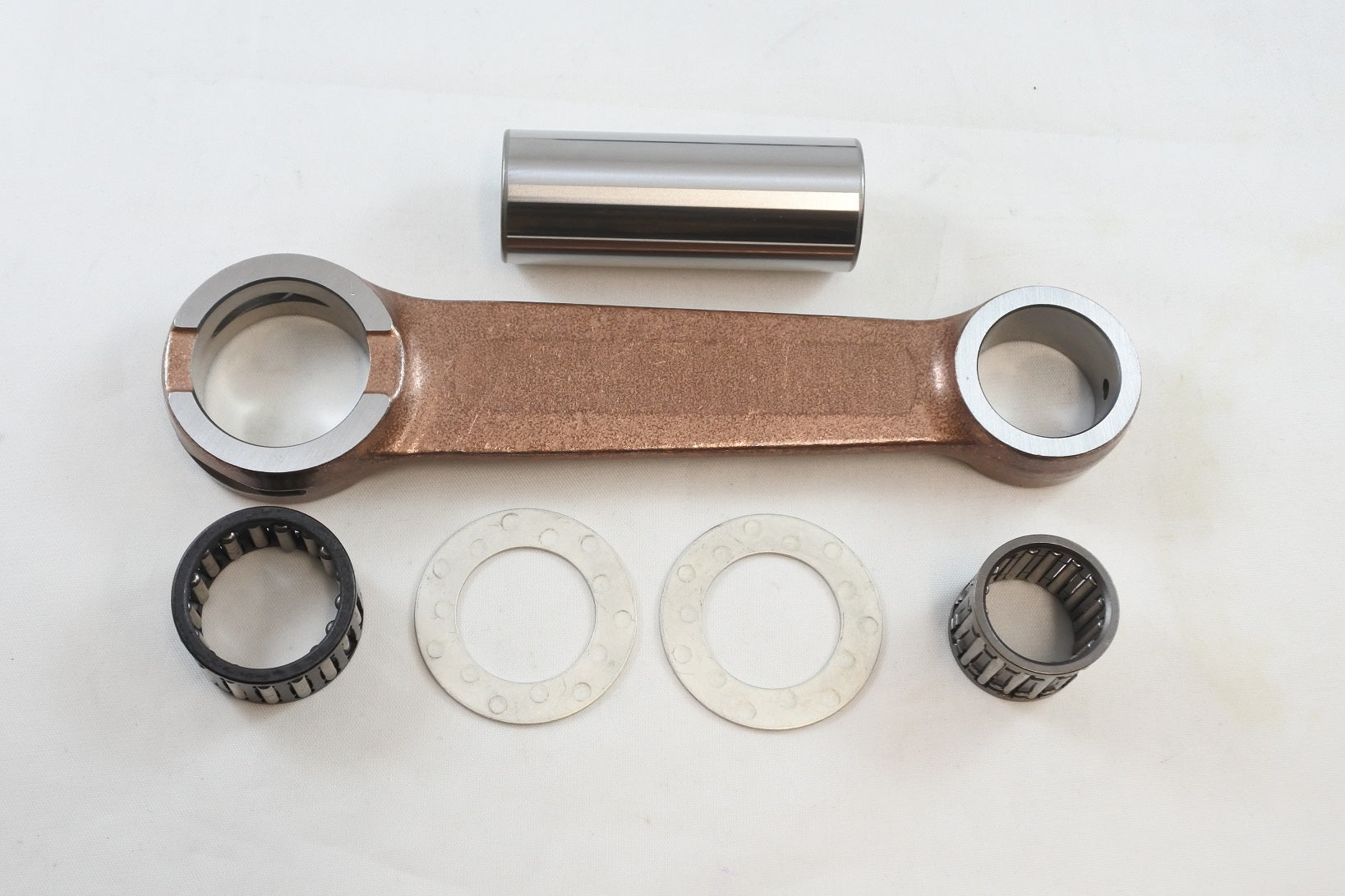

VintCo KR2029 is a newly manufactured connecting rod kit for vintage KTM 420 and 495 off-road motorcycles, providing a replacement option for worn rod assemblies without replacing the complete crankshaft. Manufactured using modern materials and production techniques for OEM-equivalent fit and performance, the kit includes the connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers.

Features

• Replacement connecting rod kit for vintage KTM 420 and 495 models
• Alternative to replacing a complete crankshaft
• Manufactured for OEM-equivalent fit and performance
• Produced using modern manufacturing techniques
• Includes connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers

Specifications

• VintCo Part Number: KR2029
• Connecting rod material: forged steel

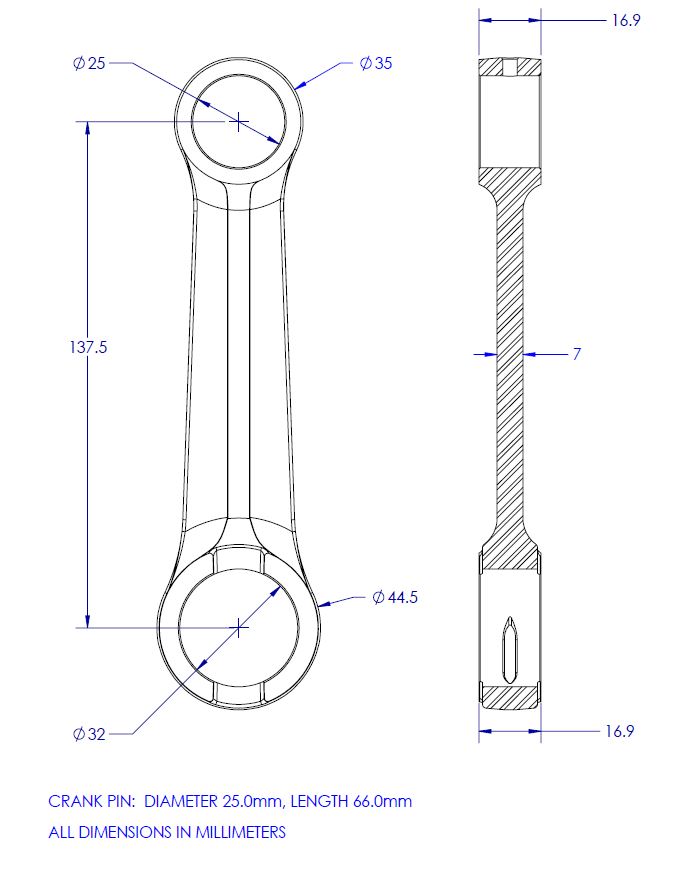

• Crank pin dimensions: 8 x 25 x 66 mm
• Big end bearing dimensions: 25 x 32 x 16.5 mm
• Wrist pin bearing dimensions: 20 x 25 x 22 mm
• Thrust washer dimensions: 25 x 40 x 1.0 mm
• Kit contents: 1 connecting rod, 1 crank pin, 1 big end bearing, 1 wrist pin bearing, 2 thrust washers

Cross-Reference OEM Part Numbers

• KTM OE: 560-30-015-044

Vehicle Fitments

• 1980 KTM 420
• 1981 KTM 420
• 1981 KTM 495
