Connecting Rod Kit 78-87 Kawasaki Kdx KX 125 175 200 Vintco KR2008

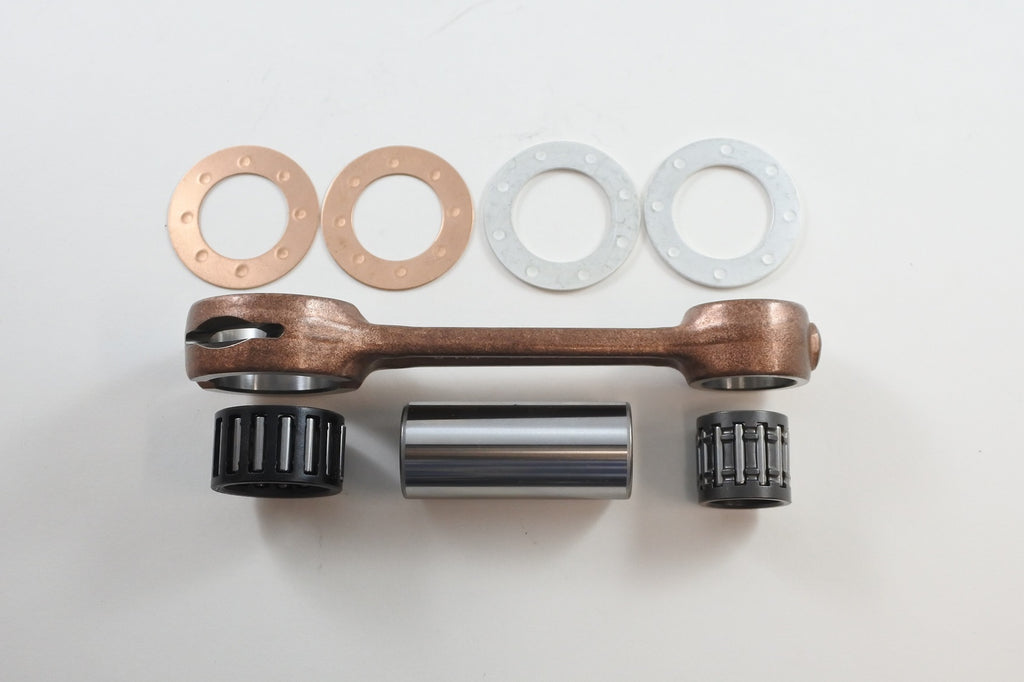

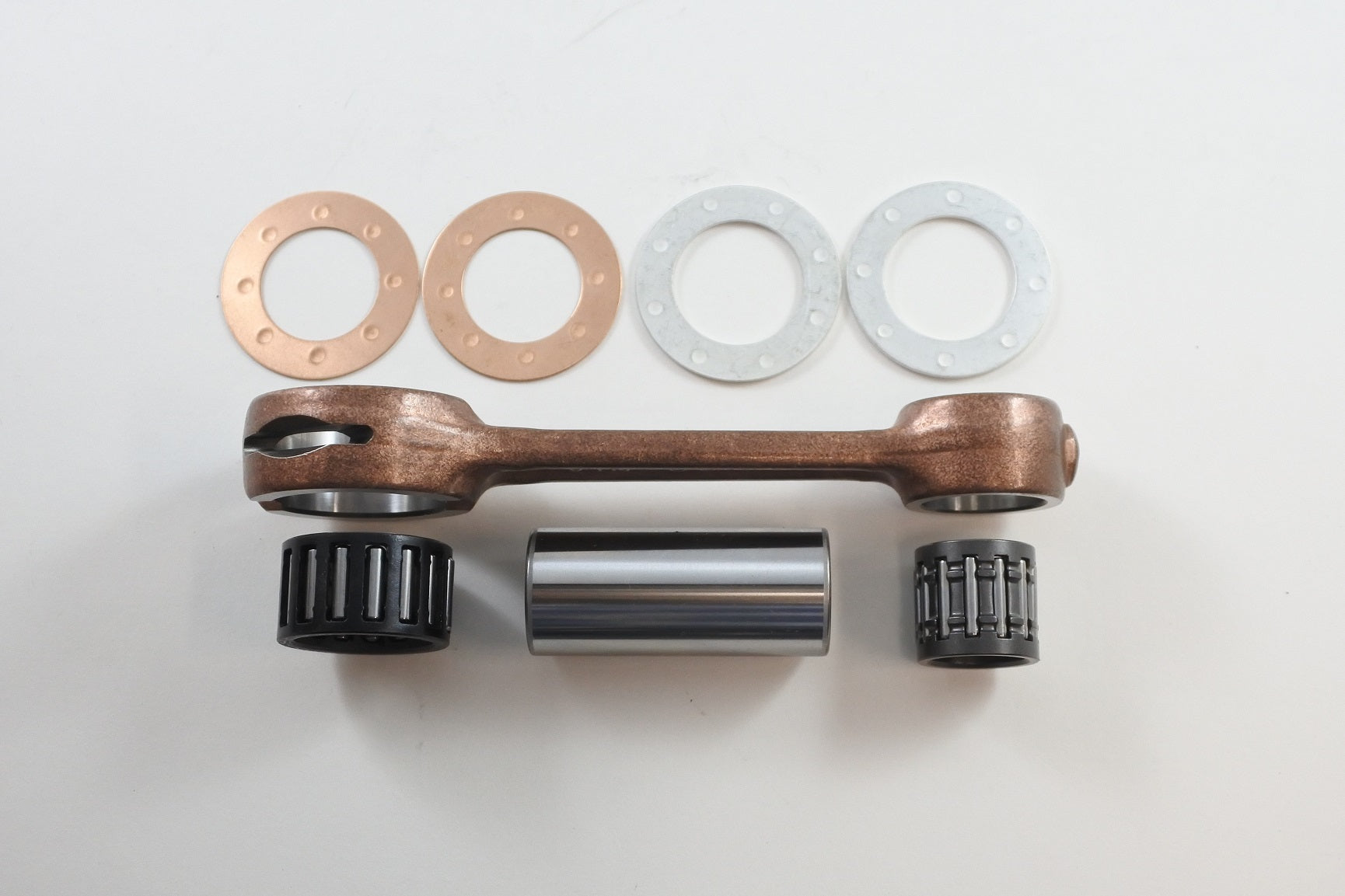

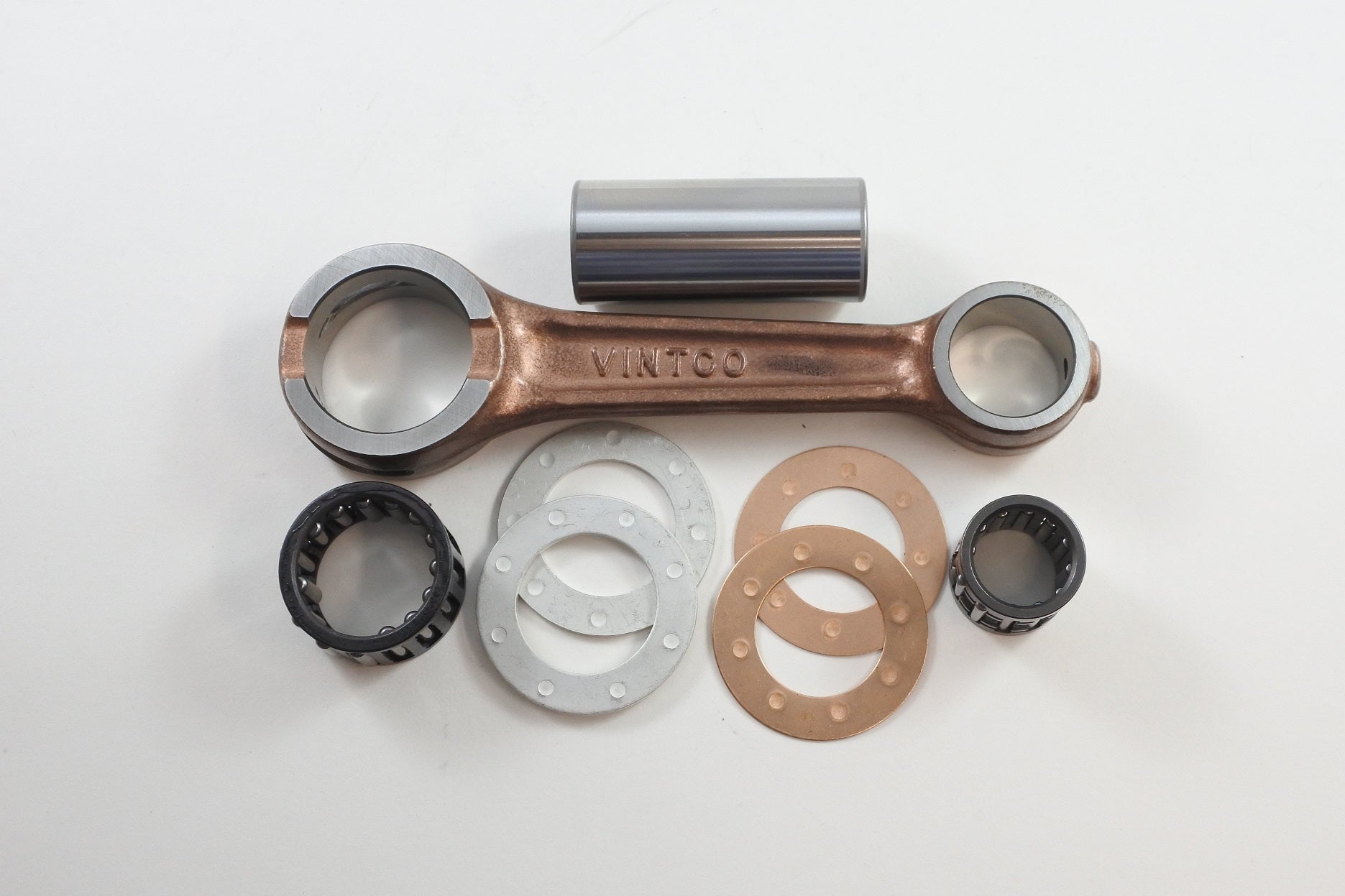

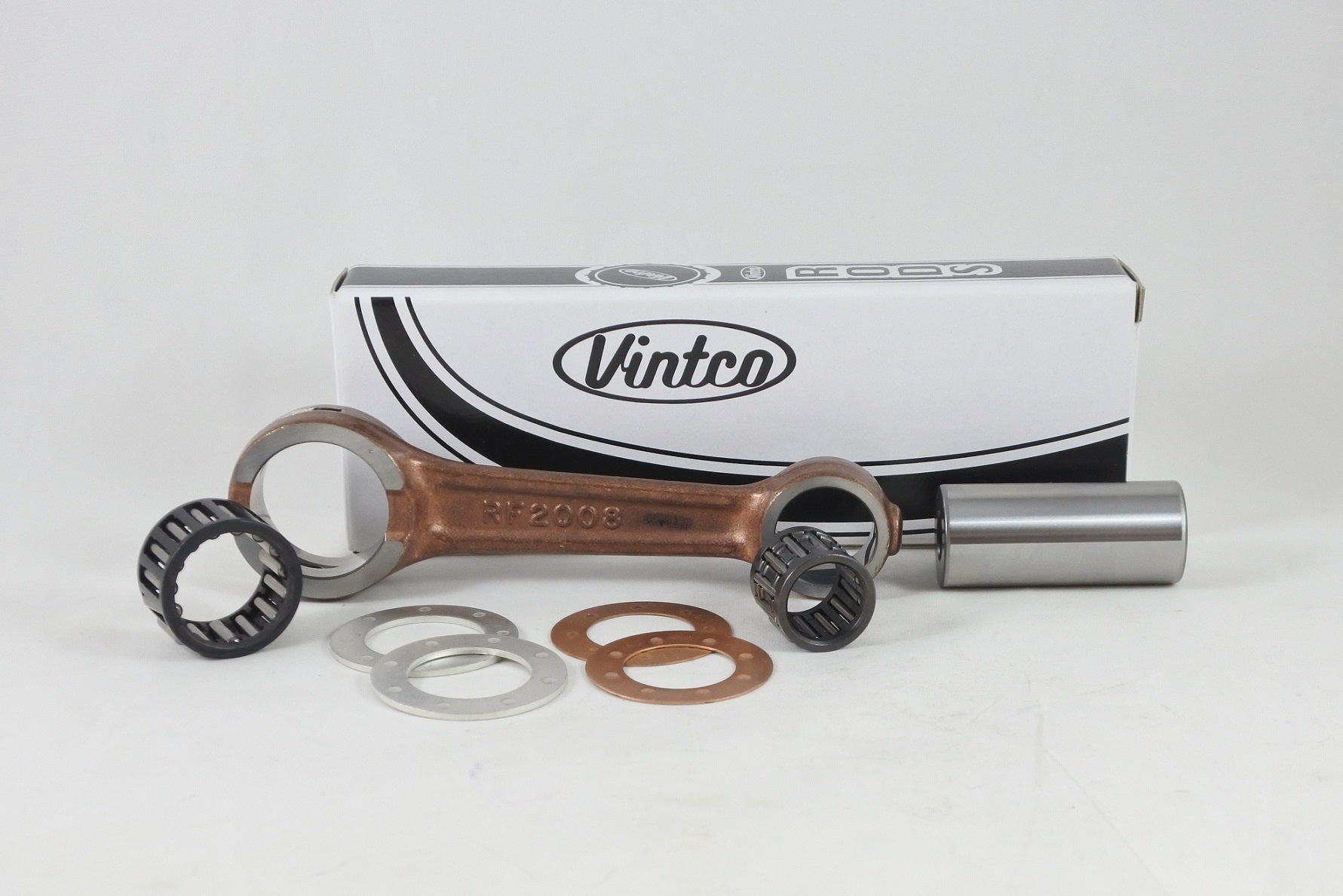

This connecting rod kit is a replacement crank assembly component set for Kawasaki KX125, KDX175 and KDX200 models listed below. It is designed as an alternative to replacing the complete crankshaft and is manufactured by VintCo using modern production methods for correct fit and performance. The kit includes the connecting rod, crank pin, big end bearing, wrist pin bearing and thrust washers required for assembly.

Features

• Replacement connecting rod kit for specified Kawasaki models
• Intended for crankshaft rebuilds
• Alternative to replacing a complete crankshaft
• Includes connecting rod, crank pin, big end bearing, wrist pin bearing and thrust washers
• Additional thrust washers included for 1978-1979 KX125 applications

Specifications

• VintCo Part Number: KR2008
• Connecting rod material: heavy duty forged steel
• Connecting rod quantity: 1
• Crank pin size: 10 x 22 x 51 mm
• Big end bearing size: 22 x 29 x 17 mm
• Wrist pin bearing size: 16 x 21 x 19.5 mm
• Thrust washer size: 22 x 37 x 1 mm
• Thrust washer quantity: 2
• Additional thrust washer size: 22.2 x 37 x 0.5 mm
• Additional thrust washer quantity: 2
• Additional thrust washers fitment note: for use on KX125 1978-1979 only

Cross-Reference OEM Part Numbers

• OEM Part Number: 13044-5009

Vehicle Fitments

• 1978 Kawasaki KX125
• 1979 Kawasaki KX125
• 1980 Kawasaki KX125
• 1980 Kawasaki KDX175
• 1981 Kawasaki KX125
• 1981 Kawasaki KDX175
• 1982 Kawasaki KX125
• 1982 Kawasaki KDX175
• 1983 Kawasaki KX125
• 1983 Kawasaki KDX200
• 1984 Kawasaki KX125
• 1985 Kawasaki KX125
• 1986 Kawasaki KX125
• 1987 Kawasaki KX125
