Connecting Rod Kit 78-08 Kawasaki Kdx KX Kxt KXF Tecate 4 250 Vintco KR2014

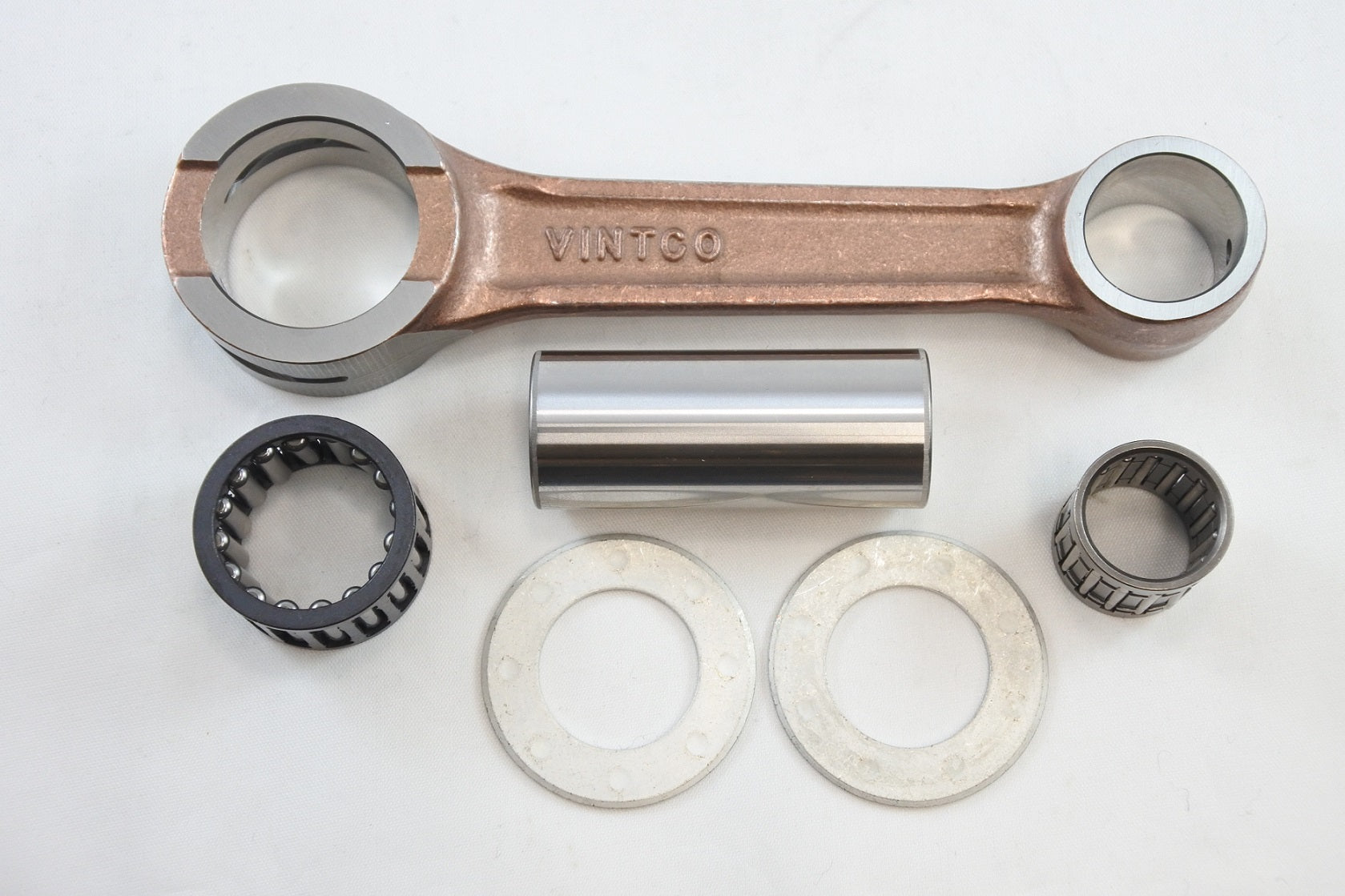

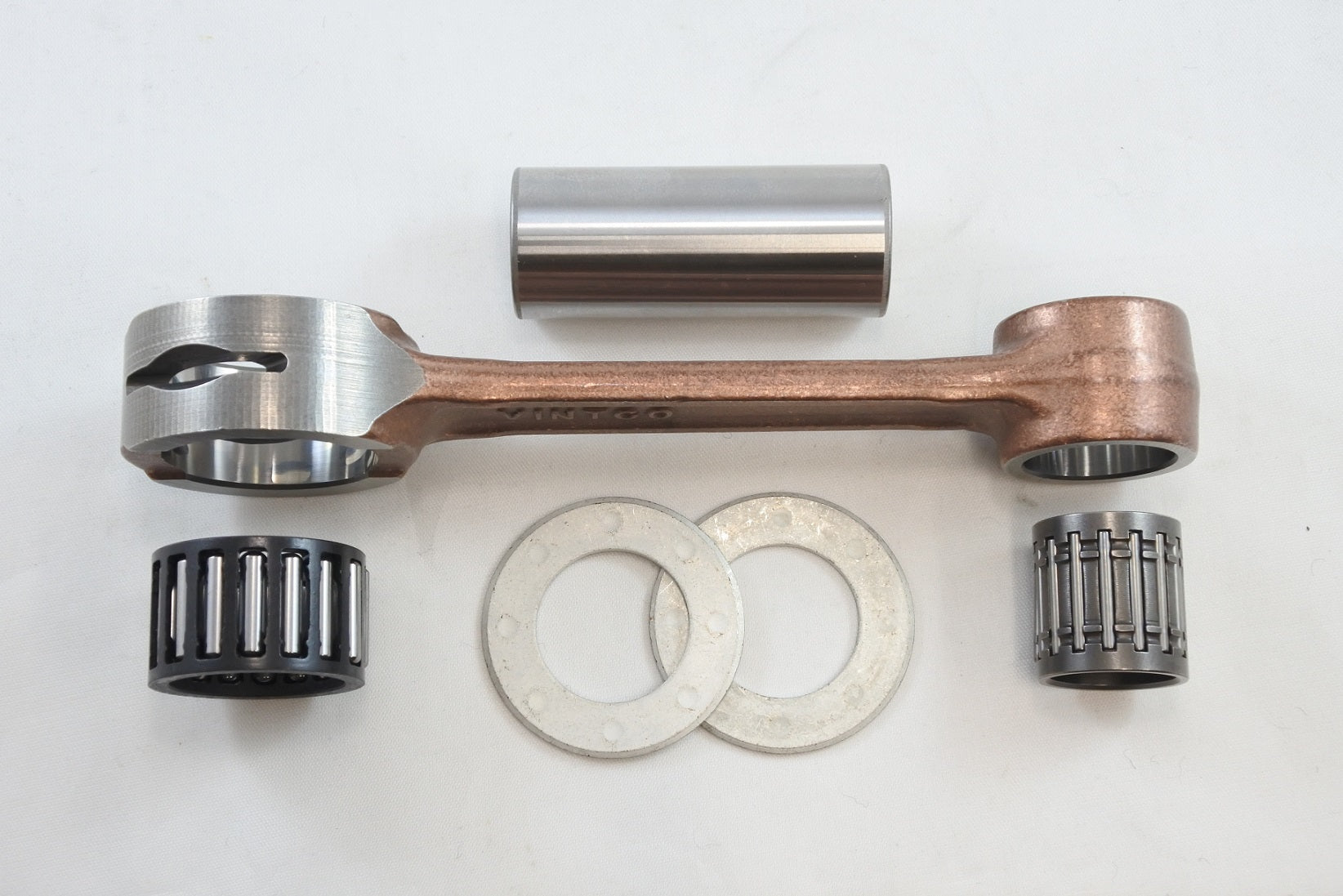

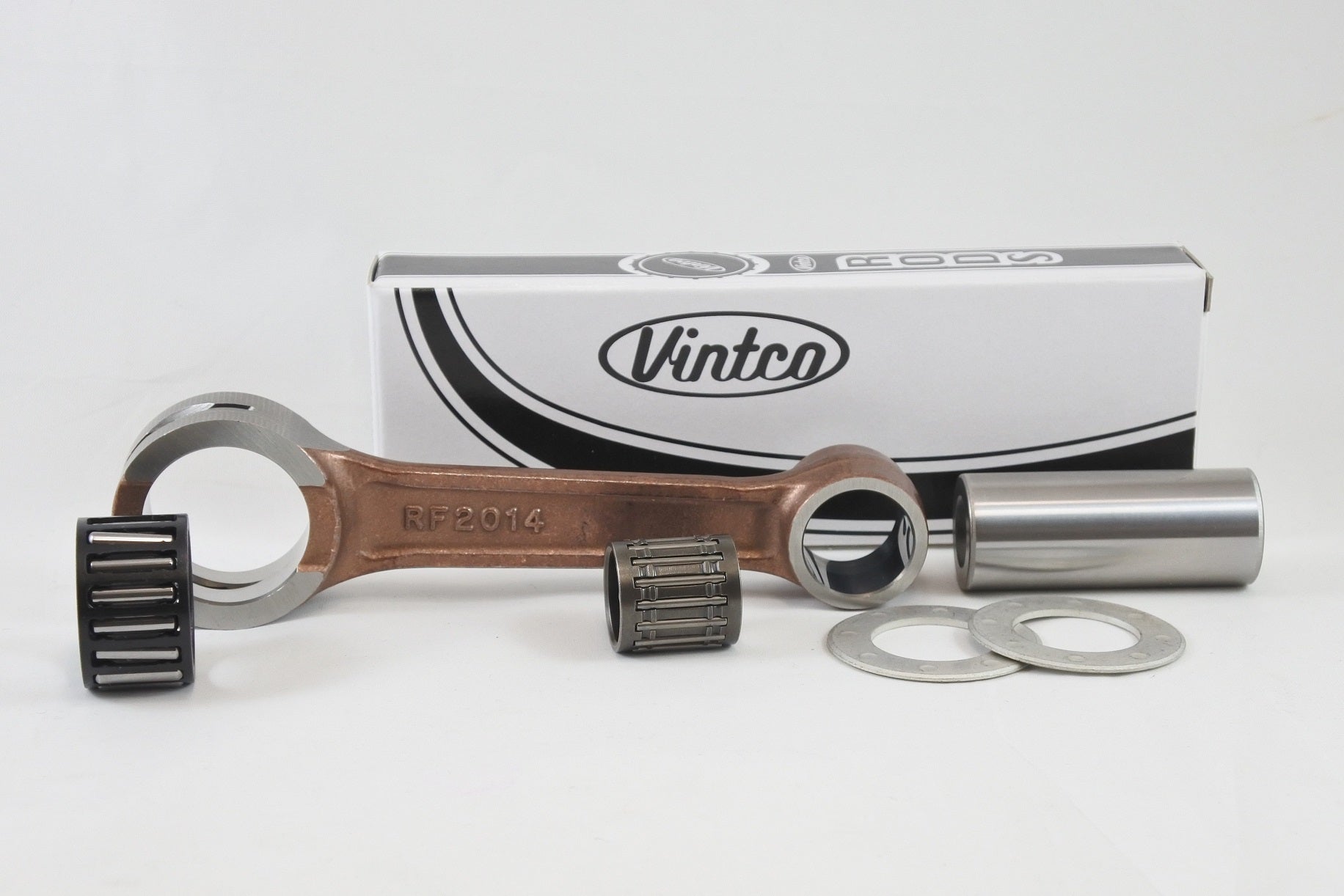

VintCo KR2014 is a newly manufactured heavy-duty connecting rod kit for selected Kawasaki 250 models, intended as a replacement solution when servicing the crank assembly without replacing the complete crankshaft. It is designed for vintage Kawasaki KX250, KDX250, KXT250 Tecate and KXF250 Tecate 4 applications, and includes the connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers. The kit is manufactured from forged steel using modern materials and manufacturing techniques for OEM-comparable fitment and performance.

Features

• Replacement connecting rod kit for crankshaft service and rebuild work
• Cost-saving alternative to replacing a complete crankshaft
• Suitable for selected vintage Kawasaki 250 applications
• Complete kit including the main internal components required for installation
• Manufactured for OEM-comparable fitment and performance

Specifications

• VintCo Part Number: KR2014
• Connecting rod material: heavy-duty forged steel
• Included components: 1 connecting rod, 1 crank pin, 1 big end bearing, 1 wrist pin bearing, 2 thrust washers
• Crank pin dimensions: 11 x 24 x 58.5 mm
• Big end bearing dimensions: 24 x 32 x 20 mm
• Wrist pin bearing dimensions: 18 x 22 x 24 mm
• Thrust washer dimensions: 24 x 41.5 x 10.5 mm

Cross-Reference OEM Part Numbers

• Kawasaki OEM Part Number: 13044-5007

Vehicle Fitments

• 1978 Kawasaki KX250
• 1979 Kawasaki KX250
• 1980 Kawasaki KX250
• 1980 Kawasaki KDX250
• 1981 Kawasaki KX250
• 1981 Kawasaki KDX250
• 1982 Kawasaki KX250
• 1982 Kawasaki KDX250
• 1983 Kawasaki KX250
• 1983 Kawasaki KDX250
• 1984 Kawasaki KX250
• 1984 Kawasaki KDX250
• 1984 Kawasaki KXT250 Tecate
• 1985 Kawasaki KX250
• 1985 Kawasaki KXT250 Tecate
• 1986 Kawasaki KX250
• 1986 Kawasaki KXT250 Tecate
• 1987 Kawasaki KX250
• 1987 Kawasaki KXF250 Tecate 4
• 1987 Kawasaki KXT250 Tecate
• 1988 Kawasaki KX250
• 1988 Kawasaki KXF250 Tecate 4
• 1989 Kawasaki KX250
• 1990 Kawasaki KX250
• 1991 Kawasaki KDX250
• 1991 Kawasaki KX250
• 1992 Kawasaki KDX250
• 1992 Kawasaki KX250
• 1993 Kawasaki KDX250
• 1993 Kawasaki KX250
• 1994 Kawasaki KDX250
• 1994 Kawasaki KX250
• 1995 Kawasaki KX250
• 1996 Kawasaki KX250
• 1997 Kawasaki KX250
• 1998 Kawasaki KX250
• 1999 Kawasaki KX250
• 2000 Kawasaki KX250
• 2001 Kawasaki KX250
• 2002 Kawasaki KX250
• 2003 Kawasaki KX250
• 2004 Kawasaki KX250
• 2005 Kawasaki KX250
• 2006 Kawasaki KX250
• 2007 Kawasaki KX250
• 2008 Kawasaki KX250
