CONNECTING ROD KIT 77-04 SUZUKI DS JR RM 60 80 VINTCO KR2064

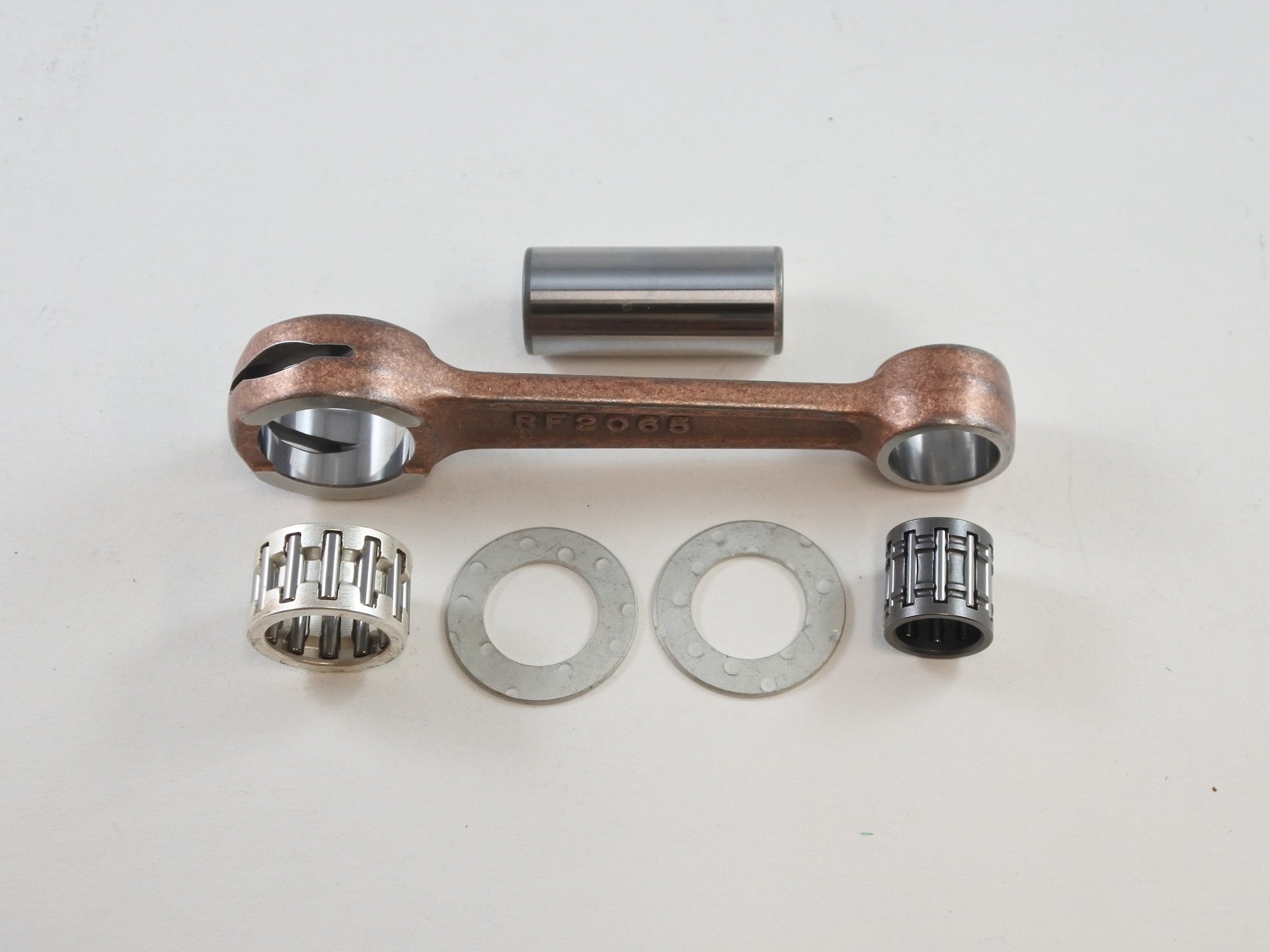

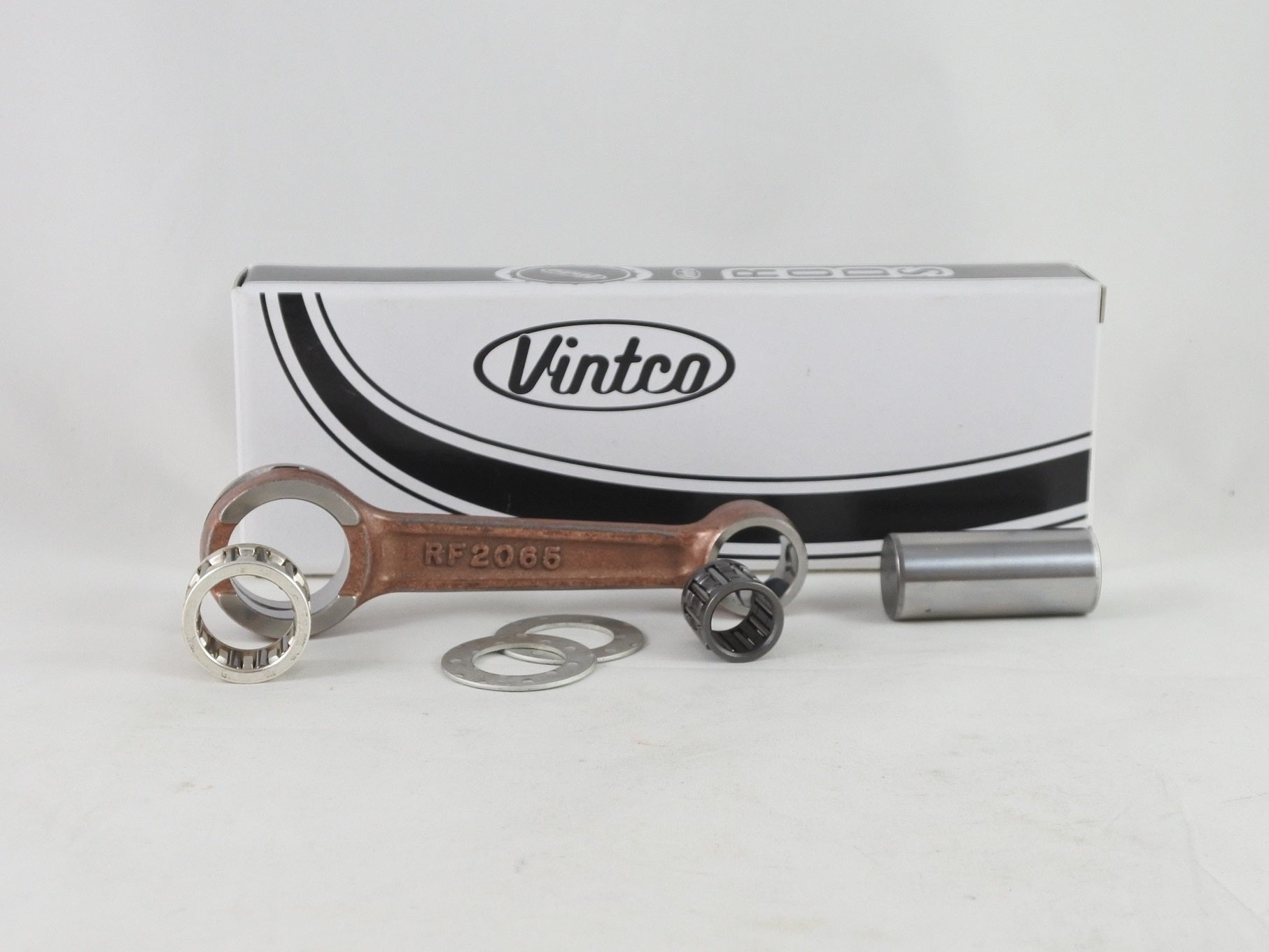

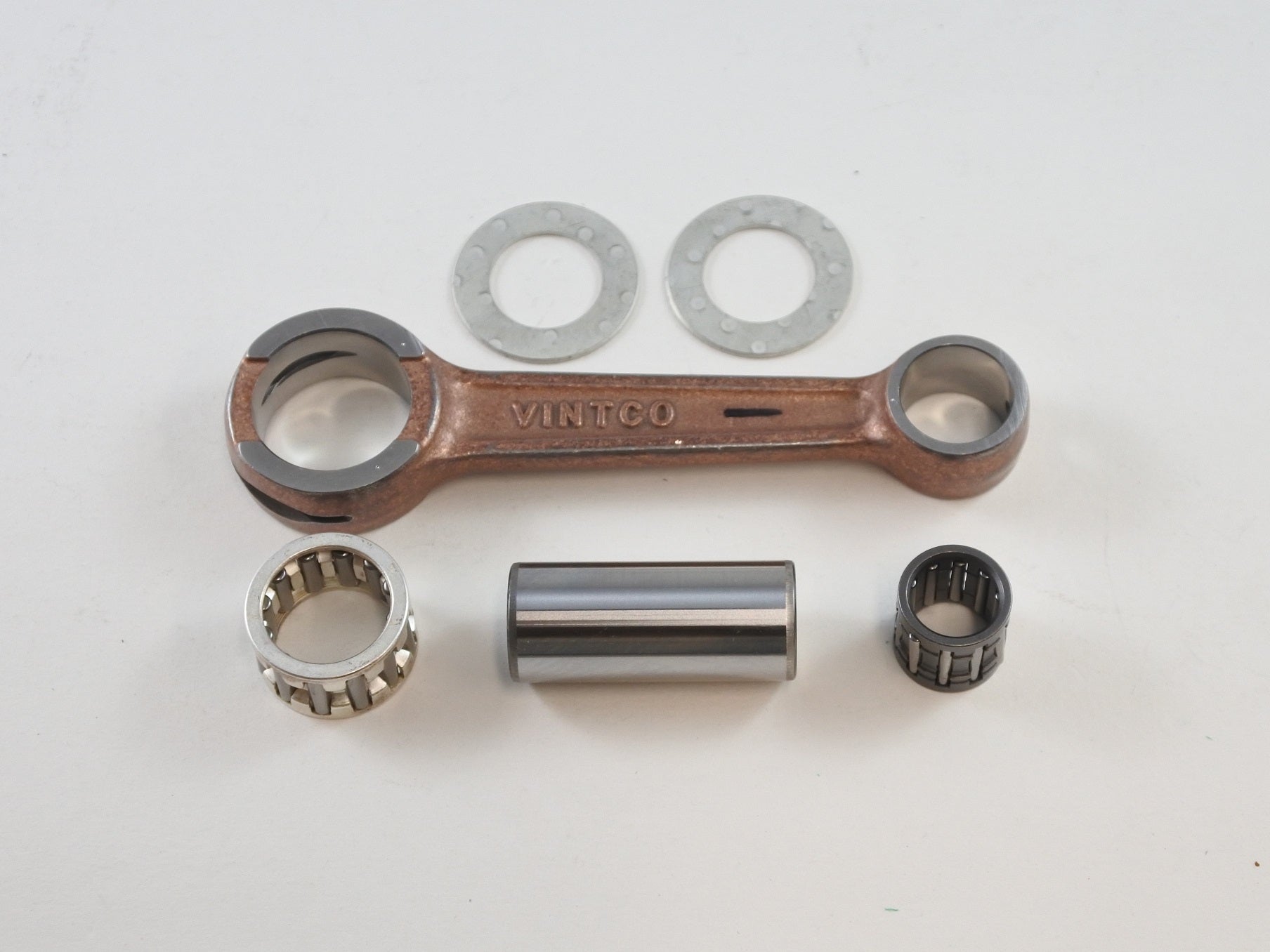

This connecting rod kit is a replacement crankshaft component set for specified Suzuki DS80, JR80, RM60 and RM80 models. It includes one heavy duty forged steel connecting rod, one crank pin, one big end bearing, one wrist pin bearing and two thrust washers for connecting rod service and rebuild work.

Features

• Connecting rod kit for crankshaft rebuild and repair
• Complete set with connecting rod, crank pin, big end bearing, wrist pin bearing and thrust washers
• Suitable for the listed Suzuki DS80, JR80, RM60 and RM80 models

Specifications

• VintCo Part Number: KR2064
• Connecting rod included: 1
• Connecting rod material: Heavy duty forged steel
• Crank pin included: 1
• Crank pin size: 17 x 40 mm
• Big end bearing included: 1
• Big end bearing size: 17 x 23 x 13.8 mm
• Wrist pin bearing included: 1
• Wrist pin bearing size: 12 x 16 x 15.8 mm
• Thrust washers included: 2
• Thrust washer size: 17.25 x 28.9 x 1 mm

Vehicle Fitments

• 1977 Suzuki RM80
• 1978 Suzuki RM80
• 1978 Suzuki DS80
• 1979 Suzuki RM80
• 1979 Suzuki RM60
• 1979 Suzuki DS80
• 1980 Suzuki RM60
• 1980 Suzuki DS80
• 1981 Suzuki RM60
• 1981 Suzuki DS80
• 1982 Suzuki RM60
• 1982 Suzuki DS80
• 1983 Suzuki RM60
• 1983 Suzuki DS80
• 1984 Suzuki DS80
• 1985 Suzuki DS80
• 1986 Suzuki DS80
• 1987 Suzuki DS80
• 1988 Suzuki DS80
• 1989 Suzuki DS80
• 1990 Suzuki DS80
• 1991 Suzuki DS80
• 1992 Suzuki DS80
• 1993 Suzuki DS80
• 1994 Suzuki DS80
• 1995 Suzuki DS80
• 1996 Suzuki DS80
• 1997 Suzuki DS80
• 1998 Suzuki DS80
• 1999 Suzuki DS80
• 2000 Suzuki DS80
• 2001 Suzuki JR80
• 2002 Suzuki JR80
• 2003 Suzuki JR80
• 2004 Suzuki JR80
