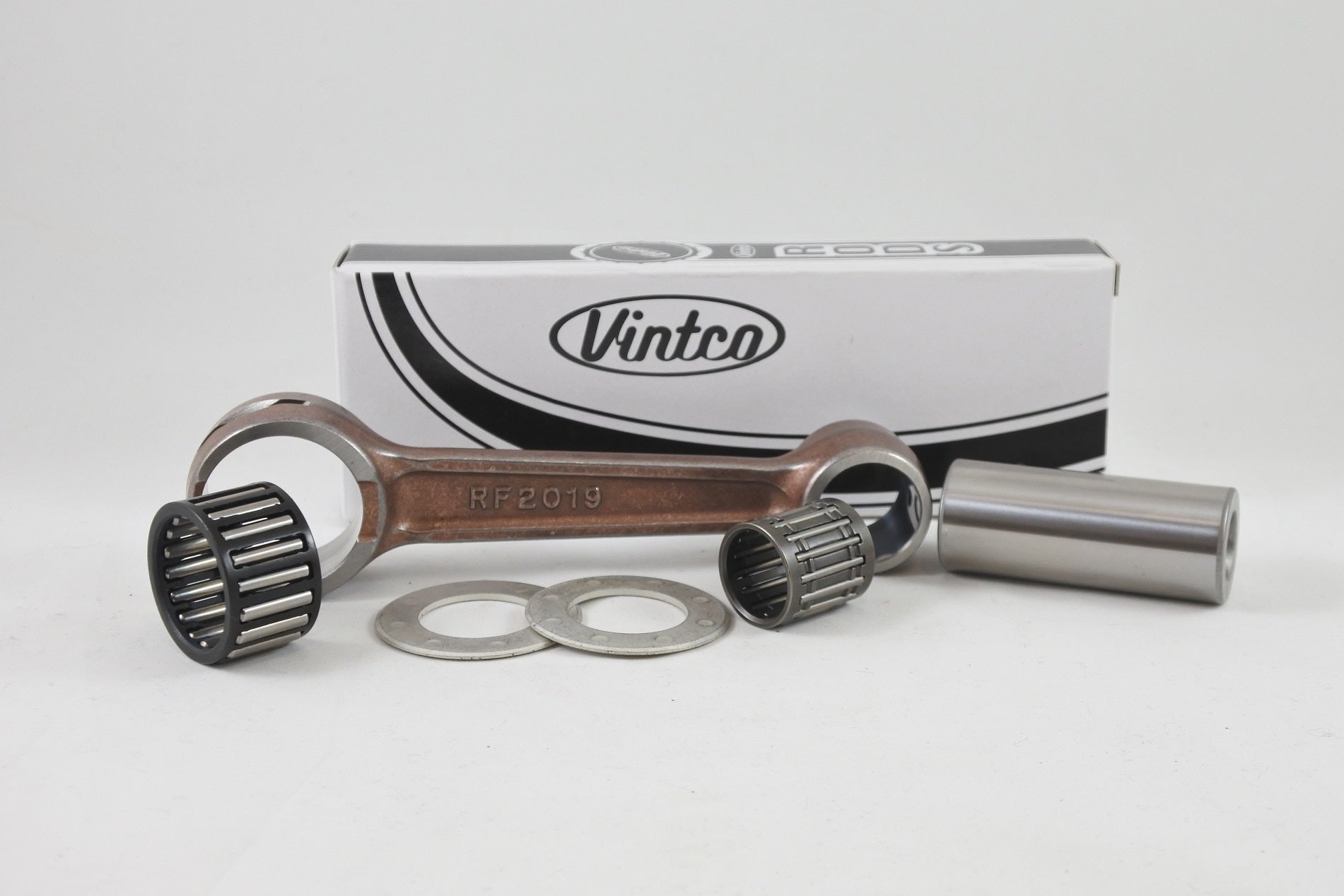

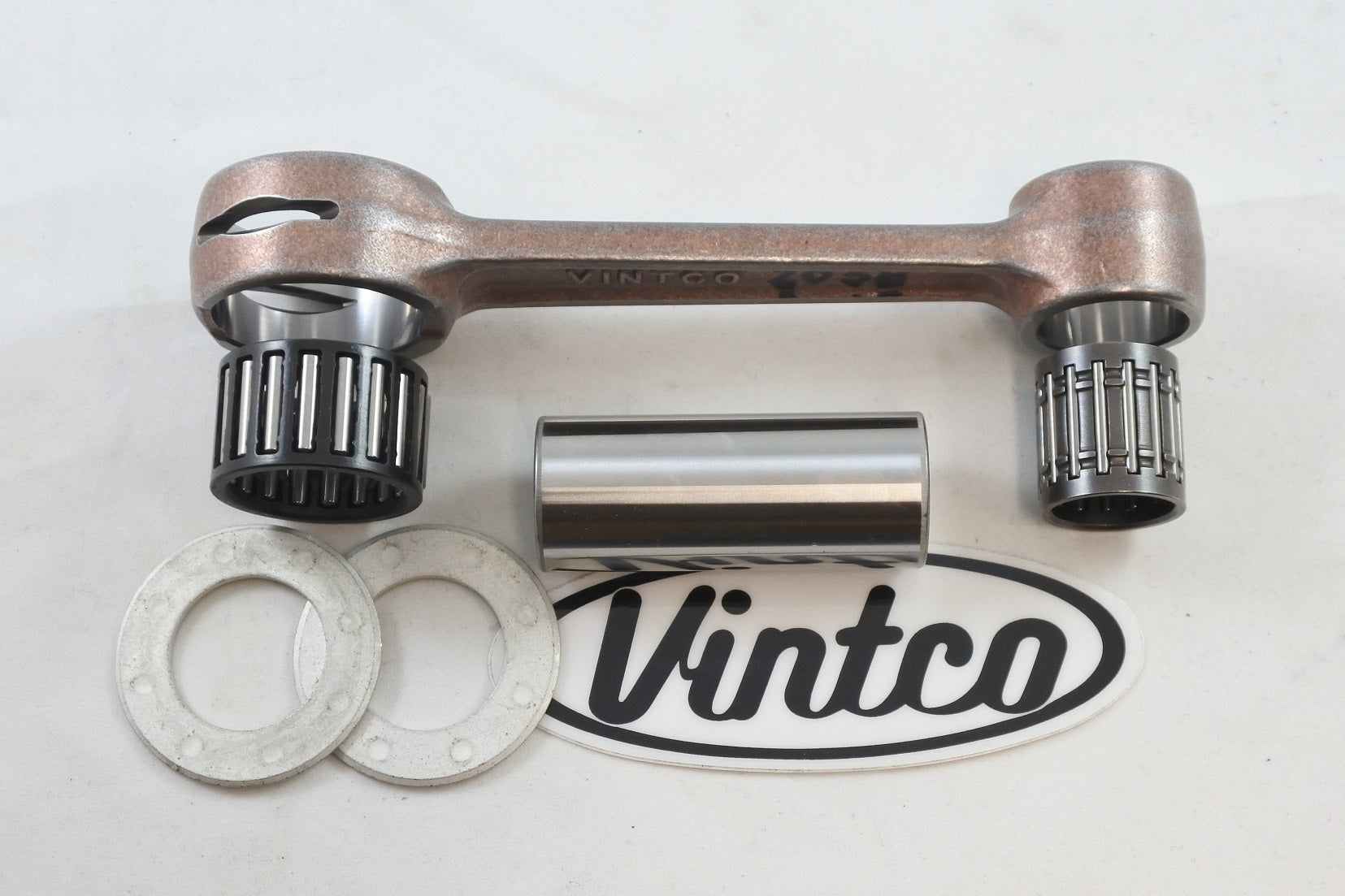

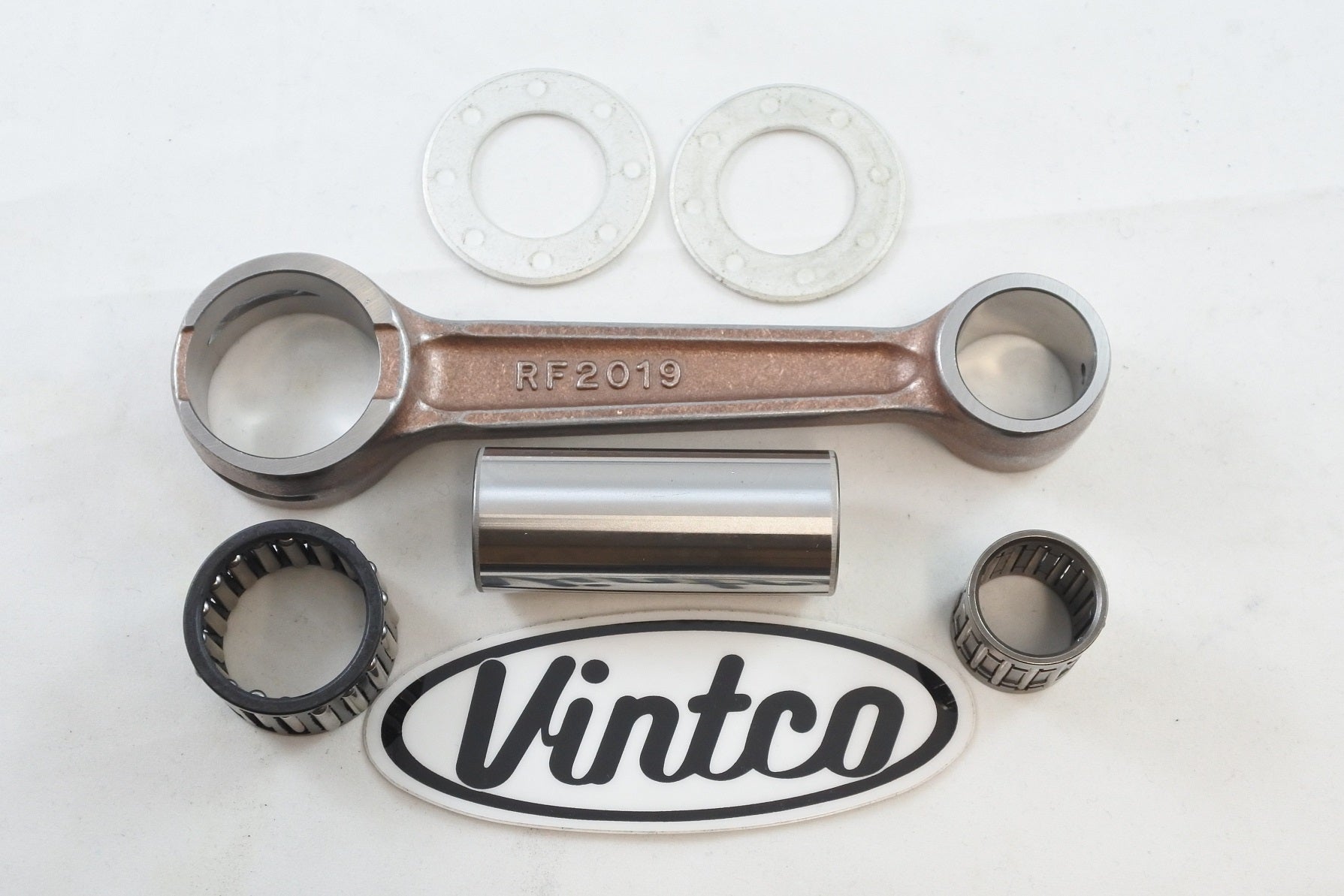

Connecting Rod Kit 74-76 Kawasaki Kt KX 250 Vintco KR2038

This VintCo connecting rod kit is a replacement engine component set for 1974-76 Kawasaki KX250 and 1975-76 Kawasaki KT250 models. It is designed as a cost-saving alternative to replacing the complete crankshaft and includes the main rod assembly components required for connecting rod service or rebuild work, with fitment intended to match OEM requirements.

Features

• Replacement connecting rod kit for Kawasaki KX250 and KT250 models
• Suitable for engine rebuild and repair work
• Cost-saving alternative to replacing a complete crankshaft
• Manufactured using modern materials and production techniques
• Intended for OEM-equivalent fitment and performance
• Includes connecting rod, crank pin, big end bearing, wrist pin bearing, and two thrust washers

Specifications

• VintCo Part Number: KR2038
• Connecting rod material: heavy duty forged steel
• Connecting rod quantity: 1
• Crank pin size: 11 x 24 x 58.5 mm
• Crank pin quantity: 1
• Big end bearing size: 24 x 32 x 20 mm
• Big end bearing quantity: 1
• Wrist pin bearing size: 18 x 22 x 24 mm
• Wrist pin bearing quantity: 1
• Thrust washer size: 24 x 41.5 x 10.5 mm
• Thrust washer quantity: 2

Vehicle Fitments

• 1974 Kawasaki KX250
• 1975 Kawasaki KX250
• 1975 Kawasaki KT250
• 1976 Kawasaki KX250
• 1976 Kawasaki KT250
