CONNECTING ROD KIT 71-81 SUZUKI DS TS RM TM RV TC 100 125 VINTCO KR2073
  • CONNECTING ROD KIT 71-81 SUZUKI DS TS RM TM RV TC 100 125 VINTCO KR2073
  • CONNECTING ROD KIT 71-81 SUZUKI DS TS RM TM RV TC 100 125 VINTCO KR2073
  • CONNECTING ROD KIT 71-81 SUZUKI DS TS RM TM RV TC 100 125 VINTCO KR2073
  • CONNECTING ROD KIT 71-81 SUZUKI DS TS RM TM RV TC 100 125 VINTCO KR2073
  • CONNECTING ROD KIT 71-81 SUZUKI DS TS RM TM RV TC 100 125 VINTCO KR2073
  • CONNECTING ROD KIT 71-81 SUZUKI DS TS RM TM RV TC 100 125 VINTCO KR2073
CONNECTING ROD KIT 71-81 SUZUKI DS TS RM TM RV TC 100 125 VINTCO KR2073

CONNECTING ROD KIT 71-81 SUZUKI DS TS RM TM RV TC 100 125 VINTCO KR2073

£141.71 GBP
Taxes included. Shipping calculated at checkout.

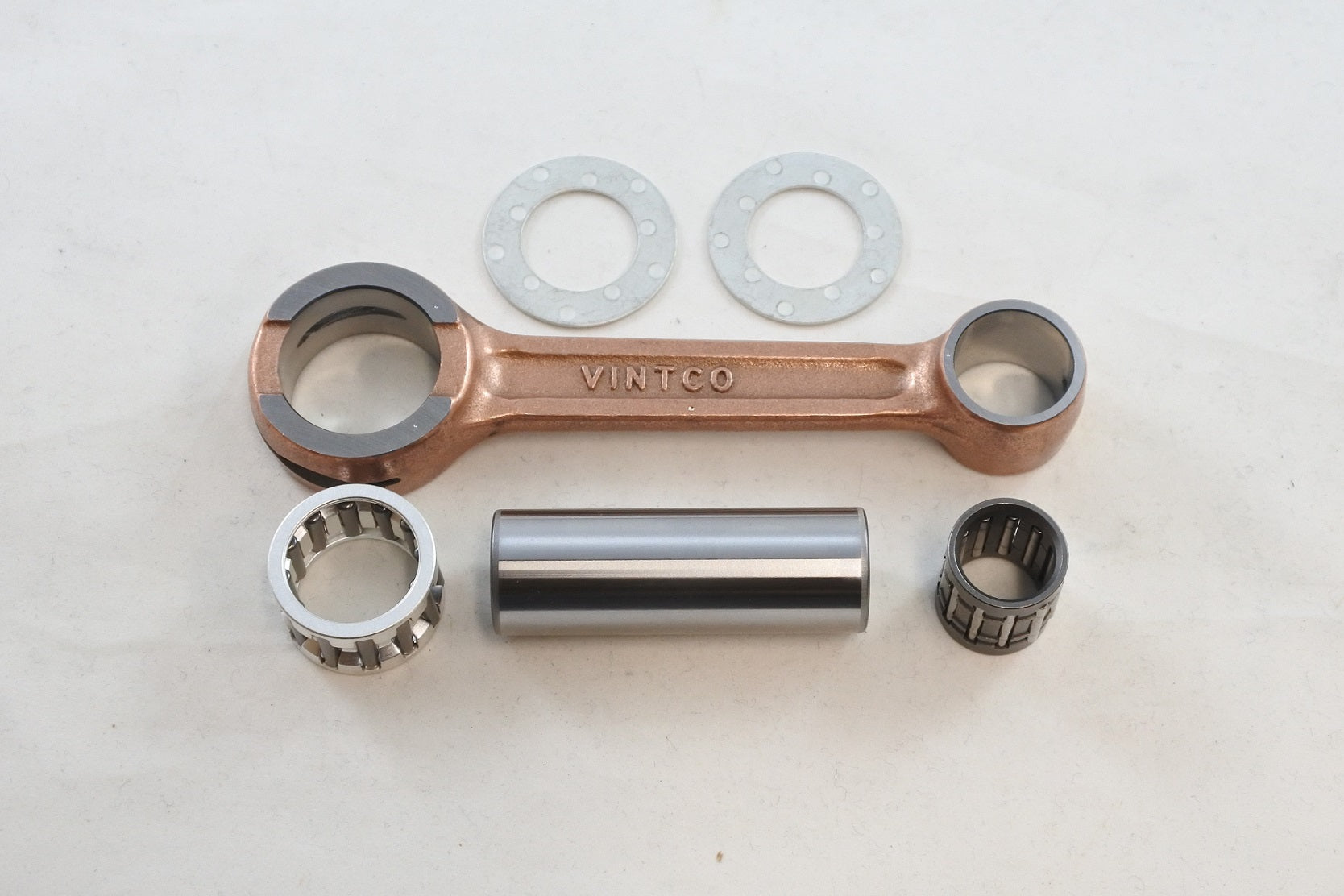

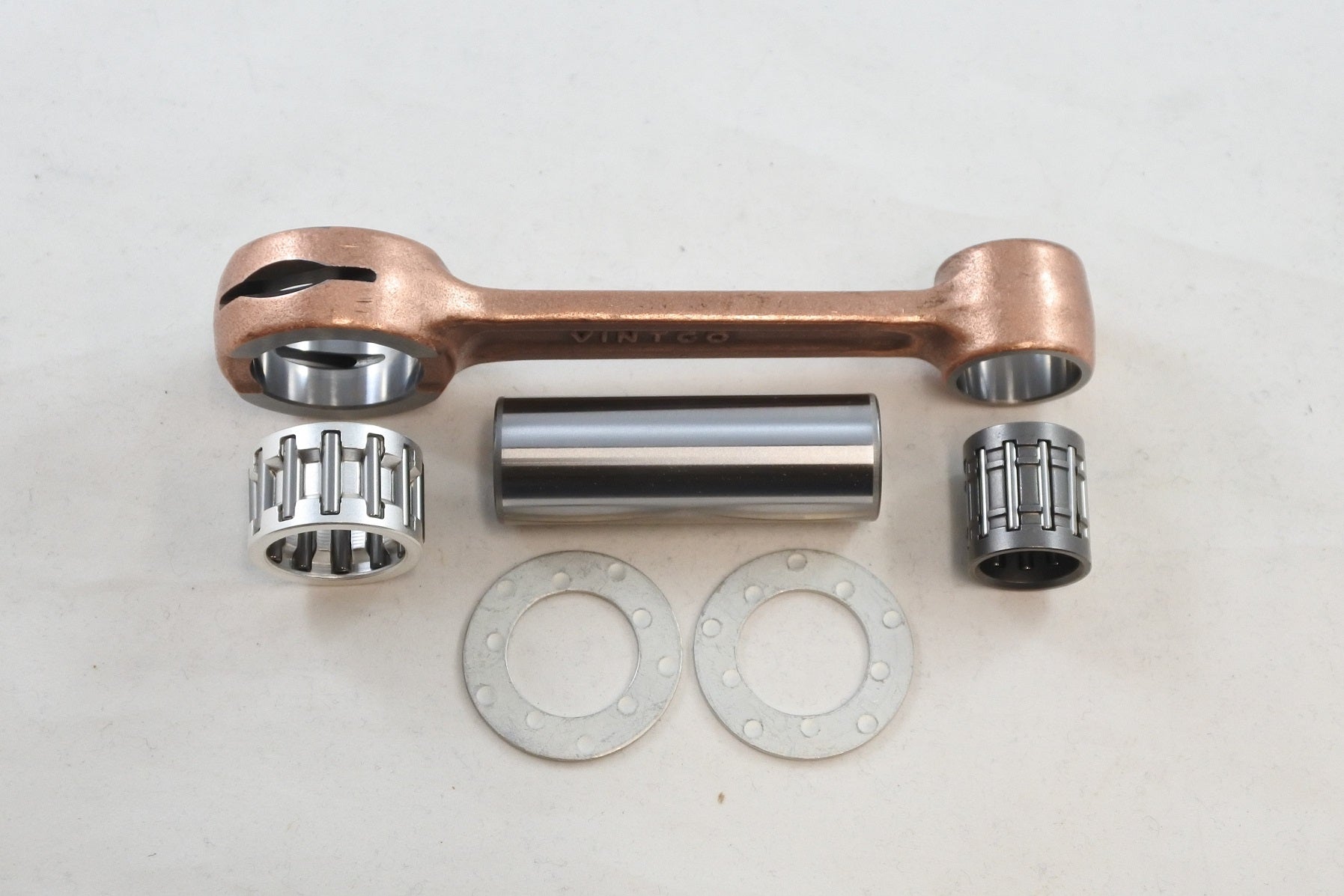

VintCo KR2073 is a newly manufactured connecting rod kit for vintage Suzuki 100cc and 125cc two-stroke models from 1971 to 1981. It is intended as a replacement for worn connecting rod assemblies and offers a lower-cost alternative to replacing the complete crankshaft. The kit is designed for OEM-equivalent fitment and includes the connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers.

Features

  • Replacement connecting rod kit for vintage Suzuki dirt bike and trail models
  • Suitable for engine rebuilds where the original rod assembly is worn or damaged
  • Lower-cost alternative to replacing a complete crankshaft
  • Designed for OEM-equivalent fitment
  • Complete kit includes connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers
  • Newly manufactured replacement part

Specifications

  • VintCo Part Number: KR2073
  • Connecting rod material: heavy duty forged steel
  • Quantity: 1 connecting rod
  • Crank pin size: 7 x 19 x 55.9 mm
  • Big end bearing size: 19 x 25 x 15.8 mm
  • Wrist pin bearing size: 14 x 18 x 19.8 mm
  • Thrust washer size: 19.2 x 32 x 1 mm
  • Quantity: 2 thrust washers

Vehicle Fitments

  • 1971 Suzuki TS125
  • 1972 Suzuki TS125
  • 1972 Suzuki TC125
  • 1973 Suzuki TM125
  • 1973 Suzuki TC125
  • 1973 Suzuki TS125
  • 1973 Suzuki RV125
  • 1974 Suzuki TM125
  • 1974 Suzuki TC125
  • 1974 Suzuki TM100
  • 1974 Suzuki TS125
  • 1974 Suzuki RV125
  • 1975 Suzuki RM125
  • 1975 Suzuki TM125
  • 1975 Suzuki TC125
  • 1975 Suzuki TM100
  • 1975 Suzuki TS125
  • 1975 Suzuki RV125
  • 1976 Suzuki RM100
  • 1976 Suzuki TC125
  • 1976 Suzuki TS125
  • 1976 Suzuki RV125
  • 1977 Suzuki RM125
  • 1977 Suzuki TC125
  • 1977 Suzuki TS125
  • 1977 Suzuki RV125
  • 1978 Suzuki RM125
  • 1978 Suzuki DS100
  • 1978 Suzuki TS100
  • 1978 Suzuki TS125
  • 1979 Suzuki DS100
  • 1979 Suzuki TS100
  • 1979 Suzuki DS125
  • 1979 Suzuki TS125
  • 1980 Suzuki DS100
  • 1980 Suzuki TS100
  • 1980 Suzuki DS125
  • 1980 Suzuki TS125
  • 1981 Suzuki DS100
  • 1981 Suzuki TS100
  • 1981 Suzuki DS125
  • 1981 Suzuki TS125
  • 1981 Suzuki RM125
